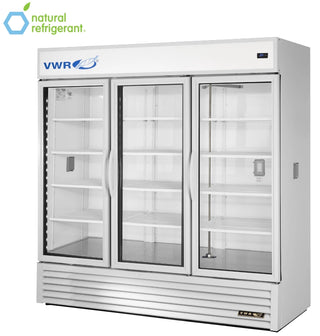

VWR GDM-72-SCI-HC~TSL01 VWR WHT 2P1D1M Basic Chromatography Glass Door Refrigerator with Mast, Natural Refrigerant White Swing Doors, 72 cu. ft.

VWR GDM-72-SCI-HC~TSL01 VWR WHT 2P1D1M Basic Chromatography Glass Door Refrigerator with Mast, Natural Refrigerant White Swing Doors, 72 cu. ft., Powder-Coated Steel Construction

The VWR Basic Chromatography Glass Door Refrigerator (Catalog No: 10791-628 / Model: GDM-72-SCI-HC~TSL01 VWR WHT 2P1D1M), manufactured by True Refrigeration, represents the ultimate extra-large storage capacity solution for demanding chromatography procedures, high-throughput laboratories, and research institutions. Featuring three double-pane thermal glass swing doors and an eco-friendly natural refrigerant system, this massive 72 cubic foot (2039 L) white upright cabinet provides maximum interior capacity, uniform temperature preservation, and full visibility across all shelf sections.

Built for heavy-duty scientific applications, the cabinet exterior is constructed with a non-peel, non-chip white powder-coated cold-rolled steel finish, paired with an NSF-approved white aluminum interior liner and a rugged stainless steel floor. The entire cabinet structure is foamed-in-place using high-density polyurethane insulation with zero Ozone Depletion Potential (ODP) and zero Global Warming Potential (GWP). A welded, heavy-duty steel frame rail fitted with leg levelers offers high structural stability and long-term corrosion protection.

The cabinet is equipped with three double-pane thermal insulated glass swing doors. The doors utilize a positive-seal torsion closure system to ensure automatic, tight self-closing operation that protects samples during frequent door openings. Each door features a 12" (305 mm) extruded handle and a tool-free removable magnetic gasket for effortless sanitation. Bright, safety-shielded LED interior lighting provides clear and uniform illumination throughout the entire 3-door cabinet structure.

Purpose-engineered for complex laboratory setups, this 72 cu. ft. chromatography model comes standard with two access ports for monitoring probes or fluid lines, an internal grounded duplex electrical outlet with a protective cover, and an internal chromatography mounting mast. The internal layout includes twelve adjustable, heavy-duty PVC-coated white wire shelves supported by interior pilasters adjustable in 1/2" increments. A built-in floor clean-out drain simplifies washing and routine maintenance.

Refrigeration performance is driven by a factory-engineered, self-contained capillary tube system running on eco-friendly R290 hydrocarbon refrigerant (0 ODP, 3 GWP). Powered by a bottom-mounted 1/2 HP compressor with state-of-the-art electronically commutated fan motors (ECM), the system moves air consistently with minimal heat production, maintaining precise temperatures between 2°C and 8°C (35.6°F to 46.4°F). An electronic temperature controller with an exterior digital display and alarm function ensures continuous monitoring and maximum sample security.

Features:

• Maximum Storage Capacity: 72 cubic foot (2039 L) triple-door configuration offers maximum internal space for high-volume chromatography and laboratory storage.
• Three Double-Pane Thermal Glass Doors: Equipped with three self-closing, double-pane thermal glass swing doors featuring a positive-seal torsion system to maintain climate integrity.
• Complete Chromatography Setup: Standard equipped with two access ports, an internal grounded duplex electrical outlet with cover, and an internal chromatography mounting mast.
• Eco-Friendly Natural Refrigerant: Utilizes R290 hydrocarbon refrigerant with zero (0) ODP and three (3) GWP for exceptional energy efficiency and environmental sustainability.
• Powder-Coated Steel Construction: Durable non-peel or chip white powder-coated cold-rolled steel exterior provides a long-lasting, clean laboratory appearance.
• Electronic Temperature Control: Exterior digital temperature display and integrated alarm system provide continuous thermal tracking and immediate alerts.
• High-Efficiency ECM Fan Motors: Electronically commutated evaporator and condenser fan motors operate at peak efficiency, generating less heat and reducing energy usage.
• Twelve Adjustable Shelves: Includes twelve heavy-duty PVC-coated white wire shelves adjustable in 1/2" increments with chrome-plated shelf clips.
• Uniform LED Interior Lighting: Safety-shielded LED lighting spans the full cabinet interior for maximum visibility across all three sections.
• Solid Warranty Coverage: Backed by a 3-year parts and labor warranty with an additional 2-year warranty on the compressor.

Specifications:
