| Product Name | VWR Plus Series Solid Door Laboratory Refrigerator |
| VWR Catalog No | 76579-102 |
| Model Code | VWR-HC-12S |
| Supplier | VWR International |
| Capacity | 12 cu. ft. (340 L) |
| Door Type | 1 solid swing door (self-closing, right hinged, non-reversible) |
| Defrost System | Cycle defrost |
| Shelves | 3 adjustable shelves (adjustable in 1/2" increments) |
| Control System | Microprocessor controller with Digital Temperature Display & Alarm Module |
| Security | Keyed door lock |
| Alarms | High/low temperature, sensor error, power failure (audible, visual, remote) |
| Probes | Dual probes (1 air probe, 1 sample bottle probe) |
| Probe Access | 3/8" probe access port |
| Data & Monitoring | Resettable 1-point min/max history, remote alarm contacts |
| Lighting | Switch-controlled, safety-shielded interior LED light |
| Cabinet Material | White powder-coated steel interior and exterior |
| Mobility | 3.5" swivel casters included |
| General Warranty | Two-year parts and labor warranty |
| Compressor Warranty | Three-year additional compressor parts warranty |
| Certifications & Compliance | ETL Listed, Environmentally Preferable (Safer Human & Environmental Health, Energy Efficient) |
| Exterior Dimensions (W x D x H) | 25.00" W x 29.75" D x 65.75" H with casters; 62.25" H without casters (635 x 756 x 1619 mm) |
| Interior Dimensions (W x D x H) | 19.75" W x 19.25" D x 36.25" H (502 x 489 x 921 mm) |
| Product Net Weight | 102 kg (227 lbs.) |
| Shipping Weight | 102 kg (227 lbs.) |
| Operating Temperature Range | 1°C to 10°C |
| Air Circulation | Forced draft air circulation |
| Compressor Power | 1/5 HP |
| Refrigerant | Natural R290 Hydrocarbon refrigerant (HFC-free) |
| Electrical Requirements | 115 V / 60 Hz, 3.0 Amps |
New
VWR VWR-HC-12S Plus Series Solid Door Laboratory Refrigerator Digital Display and Alarm Module, 12 cu. ft.
by
VWR
SKU: VWR-HC-12S
Fast & Reliable Shipping
Typically 1-3 Business Days
Regulatory Compliant
Registered & Certified Medical Equipment
Support
Need help?
Fast & Reliable Shipping
Typically 1-3 Business Days
Regulatory Compliant
Registered & Certified Medical Equipment
Support
Need help?
VWR VWR-HC-12S Plus Series Solid Door Laboratory Refrigerator Digital Display and Alarm Module, 12 cu. ft., Compact Lab-Grade Storage, Forced Air Cooling and Cycle Defrost

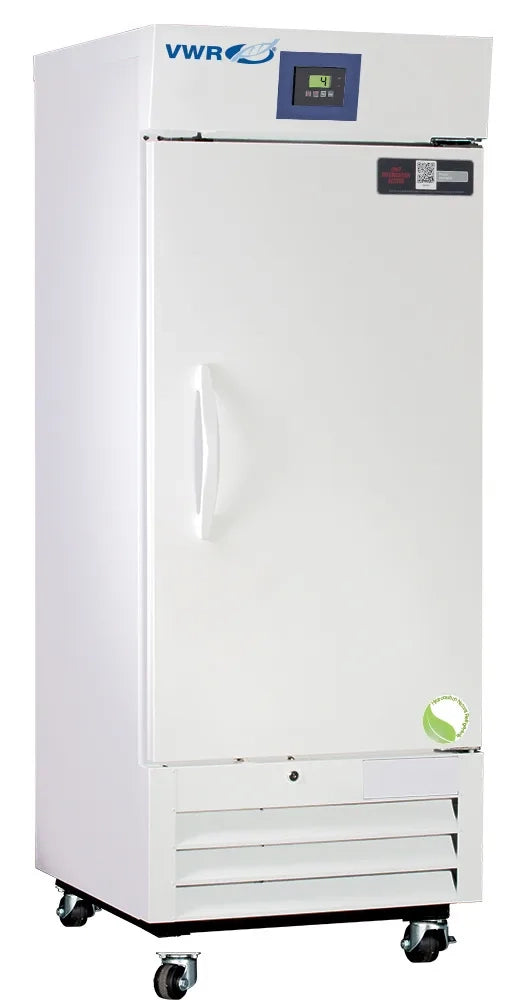

The VWR Plus Series Solid Door Laboratory Refrigerator (Catalog No: 76579-102 / Model: VWR-HC-12S), supplied by VWR International, is a compact 12 cubic foot (340 L) cold storage solution designed specifically for scientific, clinical, and analytical laboratory environments requiring precise temperature control and dependable sample protection. Featuring a single self-closing swing solid door (right hinged, non-reversible), this unit combines high energy efficiency with maximum thermal protection in a space-saving freestanding footprint.
Temperature management and system safety are driven by a Microprocessor Temperature Controller paired with a Digital Temperature Display and Alarm Module. The display provides sample-simulated digital temperature monitoring with 0.1° resolution (selectable °C or °F) alongside a resettable 1-point min/max temperature history.
The system maintains a consistent operating temperature range of 1°C to 10°C using forced draft air circulation and an automated cycle defrost mechanism. System integrity is monitored by dual sensing probes (1 air probe and 1 sample bottle probe) and comprehensive safety alarms including audible and visual high/low temperature, sensor error, and power failure alerts. The alarm system offers validation testing, mute functions with ring back, and remote alarm contacts for facility monitoring integration.

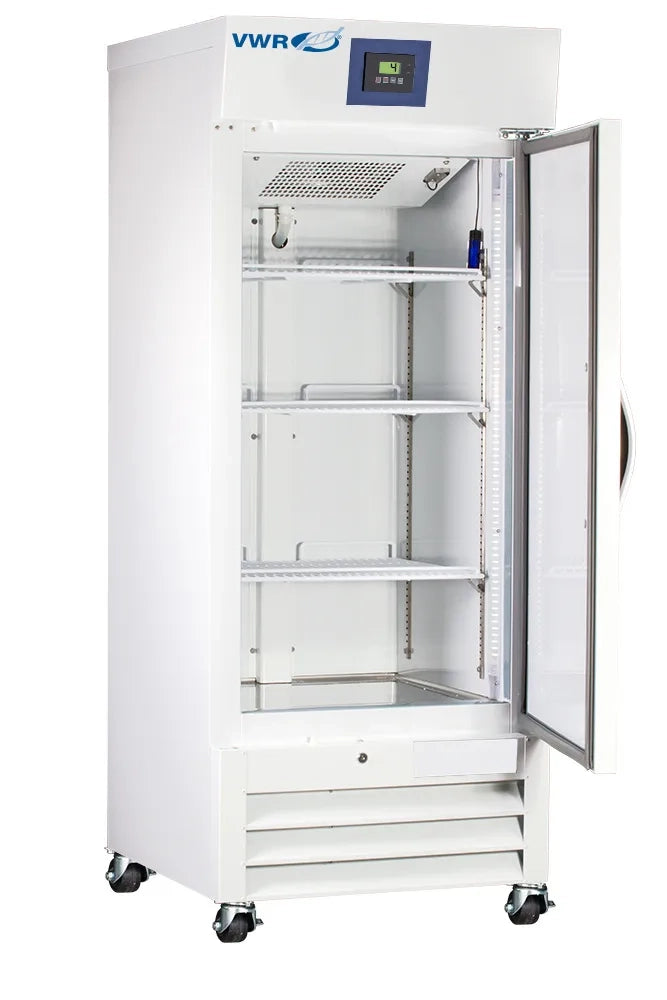

Interior organization includes three heavy-duty white powder-coated steel shelves (adjustable in 1/2" increments) and safety-shielded, switch-controlled LED interior lighting. Built with a durable white powder-coated steel interior and exterior, the cabinet is equipped with a keyed door lock, a 3/8" probe access port, and 3.5" swivel casters. Utilizing eco-friendly R290 natural hydrocarbon refrigerant, this energy-efficient unit is ETL listed.
Features:
- Compact Lab-Grade Storage: Provides 12 cu. ft. (340 L) of precise cold storage capacity in a space-saving single-door upright footprint.
- Single Swing Solid Door: Features 1 self-closing swing solid door (right hinged, non-reversible) for maximum thermal insulation and cold air retention.
- Microprocessor & Digital Display: Features a microprocessor temperature controller paired with a digital display module providing 0.1° resolution and a resettable 1-point min/max history.
- Comprehensive Alarm Safeguards: Equipped with audible/visual high and low temperature alarms, sensor error alarms, power failure alerts, alarm validation testing, mute with ring back, and remote alarm contacts.
- Dual Sensing Probes & Sample Simulation: Utilizes 2 sensing probes (1 air probe and 1 sample bottle probe) to accurately reflect true sample temperature conditions.
- Forced Air Cooling & Cycle Defrost: Delivers uniform temperature distribution across an adjustable range of 1°C to 10°C using forced draft air circulation and automated cycle defrosting.
- Flexible Interior Organization: Includes 3 adjustable white powder-coated steel shelves (adjustable in 1/2" increments) and switch-controlled interior LED lighting.
- Eco-Friendly R290 Hydrocarbon Refrigerant: Operates on natural R290 refrigerant for zero ozone depletion and high operational energy efficiency.
- Safety & Warranty Compliance: ETL listed design backed by a 2-year parts and labor warranty plus an additional 3-year compressor parts warranty.
Specifications:
