| Overview | |
|---|---|
| Product Name | VWR Plus Series Glass Door Specialty Laboratory Refrigerator |
| VWR Catalog No | 76580-160 |
| Model Code | VWR-HC-49 |
| Supplier | VWR International |
| Capacity | 49 cu. ft. (1388 L) |
| Door Type | 2 glass swing doors (self-closing, double pane vacuum-insulated) |
| Defrost System | Cycle defrost |
| Shelves | 8 adjustable shelves (adjustable in 1/2" increments) |
| Control System | Microprocessor temperature controller with digital display and alarm module (0.1° resolution, °C/°F selectable) |
| Security | Keyed door lock |
| Alarms | Audible and visual high/low temperature alarms, sensor error alarm, power failure alarm, remote alarm contacts, alarm validation, alarm mute with ring-back |
| Data Tracking | Resettable 1-point Min/Max temperature history (sample-simulated) |
| Probe Access | 3/8" probe access port |
| Cabinet Exterior | White laminated vinyl exterior |
| Cabinet Interior | White aluminum liner with stainless steel floor |
| Lighting | Safety-shielded LED interior lights (switch controlled) |
| Casters | Swivel casters installed (adds 4" to overall height) |
| General Warranty | Two-year parts and labor warranty |
| Compressor Warranty | Three-year additional compressor parts warranty |
| Certifications & Compliance | UL/C-UL Listed, Environmentally Preferable (Energy Efficient) |
| Physical Dimensions & Weight | |
| Exterior Dimensions without Casters (W x D x H) | 54.25" W x 31.00" D x 78.625" H (1378 x 787 x 1997 mm) |
| Exterior Dimensions with Casters (W x D x H) | 54.25" W x 31.00" D x 82.625" H (1378 x 787 x 2099 mm) |
| Interior Dimensions (W x D x H) | 50.375" W x 22.50" D x 56.00" H (1280 x 572 x 1422 mm) |
| Product Net Weight | 225 kg (495 lbs.) |
| Shipping Weight | 240 kg (530 lbs.) |
| Performance & Electrical Details | |
| Operating Temperature Range | 1°C to 10°C |
| Air Circulation | Forced draft air circulation |
| Compressor Power | 1/2 HP |
| Cooling Capacity | 7315 BTU/HR |
| Refrigerant | Natural R290 Hydrocarbon refrigerant (HFC-free) |
| Electrical Requirements | 115 V / 60 Hz, 8.5 Amps |
VWR VWR-HC-49 Plus Series Glass Door Specialty Laboratory Refrigerator Digital Display and Alarms, 49 cu. ft.
Typically 1-3 Business Days
Registered & Certified Medical Equipment
Need help?
Typically 1-3 Business Days
Registered & Certified Medical Equipment
Need help?
VWR VWR-HC-49 Plus Series Glass Door Specialty Laboratory Refrigerator Digital Display and Alarms, Double-Pane Vacuum-Insulated Glass Doors, Flexible and Hygienic Interior 49 cu. ft.

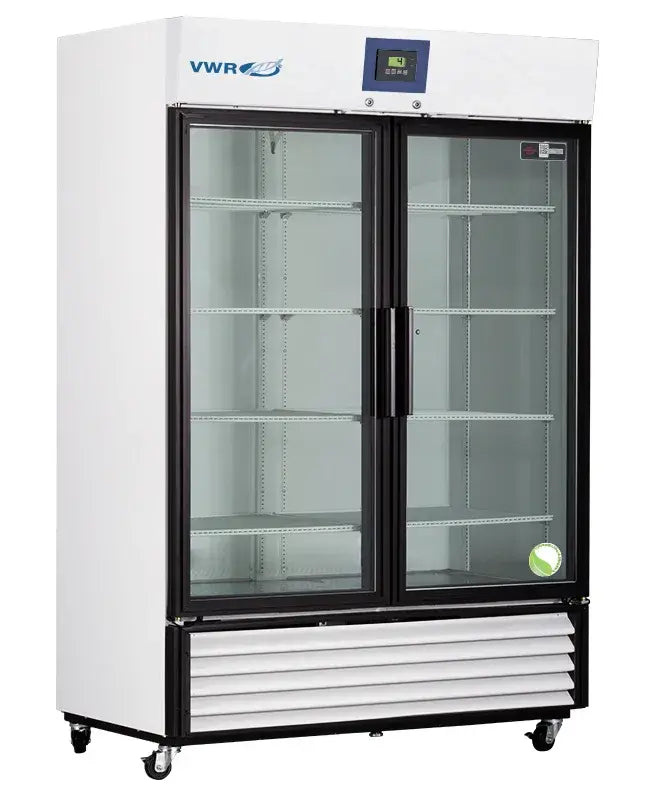

The VWR Plus Series Glass Door Specialty Laboratory Refrigerator (Catalog No: 76580-160 / Model: VWR-HC-49), supplied by VWR International, is an extra-large capacity 49 cubic foot (1388 L) cold storage solution engineered for high-throughput clinical, pharmaceutical, research, and industrial laboratory environments requiring advanced temperature monitoring, complete sample visibility, and maximum storage capacity. Featuring two self-closing, double-pane vacuum-insulated glass swing doors with heavy-duty handles, this upright cabinet minimizes heat gain during access while enabling immediate visual inspection of sensitive samples and reagents.
Thermal accuracy and system safety are managed by a Microprocessor Temperature Controller paired with a Digital Temperature Display and Alarm Module. Operating across an adjustable temperature range of 1°C to 10°C, the system utilizes forced draft air circulation for uniform thermal distribution and rapid recovery, along with an automated cycle defrost system. The advanced monitoring module features a sample-simulated digital display with 0.1° resolution (selectable °C/°F), a resettable 1-point Min/Max temperature history, audible and visual high/low temperature alarms, sensor error alarms, power failure alarms, remote alarm contacts, alarm validation, and an alarm mute feature with ring-back capability.

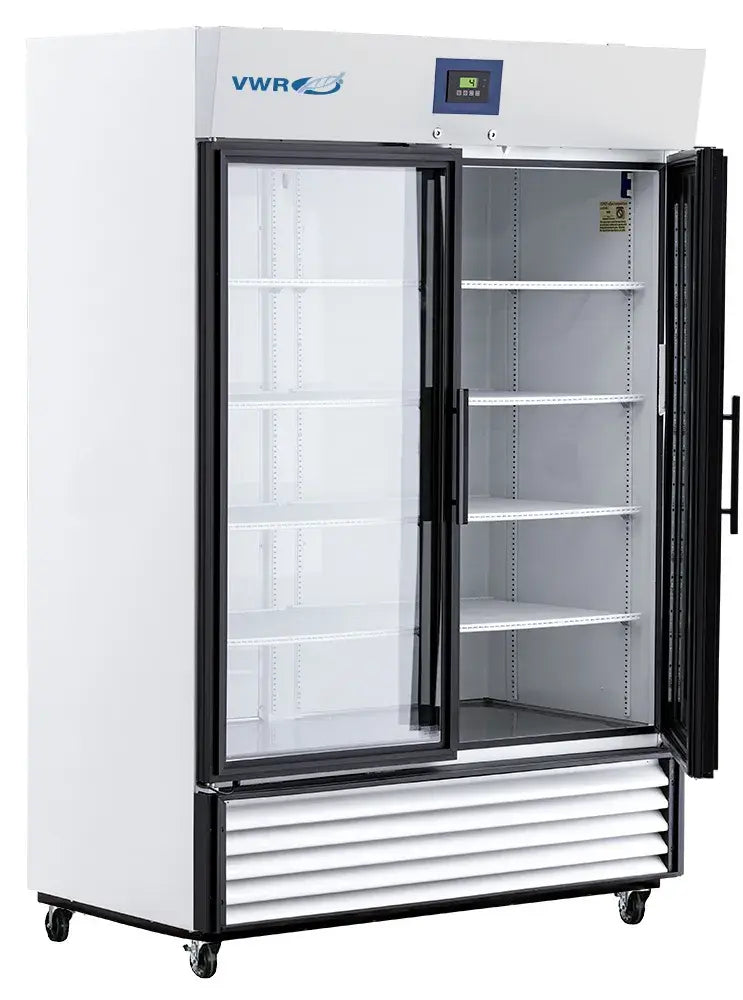

The heavy-duty interior is constructed with a durable white aluminum liner and a stainless steel floor, illuminated by safety-shielded, switch-controlled LED interior lighting. Inventory organization is highly customizable with eight heavy-duty adjustable shelves (adjustable in 1/2" increments).
Built with a white laminated vinyl exterior, the cabinet includes a keyed door lock, magnetic door gaskets for a positive seal, a 3/8" probe access port, and factory-installed swivel casters (which add 4" to overall cabinet height). Operating on eco-friendly, HFC-free R290 natural hydrocarbon refrigerant, this unit is UL/C-UL listed and backed by a 2-year parts and labor warranty plus an additional 3-year compressor parts warranty.
Features:
- Extra-Large Specialty Capacity: Provides 49 cu. ft. (1388 L) of reliable cold storage capacity in a dual-door upright cabinet designed for high-volume laboratory storage.
- Double-Pane Vacuum-Insulated Glass Doors: Features 2 self-closing glass doors with heavy-duty handles and magnetic gaskets for maximum thermal insulation and full interior visibility.
- Microprocessor Thermal Regulation: Driven by a precision microprocessor regulating an adjustable operating temperature range of 1°C to 10°C with forced draft air circulation and cycle defrosting.
- Advanced Display & Multi-Alarm System: Features a 0.1° resolution sample-simulated display, Min/Max history logging, audible/visual high/low temperature alarms, sensor error alarms, power failure alarms, remote contacts, alarm validation, and mute with ring-back.
- Flexible & Hygienic Interior: Built with a white aluminum interior liner, stainless steel floor, safety-shielded LED lighting, and 8 heavy-duty shelves adjustable in 1/2" increments.
- Security & Mobile Mobility: Equipped with a keyed door lock, a 3/8" probe access port, and swivel casters for smooth mobility and positioning.
- Eco-Friendly R290 Hydrocarbon Refrigerant: Powered by natural, HFC-free R290 hydrocarbon refrigerant with environmentally friendly foam insulation and packaging.
- Compliance & Extended Warranty: UL/C-UL listed design supported by a 2-year parts and labor warranty plus an additional 3-year compressor parts warranty.
Specifications:
