| Overview | |
|---|---|
| Product Name | VWR Performance Series Flammable Material Storage Laboratory Refrigerator |
| VWR Catalog No | 76644-728 |
| Model Code | VWR-HC-FRP-20-TS |
| Supplier | VWR International |
| Capacity | 20 cu. ft. (566 L) |
| Safety Standards | Meets NFPA 30 and NFPA 45 standards for flammable cold storage (ATEX / non-sparking interior components) |
| Door Type | 1 solid swing door (right hinged) |
| Defrost System | Cycle defrost |
| Shelves | 5 adjustable shelves (4 full shelves, 1 half shelf) |
| Control System | Microprocessor temperature controller with digital touchscreen display (°C/°F switchable, 0.1°C resolution) |
| Data Tracking & Logging | Integrated temperature data logging, digital 24-hour temperature chart, active scale bar display, real-time clock, resettable 1-point Min/Max history |
| Security | Keyed door lock |
| Alarms | Audible/visual high and low temperature, door ajar, low battery, sensor error, power failure, remote alarm contacts (state-switching), alarm validation, adjustable alarm volume, customizable time delay, mute with ring-back |
| Probes | Dual probes (1 air probe, 1 sample bottle probe) |
| Probe Access | 3/4" diameter rear-wall probe access port |
| Cabinet Material | White powder-coated steel exterior |
| Insulation | High-density EPA-compliant foamed-in-place urethane insulation |
| Leveling | Leveling legs included |
| Clearance Requirement | Requires 4" clearance on sides and back for proper ventilation |
| General Warranty | Three-year parts and labor warranty |
| Compressor Warranty | Five-year compressor parts warranty |
| Certifications & Compliance | ETL Listed, Environmentally Preferable (Safer Human and Environmental Health / Energy Efficient) |
| Physical Dimensions & Weight | |
| Exterior Dimensions (W x D x H) | 30.875" W x 28.75" D x 76.375" H (784 x 730 x 1940 mm) |
| Interior Dimensions (W x D x H) | 24.75" W x 20.75" D x 65.25" H (629 x 527 x 1657 mm) |
| Door Swing Clearance | 29.25" door swing / 58.00" total depth with door open |
| Product Net Weight | 114 kg (252 lbs.) |
| Shipping Weight | 126 kg (277 lbs.) |
| Performance & Electrical Details | |
| Operating Temperature Range | 1°C to 10°C |
| Ambient Operating Conditions | Indoor use only, +18°C to +26°C (+65°F to +78°F), <70% RH |
| Refrigerant | Natural R600a Hydrocarbon refrigerant (HFC-free) |
| Electrical Requirements | 115 V / 60 Hz, 3.0 Amps |
| Power Cord / Plug | NEMA 5-15P plug (conforms to UL471 requirements) |
New
VWR VWR-HC-FRP-20-TS Performance Series Flammable Material Storage Laboratory Refrigerator Touchscreen Display, 20 cu. ft.
by
VWR
SKU: VWR-HC-FRP-20-TS
Fast & Reliable Shipping
Typically 1-3 Business Days
Regulatory Compliant
Registered & Certified Medical Equipment
Support
Need help?
Fast & Reliable Shipping
Typically 1-3 Business Days
Regulatory Compliant
Registered & Certified Medical Equipment
Support
Need help?
VWR VWR-HC-FRP-20-TS Performance Series Flammable Material Storage Laboratory Refrigerator Touchscreen Display, Dual Probe Thermal Monitoring, R600a Hydrocarbon Refrigerant, 20 cu. ft.

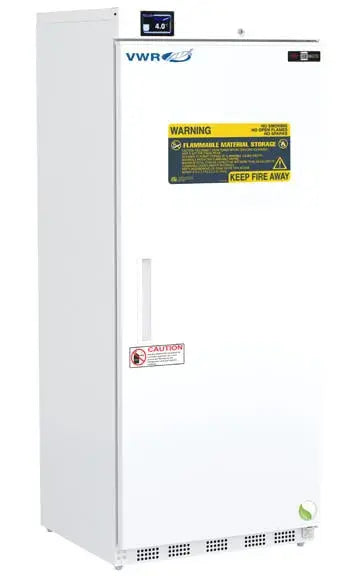

The VWR Performance Series Flammable Material Storage Laboratory Refrigerator (Catalog No: 76644-728 / Model: VWR-HC-FRP-20-TS), supplied by VWR International, is a spacious 20 cubic foot (566 L) premier cold storage solution engineered for the high-precision preservation of flammable and combustible liquids in sealed containers within unclassified laboratory environments. Fully compliant with NFPA 30 and NFPA 45 standards, this upright refrigerator utilizes non-sparking and ATEX-rated internal electrical components to eliminate internal ignition sources and maintain an intrinsically safe interior storage chamber.
Thermal regulation and process monitoring are controlled by an advanced Microprocessor Temperature Controller featuring a user-friendly Touchscreen Digital Interface. The state-of-the-art display provides real-time operational status, an active temperature scale bar, a 24-hour digital temperature chart, onboard temperature data logging, and a resettable 1-point Min/Max history log. Operating across an adjustable temperature range of 1°C to 10°C with automated cycle defrosting, the controller offers 0.1°C resolution and switchable °C/°F units. Thermal integrity is monitored via dual sensing probes (1 air probe and 1 sample bottle probe), state-switching remote alarm contacts, and comprehensive customizable alarms (high/low temperature, sensor error, power failure, door ajar, low battery, alarm validation, adjustable volume, customizable time delay, and mute with ring-back).

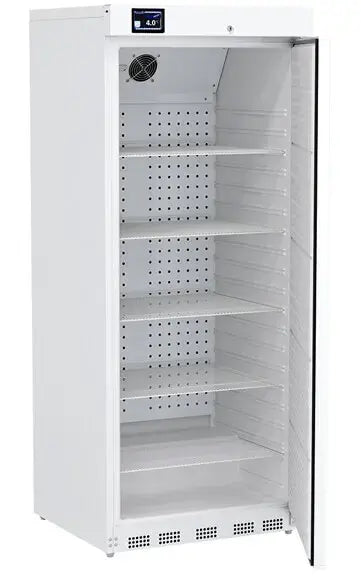

The interior layout offers high flexibility with five adjustable shelves (four full shelves plus one half shelf) and a rear-wall 3/4" probe access port for external validation equipment and temperature monitoring.
Constructed with a white powder-coated steel exterior and insulated with high-density EPA-compliant foamed-in-place urethane insulation, the unit features a single right-hinged solid swing door equipped with a keyed lock and a magnetic door gasket for a positive seal. Leveling legs allow for precise balance and stable installation. Operating on eco-friendly, HFC-free R600a natural hydrocarbon refrigerant, this unit is ETL Listed and backed by a 3-year parts and labor warranty plus a 5-year compressor parts warranty.
Features:
- NFPA Compliant Flammable Storage: Fully complies with NFPA 30 and NFPA 45 standards, utilizing non-sparking and ATEX-rated internal components for safe storage of combustible materials.
- Intrinsically Safe Cabinet Interior: Prevents internal electrical sparking, ensuring safe cold storage for volatile liquids in sealed containers within unclassified laboratory spaces.
- Touchscreen Controller & Data Logging: Features an interactive touchscreen interface with real-time clock, active temperature bar display, 24-hour temperature chart graph, and integrated data logging.
- Advanced Multi-Alarm Safeguards: Includes adjustable volume alarms, customizable time delays, door ajar, low battery, sensor error, power failure, high/low temperature alarms, remote contacts, and mute with ring-back.
- Dual Probe Thermal Monitoring: Equipped with 2 sensing probes (1 air probe, 1 sample bottle probe) for precise interior thermal evaluation.
- Versatile Interior Storage: Offers 5 adjustable shelves (4 full shelves, 1 half shelf) to maximize cold storage layout flexibility.
- Security & External Probe Access: Fitted with a keyed door lock, magnetic door gasket, leveling legs, and a rear-wall 3/4" probe access port.
- Eco-Friendly R600a Hydrocarbon Refrigerant: Powered by natural, HFC-free R600a hydrocarbon refrigerant with high-density urethane foam insulation and a NEMA 5-15 power cord.
- Certified Quality & Premium Warranty: ETL listed design supported by a 3-year parts and labor warranty plus a 5-year compressor parts warranty.
Specifications:
