| Overview | |
|---|---|
| Product Name | VWR Plus Series Refrigerator & Freezer Combination |
| VWR Catalog No | 76580-184 |
| Model Code | VWR-HC-RFC9SS |
| Supplier | VWR International |
| Total Capacity | 9 cu. ft. (255 L) — [4.5 cu. ft. Refrigerator / 4.2 cu. ft. Freezer] |
| Door Type | 2 exterior stainless steel swing doors (right hinged, non-reversible) |
| Defrost System | Cycle defrost (Refrigerator) / Manual defrost (Freezer) |
| Shelves | Refrigerator: 2 adjustable / 1 fixed shelf with guard rails; Freezer: 2 fixed shelves |
| Control System | Independent microprocessor controllers with digital temperature displays for each compartment |
| Security | Keyed door locks for both doors |
| Alarms | Audible and visual high/low temperature alarms, remote alarm contacts (both chambers) |
| Probes | Dual probes per chamber (1 air probe, 1 sample bottle probe in both refrigerator and freezer) |
| Probe Access | 2 probe access ports (3/8" diameter; 1 in refrigerator, 1 in freezer) |
| Cabinet Material | Stainless steel exterior |
| Lighting | Interior LED lighting |
| Leveling & Mounting | Leveling legs and stacking kit included |
| Quality Certification | 100% unit temperature tested |
| General Warranty | Two-year parts and labor warranty |
| Compressor Warranty | Three-year additional compressor parts warranty |
| Certifications & Compliance | UL/C-UL Listed, Environmentally Preferable (Energy Efficient) |
| Physical Dimensions & Weight | |
| Exterior Dimensions (W x D x H) | 23.75" W x 24.50" D x 66.75" H (603 x 648 x 1695 mm) |
| Refrigerator Interior Dimensions (W x D x H) | 19.25" W x 17.25" D x 24.50" H (489 x 438 x 622 mm) |
| Freezer Interior Dimensions (W x D x H) | 19.00" W x 17.25" D x 24.50" H (483 x 438 x 622 mm) |
| Product Net Weight | 121 kg (266 lbs.) |
| Shipping Weight | 131 kg (289 lbs.) |
| Performance & Electrical Details | |
| Refrigerator Temperature Range | 1°C to 10°C |
| Freezer Temperature Range | -15°C to -25°C |
| Air Circulation | Forced draft air circulation (Refrigerator compartment) |
| Compressor Power | 1/8 HP (Refrigerator) / 1/8 HP (Freezer) |
| Refrigerant | Natural R600a Hydrocarbon refrigerant (HFC-free) |
| Electrical Requirements | 115 V / 60 Hz, 1.74 Amps (Refrigerator) and 1.5 Amps (Freezer) |
| Outlet Requirements | Requires 2 separate electrical outlets |
New
VWR VWR-HC-RFC9SS Plus Series Stainless Steel Laboratory Refrigerator and Freezer Combo Unit Digital Display, 9 cu. ft.
by
VWR
SKU: VWR-HC-RFC9SS
Fast & Reliable Shipping
Typically 1-3 Business Days
Regulatory Compliant
Registered & Certified Medical Equipment
Support
Need help?
Fast & Reliable Shipping
Typically 1-3 Business Days
Regulatory Compliant
Registered & Certified Medical Equipment
Support
Need help?

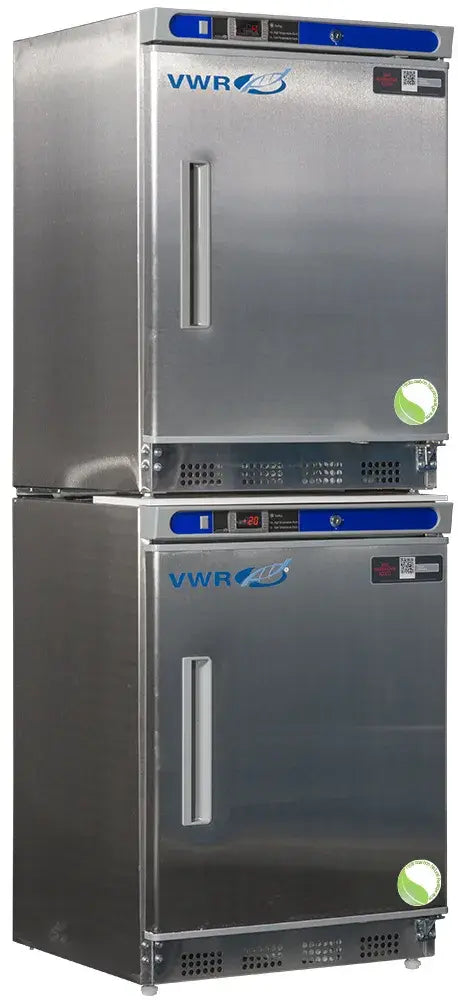

VWR Plus Series Stainless Steel Laboratory Refrigerator and Freezer Combo Unit Digital Display, Heavy-Duty Stainless Steel Exterior, Independent Microprocessor Controls, 9 cu. ft.
The VWR Plus Series Stainless Steel Laboratory Refrigerator and Freezer Combination Unit (Catalog No: 76580-184 / Model: VWR-HC-RFC9SS), supplied by VWR International, is a premium dual-temperature cold storage system designed for demanding clinical, research, and industrial laboratory environments that require robust stainless steel construction, precise thermal control, and safe dual-zone sample protection. Offering a total capacity of 9 cu. ft. (255 L / 4.5 cu. ft. Refrigerator and 4.2 cu. ft. Freezer), this unit combines a upper refrigerator compartment with a lower freezer compartment in a space-saving upright 66.75-inch cabinet footprint.
Thermal performance and safety monitoring are managed independently for both chambers using dedicated Microprocessor Temperature Controllers paired with Digital Temperature Displays. The upper refrigerator compartment maintains an adjustable operating temperature range of 1°C to 10°C with forced draft air circulation and automated cycle defrosting. The lower freezer section operates between -15°C and -25°C with manual defrosting to protect temperature-sensitive samples from thermal cycling.
System integrity and sample protection are reinforced via dual sensing probes (1 air probe and 1 sample bottle probe per compartment) in both chambers, backed by audible and visual high/low temperature alarms and remote alarm contacts for facility monitoring system integration. Every unit undergoes 100% temperature testing prior to shipment for quality certification.

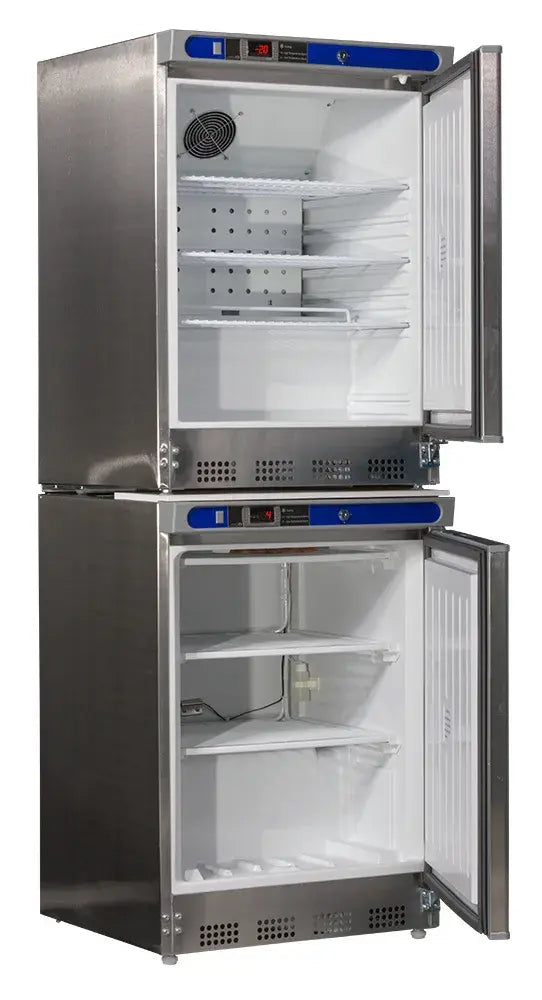

The unit features two exterior right-hinged stainless steel swing doors (non-reversible) equipped with recessed handles, magnetic gaskets for a positive seal, and individual keyed door locks. The refrigerator section includes a back wall evaporator cover and rear guard rails to prevent inventory from blocking internal airflow. Interior organization includes 2 adjustable shelves plus 1 fixed shelf in the refrigerator, and 2 fixed shelves in the freezer, along with switch-controlled interior LED lighting. Built with a sleek, heavy-duty stainless steel exterior, the cabinet includes two 3/8" probe access ports (one per compartment), leveling legs, and a stacking kit. Operating on eco-friendly, HFC-free R600a natural hydrocarbon refrigerant, this unit is UL/C-UL listed and backed by a 2-year parts and labor warranty plus an additional 3-year compressor parts warranty.
Features:
- Heavy-Duty Stainless Steel Exterior: Constructed with a durable, easy-to-clean stainless steel exterior finish built for demanding laboratory environments.
- Dual-Chamber Storage Configuration: Combines a 4.5 cu. ft. refrigerator (1°C to 10°C) and a 4.2 cu. ft. freezer (-15°C to -25°C) within a single space-saving dual-door cabinet.
- Independent Microprocessor Controls: Equipped with separate microprocessor controllers and digital temperature displays for accurate thermal management of both compartments.
- Dual Probe Safeguards & Alarms: Includes 2 sensing probes (1 air probe, 1 sample bottle probe) per chamber, audible/visual high/low temperature alarms, and remote alarm contacts.
- Forced Draft Cooling & Dual Defrost: Features forced draft air circulation and automated cycle defrosting in the refrigerator, paired with manual defrost in the freezer compartment.
- Optimized Storage Interior: Includes 2 adjustable and 1 fixed shelf in the refrigerator (with back wall evaporator cover and rear guard rails), 2 fixed shelves in the freezer, and LED interior lighting.
- Independent Security & Access Ports: Equipped with individual keyed door locks, recessed handles, magnetic gaskets, and two 3/8" probe access ports (one per chamber).
- Eco-Friendly R600a Hydrocarbon Refrigerant: Powered by natural, HFC-free R600a refrigerant with environmentally friendly foam insulation and packaging.
- Certified Quality & Extended Warranty: 100% unit temperature tested, UL/C-UL listed, and backed by a 2-year parts and labor warranty plus an additional 3-year compressor parts warranty.
Specifications:
