VWR VWR-HCCP-23-TS Performance Series Glass Door Chromatography Refrigerator Touch Screen, 23 cu. ft.

VWR VWR-HCCP-23-TS Performance Series Glass Door Chromatography Refrigerator Touch Screen and Data Logging, 23 cu. ft., Microprocessor Temperature Control

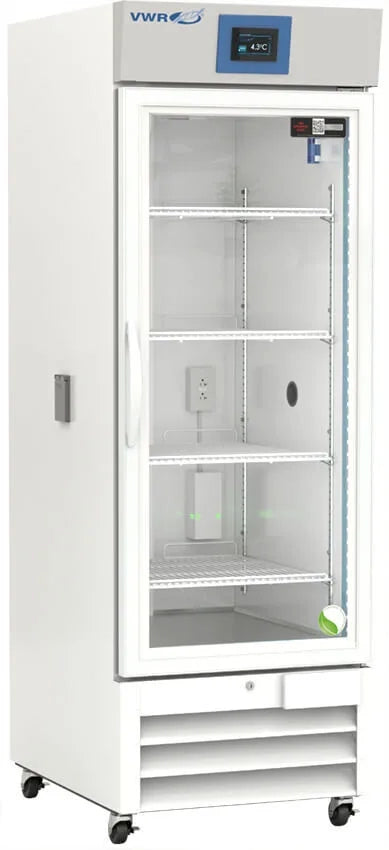

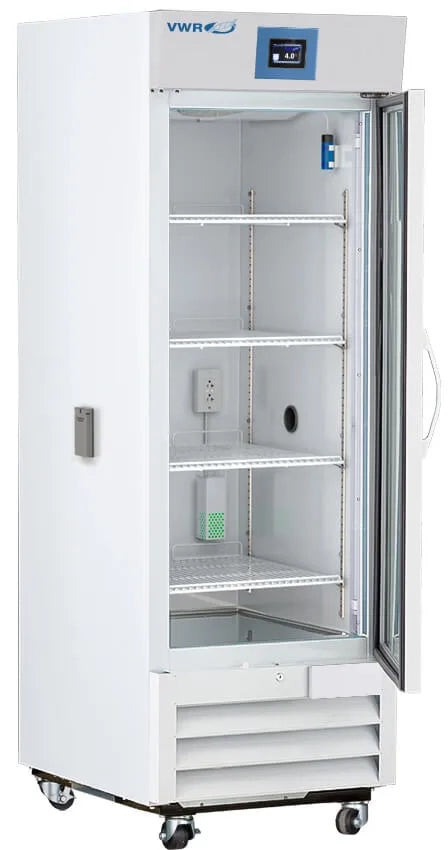

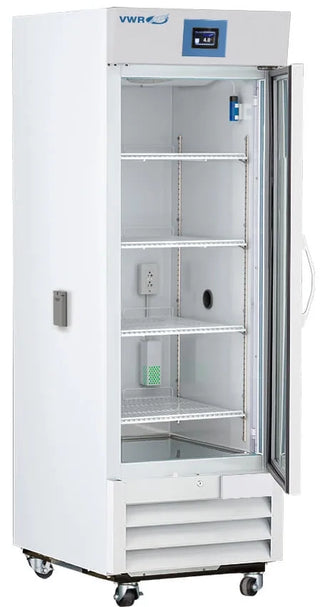

The VWR Performance Series Glass Door Chromatography Refrigerator (Catalog No: 76514-282 / Model: VWR-HCCP-23-TS), supplied by VWR International, is a high-performance 23 cubic foot (651 L) cold storage solution purpose-built for chromatography applications, analytical workflows, and sensitive laboratory environments requiring precise thermal control, integrated instrument power, and advanced data logging. Featuring a single self-closing swing glass door (right hinged, non-reversible), this unit combines exceptional energy efficiency with full inventory visibility in a spacious freestanding footprint.

Engineered specifically for chromatography equipment integration, the cabinet comes equipped with one internal GFCI-protected duplex electrical outlet and two 2" access ports featuring spring-loaded, self-closing gasketed metal covers. Thermal management and system intelligence are powered by a password-protected Touch Screen Digital Temperature Display and Alarm Module. The user interface displays sample-simulated digital temperature readings with 0.1° resolution (selectable °C or °F), an active temperature scale bar display, a real-time operational clock, an electronic troubleshooting guide, and an electronic QR code for instant manual and support access.

The system maintains a stable operating temperature range of 1°C to 10°C using forced draft air circulation and an automated cycle defrost mechanism. Tracking and security are managed by dual sensing probes (1 air probe and 1 sample bottle probe), an advanced hydrocarbon detector, and comprehensive alarms (audible/visual high/low temperature, sensor error, power failure, door ajar, and low battery alerts). Data management features include integrated temperature data logging, a USB port for data export and software updates, a digital 24-hour temperature chart, a 4-20mA output, and remote alarm contacts.

Interior organization includes four heavy-duty white powder-coated steel shelves (adjustable in 1/2" increments) and safety-shielded, switch-controlled LED interior lighting. Built with durable white powder-coated steel interior and exterior surfaces insulated with high-density urethane foam, the cabinet includes a keyed door lock, a magnetic gasket for a positive seal, a heavy-duty door handle, a 3/4" probe access port, and 3.5" swivel casters. Operating on eco-friendly R290 natural hydrocarbon refrigerant, this energy-efficient unit is ENERGY STAR certified and ETL listed.

Features:

• Chromatography Integration Ready: Equipped with 1 internal GFCI-protected duplex electrical outlet and 2 two-inch access ports with spring-loaded, self-closing gasketed metal covers for seamless instrumentation setup.
• Touch Screen & Advanced Data Logging: Features a password-protected touch-screen display, integrated temperature data logging, USB export port, digital 24-hour temperature chart, 4-20mA output, and QR code support.
• Comprehensive Security & Monitoring: Features extensive audible and visual alarms (high/low temp, sensor error, power failure, door ajar, low battery), an advanced hydrocarbon detector, and remote alarm contacts.
• Microprocessor Temperature Control: Operates across an adjustable temperature range of 1°C to 10°C with forced draft air circulation and automatic cycle defrost.
• Dual Sensing Probes & Sample Simulation: Utilizes 2 sensing probes (1 air probe and 1 sample bottle probe) with 0.1° resolution for precise sample tracking.
• Flexible Interior Organization: Includes 4 adjustable white powder-coated steel shelves (adjustable in 1/2" increments) and switch-controlled interior LED lighting.
• Eco-Friendly R290 Hydrocarbon Refrigerant: Operates on natural R290 refrigerant for zero ozone depletion, high energy efficiency, and ENERGY STAR certification.
• Safety & Warranty Compliance: ETL listed design backed by a 3-year parts and labor warranty plus an additional 2-year compressor parts warranty.

Specifications:
