| Product Name | VWR VWR-HCCP-36 Plus Series Glass Door Chromatography Refrigerator |
| VWR Catalog No | 76514-306 |
| Model Code | VWR-HCCP-36 |
| Supplier | VWR International |
| Capacity | 36 cu. ft. (1019 L) |
| Door Type | 2 swing glass doors (self-closing, right hinged, non-reversible) |
| Defrost System | Cycle defrost |
| Shelves | 8 adjustable shelves (adjustable in 1/2" increments) |
| Control System | Microprocessor controller with Digital Temperature Display & Alarm Module |
| Chromatography Utilities | 1 GFCI protected duplex electrical outlet, 2 two-inch access ports (with self-closing metal covers) |
| Security | Keyed door locks, advanced hydrocarbon detector |
| Alarms | High/low temperature, sensor error, power failure (audible, visual, remote) |
| Probes | Dual probes (1 air probe, 1 sample bottle probe) |
| Probe Access | 3/4" probe access port |
| Data & Monitoring | Resettable 1-point min/max history, remote alarm contacts |
| Lighting | Switch-controlled, safety-shielded interior LED light |
| Cabinet Material | White powder-coated steel interior and exterior |
| Insulation | High-density urethane foam cabinet insulation |
| Mobility | 3.5" swivel casters included |
| General Warranty | Two-year parts and labor warranty |
| Compressor Warranty | Three-year additional compressor parts warranty |
| Certifications & Compliance | ETL Listed, Environmentally Preferable (Safer Human & Environmental Health, Energy Efficient) |
| Exterior Dimensions (W x D x H) | 41.125" W (ports closed) / 49.125" W (ports open) x 34.75" D x 81.75" H with casters; 78.25" H without casters (1045 x 883 x 2076 mm) |
| Interior Dimensions (W x D x H) | 34.875" x 23.625" x 52.75" (886 x 600 x 1340 mm) |
| Product Net Weight | 161 kg (355 lbs.) |
| Shipping Weight | 184 kg (405 lbs.) |
| Operating Temperature Range | 1°C to 10°C |
| Air Circulation | Forced draft air circulation |
| Compressor Power | 1/4 HP |
| Refrigerant | Natural R290 Hydrocarbon refrigerant (HFC-free) |
| Electrical Requirements | 115 V / 60 Hz, 4.5 Amps (Note: Unit requires two dedicated wall outlets) |
New
VWR VWR-HCCP-36 Plus Series Glass Door Chromatography Refrigerator Digital Display and Alarm Module, 36 cu. ft.
by
VWR
SKU: VWR-HCCP-36
Fast & Reliable Shipping
Typically 1-3 Business Days
Regulatory Compliant
Registered & Certified Medical Equipment
Support
Need help?
Fast & Reliable Shipping
Typically 1-3 Business Days
Regulatory Compliant
Registered & Certified Medical Equipment
Support
Need help?
VWR VWR-HCCP-36 Plus Series Glass Door Chromatography Refrigerator Digital Display and Alarm Module, 36 cu. ft., Dual Swing Glass Doors, Dual Sensing Probes and Sample Simulation

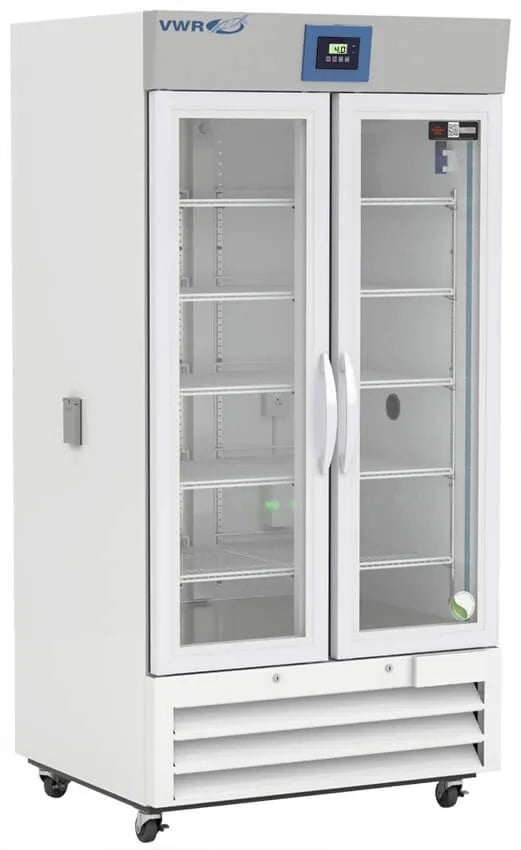

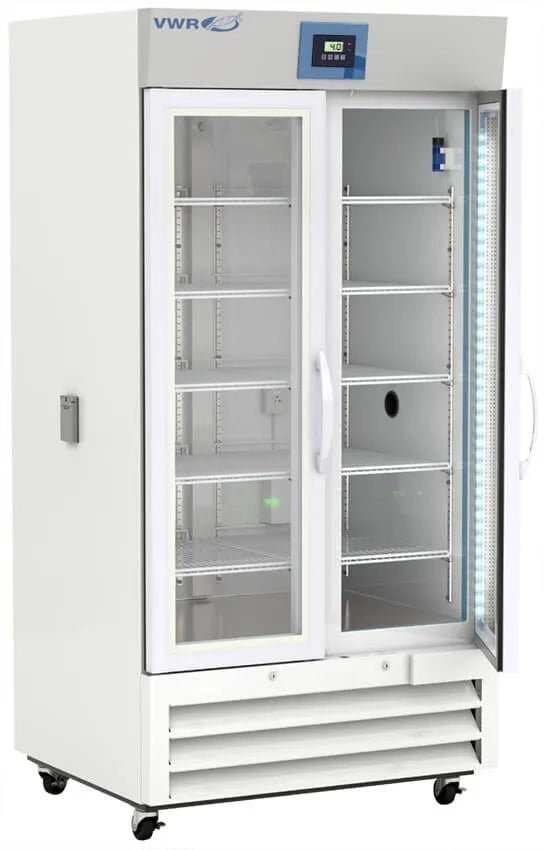

The VWR Plus Series Glass Door Chromatography Refrigerator (Catalog No: 76514-306 / Model: VWR-HCCP-36), supplied by VWR International, is a high-performance 36 cubic foot (1019 L) cold storage solution designed specifically for chromatography applications, analytical workflows, and sensitive laboratory environments requiring precise thermal control and integrated instrument power. Featuring two self-closing swing glass doors (right hinged, non-reversible), this unit combines exceptional energy efficiency with full visual inventory access in a mid-sized two-door freestanding footprint.
Engineered for seamless laboratory instrumentation setup, the cabinet comes equipped with one internal GFCI-protected duplex electrical outlet and two 2" access ports featuring spring-loaded, self-closing gasketed metal covers. Temperature management and system safety are driven by a Microprocessor Temperature Controller paired with a Digital Temperature Display and Alarm Module. The display provides sample-simulated digital temperature monitoring with 0.1° resolution (selectable °C or °F) alongside a resettable 1-point min/max temperature history.
The system maintains a consistent operating temperature range of 1°C to 10°C using forced draft air circulation and an automated cycle defrost mechanism. System integrity is monitored by dual sensing probes (1 air probe and 1 sample bottle probe), an advanced hydrocarbon detector, and comprehensive safety alarms including audible and visual high/low temperature, sensor error, and power failure alerts. The alarm system offers validation testing, mute functions with ring back, and remote alarm contacts for facility monitoring integration.
Interior organization includes eight heavy-duty white powder-coated steel shelves (adjustable in 1/2" increments) and safety-shielded, switch-controlled LED interior lighting. Built with a durable white powder-coated steel interior and exterior insulated with high-density urethane foam, the cabinet is equipped with keyed door locks, magnetic door gaskets for a positive seal, heavy-duty door handles, a 3/4" probe access port, and 3.5" swivel casters. Utilizing eco-friendly R290 natural hydrocarbon refrigerant, this energy-efficient unit is ETL listed.
Features:
- Chromatography Integration Ready: Equipped with 1 internal GFCI-protected duplex electrical outlet and 2 two-inch access ports with spring-loaded, self-closing gasketed metal covers for convenient instrument setup.
- Dual Swing Glass Doors: Features 2 self-closing swing glass doors (right hinged, non-reversible) with heavy-duty handles for fast visual inventory checks while maximizing cold air retention.
- Microprocessor & Digital Display: Features a microprocessor temperature controller paired with a digital display module providing 0.1° resolution and a resettable 1-point min/max history.
- Comprehensive Alarm Safeguards: Equipped with audible/visual high and low temperature alarms, sensor error alarms, power failure alerts, alarm validation testing, mute with ring back, and remote alarm contacts.
- Dual Sensing Probes & Sample Simulation: Utilizes 2 sensing probes (1 air probe and 1 sample bottle probe) to accurately reflect true sample temperature conditions.
- Forced Air Cooling & Cycle Defrost: Delivers uniform temperature distribution across an adjustable range of 1°C to 10°C using forced draft air circulation and automated cycle defrosting.
- Flexible Interior Organization: Includes 8 adjustable white powder-coated steel shelves (adjustable in 1/2" increments) and switch-controlled interior LED lighting.
- Eco-Friendly R290 Hydrocarbon Refrigerant: Operates on natural R290 refrigerant for zero ozone depletion and high operational energy efficiency.
- Safety & Warranty Compliance: ETL listed design backed by a 2-year parts and labor warranty plus an additional 3-year compressor parts warranty.
Specifications:
