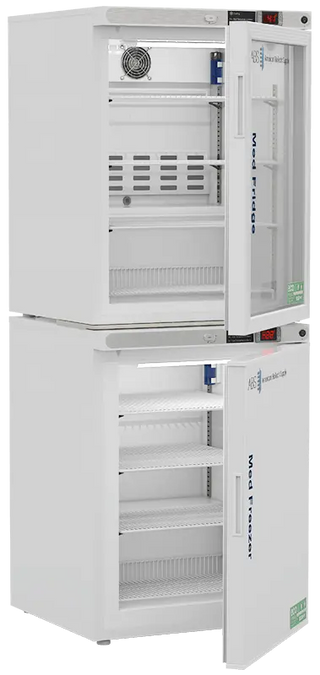

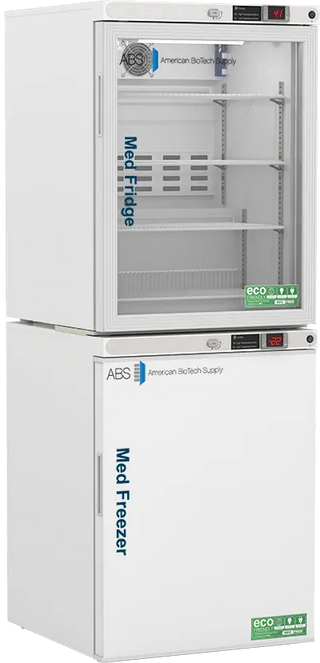

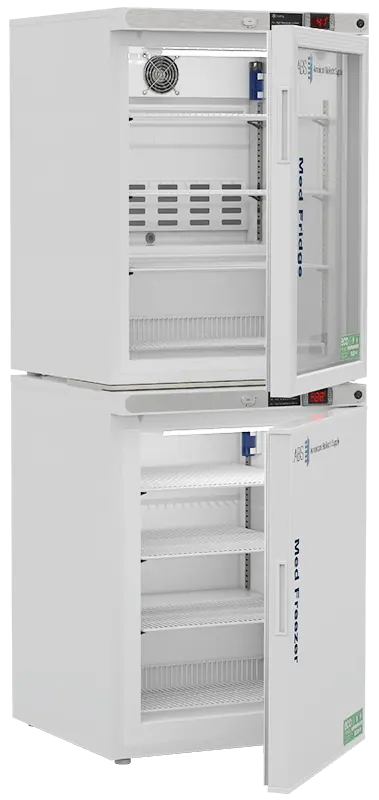

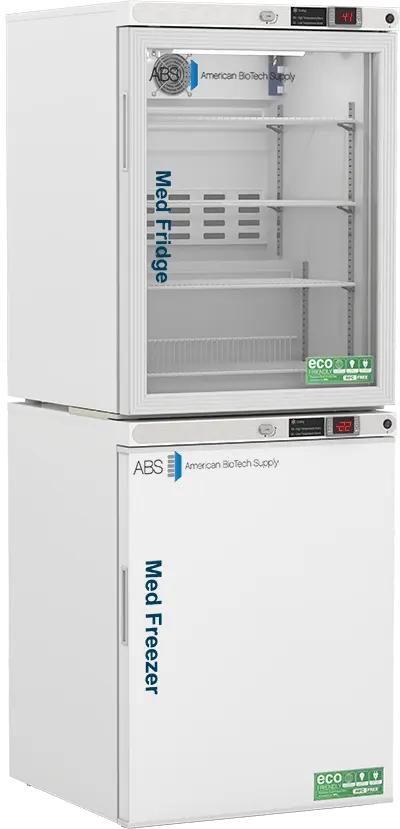

ABS PH-ABT-HC-RFC1030G 23.75" Upright Pharmacy Refrigerator / Freezer Combination, 9.2 cu.ft., Ref. 2° to 8°C / Frz. -30° to -20°C Temperature Range, Cycle Refrigerator / Manual Freezer Defrost, 1 Glass Swing Door (Fridge), 1 Solid Swing Door (Freezer), 6 Shelves
The Premier Pharmacy Dual Temp Combination units feature separate microprocessor temperature controller allowing for precise temperature control, verification and recovery. An interior fan driven, forced-draft air circulation system provides excellent temperature uniformity and recovery after door openings. REFRIGERATORS ONLY
All models are equipped with digital temperature displays for convenient monitoring. Critical samples and supplies are security backed with an extensive package of audible and visual alarms. The freezer units feature either an automatic or manual defrost operating system. For manual defrost freezers, periodic manual defrosting is required.
This model requires 4” of clearance around back and sides of the unit for proper ventilation. Improper installation will void the warranty and will lead to temperature maintenance issues, overheating and possible failure.
Environmentally friendly, natural hydrocarbon (HC) refrigerants (not containing hydrofluorocarbons) vastly reduce global-warming potential (GWP) while meeting new EPA/SNAP mandates and UL, ASHRAE compliance guidelines.
Features
-
Dual-Zone Thermal Precision: Independent cooling systems offer an adjustable refrigerator range of 36°F to 46°F (2°C to 8°C) and a heavy-duty freezer range of -4°F to -22°F (-20°C to -30°C) to maintain complete sample integrity.
-
NIST Traceable Calibration: Every unit comes standard with a comprehensive certification of calibration, precisely analyzed using a NIST traceable device to meet strict regulatory and compliance audits.
-
Advanced Monitoring & Alarm Network: Features dual thermal probes (air and sample bottle) coupled with localized audible/visual alerts and remote alarm contacts for seamless integration into institutional building management systems.
-
Eco-Friendly Hydrocarbon Technology: Utilizes high-density urethane foam insulation and natural, HFC-free refrigerants (R600a/R290) that significantly minimize global warming potential while optimizing daily power consumption.
-
Automated Dispensing Compatibility: Expertly engineered to operate alongside leading clinical workflows, ensuring out-of-the-box compatibility with Pyxis®, Omnicell®, and Acudose Rx® healthcare systems.
-
Comprehensive Protection Warranty: Backed by a robust manufacturer assurance policy including a full two-year parts and labor coverage, plus an additional three-year warranty on the compressor parts.
Product Specifications
| Model | PH-ABT-HC-RFC1030G |
| Product Type | Upright Refrigerator / Freezer Combo (Laboratory Use) |
| Total Capacity | 9.2 cu. ft. |
| Refrigerator Capacity | 5.2 cu. ft. |
| Freezer Capacity | 4.0 cu. ft. |
| Exterior Dimensions (W x D x H) | 23 3/4″ x 24″ x 65″ |
| Required Ventilation Clearance | 4″ clearance required on sides and back |
| Door Configuration | 1 Glass Swing Door (Fridge) / 1 Solid Swing Door (Freezer) |
| Defrost System | Cycle Defrost (Refrigerator) / Manual Defrost (Freezer) |
| Temperature Range (Refrigerator) | 36°F to 46°F (2°C to 8°C) |
| Temperature Range (Freezer) | -4°F to -22°F (-20°C to -30°C) [Factory preset at -30°C] |
| Temperature Controller | Microprocessor Controller with 2 Probes (1 Air / 1 Sample Bottle) |
| Display Type | Digital Temperature Display |
| Alarm System | Audible & Visual High/Low Alarms, Remote Alarm Contacts |
| Electrical Requirements | 115V, 60 Hz |
| Amperage / Horsepower | Refrigerator: 1.3 Amps (1/6 HP) / Freezer: 2.2 Amps (1/4 HP) |
| Refrigerant Type | Refrigerator: HFC-Free R600a / Freezer: Hydrocarbon R290 |
| Security Features | Keyed Door Locks, Recessed Handles |
| Certifications & Compliance | UL / C-UL Listed, NIST Traceable Certificate Included |
| Shipping Weight | 268 lbs. |
| Warranty Coverage | 2 Years Parts and Labor, plus 3 Years Compressor Parts Only |
