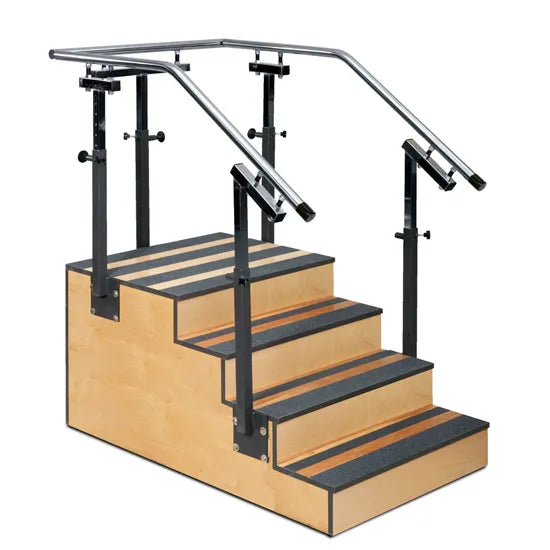

Clinton Industries 4-6501 Adjustable One-Sided Staircase – 30" or 36" Wide, Height Adjustable for Physical Therapy & Rehabilitation
Clinton Industries Model 4-6501 Adjustable One-Sided Staircase is a compact, versatile rehabilitation tool designed for gait training, balance exercises, stair negotiation, and mobility practice in limited-space clinical environments such as physical therapy clinics, hospitals, rehabilitation centers, and long-term care facilities. This one-sided (corner) design maximizes space efficiency while allowing patients to ascend and descend safely.
Features include 1.5" diameter stainless steel handrails with end bumpers, fast and easy height adjustments with self-indexing spring action plungers and numbered height indicator strips (no holes to line up), second knob to eliminate side-to-side play for rigid stability, hardwood plywood base with durable UV satin topcoat finish, steel fasteners assembly (no glued wood dowels), tough Slate Gray PVC edge banding on all edges, two full-width safety treads on each step, and a 450 lb weight capacity.
Height adjusts from 49" – 61.75" overall in 1.5" increments to accommodate all ages from children to adults. Available in two widths: 30" (standard) or 36" (wider for bariatric patients). Requires a minimum 9' ceiling height.
Features:
- Adjustable height: 49" – 61.75" overall (in 1.5" increments) with self-indexing spring plungers and numbered indicators
- 1.5" diameter stainless steel handrails with end bumpers
- Second knob eliminates side-to-side play for rigid stability
- Hardwood plywood base with durable UV satin topcoat finish
- Assembled with steel fasteners (no glued wood dowels)
- All edges banded with tough Slate Gray PVC edge material
- Two full-width safety treads on each step
- One-sided (corner) design – ideal for limited space
- Maximum load capacity: 450 lbs (204 kg) under normal use
Specifications:
| Specification | Details |
|---|---|
| Model / SKU | 4-6501 Series |
| Platform Dimensions | 30" or 36" W × 24" D × 24" H |
| Step Dimensions (per step) | 30" or 36" W × 10" D × 6" H |
| Overall Dimensions | 34" or 40" W × 54" D × 49" – 61.75" H (adjustable) |
| Handrails | 1.5" diameter stainless steel with end bumpers |
| Adjustment Mechanism | Self-indexing spring plungers with numbered indicators |
| Uprights | Powder-coated 2" x 2" steel (brace reinforced) |
| Weight Capacity | 450 lbs (204 kg) under normal use |
| Intended Use | Physical therapy, rehabilitation, gait training (not for athletic use) |
| Ceiling Requirement | Minimum 9' ceiling |
| Country of Origin | USA |
| Brand | Clinton Industries |
| Shipping Weight (Approx.) | 220-300 lbs (freight LTL shipping required – contact for precise quote) |
Variants:
| Variant Name | Platform Width | Overall Width | SKU | Shipping Weight (Approx.) | ||
|---|---|---|---|---|---|---|
| 30" Wide | 30" | 34" | 4-6501-30 | 220-260 lbs (freight) | ||
| 36" Wide | 36" | 40" | 4-6501-36 | 260-300 lbs (freight) |
Contents:
| Description | Quantity |
|---|---|
| Clinton Industries Adjustable One-Sided Staircase – Model 4-6501 in Selected Width | 1 |
| Pre-assembled Handrails & Uprights | Included |
| Assembly Hardware & Instructions | Included |
| User Manual | 1 |
General Information:
- Condition: New – Made to order with lead time (contact for current estimated ship date). Drop ships directly from manufacturer. Not cancellable, not returnable once processed.
- Shipping: Heavy item – freight LTL shipping required. Calculated at checkout.
- Installation Tips: Requires secure floor mounting (hardware not included). Professional installation advised.
- Cleaning: Wipe treads, handrails, and frame with mild soap or disinfectant; UV-cured finish and powder-coated steel resist wear.
- Permissible Ambient: Standard indoor clinical environment.
- Applications: Gait training, balance exercises, stair negotiation, and rehabilitation in physical therapy clinics, hospitals, rehab centers, and long-term care facilities. Volume discounts available – call or email for orders of 10+ units.
