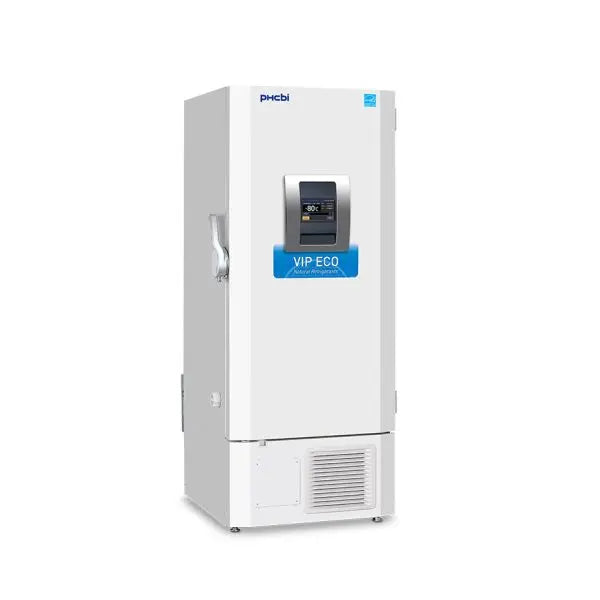

Follett FZR19-ULT-115/220, -86°C Ultra-Low Temperature VIP ECO Upright Freezer, 18.6 cu ft. (528 L), Voltage 115V
Ideal for new or replacement installations requiring a 115V or 220V connection, the VIP ECO 18.6 cu.ft. (528 L) upright ultra-low temperature freezer delivers the lowest daily energy usage.
Performance, reliability and energy efficiency combine to secure your most valuable biological samples.
Features
- Smart compressors, natural refrigerants and integrated electronics combine to lower your facility’s operating costs.
• 0.35 kWh/cu.ft. Daily Energy Consumption
• 6.75 kWh/day, Steady State at -80°C
• 5.20 kWh/day, Steady State at -70°C
Temperature Uniformity
• ±1.38°C at -80°C
• ±2.51°C at -70°C - An eye level, door mounted, color LCD touchscreen allows full user control while the USB port makes transferring logged data to a PC convenient.
- All performance attributes are displayed, plus an internal time/temperature log is expressed in graphic form.
- A full function display panel includes audible and visual warnings, unit diagnostics, temperature and door opening history.

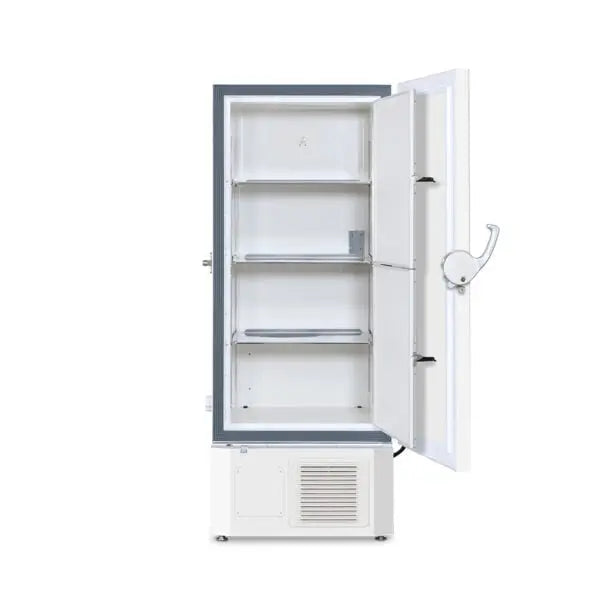

- The upright cabinet design employs patented VIP Plus insulated panels that offer space efficiency. This allows the freezer cabinet to maximize storage space, holding up to 384, 2" boxes within a 7.49 sq.ft. (0.70 m2) footprint.
Product Spesifications
| Model Number | FZR19-ULT-115/FZR19-ULT-220 |
| External Dimensions (W × D × H) | 31.1" × 34.7" × 78.5" (790 mm × 882 mm × 1993 mm) |
| Internal Dimensions (W × D × H) | 24.8" × 23.6" × 55.1" (630 mm × 600 mm × 1400 mm) |
| Volume | 18.6 cu.ft. (528 liters) |
| Net Weight | 542 lbs (246 kg) |
| Capacity (3" boxes) | 256 (qty) |
| Inventory Racks (3" boxes) | 16 (qty) |
| Performance | |
| Warranty | 5 years parts and labor |
| Cooling Performance | -86 °C |
| Temperature Setting Range | -50 °C to -90 °C in 1° increments |
| Temperature Control Range | -50 °C to -86 °C in 1° increments |
| Refrigerant | High-stage R-290 natural refrigerant Low-stage R-170 natural refrigerant |
| Construction | |
| Exterior Material | Painted electrogalvanized steel |
| Interior Material | Powder coated electrogalvanized steel |
| Outer Door | 1 (key lock with provision for optional pad lock) |
| Inner Doors | 2 (insulated, ABS, stainless steel frames, positive latches) |
| Shelf Dimensions (W × D) | 24.2" × 21.0" (615 mm × 534 mm) |
| Max. Load per Shelf | 110 lbs (50 kg) |
| Electrical |
115V, 1Ø, NEMA 5-20P, requires NEMA 5-20R receptacle 220V, 1Ø, NEMA 6-15P, requires NEMA 6-15R receptacle |
Shipping Weight: 628 lbs (285 kg)
