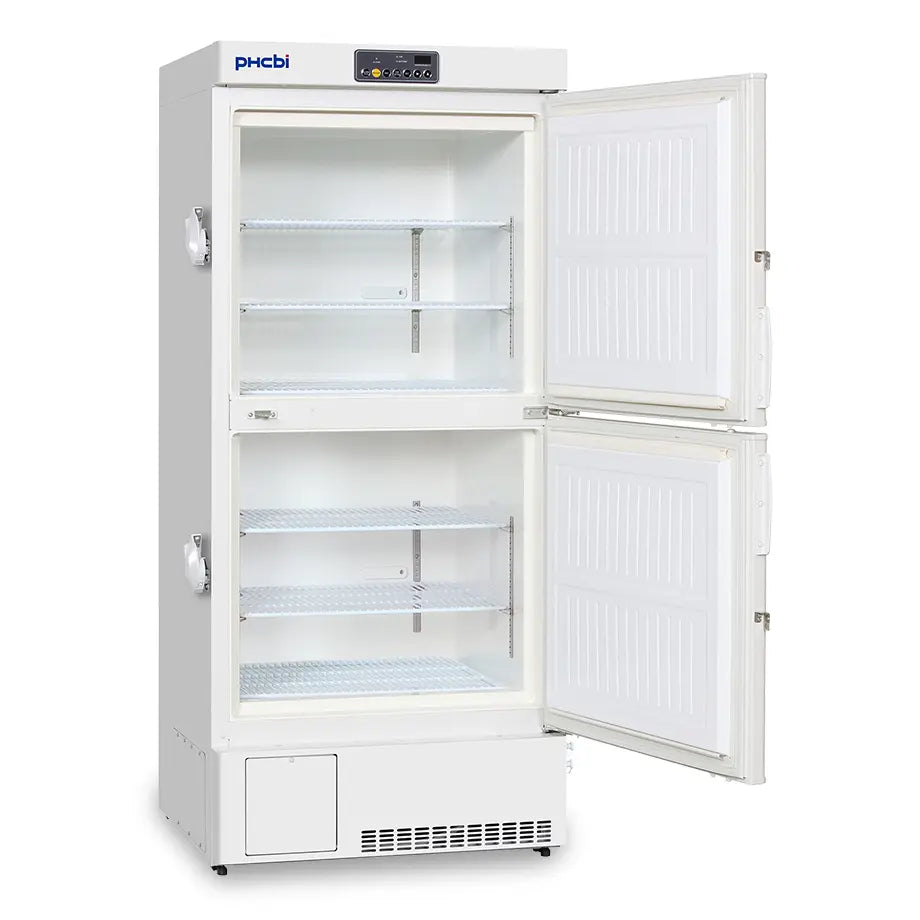

Follett FZRDCMD17 Dual Chamber Biomedical ECO Upright Freezer, -40°C, 16.9 cu. ft., ENERGY STAR® Certificated
The PHCbi brand -40 °C Biomedical ECO Dual Chamber Freezer is designed for storage of enzymes, vaccines, pharmaceutical products and other biomedical materials at uniform temperatures.
High performance refrigeration systems provide responsive cooling.
A manual defrost function eliminates temperature fluctuation.
Each chamber operates over a range of -20 °C to -40 °C, with separate setpoint in 1 °C increments.
The two door design minimizes exposure to stored product.
Two door access allows more flexibility for secure sharing among labs. Each chamber includes three wire shelves, two adjustable and one fixed. Optional open top bins can be added to hold common 2" or 3" freezer boxes, as well as miscellaneous packaging. High density CFC-free and low GWP foamed-in-place insulation creates a temperature resistant wall structure. Doors are lockable. Painted steel interior surfaces simplify cleaning.
Product Specifications
| Specifications | |
| External Dimensions (W×D×H) | 31.2" x 30.3" x 70.9" (793 mm x 770 mm x 1802 mm) |
| Internal Dimensions (W×D×H) | 25.6" x 24.2" x 23.6" (649 mm x 614 mm x 600 mm (each chamber)) |
| Volume | 16.9 cu. ft. (479 kg) total (8.46 cu. ft. (239.5 kg) each chamber) |
| Capacity (2" boxes) Bin - Freezer | 24 qty - 144 qty per chamber (288 total freezer) |
| Capacity (3" boxes) Bin - Freezer | 16 qty - 96 qty per chamber (192 total freezer) |
| Bin Capacity | 6 qty per chamber (12 total) |
| Performance | |
| Temperature Control Range Top Chamber | -20 ˚C to -40 ˚C in 1°C Increments |
| Power Consumption | 3.58 kWh/day |
| Noise Level | 42 dB(A) |
| Control | |
| Controller | Microprocessor, touchpad data entry, password protected |
| Display | LED |
| Refrigeration | |
| Refrigeration System | Cold wall |
| Refrigerant | CFC-free R-290 - 60 grams |
| Defrost | Manual |
| Construction | |
| Exterior and Interior Material | Painted steel |
| Shelf Dimension (WxD) | 24.6" x 20.1" (624 mm x 510 mm) |
| Max. Load per Shelf | 66.1 lbs (30 kg) |
| Max. Load – Total Freezer | 198.4 lbs (90 kg) per chamber (396.8 lbs (180 kg) total freezer) |
| Electrical | |
| Power Supply | 115V, 60Hz, 1Ø, NEMA 5-15P, requires NEMA 5-15R receptacle 8 ft power cord |
| Certifications and Warranty | |
| Certification | ENERGY STAR® | QPS Listed |
| Warranty | 3 years and parts and labor |
