| Overview | |
|---|---|
| Product Name | Body-Solid Pro Clubline DABBSF ProDual Ab Crunch & Back Extension Machine |
| Brand / Product Line | Body-Solid Pro Clubline / ProDual Series |
| Product Category | Selectorized Dual Multi-Station (Ab Crunch & Back Extension) |
| Commercial Rating | Full Commercial / Light Commercial / Residential |
| Mainframe Construction | 11-gauge 2.375" x 4.625" oval steel tubing with 4-side continuous welds |
| Connecting Plates | 3-gauge steel connecting plates with 1/2" diameter bolts |
| Finish | Electrostatically applied metallic powder coat |
| Weight Stack Capacity | 210 lbs. (95.25 kg) selectorized stack (310 lb. stack upgrade available) |
| Seat Adjustment | 5-position gas-assisted seat elevation |
| Foot & Leg Adjustment | 6-position adjustable foot brace / hold-down rollers |
| Roller Pad | 9.00" (228.60 mm) diameter adjustable dual-function roller pad |
| Pulleys | Impact-resistant fiberglass-reinforced nylon with sealed ball bearings |
| Cables | 5.5 mm nylon-coated spun steel aircraft cable (2,500+ lbs. tensile strength rating) |
| Pads & Upholstery | 2.00" extra-thick DuraFirm™ high-density foam padding |
| Safety Enclosures | Weight stack shrouds and protective covers included |
| Warranty (Commercial) | Frame & Welds: Lifetime; Bushings & Hardware: 3 Years; Pad, Rollers & Grips: 1 Year |
| Warranty (Residential) | Frame & Welds: Lifetime; Bushings & Hardware: Lifetime; Pad, Rollers & Grips: Lifetime |
| Dimensions & Weights | |

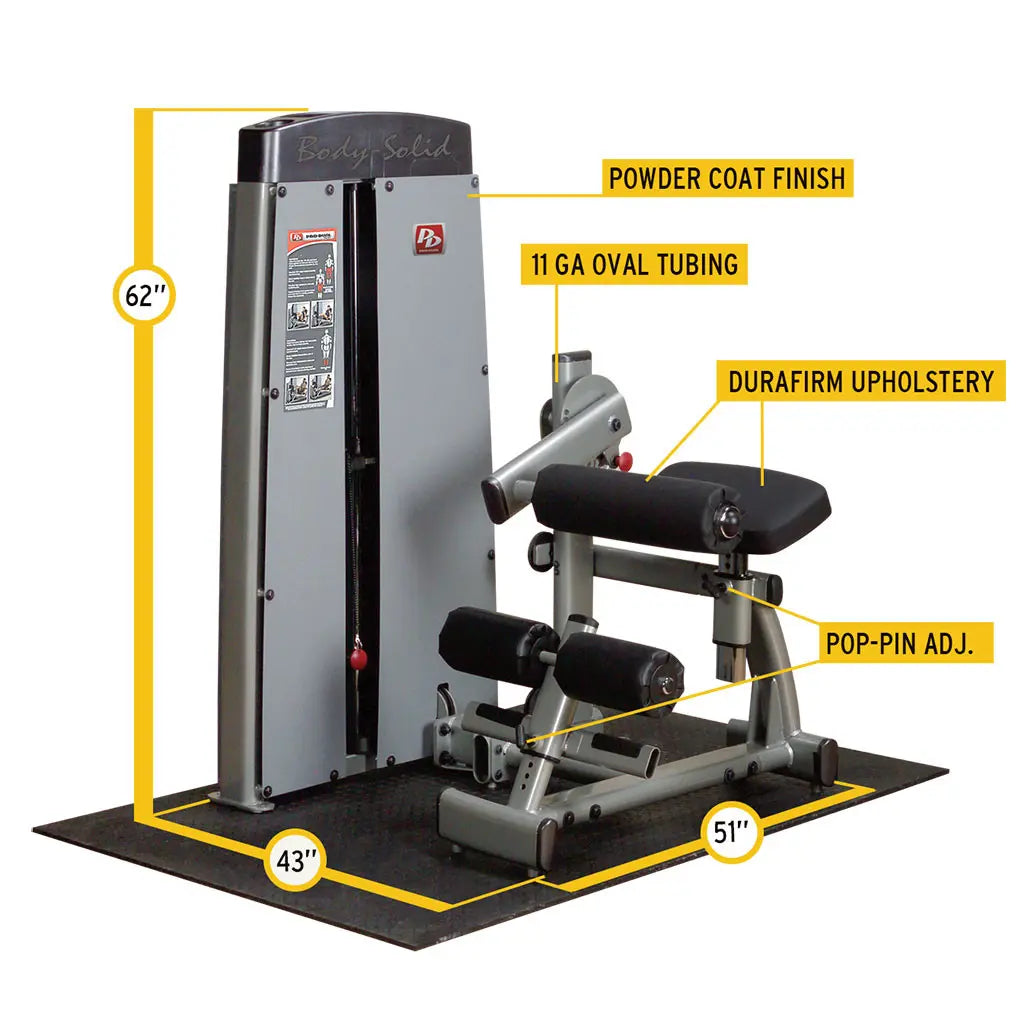

| Assembled Product Dimensions | 48.00" L x 48.00" W x 62.00" H (1,219.20 mm L x 1,219.20 mm W x 1,574.80 mm H) |
| Alternate Frame Footprint | 43.00" L x 51.00" W x 62.00" H (1,092.20 mm L x 1,295.40 mm W x 1,574.80 mm H) |
| Assembled Total Net Weight | 476.00 lbs. (215.91 kg) |
New
Sale
Pro Clubline DABBSF ProDual Ab Crunch and Back Extension Machine (210 lb. Stack)
SKU: DABBSF
19% off
Fast & Reliable Shipping
Typically 1-3 Business Days
Regulatory Compliant
Registered & Certified Medical Equipment
Support
Need help?
Fast & Reliable Shipping
Typically 1-3 Business Days
Regulatory Compliant
Registered & Certified Medical Equipment
Support
Need help?
Pro Clubline DABBSF ProDual Ab Crunch and Back Extension Machine (210 lb. Stack), Dual-Function Core Training, 6-Position Adjustable Leg/Foot Brace, Heavy-Duty 11-Gauge Mainframe

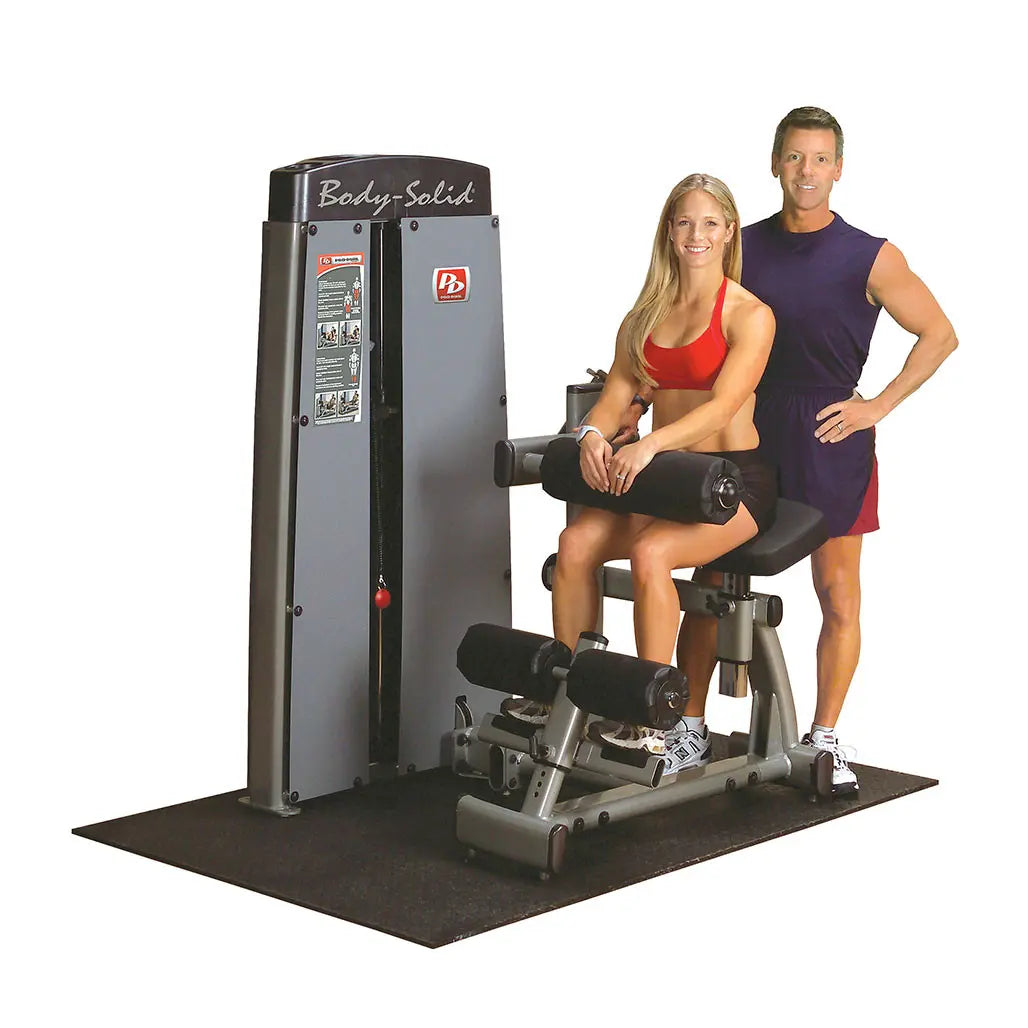

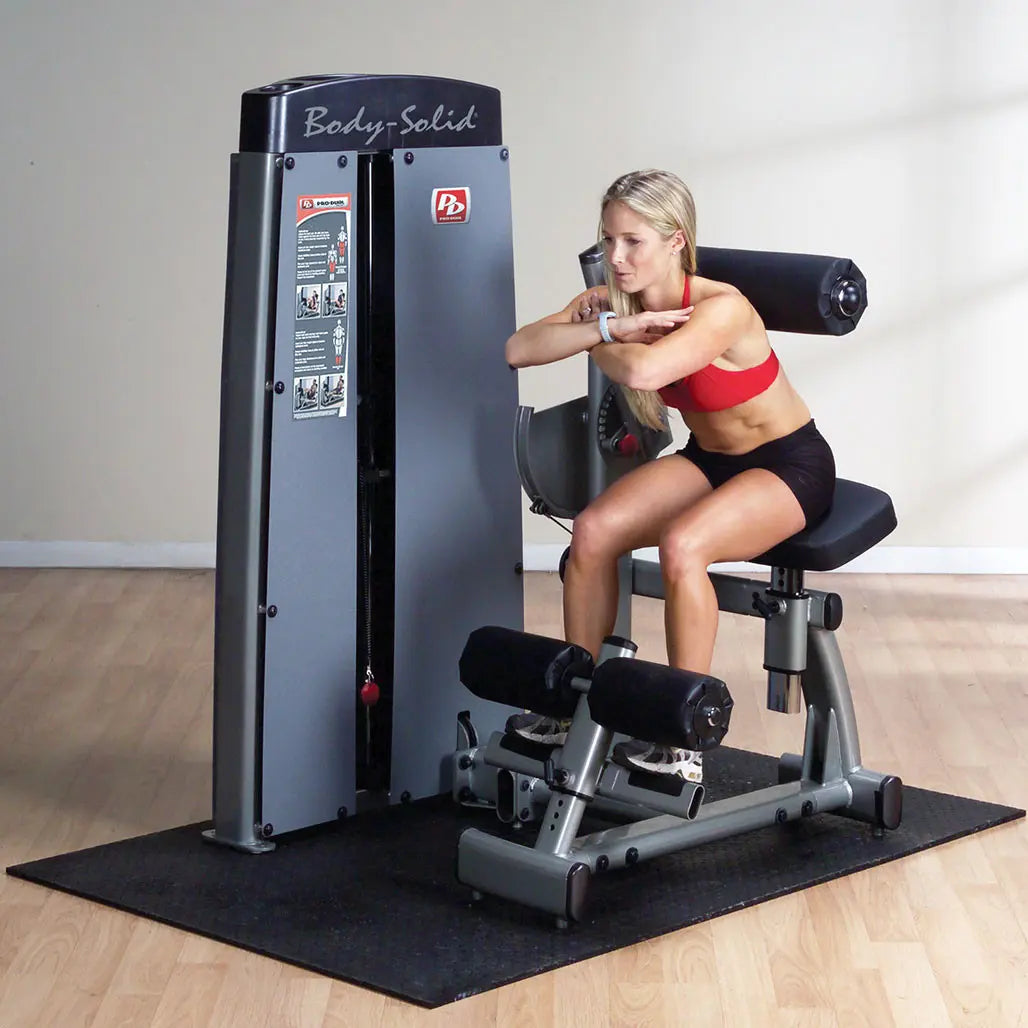

The Body-Solid Pro Clubline DABBSF ProDual Ab Crunch & Back Extension Machine (SKU: DABBSF) is a commercial-grade, dual-function strength station designed to target, isolate, and strengthen the entire abdominal and erector spinae complex. Engineered specifically for high-traffic commercial fitness centers, personal training studios, and premium home gyms, this unit delivers total core conditioning within a single, space-efficient footprint.
Built on a heavy-duty 11-gauge 2.375" x 4.625" oval steel mainframe with four-sided continuous factory welds and 3-gauge steel connecting plates, the DABBSF provides maximum structural integrity and stability during high-intensity training. It features a unique rotational pivot point designed to mirror natural biomechanical crunching and back extension arcs. An oversized 9" diameter adjustable roller pad ensures comfortable upper-body support and precise anatomical alignment throughout both movements, while a 5-position gas-assisted adjustable seat and a 6-position adjustable leg pad/foot brace enable users of all sizes to maintain optimal positioning relative to the axis of rotation.
This standard configuration comes equipped with a 210 lb. selectorized weight stack driven by a 5.5mm nylon-coated spun steel aircraft cable rated to over 2,500 lbs and impact-resistant fiberglass-reinforced nylon pulleys with sealed ball bearings. Complete with protective weight stack shrouds, tear-resistant DuraFirm™ high-density foam upholstery, and an electrostatically applied powder coat finish, the DABBSF functions as an independent standalone machine or integrates modularly into ProDual 3-Stack and 4-Stack multi-station gym systems.
Features:
- Dual-Function Core Training: Combines biomechanically correct abdominal crunches and lower back extensions into a single selectorized station.
- Standard 210 lb. Weight Stack: Features a 210 lb. selectorized weight stack for smooth, progressive resistance (expandable with optional 310 lb. upgrade).
- Biomechanically Angled Gas-Assisted Seat: Offers 5 gas-assisted adjustment positions to align the user's hips perfectly with the machine's pivot axis.
- Oversized 9" Adjustable Roller Pad: Delivers plush, contoured chest and upper back support for comfortable movement during both flexion and extension routines.
- 6-Position Adjustable Leg/Foot Brace: Secures the lower body and legs to isolate the core and prevent momentum-assisted movement.
- Heavy-Duty 11-Gauge Mainframe: Constructed from 2.375" x 4.625" oval steel tubing with continuous 4-side welds and 3-gauge connecting plates.
- Aircraft-Grade Cable & Pulley System: Utilizes 5.5mm nylon-coated aircraft steel cable (2,500+ lb. rating) running on fiberglass-reinforced nylon V-groove pulleys with sealed bearings.
- DuraFirm™ High-Density Upholstery: Extra-thick 2" high-density foam padding provides superior support and resists tearing, cracking, and wear under daily use.
- Durable Powder Coat Finish: Electrostatically applied powder coat finish protects against scratches, chips, and corrosion.
- Modular Integration: Functions as an independent standalone unit or connects seamlessly into ProDual 3-Stack and 4-Stack multi-gym systems.
Specifications:
