| Overview | |
|---|---|
| Product Name | Body-Solid Pro Clubline DABBSF ProDual Ab Crunch & Back Extension Machine |
| Brand / Product Line | Body-Solid Pro Clubline / ProDual Series |
| Product Category | Selectorized Dual Multi-Station (Ab Crunch & Back Extension) |
| Commercial Rating | Full Commercial / Light Commercial / Residential |
| Mainframe Construction | 11-gauge 2.375" x 4.625" oval steel tubing with 4-side continuous welds |
| Connecting Plates | 3-gauge steel connecting plates with 1/2" diameter bolts |
| Finish | Electrostatically applied two-step metallic powder coat |
| Weight Stack Capacity | 310 lbs. (140.61 kg / 141 kg) upgraded selectorized stack |
| Seat Adjustment | 5-position gas-assisted seat elevation |
| Foot & Leg Adjustment | 6-position adjustable foot brace / hold-down rollers |
| Roller Pad | 9.00" (228.60 mm) diameter adjustable dual-function roller pad |
| Pulleys | Impact-resistant fiberglass-reinforced nylon with sealed ball bearings |
| Cables | 5.5 mm nylon-coated spun steel aircraft cable (2,500+ lbs. tensile strength rating) |
| Pads & Upholstery | 2.00" extra-thick DuraFirm™ high-density foam padding |
| Safety Enclosures | Weight stack shrouds and protective covers included |
| Warranty (Commercial) | Frame & Welds: Lifetime; Bushings & Hardware: 3 Years; Pad, Rollers & Grips: 1 Year |
| Warranty (Residential) | Frame & Welds: Lifetime; Bushings & Hardware: Lifetime; Pad, Rollers & Grips: Lifetime |
| Dimensions & Weights | |

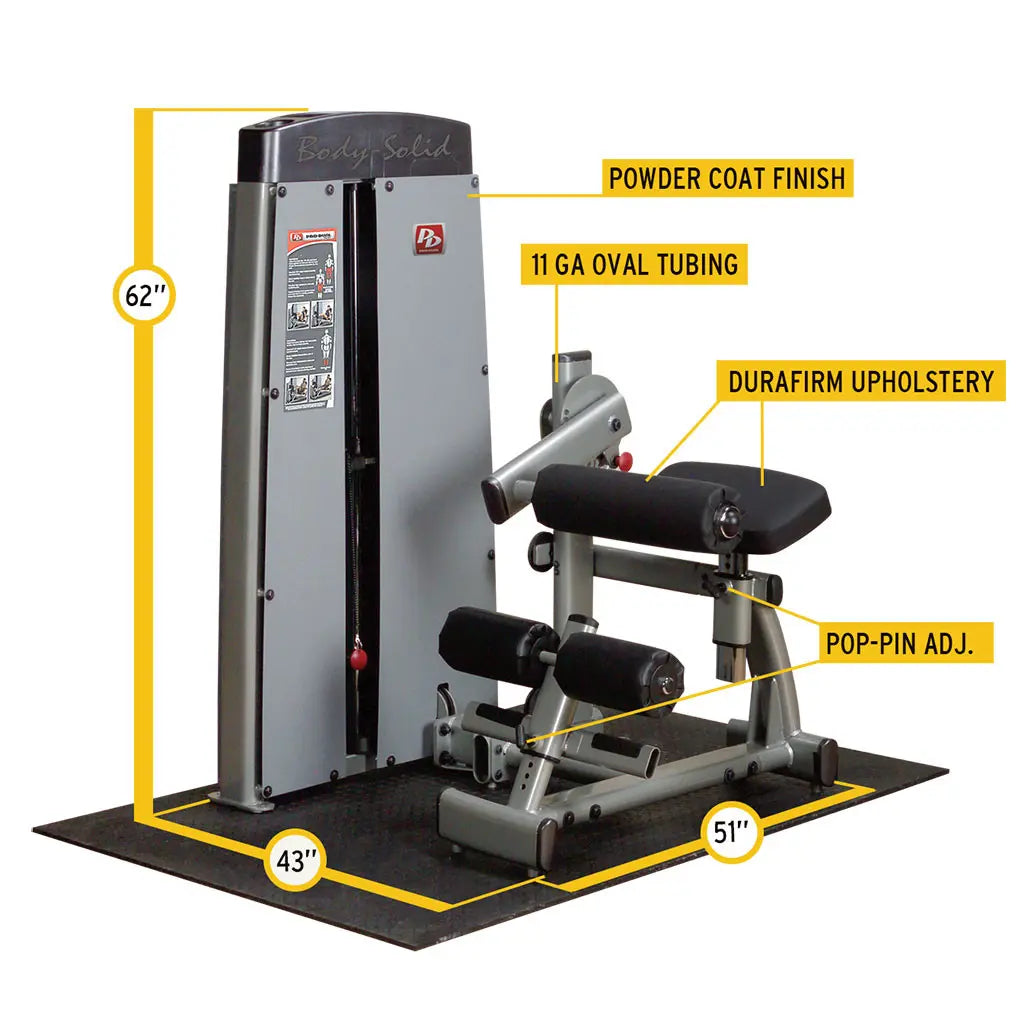

| Assembled Product Dimensions | 48.00" L x 48.00" W x 62.00" H (1,219.20 mm L x 1,219.20 mm W x 1,574.80 mm H) |
| Alternate Frame Footprint | 43.00" L x 51.00" W x 62.00" H (1,092.20 mm L x 1,295.40 mm W x 1,574.80 mm H) |
| Assembled Total Net Weight | 576.00 lbs. (261.27 kg) |
New
Sale
Pro Clubline DABBSF3 ProDual Ab Crunch and Back Extension Machine (310 lb. Stack)
SKU: DABBSF3
18% off
Fast & Reliable Shipping
Typically 1-3 Business Days
Regulatory Compliant
Registered & Certified Medical Equipment
Support
Need help?
Fast & Reliable Shipping
Typically 1-3 Business Days
Regulatory Compliant
Registered & Certified Medical Equipment
Support
Need help?
Pro Clubline DABBSF3 ProDual Ab Crunch and Back Extension Machine (310 lb. Stack), Dual-Function Core Training, Biromechanically Angled Gas-Assisted Seat, 6-Position Adjustable Leg/Foot Brace
The Body-Solid Pro Clubline DABBSF ProDual Ab Crunch & Back Extension Machine (SKU: DABBSF/3) is a commercial-grade dual-function strength station engineered to target and strengthen the entire core and lower back region. Designed specifically for high-use commercial facilities, personal training studios, and premium home gyms, this unit isolates the abdominal and erector spinae muscles within a single, space-efficient footprint.
Built on an 11-gauge 2.375" x 4.625" oval steel mainframe with four-sided continuous welds and 3-gauge steel connecting plates, the DABBSF/3 offers maximum structural rigidity and stability. It features a unique rotational pivot mechanism designed for natural biomechanical movement during abdominal crunches and lower back extensions. An oversized 9" diameter adjustable roller pad ensures comfortable upper-body support and proper alignment through both movements, while a 5-position gas-assisted adjustable seat and 6-position adjustable leg pad/foot brace allow users of all sizes to maintain correct alignment with the machine's axis of rotation.
This upgraded configuration features an expanded 310 lb. selectorized weight stack driven by a 5.5mm nylon-coated spun steel aircraft cable rated to over 2,500 lbs and impact-resistant fiberglass-reinforced nylon pulleys with sealed ball bearings. Complete with protective weight stack shrouds, tear-resistant DuraFirm™ high-density foam padding, and a two-step electrostatically applied powder coat finish, the DABBSF/3 operates as a standalone station or integrates modularly into ProDual 3-Stack and 4-Stack multi-station gym configurations.
Features:
- Dual-Function Core Training: Combines abdominal crunching and back extension movements into a single selectorized machine.
- Upgraded 310 lb. Weight Stack: Features an upgraded 310 lb. selectorized weight stack for heavy-duty progressive resistance.
- Biromechanically Angled Gas-Assisted Seat: Features 5 gas-assisted adjustment positions to align the user's hips with the machine's biomechanical pivot point.
- Oversized 9" Adjustable Roller Pad: Provides extra-thick contoured chest and upper back support during extension and flexion exercises.
- 6-Position Adjustable Leg/Foot Brace: Holds legs and lower body securely in place to isolate the core and prevent momentum-assisted lifting.
- Heavy-Duty 11-Gauge Mainframe: Built with high-tensile 2.375" x 4.625" oval steel tubing, continuous factory welds, and 3-gauge connecting plates.
- Aircraft-Grade Cable & Pulley System: Uses 5.5mm nylon-coated aircraft steel cable (2,500+ lb. rating) riding on fiberglass-reinforced nylon V-groove pulleys with sealed bearings.
- Durafirm™ High-Density Upholstery: Extra-thick 2" high-density foam padding provides comfortable support and resists tearing, cracking, and wear.
- Durable Powder Coat Finish: Electrostatically applied two-step powder coat finish protects against scratches, chips, and corrosion.
- Modular Compatibility: Functions as a standalone unit or integrates as a component in ProDual 3-Stack and 4-Stack gym systems.
Specifications:
