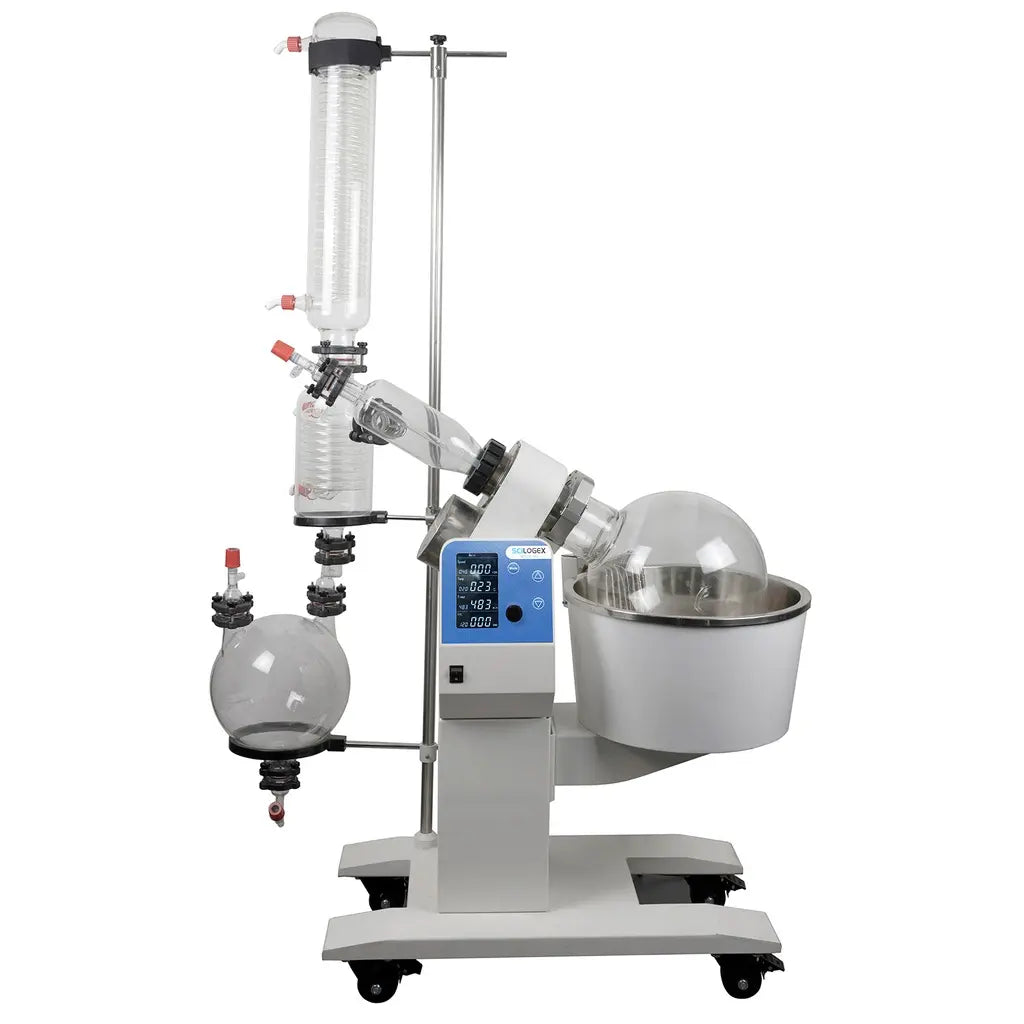

SCILOGEX 60301121249999 SCI20L-Pro LED Digital 20L Rotary Evaporator with Motorized Lift for Large-Scale Solvent Distillation, 220-240V/50/60Hz
SCILOGEX’s 60301121249999 SCI20L-Pro LED Digital Rotary Evaporator is a high-capacity, precision-engineered lab instrument for efficient, gentle solvent removal in chemical, pharmaceutical, and industrial research, featuring a 20L evaporating flask, 10L receiving flask, vertical coiled condenser, and 5L heating bath (room temp. to 180°C ±1°C accuracy). With large LCD display for rotation speed (10-150 rpm), temperature, clockwise/anti-clockwise timer, and motorized lift (180mm stroke), it supports continuous distillation with interval operation for drying. Overheating protection, boil-dry safeguards, and RS232 remote function (PC control/data transmission) ensure safe, automated workflows. Patented PTFE double sealing ring and chemical-resistant components provide leak-free performance. Ideal for large-volume evaporation, concentration, and purification; made in China with a 2-year warranty for reliable, high-vacuum-compatible lab use.
Features:
- Large LCD digital display shows heating temperature, rotation speed, clockwise/anti-clockwise, and timer for optimal distillation control
- Simple automatic motorized lift (180mm stroke) with smooth, silent operation for precise flask positioning
- Water/oil heating bath with wide temperature range from room temp. to 180°C for versatile evaporation needs
- Speed range from 10 to 150 rpm with interval operation in clockwise/anti-clockwise directions for drying processes
- Double-layer high-efficiency condensing tube with large condensation area for strong evaporation capacity and sample recovery
- Patented PTFE double sealing ring with excellent sealing performance for leak-free operation
- Switching valve for continuous collection without compromising system vacuum and distillation efficiency
- Overheating protection temperature at 220°C and timer function for precise processing control
- Precise temperature control and adjustable safety circuit for consistent, safe results
- Quick release connectors for easy flask removal and maintenance
- Remote function provides PC control and data transmission for advanced integration
Specifications:
| Specification | Details |
|---|---|
| Model | 60301121249999 SCI20L-Pro Rotary Evaporator |
| Evaporating Flask | 20L |
| Receiving Flask | 10L with Drain Valve |
| Heating Bath | 5L (Room Temp. - 180°C, ±1°C Accuracy) |
| Condenser Type | Vertical Coiled |
| Speed Range | 10-150 rpm |
| Display | LCD (Temperature, Speed, Timer, Clockwise/Anti-Clockwise) |
| Lift Mechanism | Motorized (180mm Stroke) |
| Operation Modes | Continuous/Interval (Clockwise/Anti-Clockwise) |
| Safety Features | Overheating Protection (220°C), Boil-Dry Protection |
| Remote Control | RS232 (PC Control/Data Transmission) |
| Seals | Patented PTFE Double Sealing Ring |
| Dimensions (D x W x H) | Approx. 46" x 24" x 73" (1160 x 600 x 1860 mm, Including Condenser) |
| Weight | 50 kg (Estimated) |
| Voltage/Frequency | 220-240V, 50/60 Hz |
| Power Consumption | 4600W (220V); 6000W (380V Option) |
| Warranty | 2-Year Limited |
| Compliance | cTUVus Approved, CE Marked |
| HS Code | 8419-40-0000 |
| Country of Origin | China (CN) |
Contents:
| Description | Quantity |
|---|---|
| SCI20L-Pro LED Digital Rotary Evaporator Unit | 1 |
| 5L Heating Bath | 1 |
| Vertical Coiled Condenser | 1 |
| 20L Evaporating Flask | 1 |
| 10L Receiving Flask with Drain Valve | 1 |
| Power Cord | 1 |
| User Manual | 1 |
