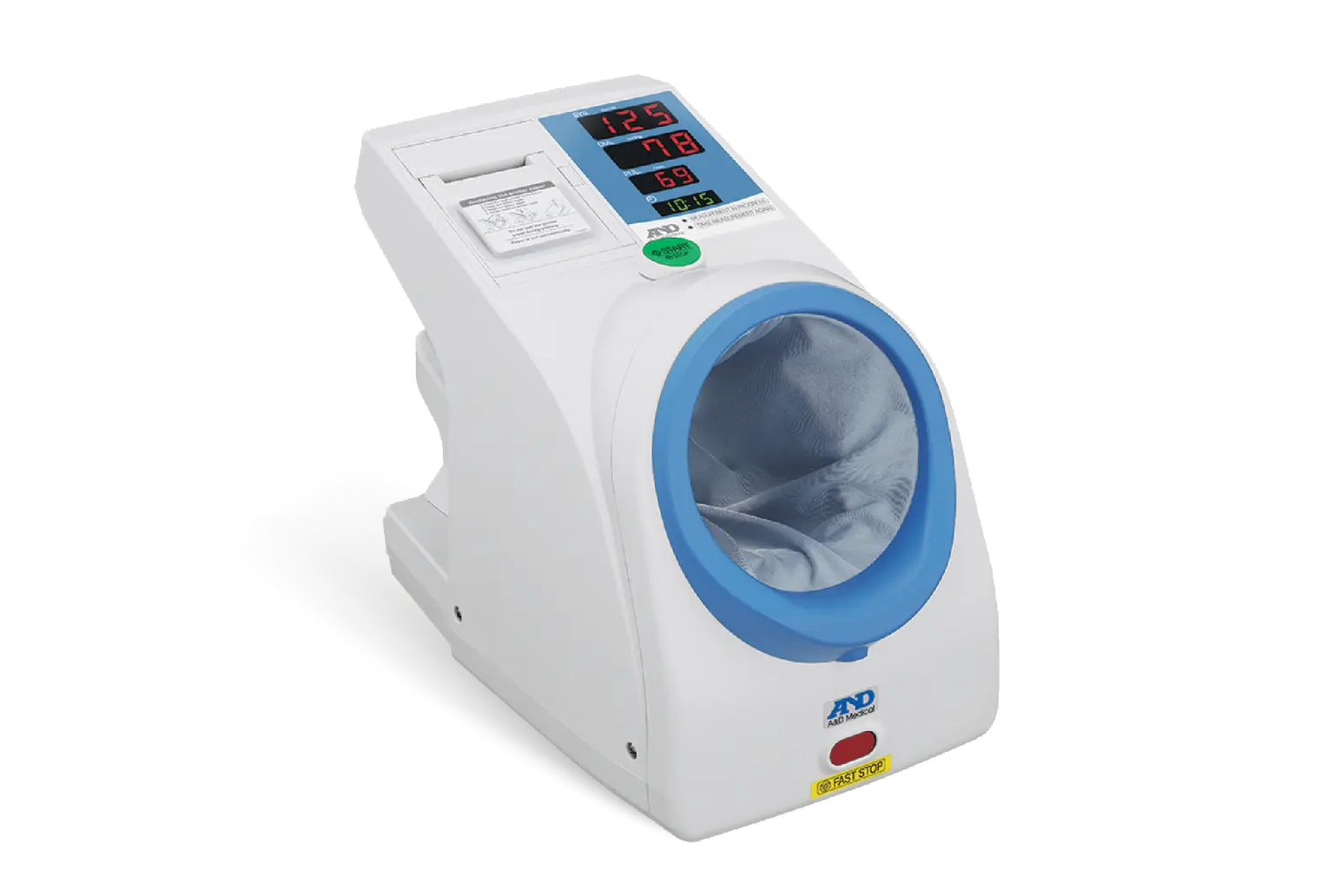

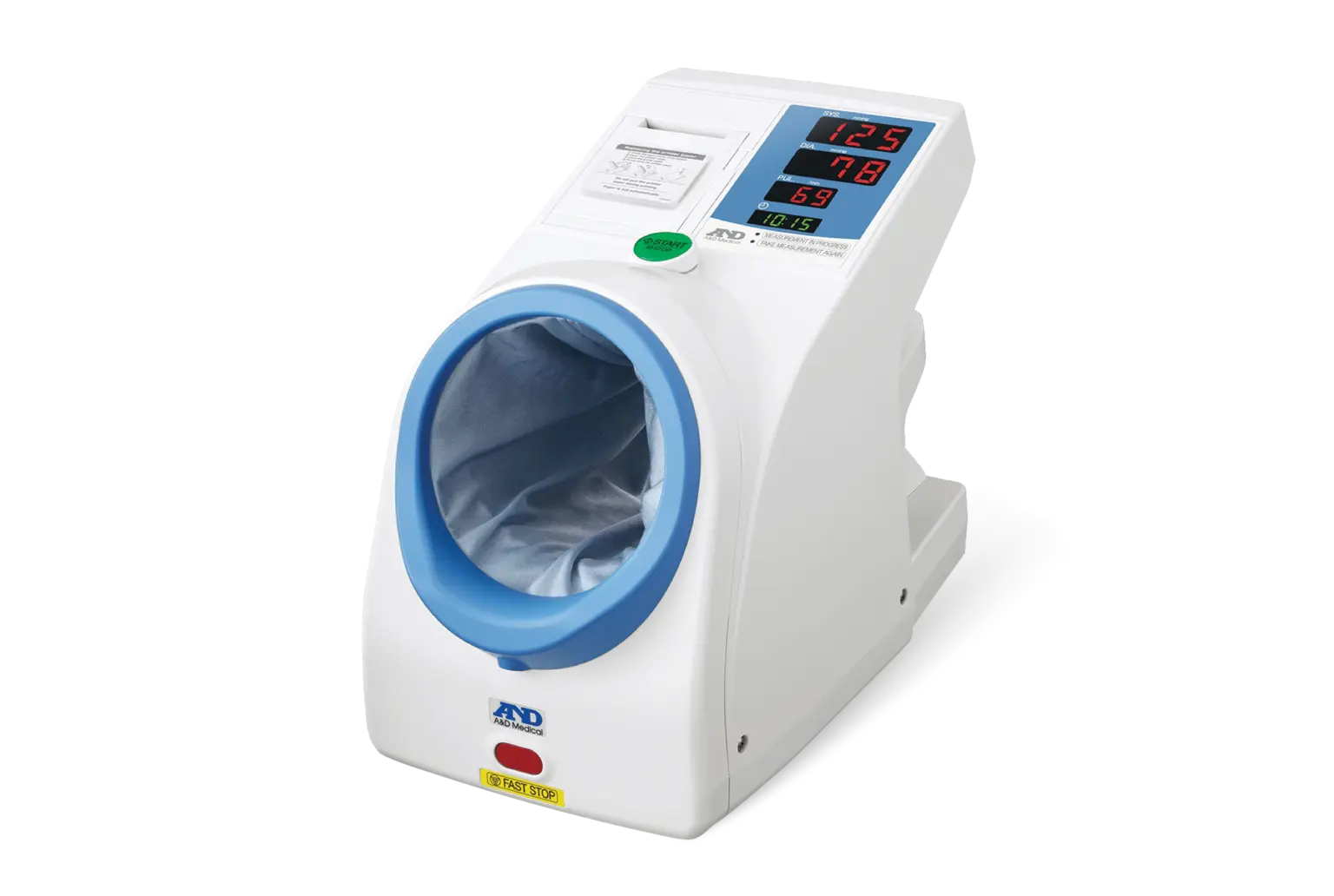

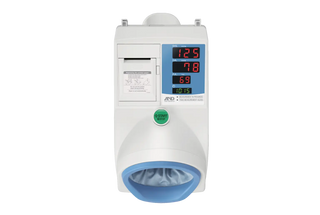

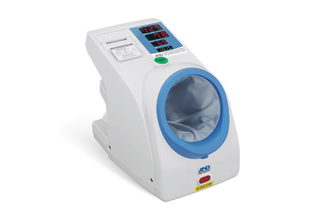

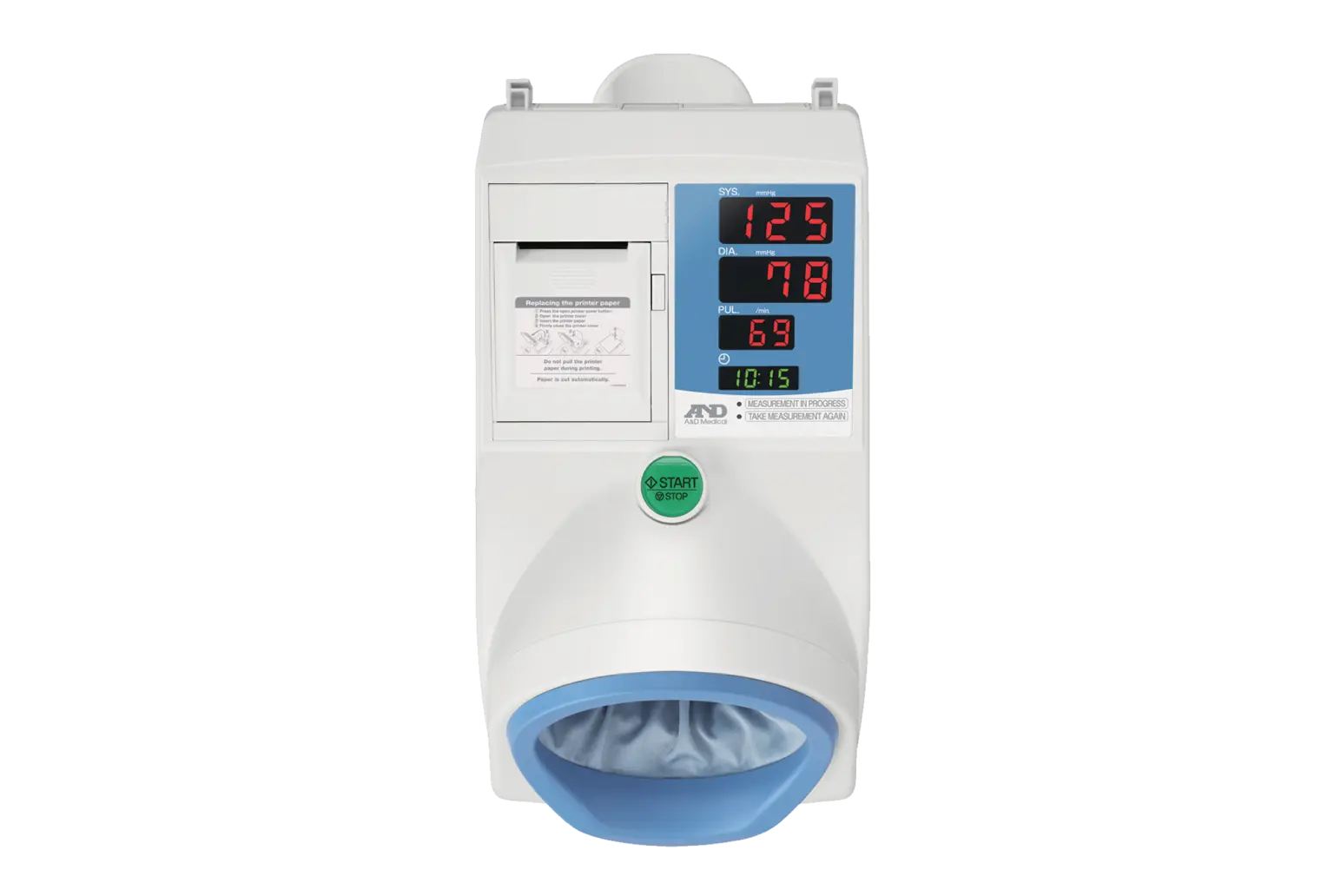

A&D Medical TM-2657P Kiosk Blood Pressure Monitor, with Bluetooth or RS-232C Connectivity Options
A&D Medical TM-2657P Kiosk Blood Pressure Monitor, with Bluetooth or RS-232C Connectivity Options
Typically 1-3 Business Days
Registered & Certified Medical Equipment
Need help?
Typically 1-3 Business Days
Registered & Certified Medical Equipment
Need help?
A&D Medical TM-2657P Kiosk Blood Pressure Monitor, with Bluetooth or RS-232C Connectivity Options, Compact Design, Cuff Size 7.1-13.8” (18-35 cm), Systolic Pressure 40-270 mmHg, Diastolic Pressure 20-200 mmHg, Pulse 30-240 beats/min
The Automatic Blood Pressure Kiosk features a compact footprint that fits easily into small pharmacies, community clinics, and other public facilities offering blood pressure monitoring programs. Its space efficient design can be secured in a fixed position or moved as needed, and it can be placed on existing counters or tables for flexible layouts.
Patients can complete readings independently with One Button operation, clear on device instructions guide proper placement for accurate use, and an antibacterial cuff cloth supports hygiene in high traffic environments.
The kiosk supports customizable printed result slips for programs, instructions, or branding. It offers flexibility in connectivity with optional Bluetooth® or hardwired configurations depending on the needs of the setting.
Product Benefits
- Experience fast, accurate and reliable results with the unique cuff inflation.
- Indicates the potential presence of an irregular heartbeat with an icon on the print out providing an early warning of possible cardiovascular issues.
- One button operation for quick and simple measurements.
- Anti-bacterial cuff cloth provides a sanitary solution. The cuff cloth is easily replaced and disposable covers are available.
Convience
- Integrated printer that can be customized allows the patient to keep results as a record or provide to a healthcare professional. Measurements can be uploaded to the Heart Track app via a QR code on the result printout.
- The small footprint is ideal for integration in a health screening station or tight spaces.
- Seamlessly collect data via the optional Bluetooth® or RS232C communication modules.
- No installation required, just remove from box and plug in and turn on power.
Trusted Accuracy
- Clinically validated for accuracy
- Indicates if you have an Irregular Heartbeat (IHB) during a measurement
Innovative Technology
- Unique cuff inflation system that stabilizes the arm and customizes cuff circumference to fit the patient
- Accommodates arm circumferences ranging from 7.1-13.8”
- Use either the right or left arm
Fast and Easy Operation
- One button operation
- Integrated instruction panel
- Stores 200 measurements in memory
- Date and Time stamp to assist in trending
Flexible Applications
- Compact design that can be used stand alone, part of a health screening station or kiosk system
- Customizable printout of reading can include a QR code to send your patient’s reading to their Heart Track account.
- Optional connectivity to integrate seamlessly
Sanitary Solution
- Anti-bacterial cuff
- Easily replaced
Warranty
- 2 year warranty
Product Specifications
| Measurement Method | Oscillometric |
| Cuff Size | Fits Arms 7.1-13.8” (18-35 cm) |
| Measurement Range | Pressure: 0-299 mmHg, Systolic pressure: 40-270 mmHg, Diastolic pressure: 20-200 mmHg, Pulse: 30-240 beats/min |
| Measurement Accuracy | Pressure: ±3 mmHg or 2%, Pulse: ±5% |
| Display | 3 Digit Display LED & LED Lamp |
| Time/Date | 12 Hour Format, Year, Month, and Day |
| Power Supply | 100-240V, 50-60 HZ |
| AC Power Consumption | 50-80 VA |
| Clinical Test | EN1060-4:2004 |
| Wired Communication | Optional RS-232C (TM-2657P-RS) |
| Wireless Connection | Optional Bluetooth® (TM-2657P-BT) |
| Safety Standard | IEC60601-1:2012 |
| EMD Compliance | Complies with Electromagnetic Disturbances Standard IEC60601-1-2:2014 |
| Operating Conditions | +50°F to +104°F (10°C to 40°C) / 15% to 85% RH (no condensation) |
| Storage/Transport Conditions | -4°F to +140°F (-20°C to 60°C) / 10% to 95% RH (no condensation) |
