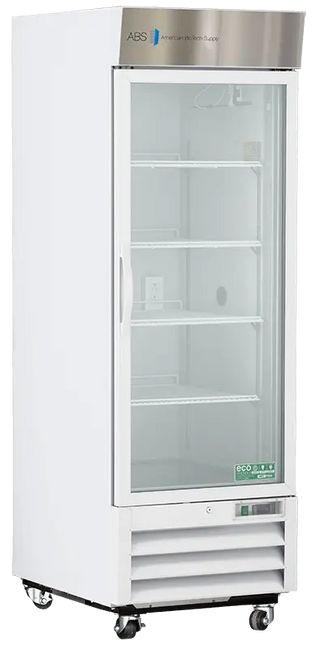

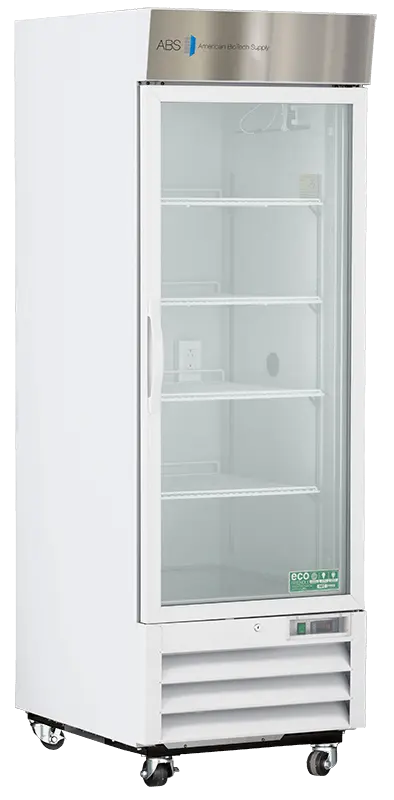

ABS ABT-HC-CS-23 27.625" Upright Chromatography Refrigerator, 23 cu.ft., 1° to 10°C Temperature Range, Cycle Defrost, 1 Swing Glass Door, 4 Shelves, ENERGY STAR Certified
The Standard Chromatography Refrigerators feature a microprocessor temperature controller and display, allowing for precise temperature control, verification and recovery versus mechanical style thermostats.

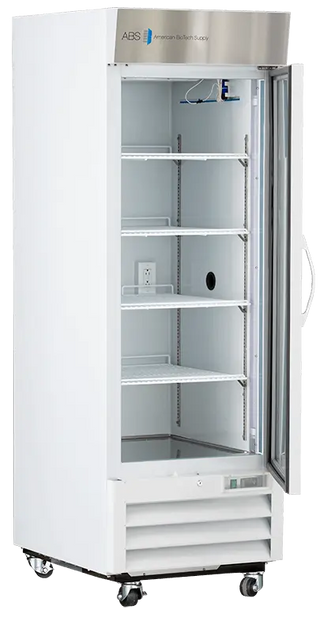

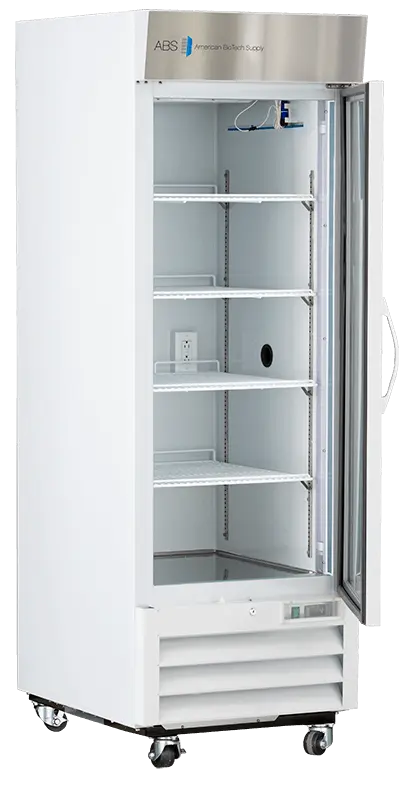

One interior duplex electrical outlet and one side all port hole is provided to simplify the setup and operation of laboratory procedures. An interior fan driven, forced-draft air circulation system provides excellent temperature uniformity and recovery after door openings.
All Chromatography units require two electrical outlets.
Environmentally friendly, natural hydrocarbon (HC) refrigerants (not containing hydrofluorocarbons) vastly reduce global-warming potential (GWP) while meeting new EPA/SNAP mandates and UL, ASHRAE compliance guidelines.
Features
-
Precision Temperature Management: Equipped with a microprocessor controller and dual probes to monitor both air and sample temperatures for maximum accuracy.
-
Enhanced Sample Security: Features a keyed door lock and remote alarm contacts to ensure unauthorized access is prevented and alerts are received instantly.
-
Integrated Laboratory Connectivity: Includes a 2" access port and an internal GFCI-protected duplex outlet, specifically designed for seamless chromatography equipment setup.
-
Optimal Airflow Design: The forced draft air circulation system eliminates hot spots and ensures rapid temperature recovery after door openings.
-
Environmentally Sustainable Cooling: Utilizes R290 natural hydrocarbon refrigerant, offering superior energy efficiency and a significantly lower global warming potential.
-
Durable and Mobile Construction: Built with powder-coated steel and high-density urethane insulation, supported by heavy-duty swivel casters for easy laboratory repositioning.
Product Specifications
| Model | ABT-HC-CS-23 |
| Capacity | 23 cu. ft. |
| Temperature Range | 1°C to 10°C |
| Controller Type | Microprocessor Temperature Controller |
| Defrost Type | Cycle Defrost |
| Number of Doors | 1 Swing Glass Door (Keyed Lock) |
| Exterior Dimensions (W x D x H) | 27 5/8" x 34 3/4" x 81 3/4" (Casters included) |
| Interior Dimensions (W x D x H) | 22" x 25.25" x 52.125" |
| Electrical Requirements | 115V, 60 Hz, 3 Amps (Requires 2 outlets) |
| Compressor Power | 1/5 HP |
| Cooling Capacity (BTU/hr) | 4932 BTU/hr |
| Refrigerant | R290 (Hydrocarbon, Natural) |
| Number of Shelves | 4 Adjustable Shelves (1/2" increments) |
| Access Ports | One 2" Access Port & One 3/8" Probe Port |
| Certifications | ETL Listed |
| Shipping Weight | 336 lbs |
| Warranty | 1-Year Parts/Labor + 4-Year Compressor Parts |
