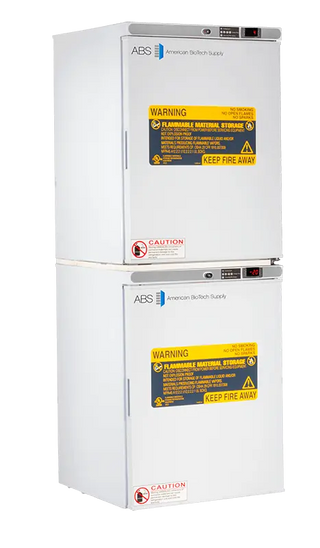

ABS ABT-HC-FRFC10 23.625" Flammable Storage Refrigerator / Freezer Combination, 9 cu.ft., Ref. 1° to 10°C / Frz. -15° to -25°C Temperature Range, Cycle Defrost Refrigerator / Manual Defrost Freezer, 2 Solid Doors, 5 Shelves / 3 Baskets
The Standard Flammable Storage Refrigerators Meet NFPA and OSHA guidelines 45 and 70 for the refrigerated storage of flammable (volatile) materials in general laboratory work areas. There are no electrical components located in the interior of the unit and the compressor’s electrical components have been sealed in a vapor-proof enclosure for additional safety.
The Standard Dual Temp Combination Refrigerator / Freezers feature separate microprocessor temperature controller allowing for precise temperature control, verification and recovery. An interior fan driven, forced-draft air circulation system provides excellent temperature uniformity and recovery after door openings. REFRIGERATORS ONLY.
The Freestanding models (“UCFS”) require 4” of clearance around back and sides of the unit for proper ventilation. Improper installation will void the warranty and will lead to temperature maintenance issues, overheating and possible failure.
These units are NOT designed for use in environments where volatile/explosive conditions could potentially exist.
Environmentally friendly, natural hydrocarbon (HC) refrigerants (not containing hydrofluorocarbons) vastly reduce global-warming potential (GWP) while meeting new EPA/SNAP mandates and UL, ASHRAE compliance guidelines.
Features
-
NFPA & UL Compliance: Engineered meticulously to meet NFPA Guidelines 45 and 70 alongside UL/C-UL listings, entirely eliminating internal spark risks from thermostats, switches, and fans.
-
Dual Microprocessor Controls: Equipped with independent microprocessor controllers and clear digital displays for both chambers, enabling pinpoint accuracy and easy temperature tracking.
-
Dual-Probe Temperature Sensing: Features 2 distinct monitoring probes per compartment (1 in air, 1 in sample bottle) to deliver highly accurate readings that reflect actual product temperatures.
-
Comprehensive Alarm Systems: Integrated with standalone audible and visual high/low temperature alarms and remote alarm contacts for absolute sample security and 24/7 monitoring integration.
-
Optimized Storage Workflow: Configured with 3 adjustable shelves in the refrigerator and 2 fixed shelves with 3 removable baskets in the freezer to streamline laboratory inventory organization.
-
Eco-Friendly Refrigeration: Utilizes natural, HFC-free R600a refrigerant and foam insulation to minimize environmental impact while maintaining superior thermal pull-down performance.
-
Dual-Locking Secure Access: Outfitted with keyed door locks on heavy-duty solid doors and recessed handles to restrict unauthorized access to volatile or sensitive materials.
Product Specifications
| Product Number | ABT-HC-FRFC10 |
| Total Capacity | 9.0 Cu. Ft. |
| Refrigerator Capacity | 5.0 Cu. Ft. |
| Freezer Capacity | 4.0 Cu. Ft. |
| Exterior Dimensions | 23 5/8"W x 24 ¼"D x 65 3/8"H |
| Temperature Range (Ref) | 1°C to 10°C |
| Temperature Range (Frz) | -15°C to -25°C |
| Defrost Type (Ref / Frz) | Cycle Defrost (Ref) / Manual Defrost (Frz) |
| Electrical Requirements | 115V, 60 Hz (Requires 2 independent outlets) |
| Amperage (Ref / Frz) | 1.2 Amps (Refrigerator) / 1.4 Amps (Freezer) |
| Horsepower (Ref / Frz) | 1/9 HP (Refrigerator) / 1/8 HP (Freezer) |
| Refrigerant Type | HFC-Free R600a (Hydrocarbon) |
| Door Type & Hinge | Two solid swing doors, right-hinged (Not reversible) |
| Access Ports | Two 3/8" Probe Access Ports (One Ref / One Frz) |
| Certifications & Compliance | UL/C-UL Listed, Meets NFPA Guidelines 45 and 70 |
| Shipping Weight | 205 lbs. (Gross Weight) |
| Warranty | Two years parts and labor warranty |
