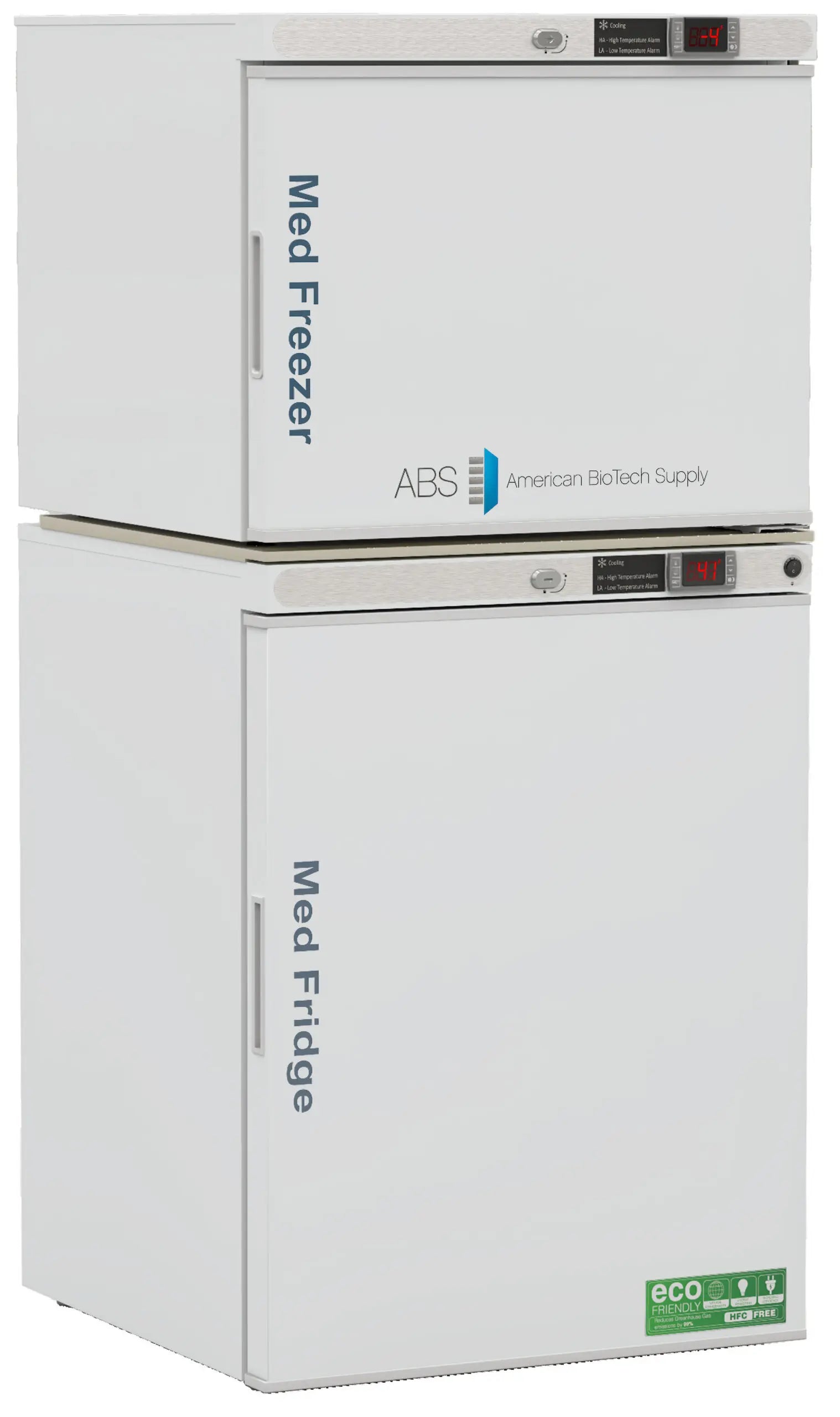

ABS PH-ABT-HC-RFC7S 23.75" Upright Pharmacy Refrigerator/Freezer, 7 cu.ft., Ref. 2° to 8°C / Frz. -25° to -15°C Temperature Range, Cycle Refrigerator / Manual Freezer Defrost, 2 Solid Swing Doors, 5 Shelves
The Premier Pharmacy Dual Temp Combination units feature separate microprocessor temperature controller allowing for precise temperature control, verification and recovery. An interior fan driven, forced-draft air circulation system provides excellent temperature uniformity and recovery after door openings. REFRIGERATORS ONLY
All models are equipped with digital temperature displays for convenient monitoring. Critical samples and supplies are security backed with an extensive package of audible and visual alarms. The freezer units feature either an automatic or manual defrost operating system. For manual defrost freezers, periodic manual defrosting is required.
This model requires 4” of clearance around back and sides of the unit for proper ventilation. Improper installation will void the warranty and will lead to temperature maintenance issues, overheating and possible failure.
Environmentally friendly, natural hydrocarbon (HC) refrigerants (not containing hydrofluorocarbons) vastly reduce global-warming potential (GWP) while meeting new EPA/SNAP mandates and UL, ASHRAE compliance guidelines.
Features
-
Dual-Zone Precision Control: Independent microprocessors and digital displays for both the refrigerator and freezer allow for exact temperature management.
-
Comprehensive Security: Integrated keyed door locks and magnetic gaskets ensure that sensitive materials remain secure and environmentally stable.
-
VFC & Vaccine Compliant: Includes specialized vaccine storage power cord warning labels and NIST-traceable calibration for regulatory peace of mind.
-
Optimized Airflow Design: Refrigerator features forced-draft air circulation and shelves with back rails to prevent product-to-wall contact and hot spots.
-
Smart Integration: Fully compatible with Pyxis®, Omnicell®, and Acudose RX® systems, making it ideal for modern clinical workflows.
-
Eco-Friendly Engineering: Utilizes HFC-free R600a refrigerant and high-density foam insulation to minimize environmental impact and energy costs.
Product Specifications
| Model | ABT-HC-RFC7S |
| Total Capacity | 6.9 cu. ft. |
| Refrigerator Capacity | 5.2 cu. ft. |
| Freezer Capacity | 1.7 cu. ft. |
| Exterior Dimensions | 23 3/4"W x 24"D x 53 1/8"H |
| Temperature Range (Ref) | 36°F to 46°F (2°C to 8°C) |
| Temperature Range (Frz) | 5°F to -13°F (-15°C to -25°C) |
| Defrost Type (Ref/Frz) | Cycle / Manual |
| Controller Type | Microprocessor with Digital Display |
| Electrical Requirements | 115V, 60 Hz (Requires 2 Outlets) |
| Amperage (Ref/Frz) | 1.3 Amps / 1.0 Amps |
| Horsepower (Ref/Frz) | 1/6 HP / 1/8 HP |
| Refrigerant | R600a (HFC-Free) |
| Shelving | 3 Adjustable (Ref) / 2 Adjustable (Frz) |
| Access Ports | Two 3/8" Probe Access Ports |
| Certifications | UL/C-UL Listed, NIST Traceable Calibration |
| Warranty | 2-Year Parts & Labor / 5-Year Compressor |
| Shipping Weight | 215 lbs. |
