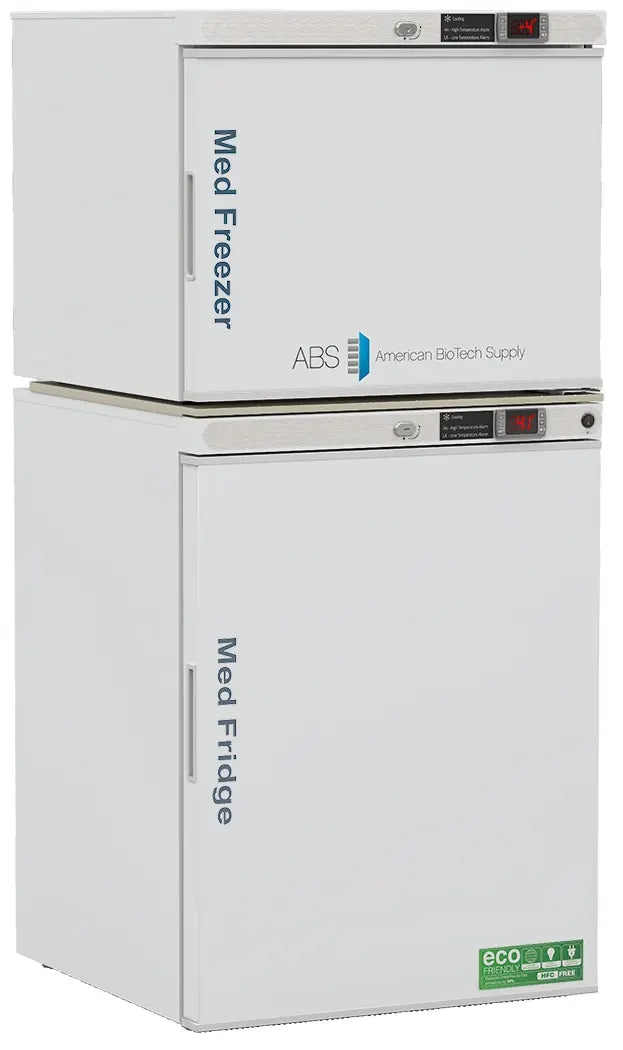

ABS PH-ABT-HC-RFC7SA 23.75" Upright Pharmacy Refrigerator/Freezer, 6.3 cu.ft., Ref. 2° to 8°C / Frz. -25° to -15°C Temperature Range, Cycle Defrost Refrigerator, Auto Defrost Freezer, 2 Solid Swing Doors, 5 Shelves
The Premier Pharmacy Dual Temp Combination units feature separate microprocessor temperature controller allowing for precise temperature control, verification and recovery. An interior fan driven, forced-draft air circulation system provides excellent temperature uniformity and recovery after door openings. REFRIGERATORS ONLY
All models are equipped with digital temperature displays for convenient monitoring. Critical samples and supplies are security backed with an extensive package of audible and visual alarms. The freezer units feature either an automatic or manual defrost operating system. For manual defrost freezers, periodic manual defrosting is required.
This model requires 4” of clearance around back and sides of the unit for proper ventilation. Improper installation will void the warranty and will lead to temperature maintenance issues, overheating and possible failure.
Environmentally friendly, natural hydrocarbon (HC) refrigerants (not containing hydrofluorocarbons) vastly reduce global-warming potential (GWP) while meeting new EPA/SNAP mandates and UL, ASHRAE compliance guidelines.
Features
-
Advanced Microprocessor Control: Independent temperature management for both compartments ensures critical stability for sensitive medical supplies.
-
NIST Traceable Calibration: Ships with a certified calibration document to satisfy strict regulatory requirements and quality assurance audits.
-
Enhanced Security Systems: Equipped with keyed door locks and comprehensive audible/visual alarms to prevent unauthorized access and temperature excursions.
-
Optimized Airflow Design: Features forced-draft air circulation in the refrigerator to maintain a consistent internal environment and protect product integrity.
-
Clinical Compatibility: Fully compatible with industry-standard medication management systems like Pyxis®, Omnicell®, and Acudose Rx®.
-
Eco-Friendly Engineering: Utilizes HFC-free R600a refrigerant and foam insulation, reducing environmental impact while maintaining high thermal efficiency.
-
Durable Warranty Coverage: Backed by a comprehensive 2-year parts and labor warranty, with an additional 3-year protection on the compressor parts.
Product Specifications
| Model | PH-ABT-HC-RFC7SA |
| Type | Upright Laboratory Refrigerator/Freezer Combination |
| Total Capacity | 6.5 Cu. Ft. |
| Refrigerator Capacity | 5.2 Cu. Ft. |
| Freezer Capacity | 1.3 Cu. Ft. |
| Exterior Dimensions (W x D x H) | 23 ¾”W x 24″D x 53 1/8″H |
| Temperature Range (Refrigerator) | 36°F to 46°F (2°C to 8°C) |
| Temperature Range (Freezer) | 5°F to -13°F (-15°C to -25°C) |
| Defrost Type | Cycle Defrost (Fridge) / Auto Defrost (Freezer) |
| Controller Type | Microprocessor Controller |
| Display | Digital Temperature Display |
| Alarms | Audible/Visual High/Low Temp & Remote Alarm Contacts |
| Electrical Requirements | 115V, 60 Hz, 1.3 Amps (Fridge) / 1.0 Amps (Freezer) |
| Compressor HP | 1/6 HP (Fridge) / 1/8 HP (Freezer) |
| Refrigerant | HFC-Free R600a |
| Access Ports | Two 3/8″ Probe Access Ports |
| Door Lock | Keyed Door Locks |
| Certifications | NIST Traceable Calibration Certificate Included |
| Warranty | 2-Year Parts & Labor; 5-Year Compressor Parts |
