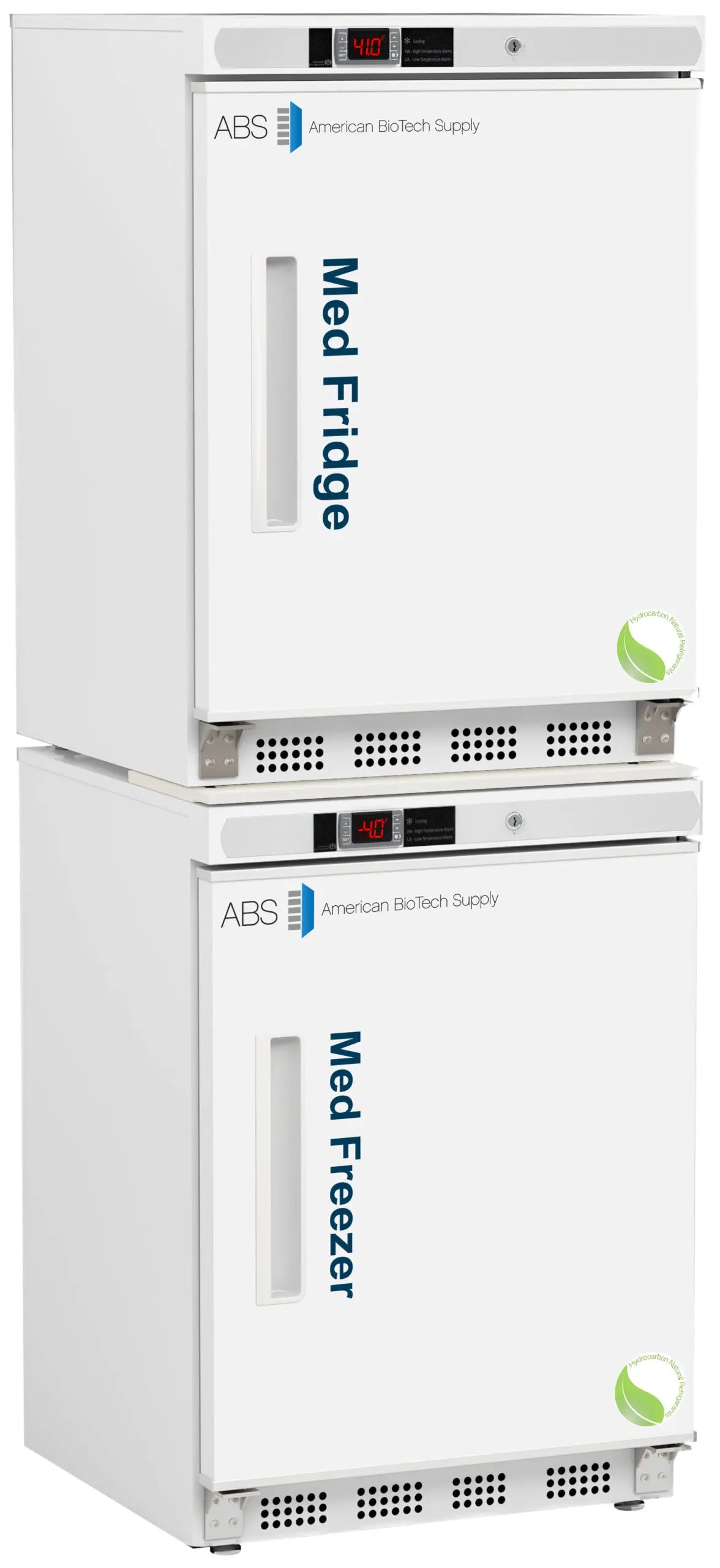

ABS PH-ABT-HC-RFC9 23.75" Upright Pharmacy Refrigerator/Freezer Combination, 9 cu.ft., Ref. 2° to 8°C / Frz. -25° to -15°C
ABS PH-ABT-HC-RFC9 23.75" Upright Pharmacy Refrigerator/Freezer Combination, 9 cu.ft., Ref. 2° to 8°C / Frz. -25° to -15°C
Typically 1-3 Business Days
Registered & Certified Medical Equipment
Need help?
Typically 1-3 Business Days
Registered & Certified Medical Equipment
Need help?
ABS PH-ABT-HC-RFC9 23.75" Upright Pharmacy Refrigerator/Freezer Combination, 9 cu.ft., Ref. 2° to 8°C / Frz. -25° to -15°C Temperature Range, Cycle Refrigerator / Manual Freezer Defrost, 2 Solid Swing Doors, 5 Shelves
The Premier Pharmacy Dual Temp Combination units feature separate microprocessor temperature controller allowing for precise temperature control, verification and recovery. An interior fan driven, forced-draft air circulation system provides excellent temperature uniformity and recovery after door openings. REFRIGERATORS ONLY
All models are equipped with digital temperature displays for convenient monitoring. Critical samples and supplies are security backed with an extensive package of audible and visual alarms. The freezer units feature either an automatic or manual defrost operating system. For manual defrost freezers, periodic manual defrosting is required.
This model is designed with a “front-breathing” ventilation system, eliminating the need for clearance around the top and sides of the unit; enabling the user to incorporate these units into cabinets and other applications where free space is limited.
Environmentally friendly, natural hydrocarbon (HC) refrigerants (not containing hydrofluorocarbons) vastly reduce global-warming potential (GWP) while meeting new EPA/SNAP mandates and UL, ASHRAE compliance guidelines.
Features
-
CDC/VFC Compliant Monitoring: Includes a NIST-traceable calibrated temperature monitoring device with a 3-year certificate to meet strict federal vaccine storage requirements.
-
Independent Cooling Systems: Features separate microprocessor controllers and digital displays for the refrigerator and freezer to maintain distinct, stable thermal zones.
-
Comprehensive Alarm Suite: Equipped with audible and visual high/low temperature alarms, remote alarm contacts, and battery backups for continuous safety monitoring.
-
Advanced Probe Technology: Utilizes two probes per compartment (one in air and one in a buffered sample bottle) to accurately simulate actual product temperature.
-
Secure Inventory Management: Standard keyed door locks and a white powder-coated exterior provide physical security and durability in high-traffic clinical settings.
-
HFC-Free Environmentally Friendly Design: Operates with R600a hydrocarbon refrigerant and foam insulation to minimize environmental impact while maintaining cooling efficiency.
-
Workflow Compatibility: Designed for versatility with a stacking kit included and full compatibility with Pyxis®, Omnicell®, and Acudose RX® automated dispensing systems.
Product Specifications
| Model | PH-ABT-HC-RFC9 |
| Product Type | Upright Refrigerator / Freezer Combination |
| Total Capacity | 9.0 cu. ft. (4.6 Ref. / 4.2 Freezer) |
| Exterior Dimensions (W x D x H) | 23 ¾” x 24 ½” x 66 ¾” |
| Operating Refrigerator Temp Range | 36°F to 46°F (2°C to 8°C) |
| Operating Freezer Temp Range | 5°F to -13°F (-15°C to -25°C) |
| Defrost Method | Cycle Refrigerator / Manual Freezer |
| Refrigerant & Insulation | HFC-free R600a hydrocarbon |
| Electrical Requirements | 115V, 60 Hz, NEMA 5-15P (Requires 2 Outlets) |
| Amperage | 1.74 Amps (Ref) / 1.5 Amps (Freezer) |
| Horsepower | 1/8 HP (Ref) / 1/8 HP (Freezer) |
| Shelving Configuration | 2 Adjustable & 1 Fixed (Ref), 2 Fixed (Freezer) |
| Certifications & Listings | UL/C-UL Listed |
| Calibration Certificate | NIST Traceable Certificate Included (3 Years) |
| CDC / VFC Compliance | Fully Compliant with CDC Guidelines |
| Dispensing System Compatibility | Pyxis®, Omnicell®, and Acudose RX® Compatible |
| Shipping Weight | 269 lbs. |
