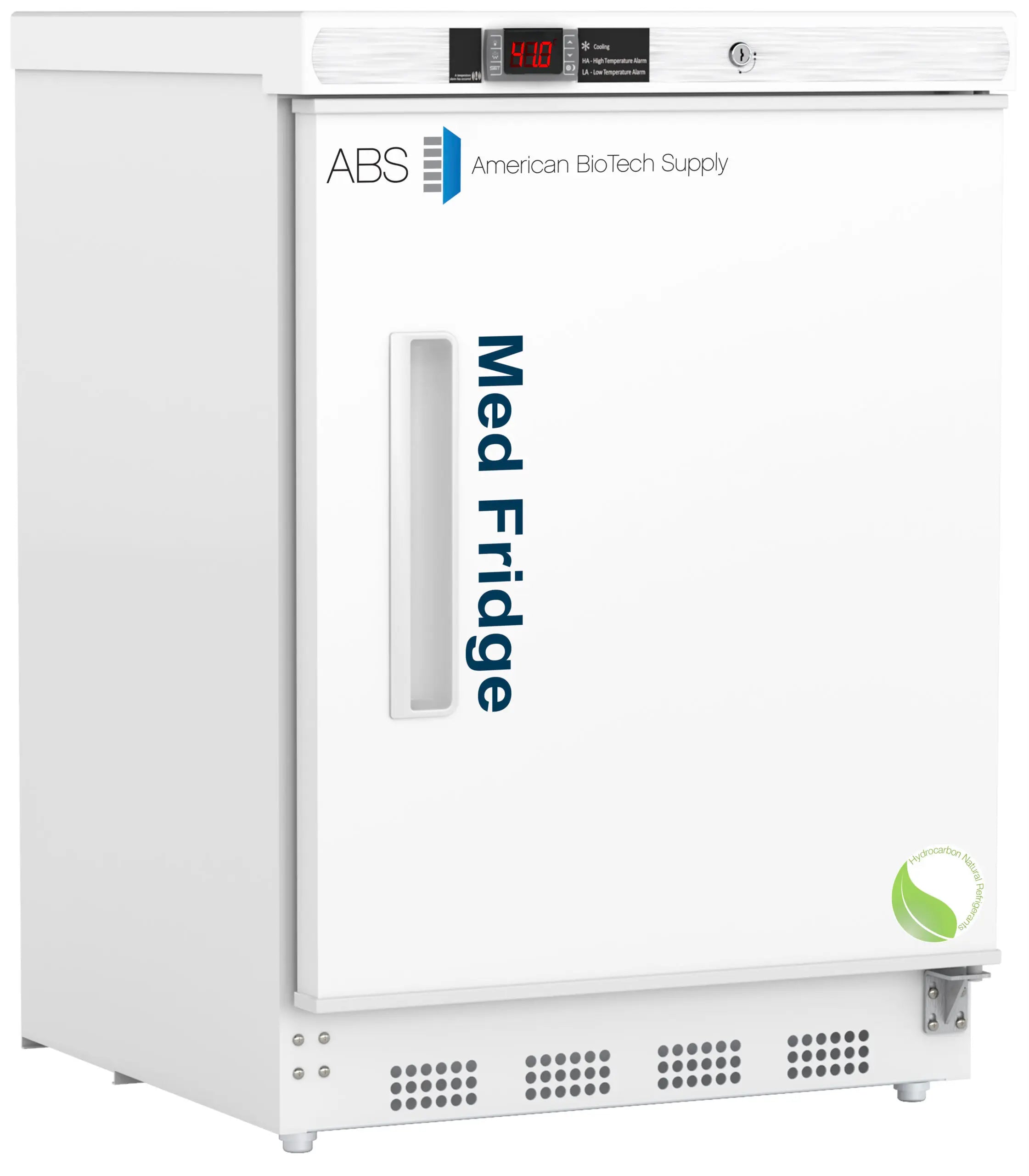

ABS PH-ABT-HC-UCBI-0404 23.75" Undercounter Built-in Refrigerator, 4.6 cu.ft., Cycle Defrost, 1 Solid Swing Door, 3 Shelves, 2° to 8°C Temperature Range, ENERGY STAR Certified
This 4.6 cubic foot premier pharmacy refrigerator is specifically engineered to meet the rigorous demands of clinical and laboratory environments while maximizing space efficiency. Designed for built-in or freestanding applications, it features a front-breathing ventilation system that allows for seamless integration into cabinetry without requiring additional side or top clearance.
The unit is equipped with a sophisticated microprocessor temperature controller and a digital display, ensuring precise thermal stability and rapid recovery critical for sensitive medical inventory. Security is prioritized with a keyed door lock, while the solid swing door and high-density urethane foam insulation maintain internal consistency.
It includes a specialized Temperature Monitoring Device (TMD) that complies with current CDC guidelines, backed by a three-year certificate of NIST-traceable calibration. Additionally, the system utilizes environmentally friendly R600a hydrocarbon refrigerant, aligning with EPA/SNAP mandates for a reduced global warming footprint.
Compatible with major automated dispensing systems like Pyxis®, Omnicell®, and AcuDose RX®, this refrigerator is a comprehensive solution for professional vaccine and pharmaceutical storage.
Features
-
CDC-Compliant Monitoring: Includes a 3-year certified NIST-traceable thermometer with a buffered probe for precise vaccine temperature tracking.
-
Built-In Design: Front-breathing ventilation allows the unit to be installed under counters or within cabinetry without extra clearance space.
-
Precision Control: Advanced microprocessor controller ensures tight temperature stability between 36°F and 46°F (2°C – 8°C).
-
Comprehensive Alarms: Audible and visual alerts for high/low temperatures, plus remote alarm contacts for 24/7 security monitoring.
-
HFC-Free Refrigeration: Uses natural R600a hydrocarbon refrigerant to significantly reduce environmental impact and meet modern energy standards.
-
Security & Compatibility: Integrated keyed door lock and full compatibility with automated dispensing systems like Pyxis® and Omnicell®.
-
Reliable Warranty: Backed by a robust 2-year parts and labor warranty, with an additional 3-year coverage for the compressor.
Product Specifications
| Exterior Dimensions (W x D x H) | 23.75" x 24.5" x 33.375" |
| Interior Dimensions (W x D x H) | 19.25" x 16.75" x 24.125" |
| Storage Capacity | 4.6 Cu. Ft. |
| Temperature Range | 36°F – 46°F (2°C – 8°C) |
| Defrost Type | Cycle Defrost |
| Refrigerant | R600a (HFC-free) |
| Insulation | High density urethane foam |
| Electrical Requirements | 110-120V AC: 15 A (minimum) |
| Rated Amperage | 1.74 Amps |
| Power Plug | NEMA 5-15 Plug (UL471 conform) |
| Agency Listings / Certifications | UL-C-UL Listed, Energy Star Certified |
| Door Type | 1 Solid Swing Door |
| Door Swing / Total Depth | 23.5" Door Swing / 46" Total Open Depth |

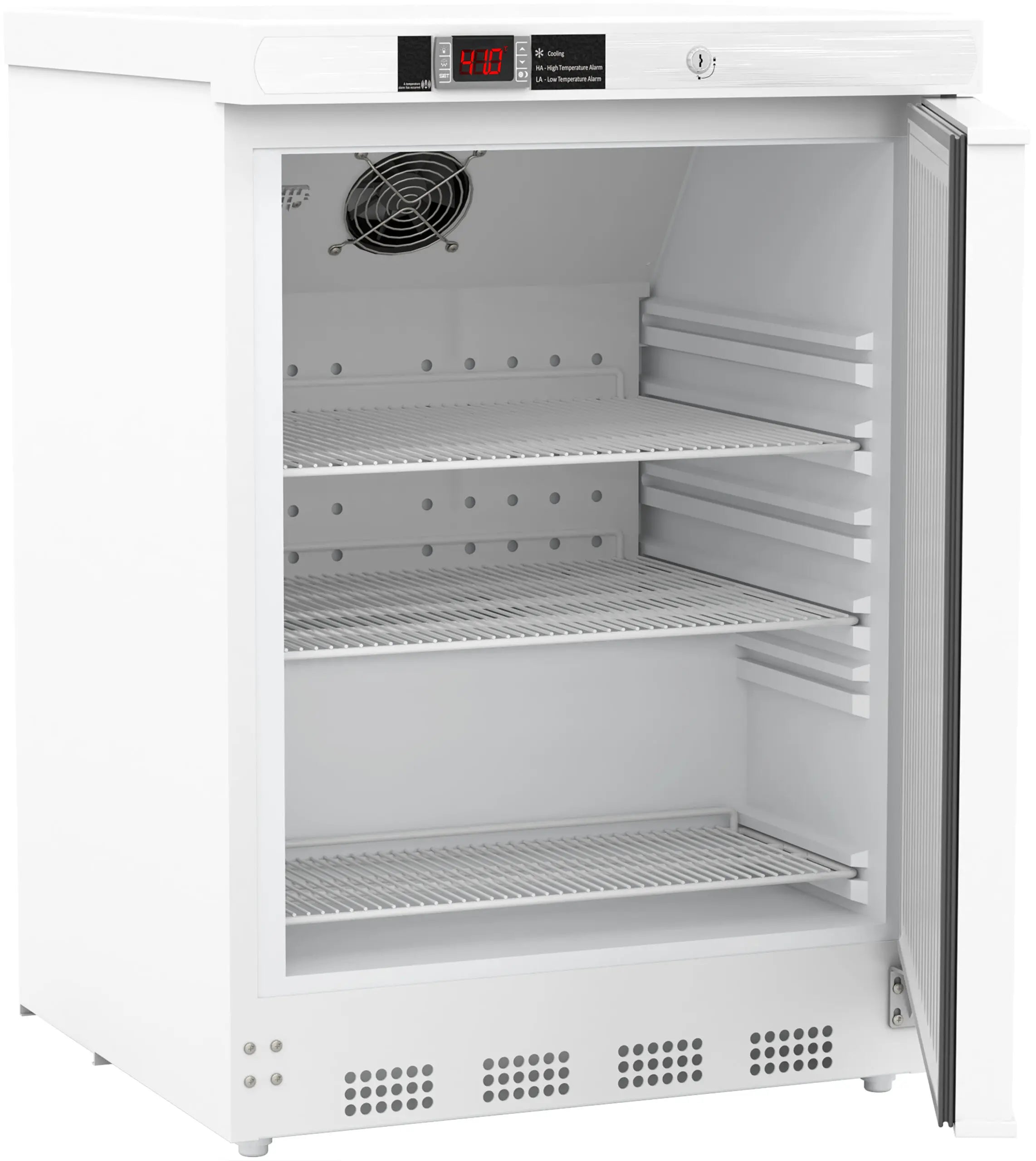

| Shelving | 2 adjustable / 1 fixed |
| Product Weight | 97 lbs |
| Shipping Weight | 137 lbs |
| Access Control | Keyed door lock |
| Warranty | 2 years parts & labor / 5 years compressor parts |
