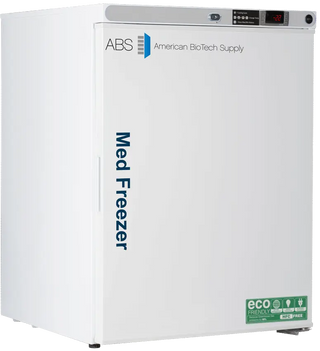

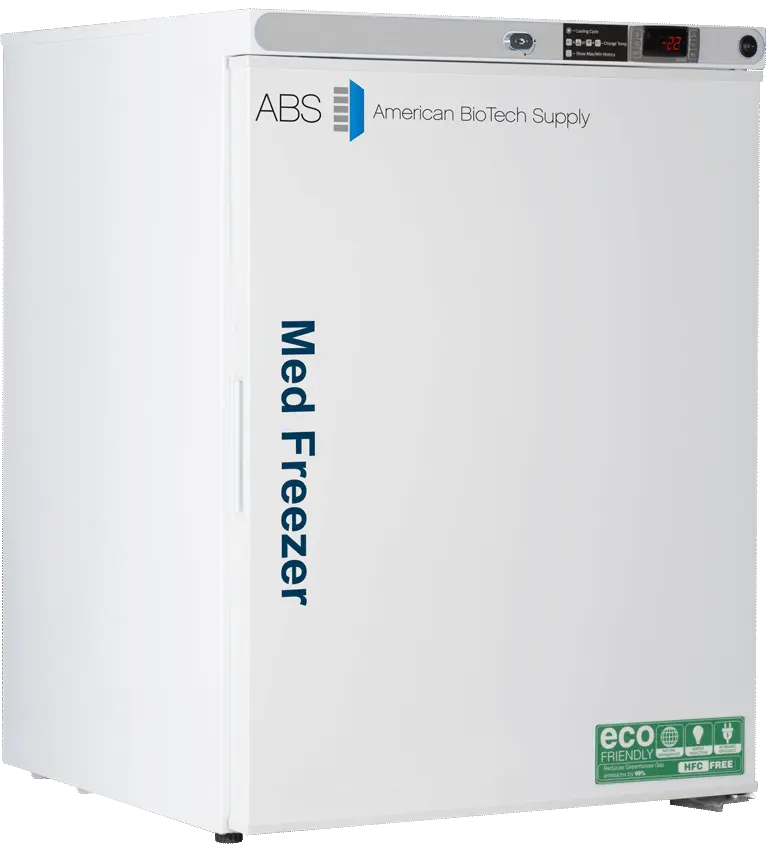

ABS PH-ABT-HC-UCFS-0430 23.75" Premier Undercounter Pharmacy Freezer, 4 cu.ft., -30° to -20°C Temperature Range, Manual Defrost, 1 Solid Swing Door, 3 Adjustable Shelves
The Premier Pharmacy Freestanding Undercounter Freezers feature a microprocessor temperature controller and display, allow for precise temperature control, verification and recovery versus mechanical style thermostats. Critical samples and supplies are security backed with an extensive package of audible and visual alarms
Periodic defrosting is required.
The Freestanding models (“UCFS”) require 4” of clearance around back and sides of the unit for proper ventilation. Improper installation will void the warranty and will lead to temperature maintenance issues, overheating and possible failure.
Environmentally friendly, natural hydrocarbon (HC) refrigerants (not containing hydrofluorocarbons) vastly reduce global-warming potential (GWP) while meeting new EPA/SNAP mandates and UL, ASHRAE compliance guidelines.
Adjustable operating temperature range from -20°C to -30°C. Factory Preset at -30°C. See “View/Print Product Information” drop down for instructions.
Features
-

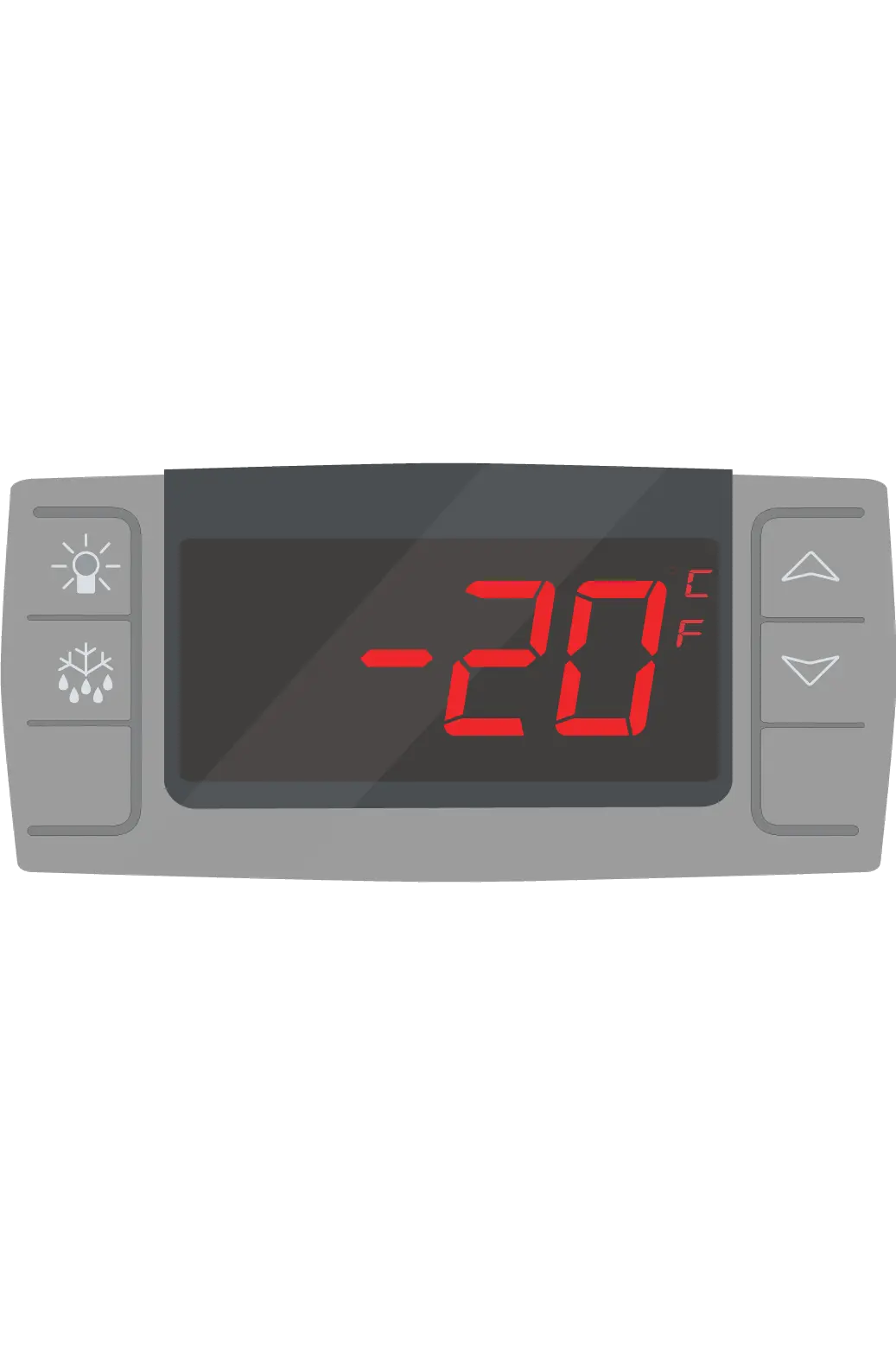

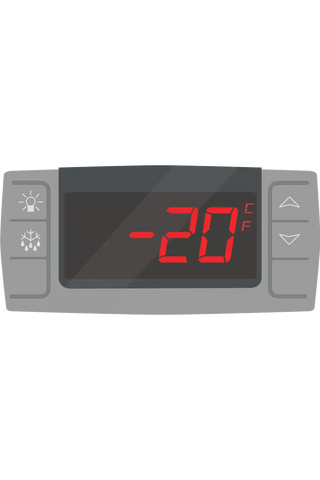

Microprocessor Precision Control: Advanced digital controller delivers exact temperature regulation and rapid thermal recovery, vastly outperforming mechanical thermostats to eliminate critical temperature fluctuations.
-
Comprehensive Alarm & Monitoring System: Features audible and visual high/low temperature alerts, remote alarm contacts, and an intelligent dual-probe setup (one in air, one in a glycol bottle) for stable, simulated-product data.
-
Continuous Battery Back-up Protection: The digital display and alarm module are structurally backed by a reliable battery system, ensuring continuous monitoring and security tracking even during unexpected power outages.
-
Optimized Internal Airflow Design: Equipped with a back-wall evaporator cover, three adjustable shelves with specialized rear guard rails, and a footed bottom shelf to eliminate stagnant air pockets and prevent inventory from touching cold walls.
-
Eco-Friendly SNAP/EPA Compliance: Utilizes premium, HFC-free natural hydrocarbon (R290) refrigerant and green foam insulation to drastically decrease global-warming potential (GWP) while meeting strict environmental laws.
-
Clinical Integrity & Security: Secured with a heavy-duty keyed door lock, positive-seal magnetic door gasket, and heavy-duty leveling legs to guarantee content confidentiality and smooth cabinet leveling.
-
Certified Quality Assurance: Individually calibrated using a strict NIST-traceable device, with the official validation certificate included directly inside the box to support laboratory audit readied operations.
Product Specifications
| Product Number | PH-ABT-HC-UCFS-0430 |
| Capacity | 4 Cu. Ft. |
| Exterior Width | 23 3/4" |
| Exterior Depth | 24" |
| Exterior Height | 32 1/8" |
| Operating Temperature Range | -4°F to -22°F (-20°C to -30°C) |
| Factory Preset Temperature | -22°F (-30°C) |
| Defrost Type | Manual Defrost |
| Controller Type | Microprocessor Temperature Controller |
| Temperature Display | Digital Display with Battery Back-up |
| Alarms | Audible and Visual High/Low Temperature Alarms |
| Remote Alarm Contacts | Yes |
| Temperature Probes | 2 Probes (1 in Air, 1 in Glycol Bottle) |
| Electrical Requirements | 115V, 60 Hz, 2.2 Amps, 1/4 HP |
| Refrigerant Type | HFC-Free Natural Hydrocarbon (R290) |
| Certifications & Compliance | UL/C-UL Listed, EPA SNAP Compliant, NIST Traceable Certificate Included |
| Shelving | 3 Adjustable Shelves with Guard Rail + 1 Bottom Footed Shelf |
| Shipping Weight | 128 lbs. |
