Accucold 20" Wide Built-In Pharmacy All-Refrigerator, ADA Compliant 2.65 cu.ft.
Accucold’s Pharmaceutical Series features refrigeration specially designed to meet current CDC, VFC and VFA guidelines for vaccine storage, with built-in choices sized to fit under ADA compliant counters.

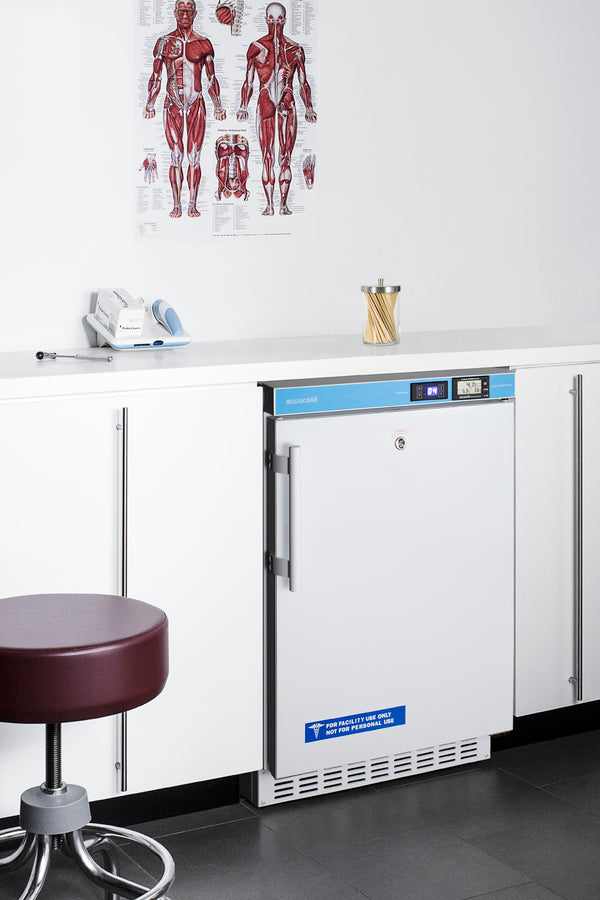

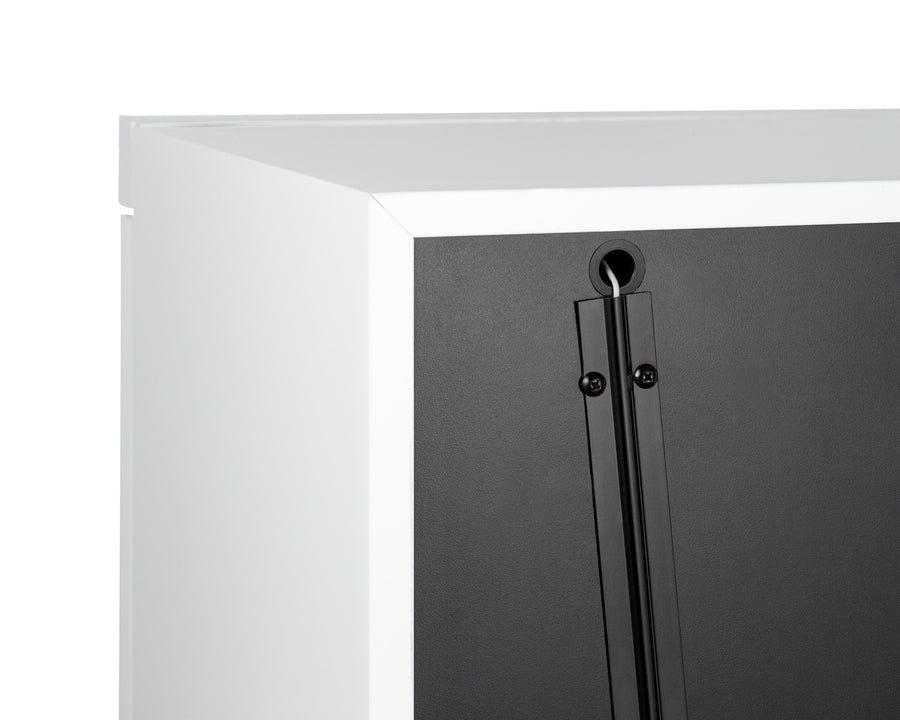

The ACR45LCAL all-refrigerator is sized at just under 32" high. It features a front-breathing design for built-in installation under lower ADA compliant counters, with a fully finished cabinet that also allows freestanding use. Its sealed back allows for a better fit and easier cleanability. A hospital grade cord with a 'green dot' plug provides added safety in high traffic areas and a factory-installed keyed lock is located towards the top of the unit for convenient security. The user-reversible door includes a side-mounted handle for added convenience, with a self-closing mechanism to ensure items aren't accidentally exposed to warm air. Four adjustable leveling legs allow you to raise the height for a better fit under standard countertops.

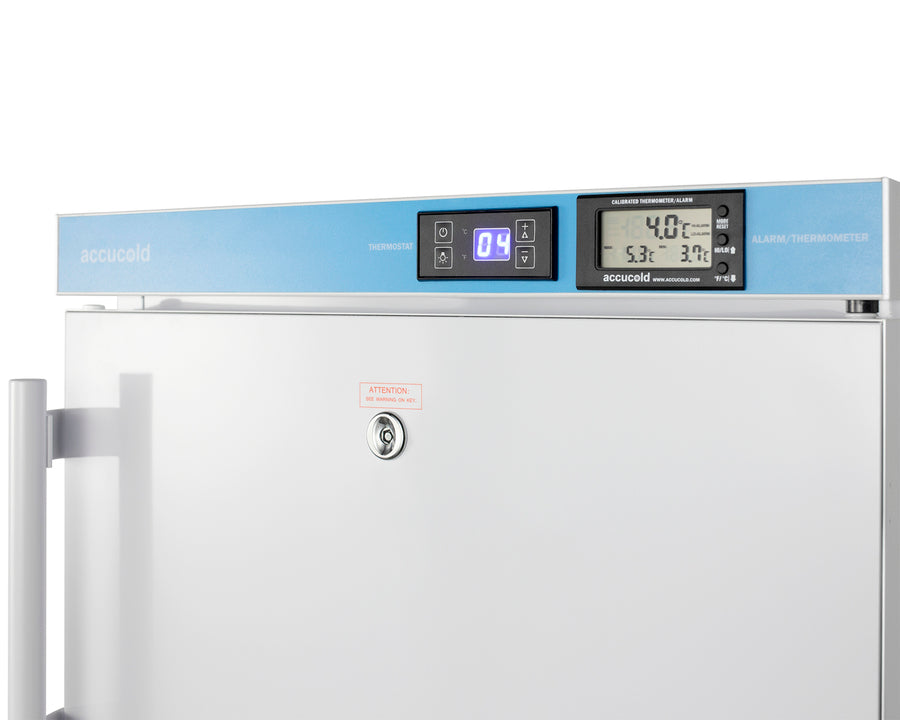

For optimum temperature management, the ACR45L features an external control panel, allowing users to adjust and monitor the temperature without opening the door. A pre-installed NIST certified thermometer is calibrated in our own ISO/IEC 17025:2017 accredited laboratory to provide an external readout of the current and high/low temperatures to the nearest tenth of a degree (as recommended by the CDC, VFC and VFA). The display is switchable between Celsius or Fahrenheit at the touch of a button. The thermometer includes an audible alarm to warn users if the interior has gone out of the programmed temperature range. The buffered temperature probe is encased in a bottle filled with glass beads and secured inside the center shelf to best simulate the temperature of other stored contents, resulting in the utmost accuracy for temperature reporting. We include a pre-installed 3/8" probe hole for users who wish to install additional monitoring equipment as needed and a certificate of calibration for your facility's records.

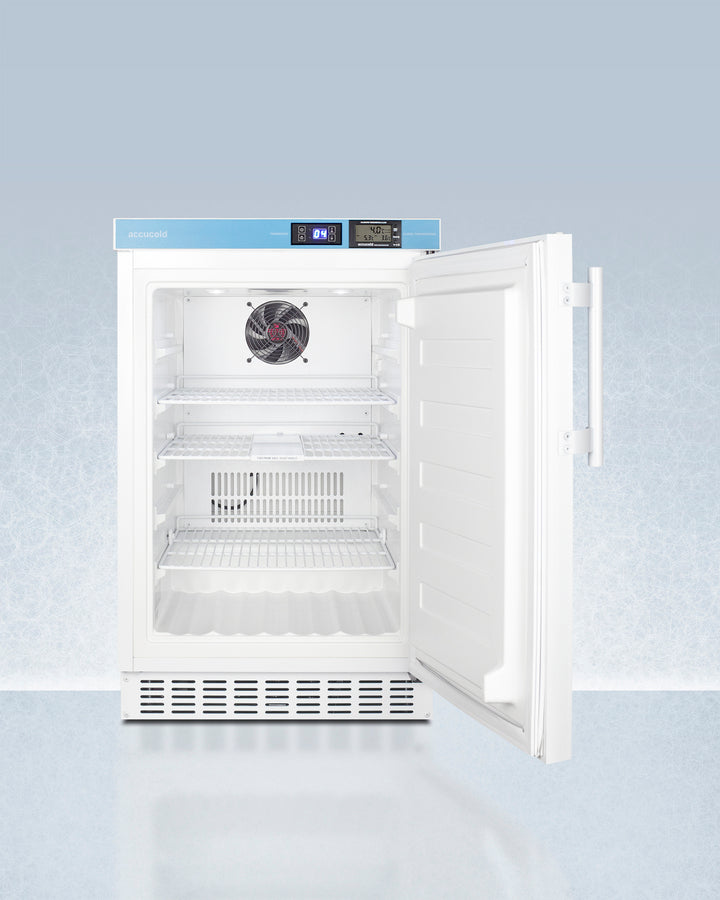

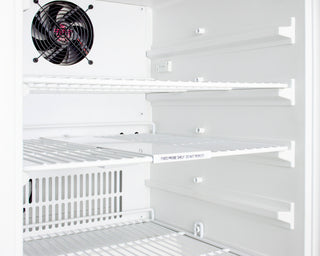

Inside, the 2.65 cu.ft. interior includes two adjustable wire shelves for optimum circulation, with one center fixed shelf to keep the temperature probe in place. The foamed-in-place cabinet and door liner affords added insulation of the interior for improved temperature stability, while an internal fan helps to evenly cool the interior from top to bottom. This model utilizes frost-free operation to minimize user maintenance. LED lighting helps to provide a clean, energy efficient view.
At just under 20" wide, the ACR45LCAL is the perfect storage solution for doctors' offices, veterinary clinics, pharmacies, and similar healthcare environments.
Features:
- Vaccine refrigerator
- ADA compliant
- Built-in capable
- Slim 20" width
- High/low temperature alarm
- NIST calibrated external temperature display
- Certificate of calibration included
- Digital thermostat
- Buffered temperature probe
- Factory installed lock
- Frost-free
- Internal fan
- Hospital grade cord with 'green dot' plug
- Adjustable wire shelves
- Flat door liner
- LED lighting
- 3/8" access port
- Reversible door
- Foamed-in-place cabinet
- Sealed back
- Temperature memory function
- Self-closing door
- Magnetic door gasket
- Handle included
- Fully finished white cabinet
- Matching freezer
- 100% CFC Free
- CARB Compliant
Specifications:
|
Overview
|
| Nominal Height |
32.0" (81 cm) |
| Height of Cabinet |
31.5" (80 cm) |
| Nominal Width |
20.0" (51 cm) |
| Width |
19.5" (50 cm) |
| Nominal Depth |
23.0" (58 cm) |
| Depth |
22.75" (58 cm) |
| Depth with Handle |
23.63" (60 cm) |
| Depth with door at 90° |
41.0" (104 cm) |
| Capacity |
2.65 cu.ft. (75 L) |
| Defrost Type |
Frost-Free |
| Door |
White |
| Cabinet |
White |
| US Electrical Safety |
ETL |
| Canadian Electrical Safety |
ETL-C |
| Amps |
1.0 |
| Voltage/Frequency |
115 V AC/60 Hz |
| Weight |
79.0 lbs. (36 kg) |
| Parts & Labor Warranty |
1 Year |
| Compressor Warranty |
5 Years |
| UPC |
761101076027 |
|
Refrigerator Features
|
| Door Swing |
RHD |
| Reversible |
Yes |
| Shelf Type |
Wire |
| Shelf Qty |
3 |
| Adjustable Shelves |
Yes |
| Thermostat Type |
Digital |
| Fan Type |
Interior and Exterior |
| Refrigerant Type |
R600a |
| Refrigerant Amount |
0.99oz. |
| High Side PSI |
270.0 |
| Low Side PSI |
105.0 |
| Level Legs Qty |
4 |
| Interior Light |
Yes |
| Temperature Range |
2º to 8ºC |
|
Dimensions
|
| Interior Height |
21.25" (54 cm) |
| Interior Width |
15.0" (38 cm) |
| Interior Depth |
16.13" (41 cm) |
| Compressor Step Height |
3.5" (9 cm) |
| Compressor Step Width |
15.0" (38 cm) |
| Compressor Step Depth |
4.75" (12 cm) |
