Accucold ACR45LSTO 20" Wide Built-In Pharmacy All-Refrigerator 2.65 cu.ft.
Accucold ACR45LSTO 20" Wide Built-In Pharmacy All-Refrigerator 2.65 cu.ft.
Accucold 20" Wide Built-In Pharmacy All-Refrigerator, ADA Compliant 2.65 cu.ft.
Accucold’s Pharmaceutical Series features refrigeration specially designed to meet current CDC, VFC and VFA guidelines for vaccine storage, with built-in choices sized to fit under ADA compliant counters.

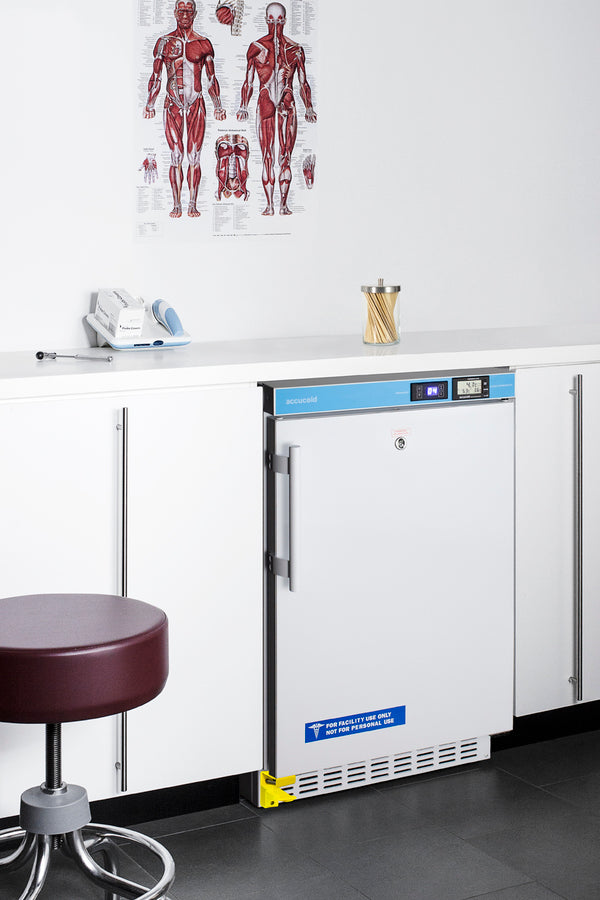

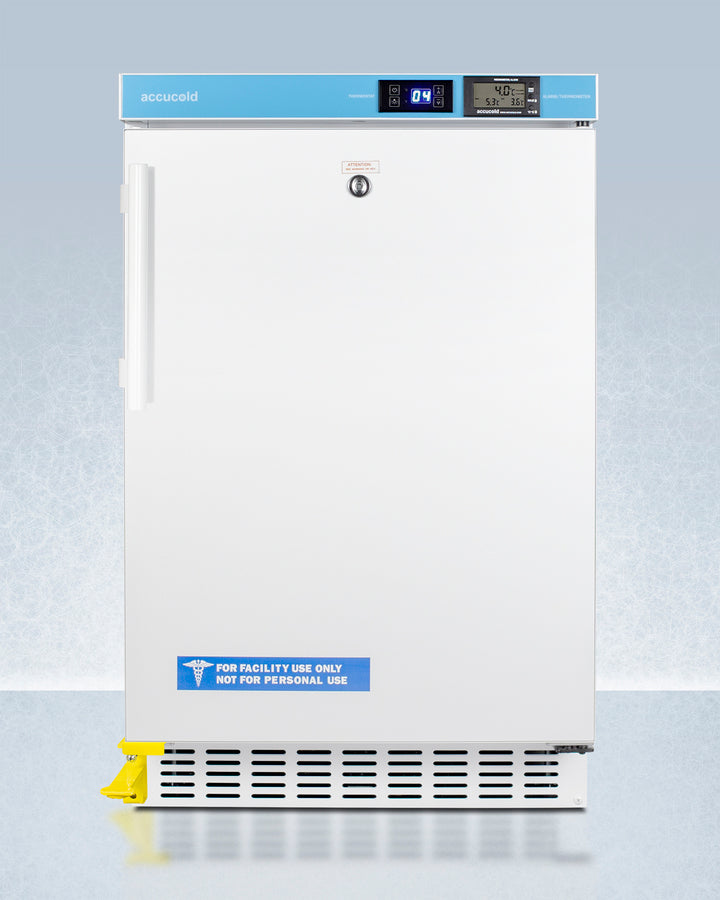

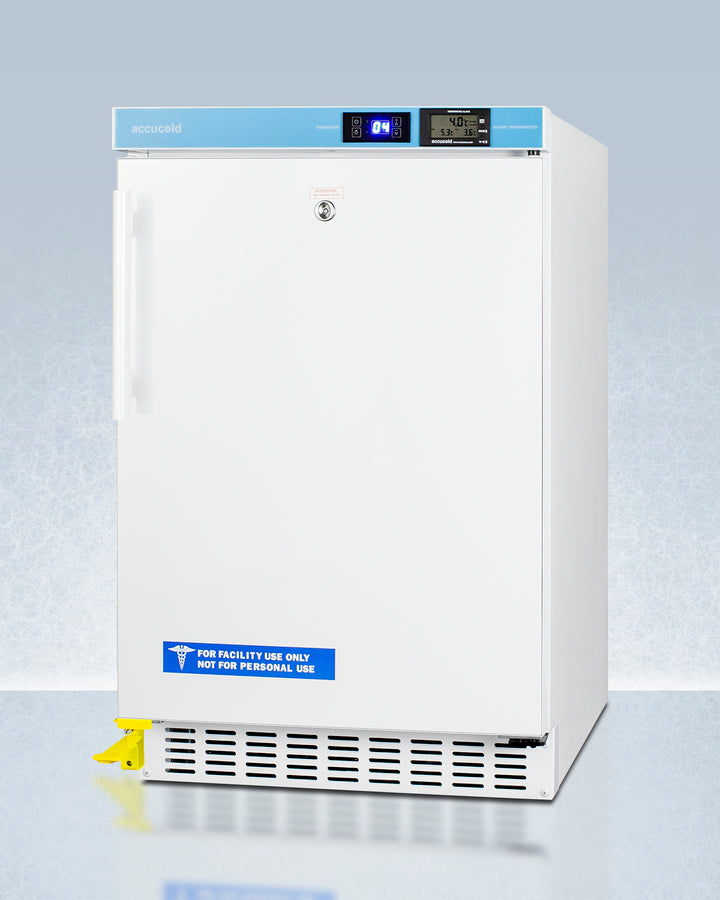

The ACR45LSTO is an all-refrigerator sized at just under 32" high. It features a front-breathing design for built-in installation under lower ADA compliant counters, with a fully finished cabinet that also allows freestanding use. This unit is equipped with our step-to-open door pedal, allowing users to open the door without touching the handle for more hygienic use. Its sealed back allows for a better fit and easier cleanability. A hospital grade cord with a 'green dot' plug provides added safety in high traffic areas and a factory-installed keyed lock is located towards the top of the unit for convenient security. Four adjustable leveling legs allow you to raise the height for a better fit under standard countertops.

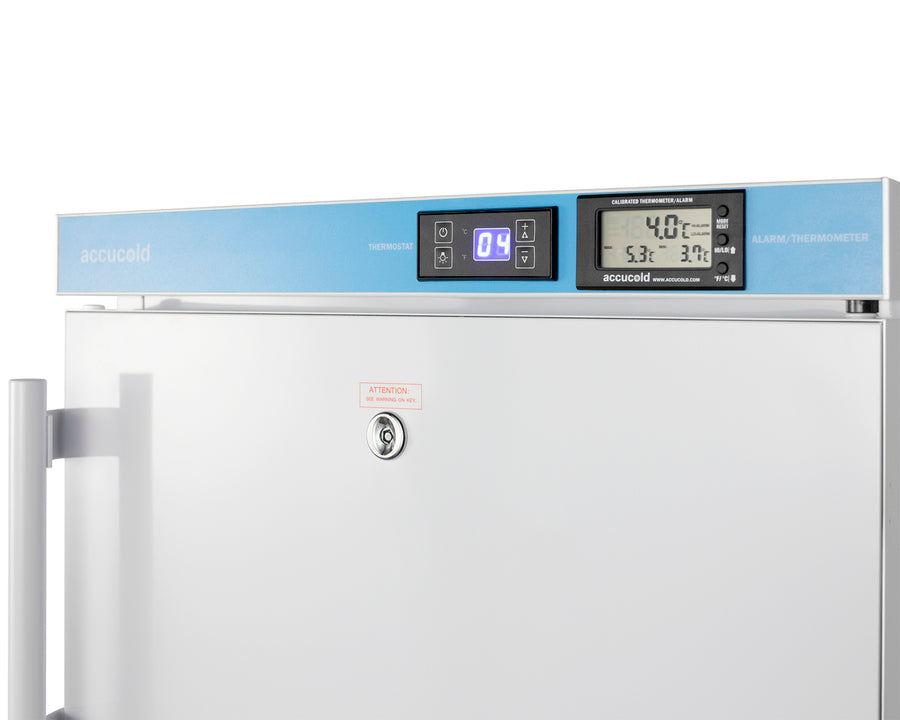

For optimum temperature management, the ACR45LSTO features an external control panel, allowing users to adjust and monitor the temperature without opening the door. Additionally, it is equipped with a thermometer that displays the current, minimum, and maximum temperatures to the nearest tenth of a degree with a readout viewable in Celsius or Fahrenheit (as recommended by the CDC, VFC and VFA). The thermometer includes an audible alarm to warn users if the interior has gone out of the programmed temperature range. The buffered temperature probe is encased in a bottle filled with glass beads and secured inside the center shelf to best simulate the temperature of other stored contents, resulting in the utmost accuracy for temperature reporting. We include a pre-installed 3/8" probe hole for users who wish to install additional monitoring equipment as needed. (Note: for this unit with a NIST calibrated thermometer, see the ACR45LCALSTO.)

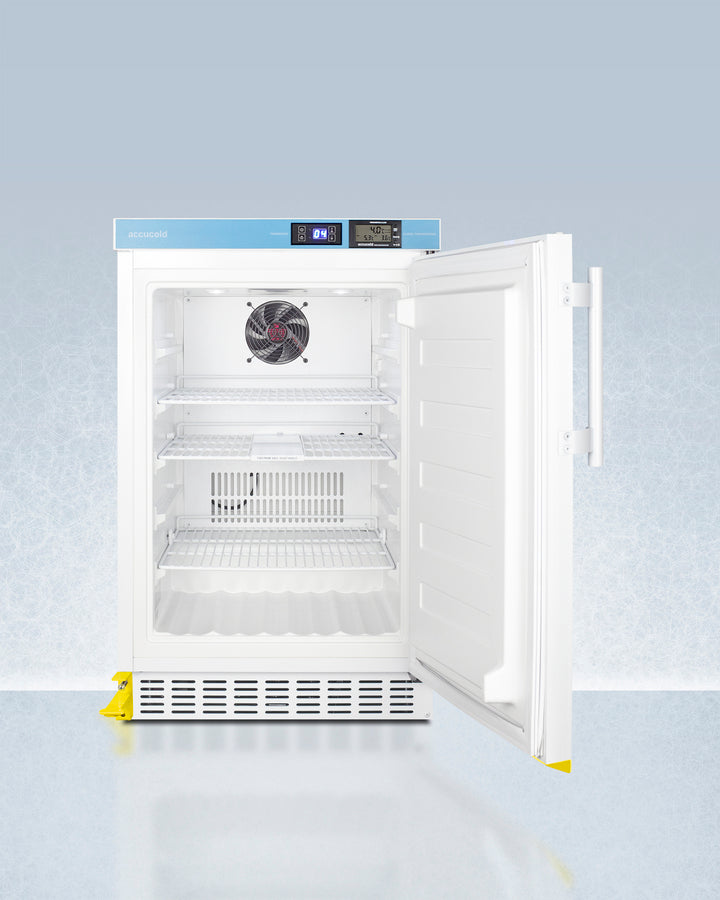

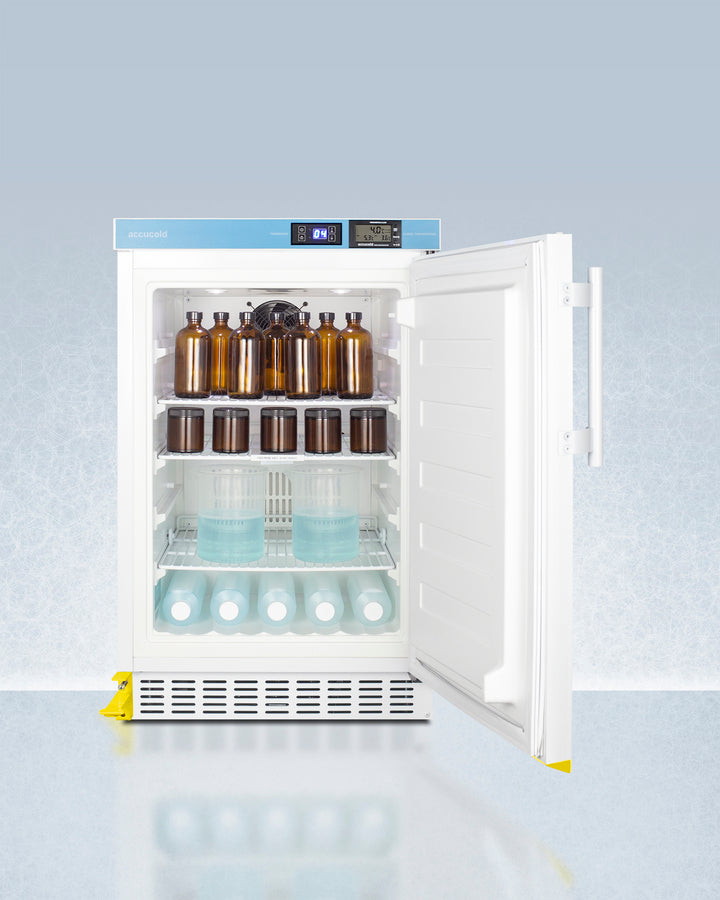

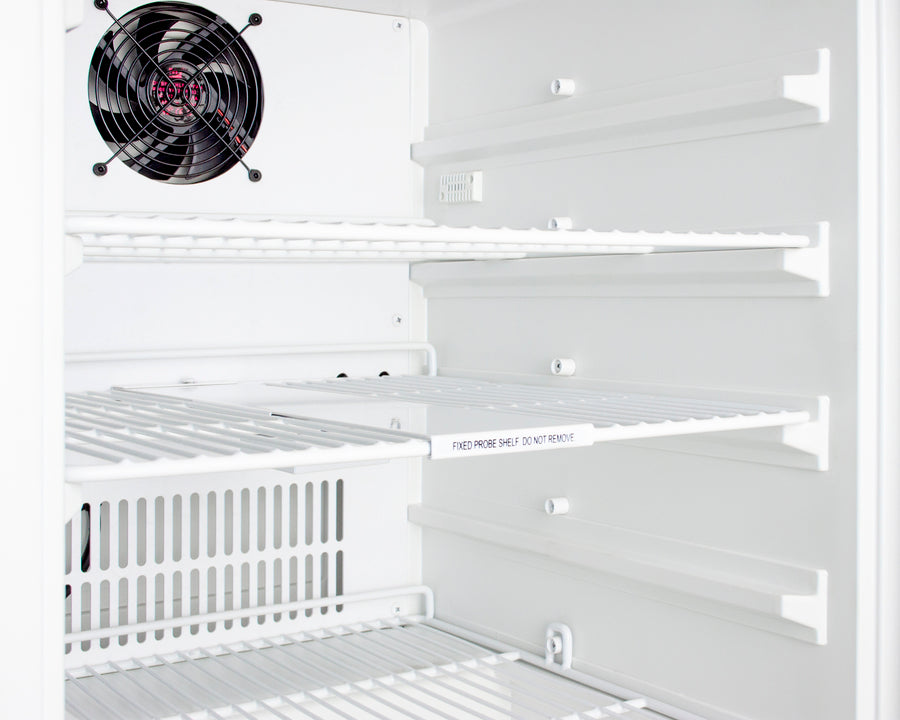

Inside, the 2.65 cu.ft. interior includes two adjustable wire shelves for optimum circulation, with one center fixed shelf to keep the temperature probe in place. The foamed-in-place cabinet and door liner affords added insulation of the interior for improved temperature stability, while an internal fan helps to evenly cool the interior from top to bottom. This model utilizes frost-free operation to minimize user maintenance. LED lighting helps to provide a clean, energy efficient view.
At just under 20" wide, the ACR45LSTO is the perfect storage solution for doctors' offices, veterinary clinics, pharmacies, and similar healthcare environments.
Features:
- Vaccine refrigerator
- ADA compliant
- Built-in capable
- Slim 20" width
- Step-to-open door pedal
- External temperature readout
- Digital thermostat
- High/low temperature alarm
- Buffered temperature probe
- Factory installed lock
- Frost-free
- Internal fan
- Hospital grade cord with 'green dot' plug
- Adjustable wire shelves
- Flat door liner
- LED lighting
- 3/8" access port
- Right hand door swing
- Foamed-in-place cabinet
- Sealed back
- Temperature memory function
- Magnetic door gasket
- Handle included
- Fully finished white cabinet
- 100% CFC Free
- CARB Compliant
Specifications:
|
Overview
|
|
|---|---|
| Nominal Height | 32.0" (81 cm) |
| Height of Cabinet | 31.5" (80 cm) |
| Nominal Width | 20.0" (51 cm) |
| Width | 19.5" (50 cm) |
| Nominal Depth | 25.0" (64 cm) |
| Depth | 24.75" (63 cm) |
| Depth with Handle | 23.63" (60 cm) |
| Depth with door at 90° | 41.0" (104 cm) |
| Capacity | 2.65 cu.ft. (75 L) |
| Defrost Type | Frost-Free |
| Door | White |
| Cabinet | White |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Amps | 1.0 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 79.0 lbs. (36 kg) |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| UPC | 761101076102 |
|
Refrigerator Features
|
|
| Door Swing | RHD |
| Reversible | Factory Reversible |
| Shelf Type | Wire |
| Shelf Qty | 3 |
| Adjustable Shelves | Yes |
| Thermostat Type | Digital |
| Fan Type | Interior and Exterior |
| Refrigerant Type | R600a |
| Refrigerant Amount | 0.99oz. |
| High Side PSI | 270.0 |
| Low Side PSI | 105.0 |
| Level Legs Qty | 4 |
| Interior Light | Yes |
| Temperature Range | 2º to 8ºC |
|
Dimensions
|
|
| Interior Height | 21.25" (54 cm) |
| Interior Width | 15.0" (38 cm) |
| Interior Depth | 16.13" (41 cm) |
| Compressor Step Height | 3.5" (9 cm) |
| Compressor Step Width | 15.0" (38 cm) |
| Compressor Step Depth | 4.75" (12 cm) |
