Accucold ADA305AFIFLHD 2.47 cu.ft. 20" Wide Built-In Healthcare All-Freezer, ADA Compliant (Panel Not Included), Temperature Range -25° to -15°C, Left Hand Door Swing, (Panel Not Included)
Accucold offers a quality selection of 20" wide built-in undercounter all-freezers designed for installation under lower ADA-compliant counters. These freezers have advanced features for safely storing select healthcare materials with strict storage conditions.

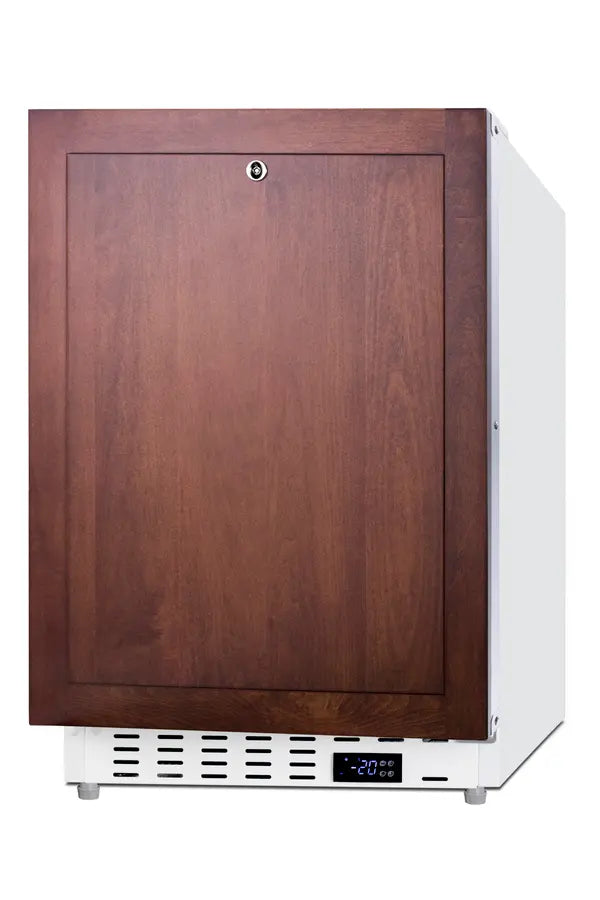

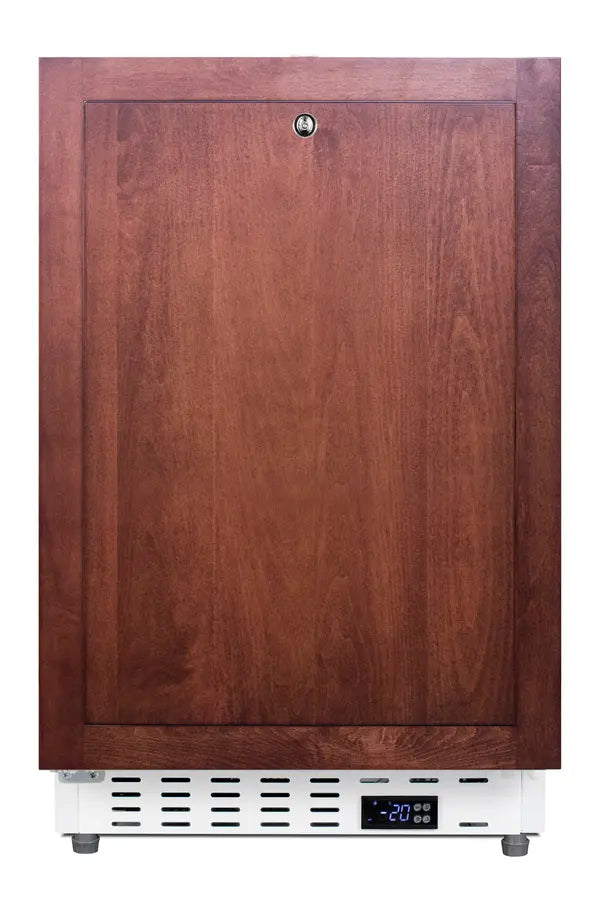

The ADA305AFIFLHD is sized at 32" high for use in ADA-compliant settings. The fully finished textured white cabinet allows freestanding use, while the front-breathing system means this unit can be built-in with minimum clearance. The door is 3" thick for efficient insulation and features an integrated stainless steel frame designed to accept full panel overlays, allowing users to seamlessly blend the unit into their own cabinetry design (panel size: 19 13/16" W x 27 1/8" H). This unit comes with a right angle cord to allow for easier placement without added depth. This unit comes with a left-hand door swing. For a right-hand version, see the ADA305AFIF.

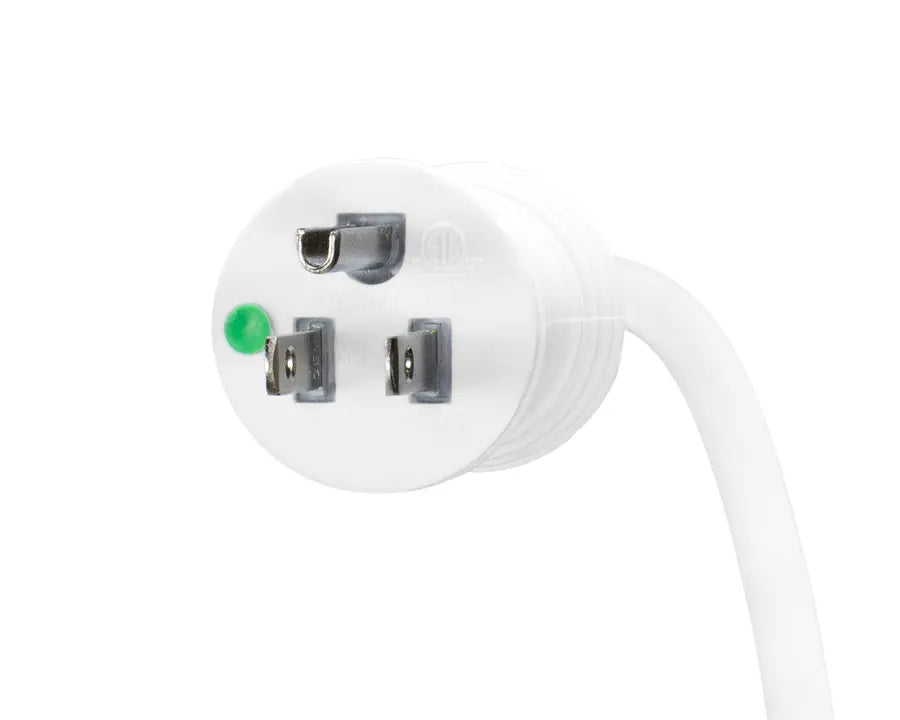

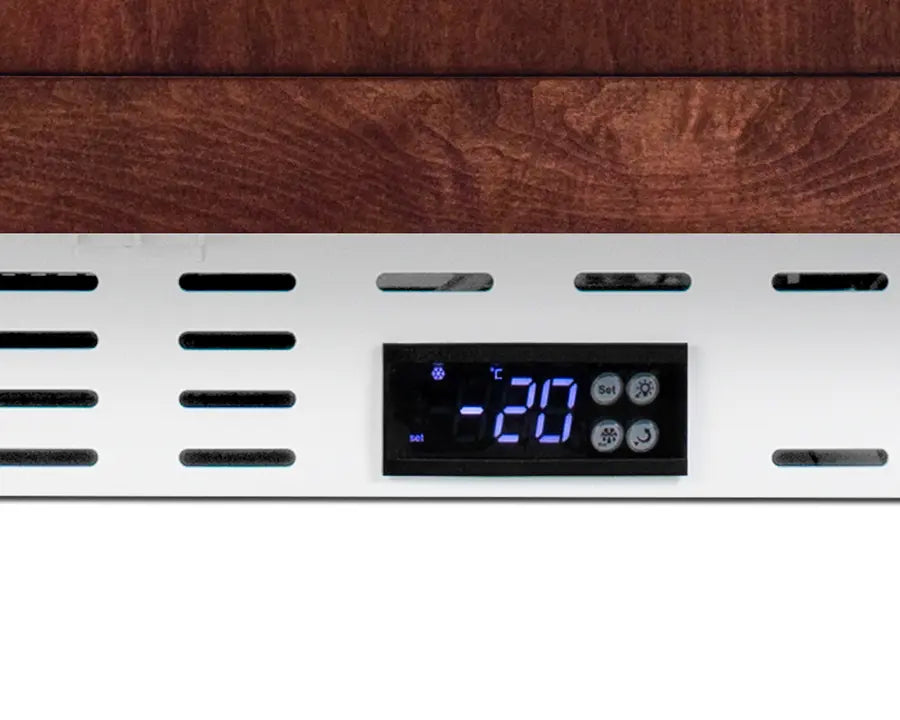

A digital thermostat is located in the kickplate for easy temperature management with a readout in Fahrenheit or Celsius. This unit has a hospital-grade cord with a green dot plug for safety in high-traffic areas. Plus, powerful magnetic gaskets ensure a tight seal.
Inside, the ADA305AFIFLHD can reach temperatures as low as -25°C. Static manual defrost operation provides efficient cooling inside the 2.47 cu.ft. interior. Three removable pull-out drawers on fixed wire shelving offer convenient storage, with plastic fronts that help to protect contents from warmer ambient temperatures when the door is opened. As recommended by the CDC, this unit has a flat door liner to ensure users don't store sensitive contents on the door. The user-set high and low-temperature alarms provide added security should the temperature exceed the set point, while the open-door alarm sounds if the door is ajar beyond one minute for added peace of mind. These alarms can be turned off depending on your needs. A preinstalled probe hole is included to allow users to connect their own monitoring equipment.
Features:
- Slim 20" wide built-in healthcare all-freezer designed for ADA-compliant installations
- Ideal for vaccines, pharmaceuticals, and sensitive medical storage
- Adjustable operating temperature range from -25°C to -15°C
- ADA-compliant 32" height fits under lower counters
- Built-in capable with front-breathing design for undercounter installation
- Panel-ready door with integrated stainless steel frame for custom overlay panel installation (panel not included)
- Left hand door swing (LHD) with factory reversible configuration
- Factory-installed keyed lock with 2 keys included
- Digital thermostat with front kickplate controls and Fahrenheit/Celsius display
- User-set high/low temperature alarms for added protection
- Open door alarm activates after one minute
- Three slide-out basket drawers with protective plastic fronts
- Flat door liner conforms to CDC storage guidelines
- Manual defrost system for greater temperature stability
- Static cooling system with no internal fans for stable temperatures
- Pre-installed access port for additional monitoring equipment
- Hospital-grade cord with green dot plug
- Magnetic door gasket for strong seal and energy efficiency
- Fully finished white cabinet allows freestanding use
- Sealed back design for easier cleaning and better space efficiency
- Matching all-refrigerator available: ADA404REFIF
- CARB compliant and 100% CFC free environmentally friendly design
Specifications:
| Specification | Details |
|---|---|
| Product Type | Built-In Healthcare All-Freezer |
| Model | ADA305AFIFLHD |
| Capacity | 2.47 cu.ft. (70 L) |
| Temperature Range | -25°C to -15°C |
| Defrost Type | Manual |
| Installation Type | Built-In / Freestanding |
| ADA Compliant | Yes |
| Door Type | Panel-Ready |
| Door Swing | Left Hand Door Swing (LHD) |
| Reversible Door | Factory Reversible |
| Cabinet Finish | White |
| Shelf Type | Drawers |
| Interior Drawers | Yes |
| Drawers Quantity | 3 |
| Thermostat Type | Digital |
| Fan Type | Exterior |
| Refrigerant Type | R600a |
| Refrigerant Amount | 1.34 oz. |
| High Side PSI | 180.0 |
| Low Side PSI | 80.0 |
| Level Legs | 2 |
| Voltage / Frequency | 115 V AC / 60 Hz |
| Amps | 1.1 |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Height of Cabinet | 31.75" (81 cm) |
| Height to Hinge Cap | 32.0" (81 cm) |
| Width | 20.25" (51 cm) |
| Depth | 23.0" (58 cm) |
| Depth with Door at 90° | 40.25" (102 cm) |
| Interior Height | 23.75" (60 cm) |
| Interior Width | 14.5" (37 cm) |
| Interior Depth | 17.0" (43 cm) |
| Compressor Step Height | 5.75" (15 cm) |
| Compressor Step Width | 14.5" (37 cm) |
| Compressor Step Depth | 6.0" (15 cm) |
| Weight | 75 lbs. (34 kg) |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
