Accucold 20" Wide Built-In Healthcare All-Freezer, ADA Compliant 2.47 cu.ft.
Accucold offers a quality selection of 20" wide built-in undercounter all-freezers designed for installation under lower ADA-compliant counters. These freezers have advanced features for safely storing select healthcare materials with strict storage conditions.

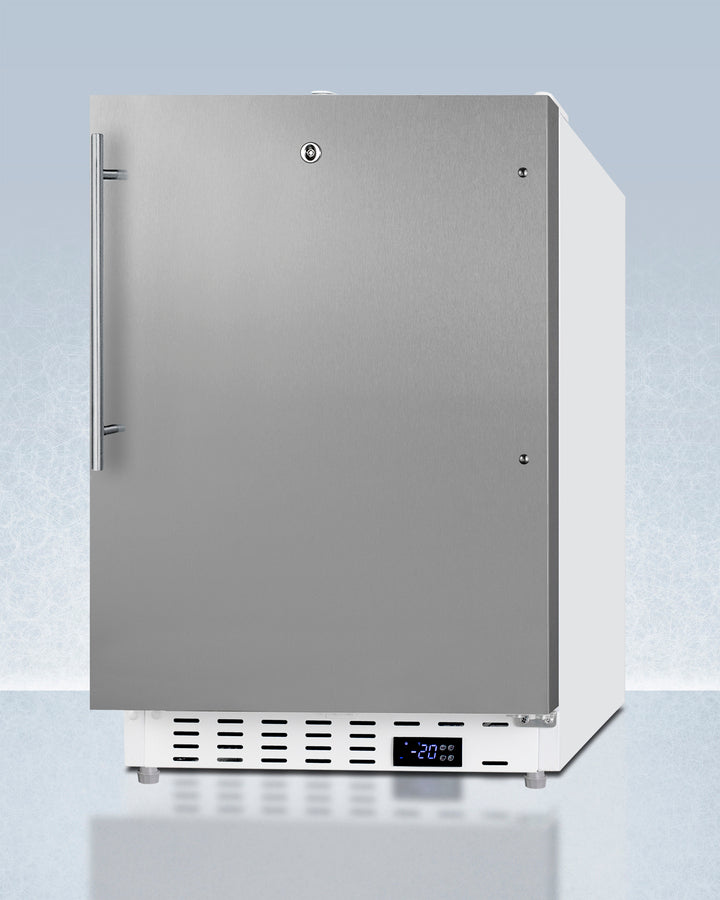

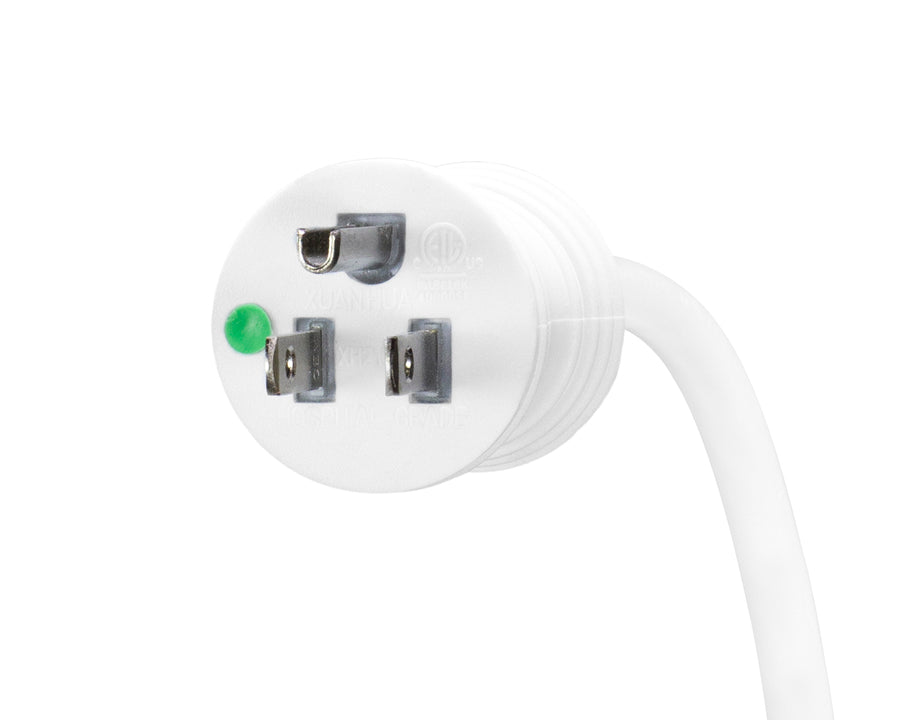

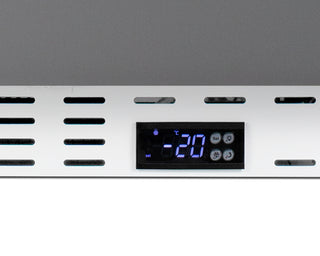

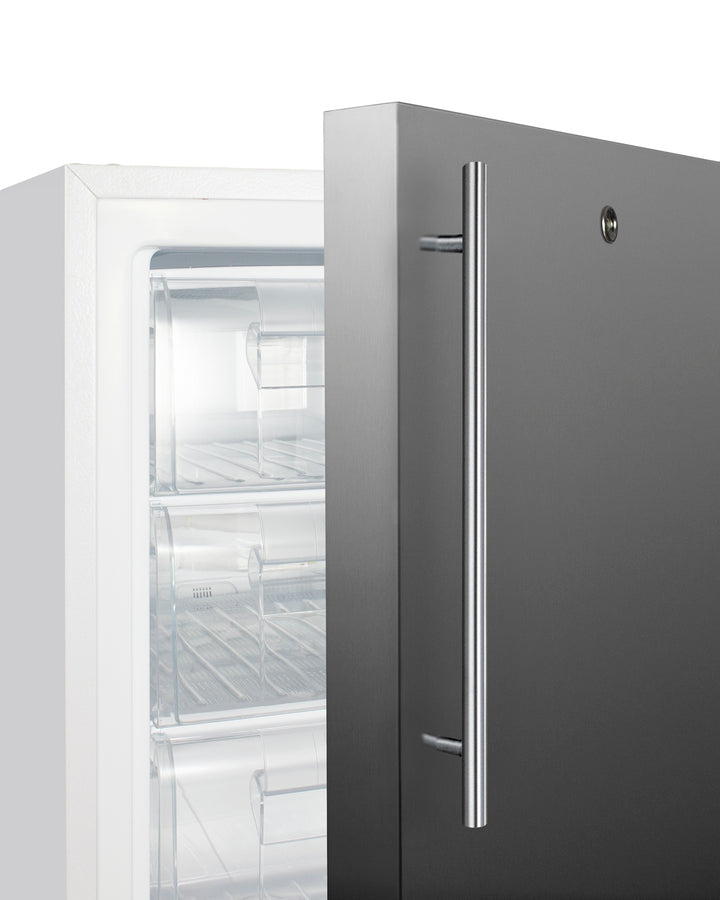

The ADA305AFSSHV is sized at 32" high for use in ADA compliant settings. The fully finished textured white cabinet allows freestanding use, while the front-breathing system means this unit can be built-in with minimum clearance. The stainless steel, user-reversible door features a sleek, vertically-mounted handlebar that matches many popular cabinetry styles and a top-mounted lock for added security and convenient access. A digital thermostat is located in the kickplate for easy temperature management with a readout in Fahrenheit or Celsius. This unit has a hospital-grade cord with a green dot plug for safety in high-traffic areas. Plus, powerful magnetic gaskets ensure a tight seal.

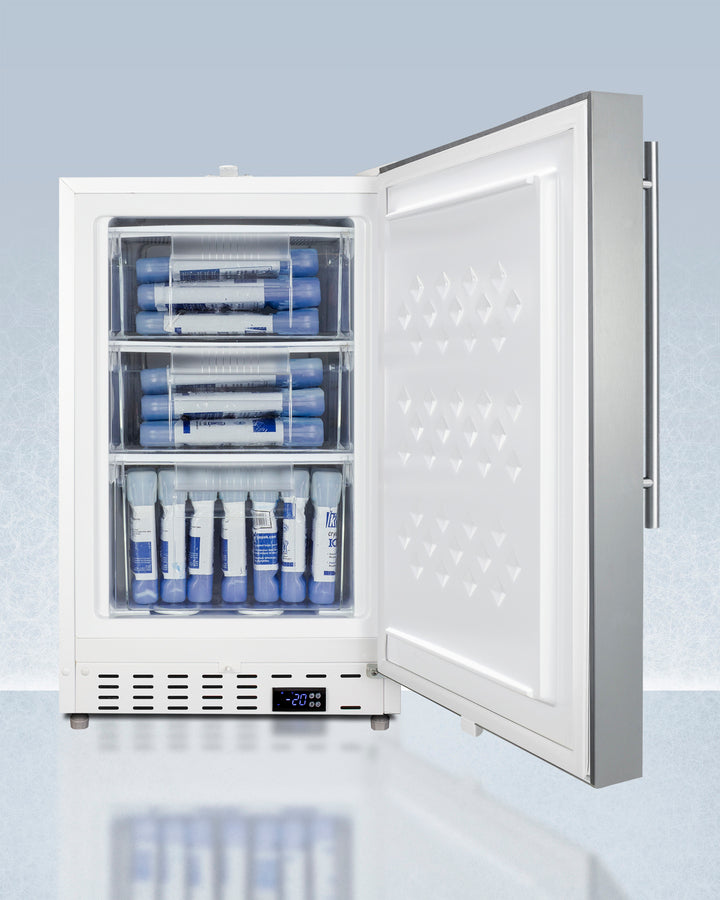

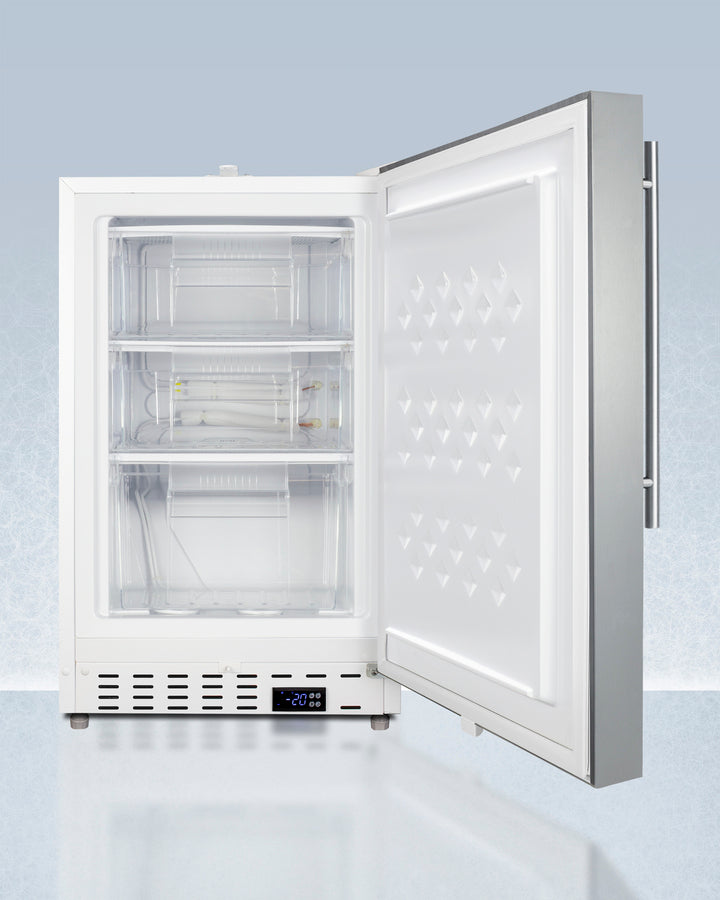

Inside, the ADA305AFSSHV can reach temperatures as low as -25°C. Static manual defrost operation provides efficient cooling inside the 2.47 cu.ft. interior. Three removable pull-out drawers on fixed wire shelving offer convenient storage, with plastic fronts that help to protect contents from warmer ambient temperatures when the door is opened. As recommended by the CDC, this unit has a flat door liner to ensure users don't store sensitive contents on the door. The user-set high and low-temperature alarms provide added security should the temperature exceed the set point, while the open-door alarm sounds if the door is ajar beyond one minute for added peace of mind. These alarms can be turned off depending on your needs. A preinstalled probe hole is included to allow users to connect their own monitoring equipment.
Sized at just under 20" wide, the ADA305AFSSHV makes an ideal choice for various healthcare facilities in need of a dependable freezer capable of -20ºC/-25ºC operation. For a complete set, pair this unit with the matching ADA404REFSSHV all-refrigerator.
Features:
- 20" Wide Built-In Healthcare All-Freezer, ADA-Compliant
- ADA-Compliant Design
- -25°C Capable
- Built-In Capable
- Stainless Steel Wrapped Door
- Professional Stainless Steel Handle
- Factory-Installed Lock
- Access Port
- Adjustable Digital Thermostat
- Basket Shelves
- Reversible Door
- Temperature Alarms
- Open Door Alarm
- Flat Door Liner
- Manual Defrost
- No Internal Fans
- Magnetic Door Gasket
- Hospital Grade Cord With 'Green Dot' Plug
- Fully Finished White Cabinet
- Sealed Back
- Matching All-Refrigerator
- 100% CFC Free
- CARB Compliant
Specifications:
|
Overview
|
| Nominal Height |
32.0" (81 cm) |
| Height of Cabinet |
31.75" (81 cm) |
| Height to Hinge Cap |
32.0" (81 cm) |
| Nominal Width |
21.0" (53 cm) |
| Width |
20.88" (53 cm) |
| Nominal Depth |
23.0" (58 cm) |
| Depth |
22.5" (57 cm) |
| Depth with Handle |
24.0" (61 cm) |
| Depth with door at 90° |
40.25" (102 cm) |
| Capacity |
2.47 cu.ft. (70 L) |
| Defrost Type |
Manual |
| Door |
Stainless Steel |
| Cabinet |
White |
| US Electrical Safety |
ETL |
| Canadian Electrical Safety |
ETL-C |
| Amps |
1.1 |
| Voltage/Frequency |
115 V AC/60 Hz |
| Weight |
85.0 lbs. (39 kg) |
| Parts & Labor Warranty |
1 Year |
| Compressor Warranty |
5 Years |
| UPC |
761101151281 |
|
Freezer
|
| Door Swing |
RHD |
| Reversible |
Yes |
| Interior Height |
23.75" (60 cm) |
| Interior Width |
14.5" (37 cm) |
| Interior Depth |
17.0" (43 cm) |
| Shelf Type |
Drawers |
| Shelf Qty |
3 |
| Thermostat Type |
Digital |
| Fan Type |
Exterior |
| Refrigerant Type |
R600a |
| Refrigerant Amount |
1.34 oz. |
| High Side PSI |
180.0 |
| Low Side PSI |
80.0 |
| Level Legs |
2 |
| Interior Drawers |
Yes |
| Drawers Qty |
3 |
| Compressor Step Height |
5.75" (15 cm) |
| Compressor Step Width |
14.5" (37 cm) |
| Compressor Step Depth |
6.0" (15 cm) |
| Temperature Range |
-25° to -15°C |
