Accucold 20" Wide Built-In Vaccine All-Freezer, ADA Compliant 2.47 cu.ft.
Accucold offers a quality selection of 20" wide built-in undercounter all-freezers designed for installation under lower ADA compliant counters, with advanced features for the safe storage of select vaccines, pharmaceuticals, and other materials with strict storage conditions.

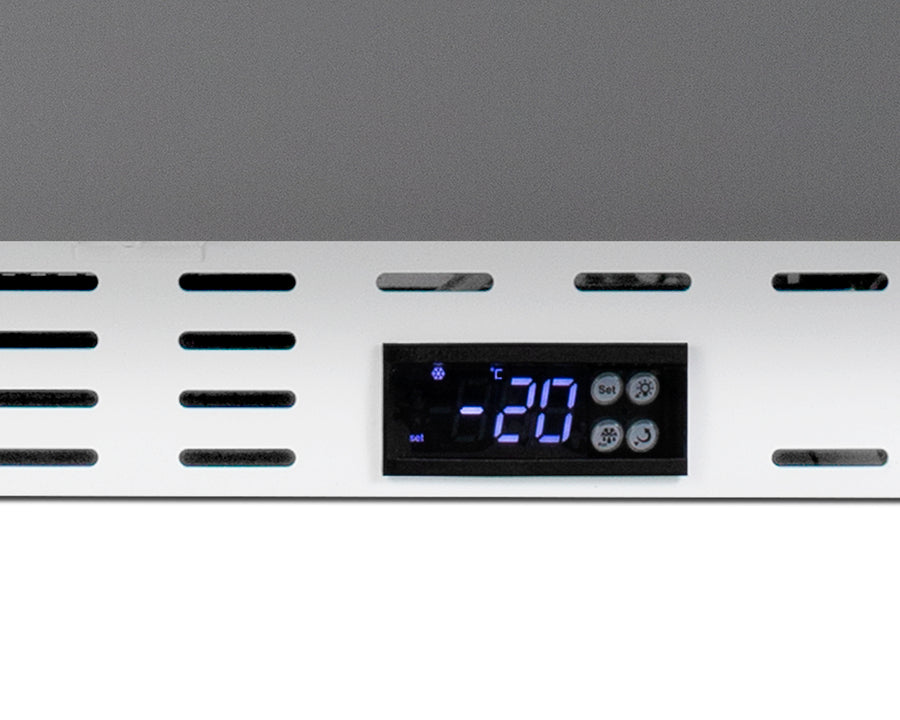

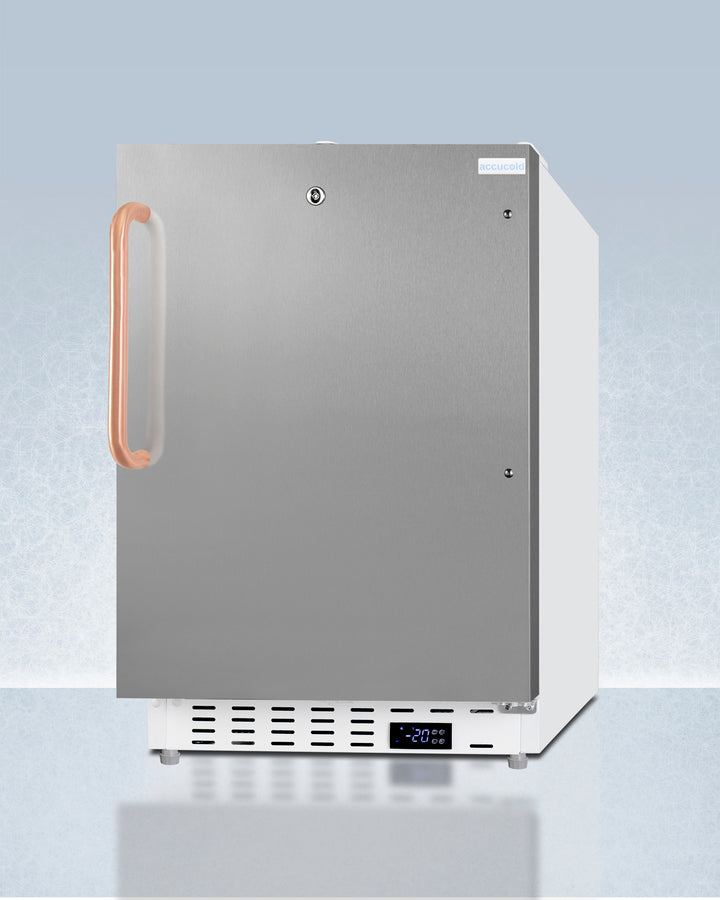

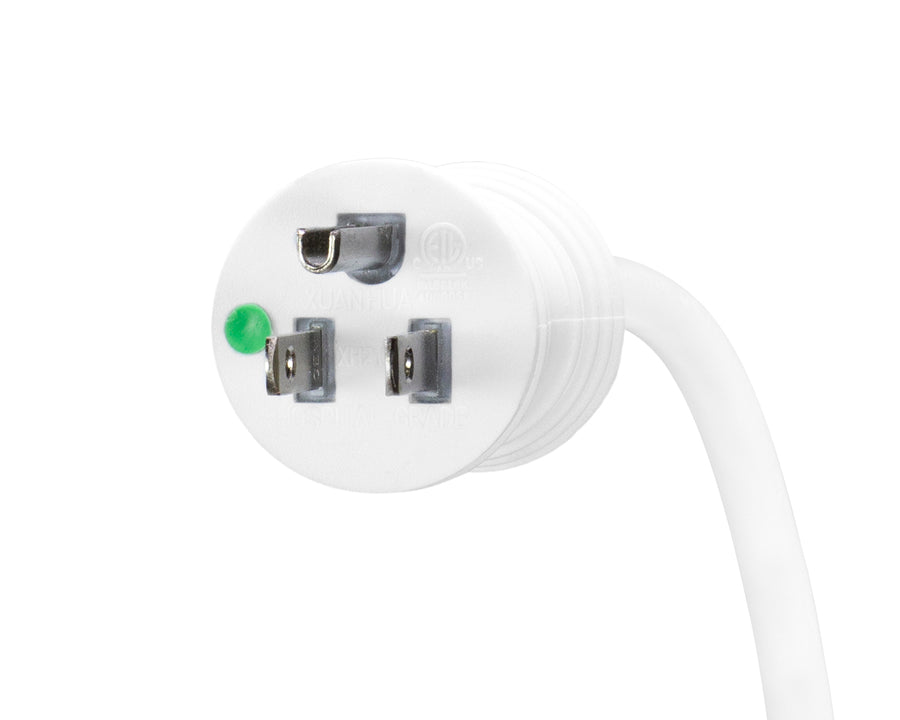

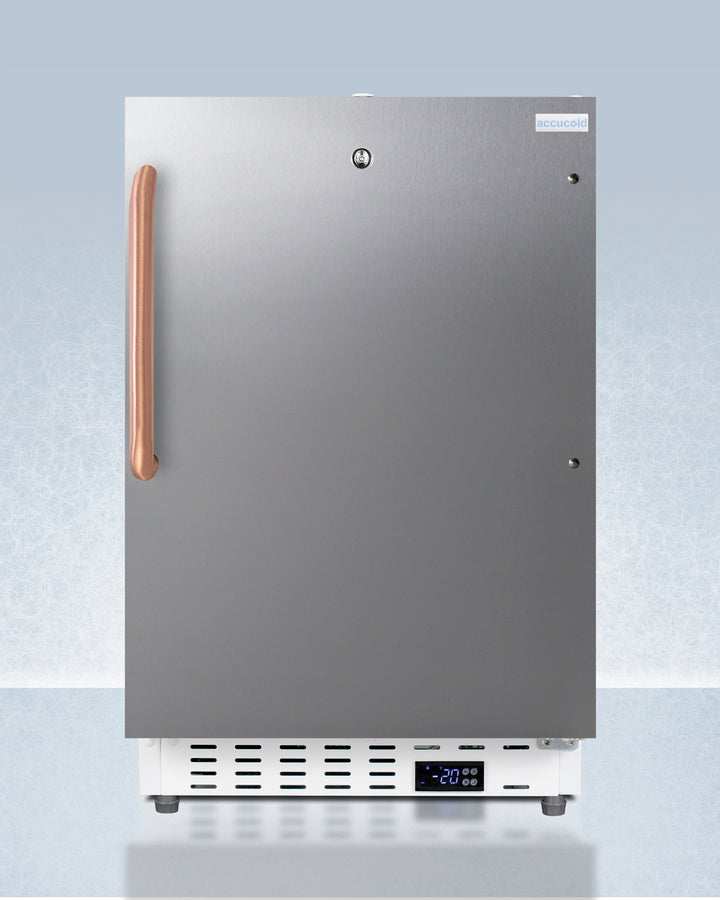

The ADA305AFSSTBC is sized at 32" high to fit under lower counters complying with ADA guidelines for accessibility. The fully finished textured white cabinet allows freestanding use, while the front-breathing system means this unit can be built-in with minimum clearance. The user reversible stainless steel door is 3" thick for efficient insulation, with a top-mounted lock for added security and convenient access. A digital thermostat, located in the kickplate, makes for easy temperature management with a readout in Fahrenheit or Celsius. This unit comes with a hospital grade cord with a green dot plug for added safety in high traffic areas. Powerful magnetic gaskets ensure a tight seal.

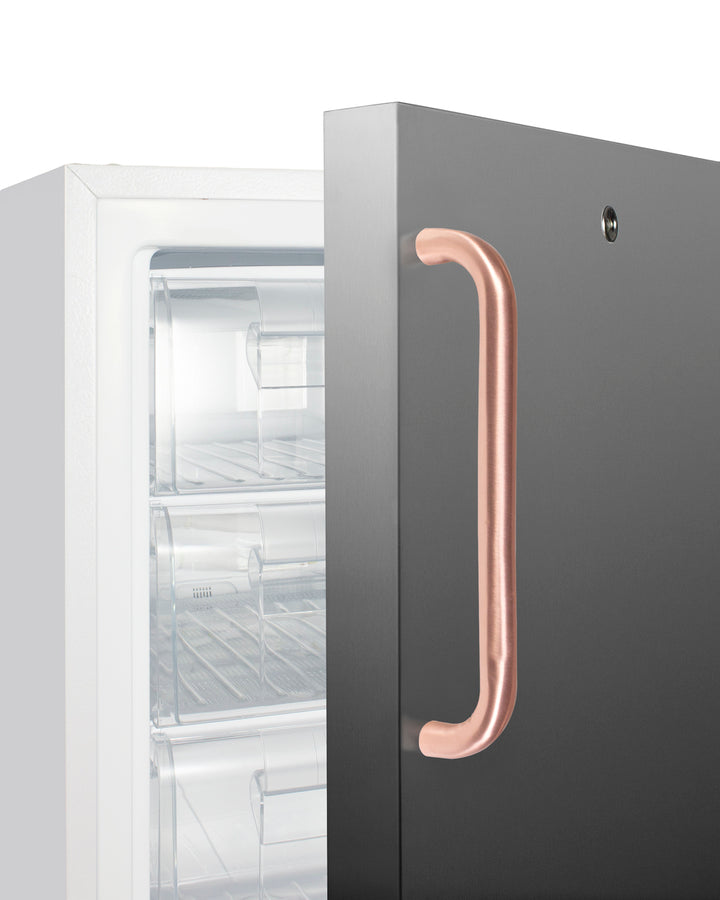

The ADA305AFSSTBC includes a factory-installed towel bar style handle made from pure copper. Through its natural antimicrobial properties, copper will kill microbes, including viruses, in a shorter timeframe than most other metal surfaces allowing for a safer, cleaner user experience.

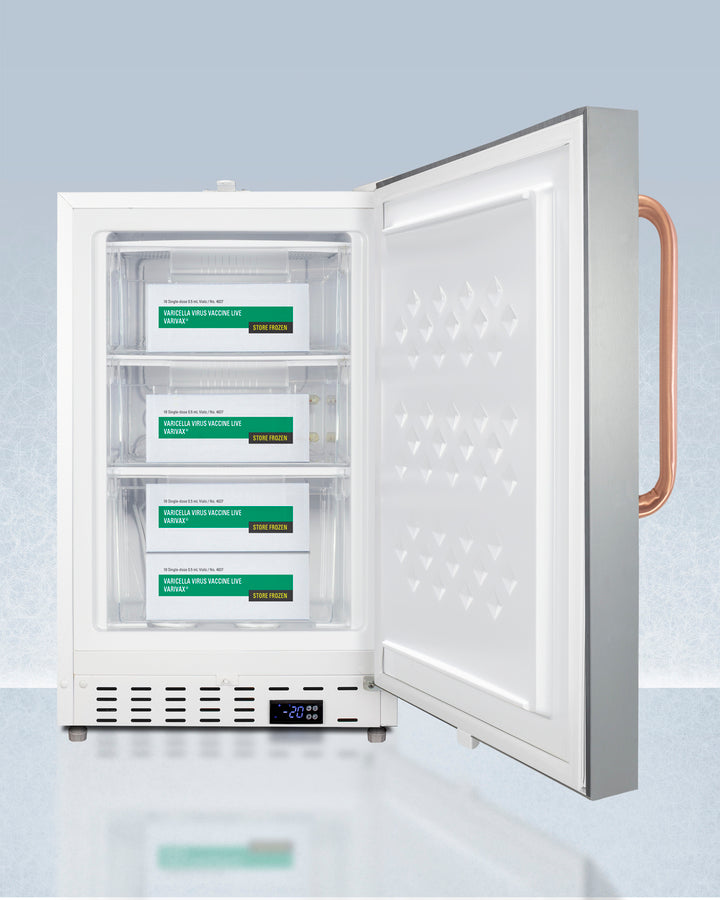

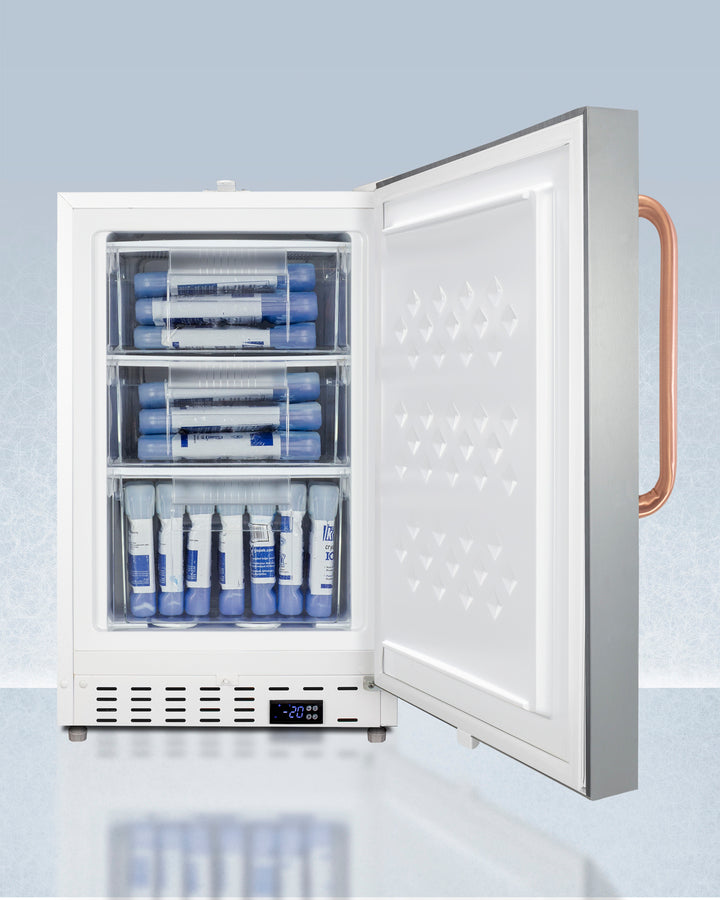

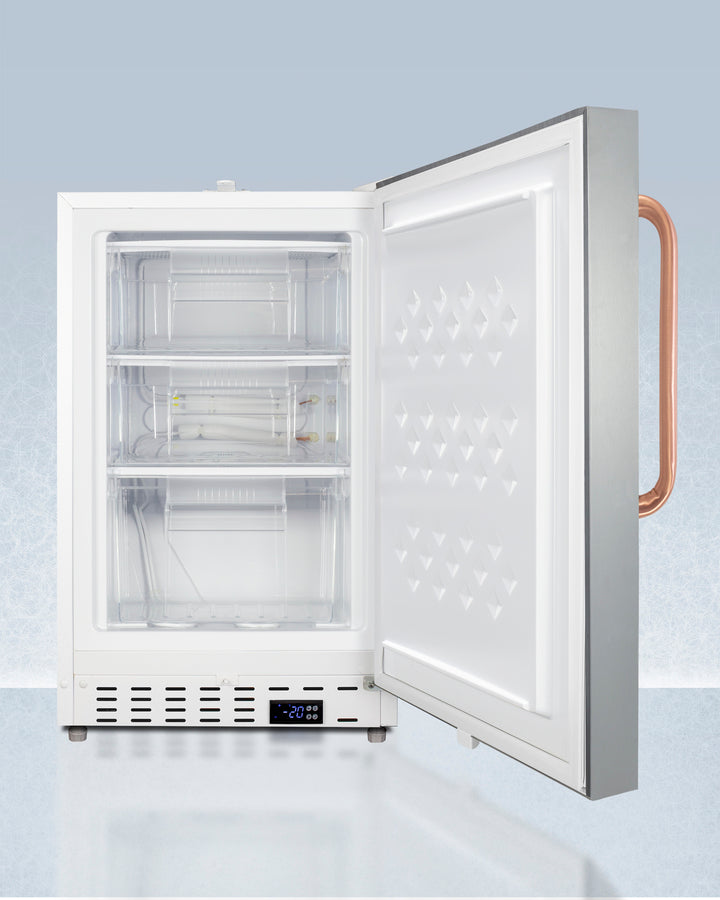

Inside, the ADA305AFSSTBC can reach temperatures as low as -25°C. Static manual defrost operation provides efficient cooling inside the 2.47 cu.ft. interior. Three removable pull-out drawers on fixed wire shelving offer convenient storage, with plastic fronts that help to protect contents from warmer ambient temperatures when the door is opened. As recommended by the CDC, this unit has a flat door liner to ensure users don't store sensitive contents on the door. The user-set high and low temperature alarms provide added security should the temperature go beyond the setpoint, while the open door alarm sounds if the door is ajar beyond one minute for added peace-of-mind. These alarms can be disabled depending on your needs. A preinstalled probe hole is included to allow users to connect their own monitoring equipment.
Sized at just under 20" wide, the ADA305AFSSTBC makes an ideal choice for various facilities in need of a dependable freezer capable of -20ºC/-25ºC operation. For a complete set, pair this unit with the matching ADA404REFSSTBC all-refrigerator.
NOTE: Accucold freezers are purpose-built to the support meeting the current CDC (Centers for Disease Control) guidelines for the storage of vaccines. As referenced in the current Vaccine Storage and Handling Toolkit, these units incorporate several key features for stable operation.
Features:
- ADA compliant design
- -25°C capable
- Built-in capable
- Copper handle
- Factory-installed lock
- Access port
- Adjustable digital thermostat
- Basket shelves
- 3" thick door
- Temperature alarms
- Open door alarm
- Hospital grade cord with 'green dot' plug
- Manual defrost
- Flat door liner
- No internal fans
- Reversible stainless steel door
- Sealed back
- Magnetic door gasket
- Matching all-refrigerator
- Fully finished white cabinet
- 100% CFC free
- CARB Compliant
Specifications:
|
Overview
|
| Nominal Height |
32.0" (81 cm) |
| Height of Cabinet |
31.75" (81 cm) |
| Height to Hinge Cap |
32.0" (81 cm) |
| Nominal Width |
20.0" (51 cm) |
| Width |
19.75" (50 cm) |
| Width with Door Open |
20.25" (51 cm) |
| Nominal Depth |
23.0" (58 cm) |
| Depth |
22.5" (57 cm) |
| Depth with Handle |
25.0" (64 cm) |
| Depth with door at 90° |
40.25" (102 cm) |
| Capacity |
2.47 cu.ft. (70 L) |
| Defrost Type |
Manual |
| Door |
Stainless Steel |
| Cabinet |
White |
| US Electrical Safety |
ETL |
| Canadian Electrical Safety |
ETL-C |
| Amps |
1.1 |
| Voltage/Frequency |
115 V AC/60 Hz |
| Weight |
75.0 lbs. (34 kg) |
| Parts & Labor Warranty |
1 Year |
| Compressor Warranty |
5 Years |
| UPC |
761101077734 |
|
Freezer
|
| Door Swing |
RHD |
| Reversible |
Yes |
| Interior Height |
23.75" (60 cm) |
| Interior Width |
14.5" (37 cm) |
| Interior Depth |
17.0" (43 cm) |
| Shelf Type |
Drawers |
| Shelf Qty |
3 |
| Thermostat Type |
Digital |
| Fan Type |
Exterior |
| Refrigerant Type |
R600a |
| Refrigerant Amount |
1.34 oz. |
| High Side PSI |
180.0 |
| Low Side PSI |
80.0 |
| Level Legs |
2 |
| Interior Drawers |
Yes |
| Drawers Qty |
3 |
| Compressor Step Height |
5.75" (15 cm) |
| Compressor Step Width |
14.5" (37 cm) |
| Compressor Step Depth |
6.0" (15 cm) |
| Temperature Range |
-25° to -15°C |
