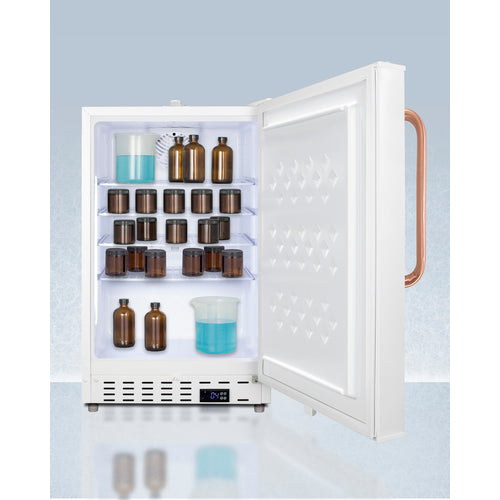

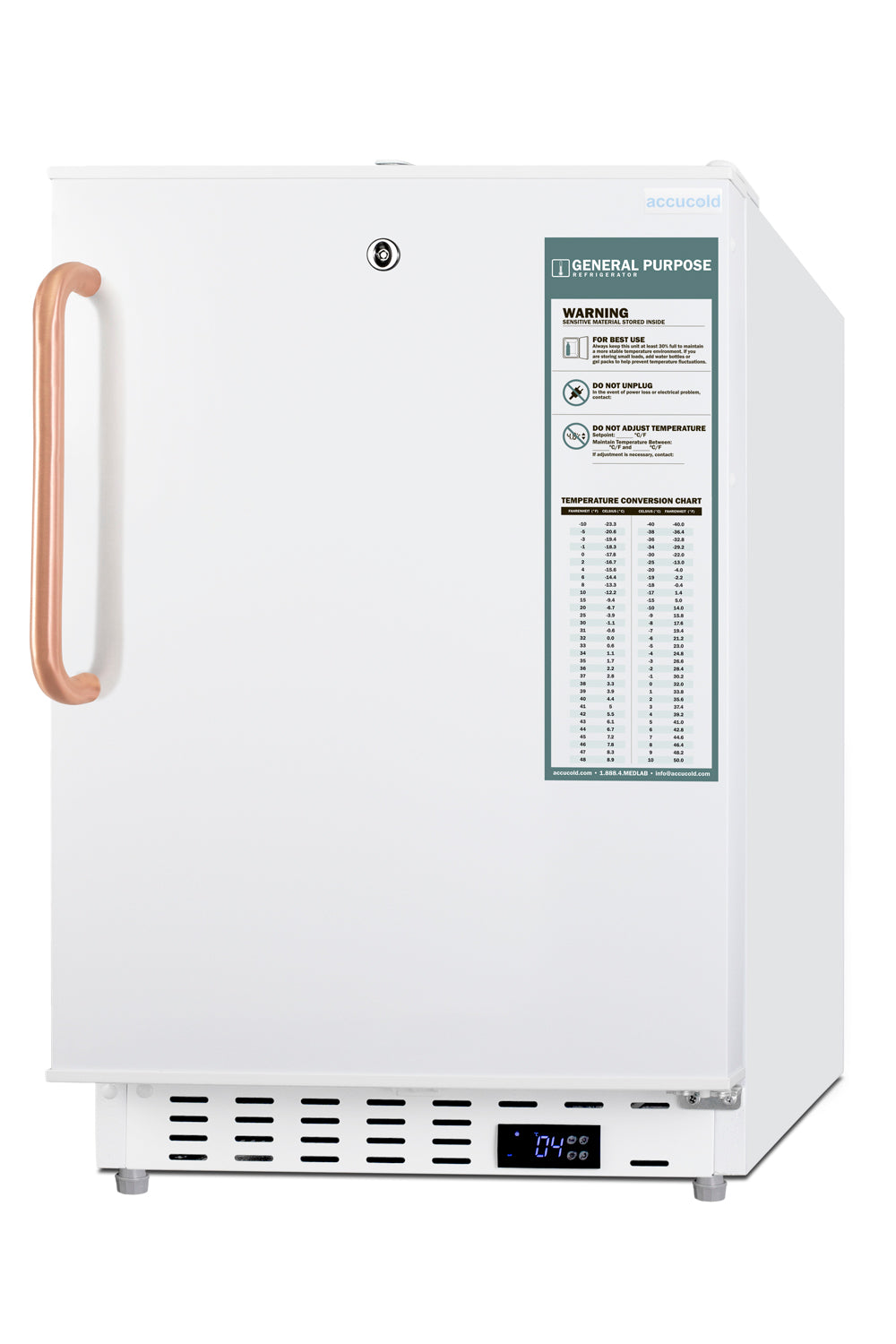

Accucold ADA404REFTBC 20" Wide Built-In Healthcare All-Refrigerator, ADA Compliant
Accucold offers a quality selection of 20" wide built-in undercounter all-refrigerators designed for installation under lower ADA compliant counters, with advanced features for user convenience.
The ADA404REFTBC is sized at 32" high to fit under lower counters complying with ADA guidelines for accessibility. The fully finished textured white cabinet allows freestanding use, while the front-breathing system means this unit can be built-in with minimum clearance. The door is 3" thick for efficient insulation, with a top-mounted lock for added security and convenient access. A digital thermostat, located in the kickplate, makes for easy temperature management with a readout in Fahrenheit or Celsius. This unit comes with a hospital grade cord with a green dot plug for added safety in high traffic areas. Powerful magnetic gaskets ensure a tight seal.
Standard Features
-
ADA compliant design
32" height allows easy installation under lower ADA compliant counters
-
Built-in capable
Front-breathing design lets you make the best use of space by installing your appliance under the counter
-
2 to 8º operation
Designed to safely store select pharmaceuticals and other materials with strict temperature requirements
-
Fully finished white cabinet
Allows the unit to be freestanding
-
100% CFC free
Environmentally friendly design without ozone-damaging chemicals
-
CARB Compliant
Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
Specifications
|
Overview
|
| Nominal Height |
32.0" (81 cm) |
| Height of Cabinet |
31.75" (81 cm) |
| Height to Hinge Cap |
32.0" (81 cm) |
| Nominal Width |
20.0" (51 cm) |
| Width |
19.75" (50 cm) |
| Width with Door Open |
20.25" (51 cm) |
| Nominal Depth |
23.0" (58 cm) |
| Depth |
22.5" (57 cm) |
| Depth with Handle |
25.0" (64 cm) |
| Depth with door at 90° |
40.25" (102 cm) |
| Capacity |
3.32 cu.ft. (94 L) |
| Defrost Type |
Automatic |
| Door |
White |
| Cabinet |
White |
| US Electrical Safety |
ETL |
| Canadian Electrical Safety |
ETL-C |
| Amps |
1.1 |
| Voltage/Frequency |
115 V AC/60 Hz |
| Weight |
59.0 lbs. (27 kg) |
| Parts & Labor Warranty |
1 Year |
| Compressor Warranty |
5 Years |
| UPC |
761101077765 |
|
Refrigerator Features
|
| Door Swing |
RHD |
| Reversible |
Factory Reversible |
| Shelf Type |
Wire |
| Shelf Qty |
4 |
| Thermostat Type |
Digital |
| Fan Type |
Interior |
| Refrigerant Type |
R600a |
| Refrigerant Amount |
0.99oz. |
| High Side PSI |
180.0 |
| Low Side PSI |
80.0 |
| Level Legs Qty |
2 |

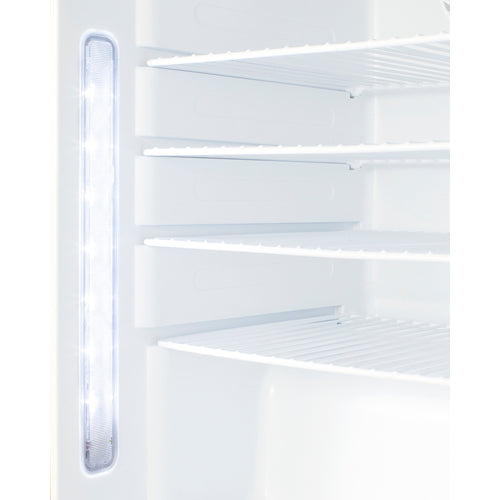

| Interior Light |
Yes |
| Temperature Range |
2 to 8°C |
|
Dimensions
|
| Interior Height |
23.5" (60 cm) |
| Interior Width |
16.25" (41 cm) |
| Interior Depth |
17.0" (43 cm) |
| Compressor Step Height |
6.25" (16 cm) |
| Compressor Step Width |
16.25" (41 cm) |
| Compressor Step Depth |
6.0" (15 cm) |
