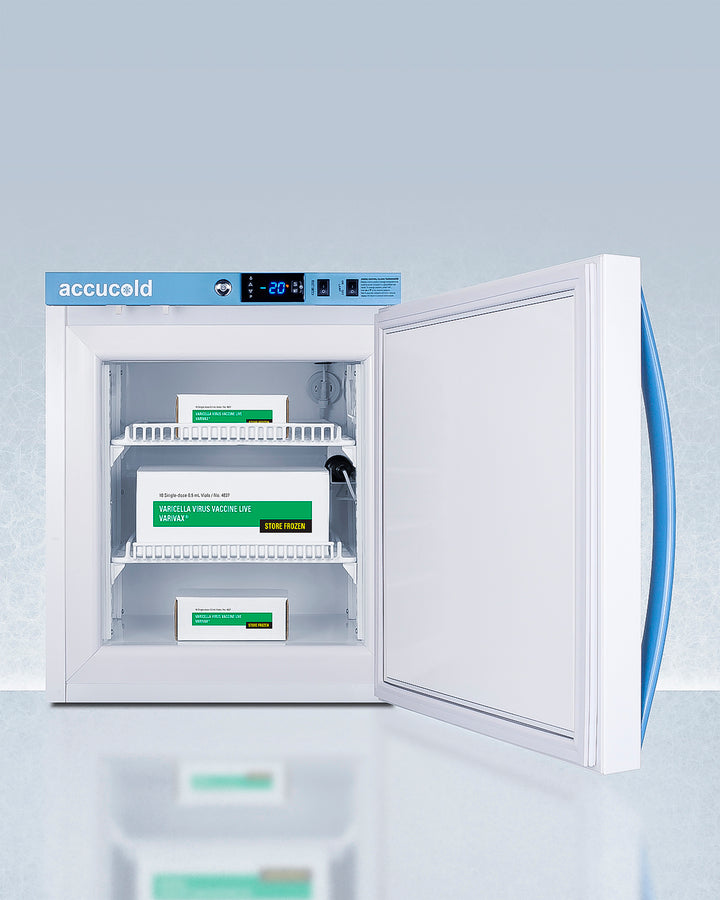

Accucold AFZ1PVDL2B Vaccine Freezer 1.4 Cu.Ft.
Accucold AFZ1PVDL2B Vaccine Freezer Eco-Friendly 1.4 Cu.Ft.
Accucold's Pharma-Vac Performance Series are upright freezers are designed and purpose-built for pharmacy, medication, and vaccine applications to support meeting CDC/VFC/VFA guidelines.

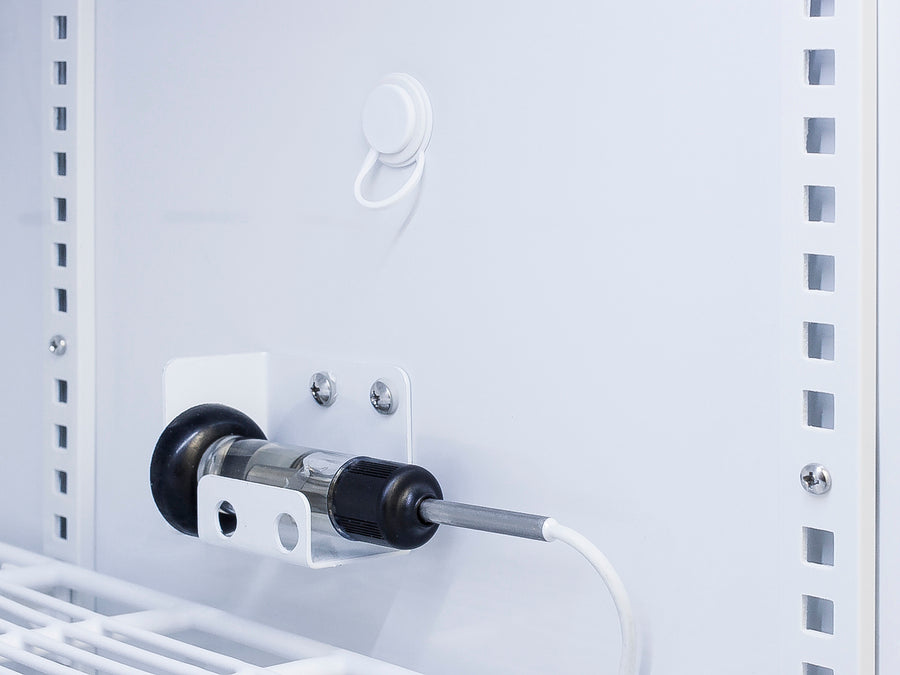

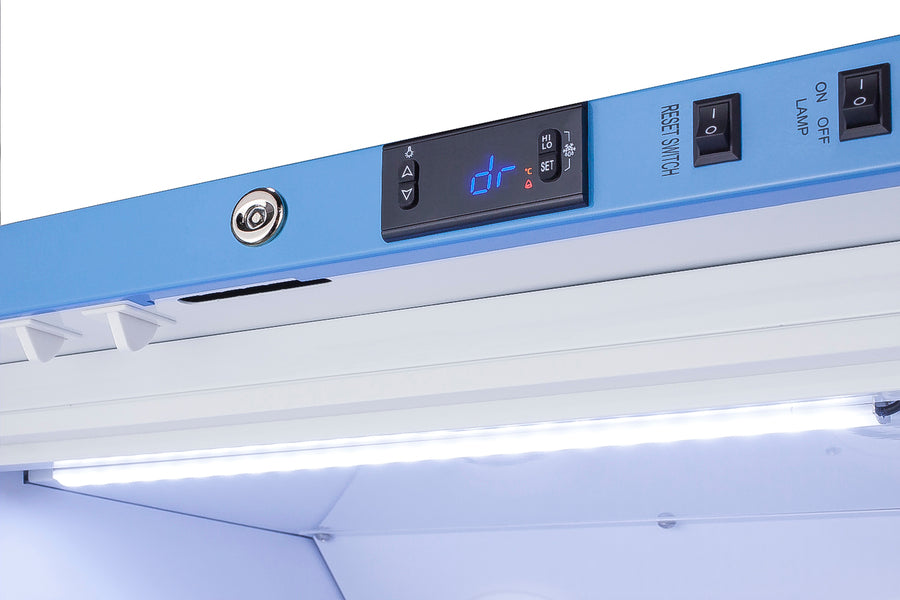

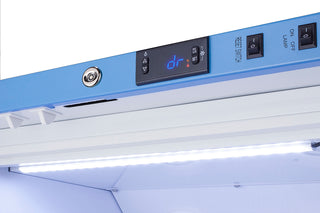

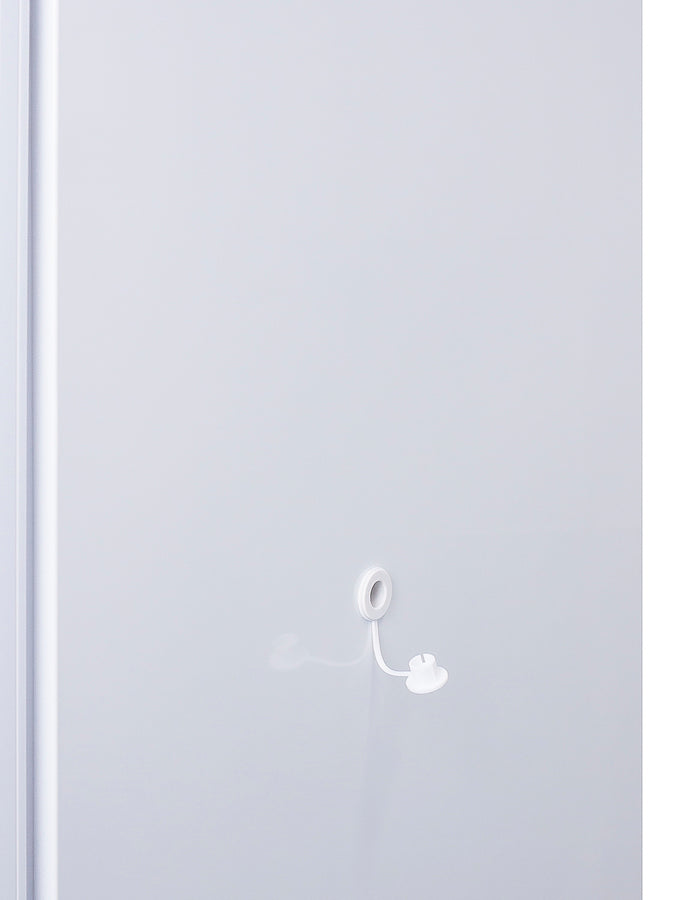

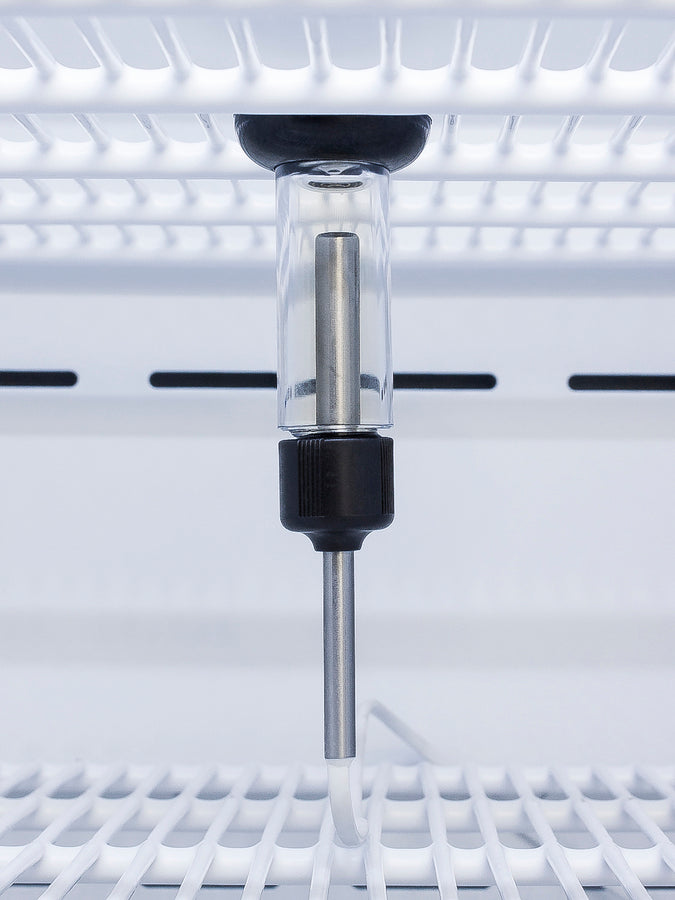

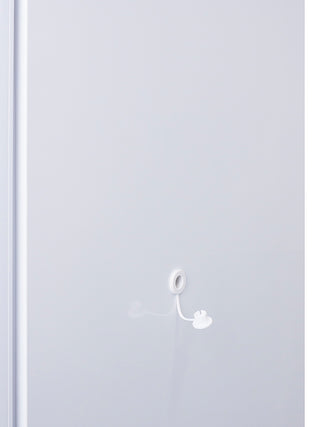

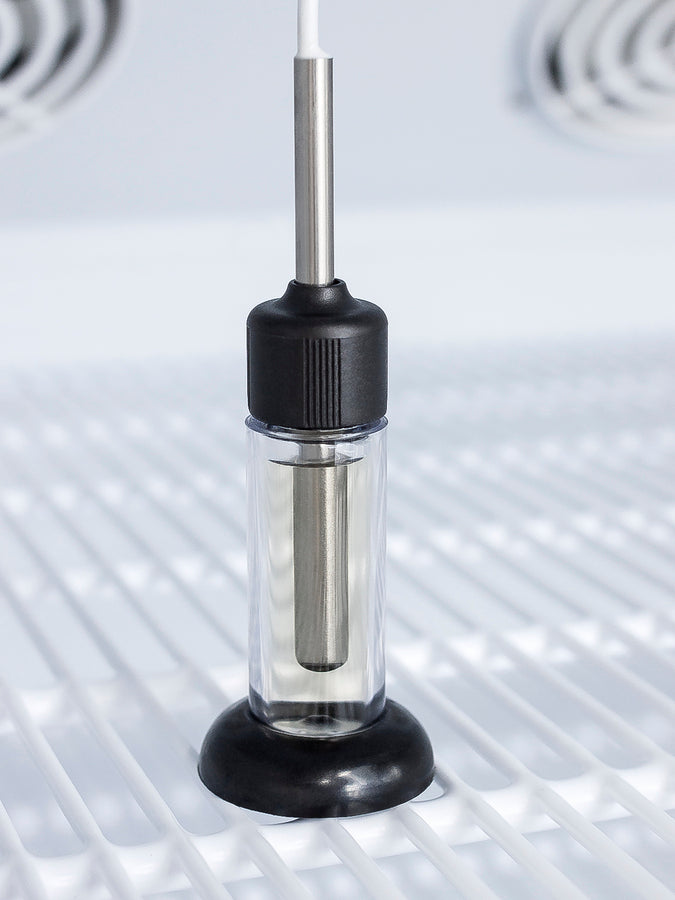

The AFZ1PVDL2B is a 1.4 cu.ft. all-freezer with a temperature range of -30°C to -10°C as recommended for a variety of vaccines and pharmaceuticals. The microprocessor temperature controller is externally located to minimize door openings, helping to protect stored contents from ambient temperature. The buffered temperature probe is encased in a glycol-filled bottle to better simulate temperature of the stored product, with an additional sensor that reads air temperature to ensure superior temperature control. The current and min/max temperature display is viewable in Celsius or Fahrenheit to the nearest tenth of a degree. The audible and visual temperature alarm sounds if the unit's interior goes out of range. Additional alarms include a power failure alert, door open alarm, and sensor failure alarm. This model is equipped with remote alarm contacts in the rear and a 1/2" probe port on the right side to accept additional monitoring devices. A hospital grade cord with 'green dot' plug is also included for added safety in high traffic areas.

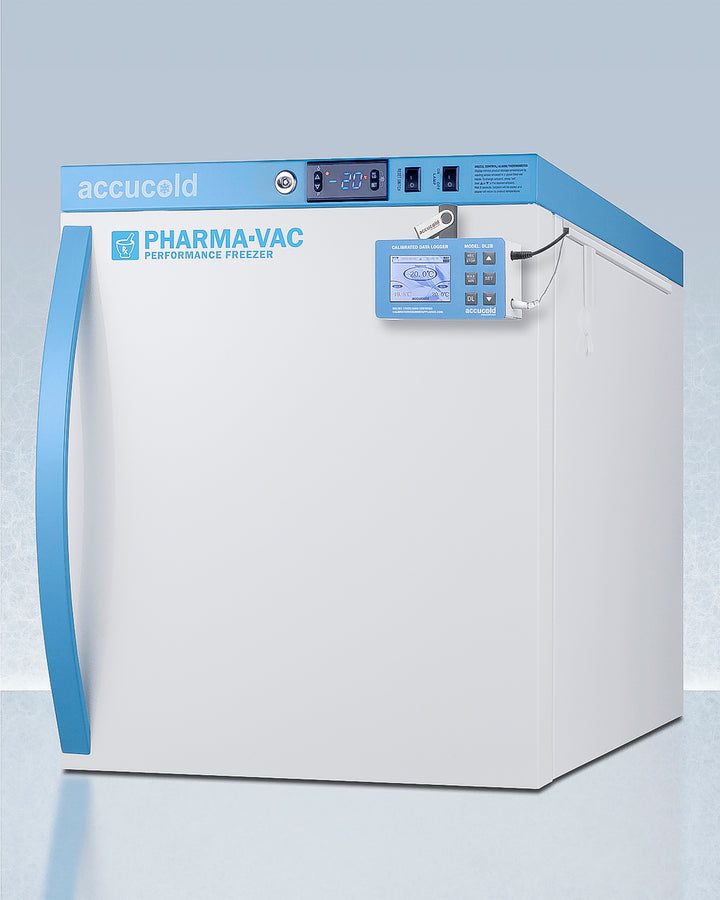

We also include our DL2B digital data logger to be mounted to the door, a feature recommended by the CDC, VFC and VFA for vaccine storage. This password-protected DDL is NIST calibrated in our ISO/IEC 17025:2017 accredited laboratory and offers a large LCD display of the current and high/low temperature, recording up to 32,000 data groups to its internal memory or even more on the included 4GB USB flash drive. Data can be viewed through a PC or Mac in Microsoft Excel or any .CSV compatible program. Users can set their own recording intervals starting at increments of 10 seconds to best meet a facility's specific logging needs. We include a 2-year certificate of calibration beginning the date of manufacture. The logger can be re-calibrated in our laboratories after the certificate expires. (For additional information on the DDL, see the DL2BKit listing on our website.)

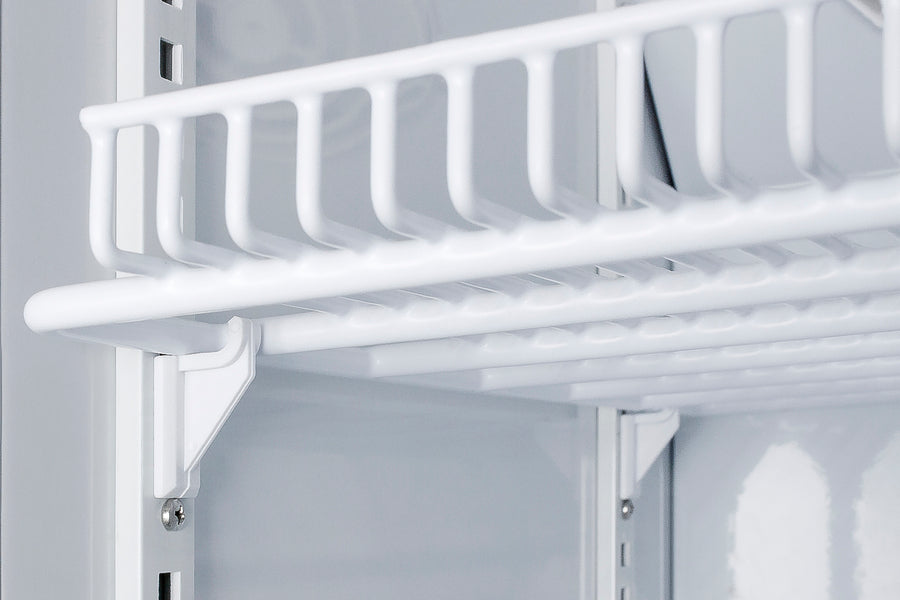

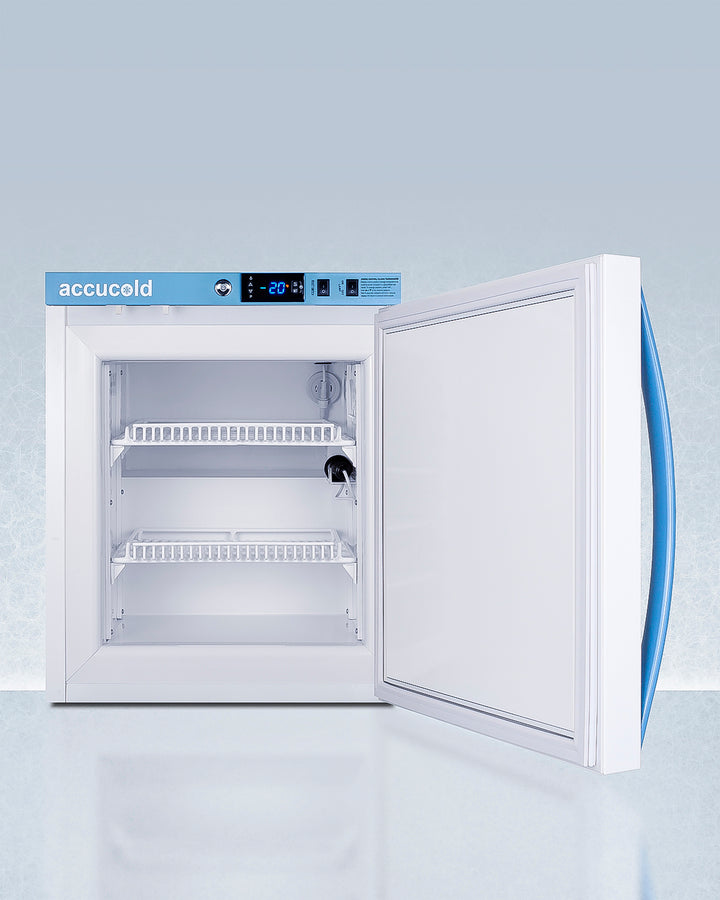

Inside, this freezer features adjustable plastic-coated wire shelves that can be positioned at 1/2" increments to accommodate virtually any sized item. This unit includes LED internal lighting with an on/off rocker switch. The interior is constructed from white powder coated metal to ensure added durability and better temperature retention. Static manual defrost cooling helps to ensure stable temperature conditions.

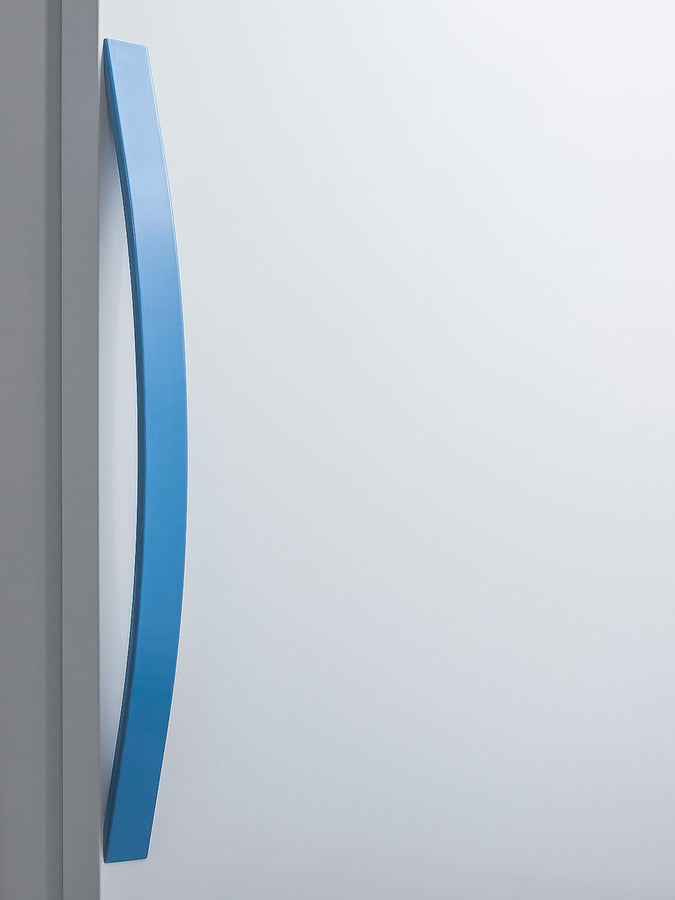

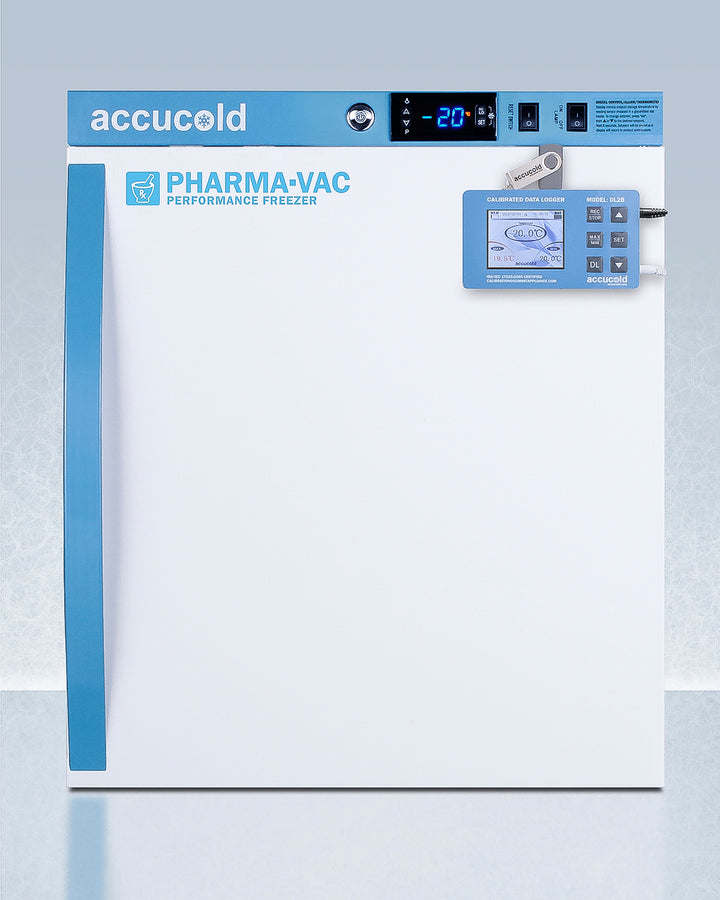

The AFZ1PVDL2B comes in a white cabinet finish with a blue accented control panel. The factory-installed antimicrobial handle is powder-coated with naturally occurring silver ions, which help to reduce the spread of germs, allowing for a safer, cleaner user experience. The door ships with a right hand swing (for a left hand version, add option "LHD"). The self-closing function helps to protect stored contents in busy facilities while a factory-installed lock provides security as needed. Two keys are included for staff use. Powerful magnetic gaskets ensure a positive seal.
Features:
- Performance Series freezer
- Purpose-built design
- +/-1ºC Variation
- Digital data logger (DDL) included
- Adjustable temperature
- Temperature alarm
- Remote alarm contacts
- Manual defrost operation
- Access port
- Open door alarm
- Audible power failure alarm
- Sensor failure alarm
- Password protection
- Microprocessor control panel
- Resettable min/max display
- Factory-installed lock
- Antimicrobial silver ion-coated handle
- Adjustable plastic-coated wire shelves for improved circulation
- Hospital grade cord with 'green dot' plug
- Durable interior
- Interior light
- Self-closing door
- Right hand door swing
- Magnetic door gasket
- Fully finished white cabinet
- Extended warranty
- Eco-Friendly
- Usage stickers
- Matching refrigerator
- Versatile design
- 100% CFC free
- CARB Compliant
Specifications:
|
Overview
|
|
|---|---|
| Nominal Height | 23.0" (58 cm) |
| Height of Cabinet | 22.25" (57 cm) |
| Nominal Width | 19.0" (48 cm) |
| Width | 18.5" (47 cm) |
| Width with Door Open | 18.88" (48 cm) |
| Nominal Depth | 24.0" (61 cm) |
| Depth | 23.25" (59 cm) |
| Depth with Handle | 24.75" (63 cm) |
| Depth with door at 90° | 42.5" (108 cm) |
| Capacity | 1.4 cu.ft. (40 L) |
| Defrost Type | Manual |
| Door | White |
| Cabinet | White |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Amps | 1.3 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 73.0 lbs. (33 kg) |
| Parts & Labor Warranty | 2 Years |
| Compressor Warranty | 5 Years |
| UPC | 761101107462 |
|
Freezer
|
|
| Door Swing | RHD |
| Reversible | Factory Reversible |
| Interior Height | 16.5" (42 cm) |
| Interior Width | 15.25" (39 cm) |
| Interior Depth | 15.75" (40 cm) |
| Shelf Type | Wire |
| Shelf Qty | 2 |
| Adjustable Shelves | Yes |
| Thermostat Type | Digital |
| Interior Light | Yes |
| Refrigerant Type | R290 |
| Refrigerant Amount | 0.85 oz. |
| High Side PSI | 280.0 |
| Low Side PSI | 130.0 |
| Compressor Step Height | 8.25" (21 cm) |
| Compressor Step Width | 15.25" (39 cm) |
| Compressor Step Depth | 4.25" (11 cm) |
| Temperature Range | -30 to -10ºC |
