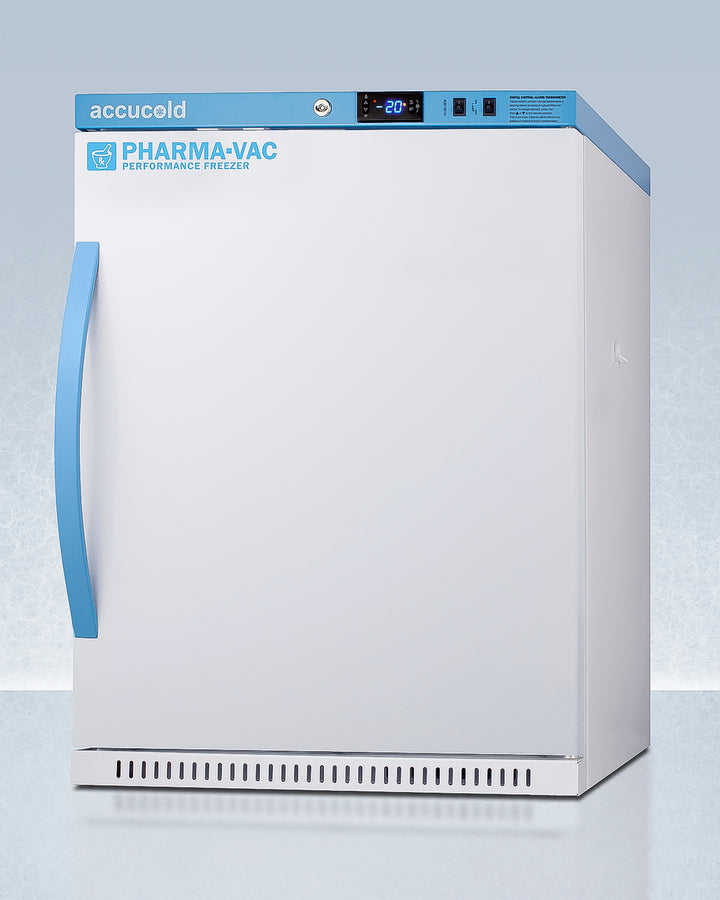

Accucold AFZ5PVBIADA Vaccine Freezer, ADA Height 4 Cu.Ft.
Accucold AFZ5PVBIADA Vaccine Freezer, ADA Height Eco-Friendly 4 Cu.Ft.
Accucold's Pharma-Vac Performance Series are upright freezers are designed and purpose-built for pharmacy, medication, and vaccine applications to support meeting CDC/VFC/VFA guidelines.

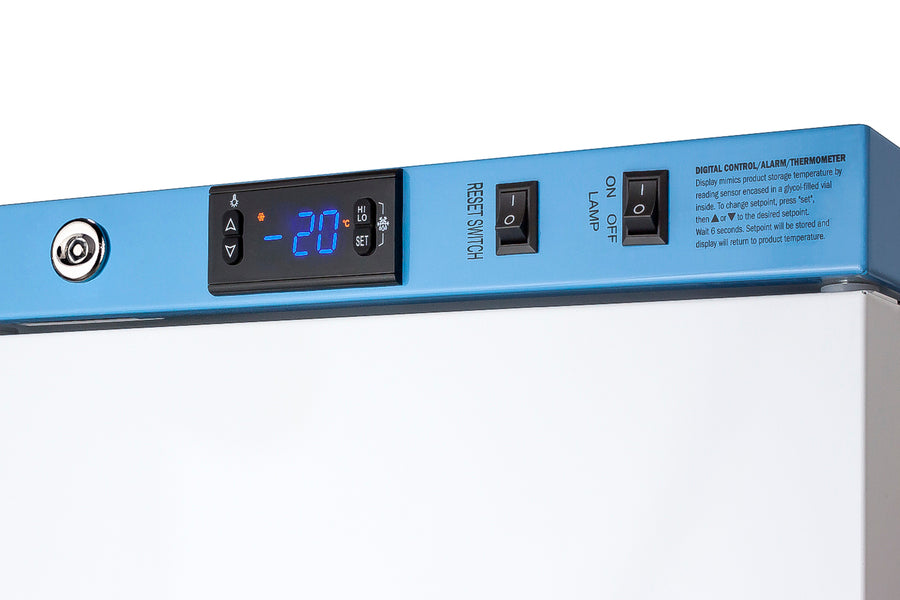

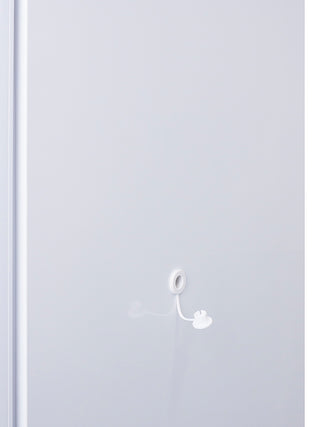

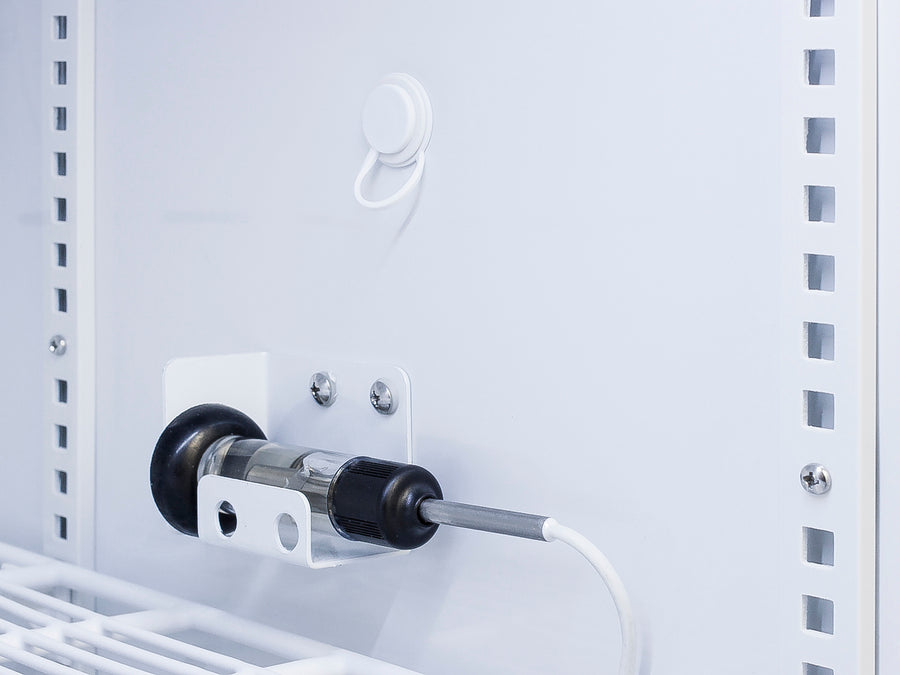

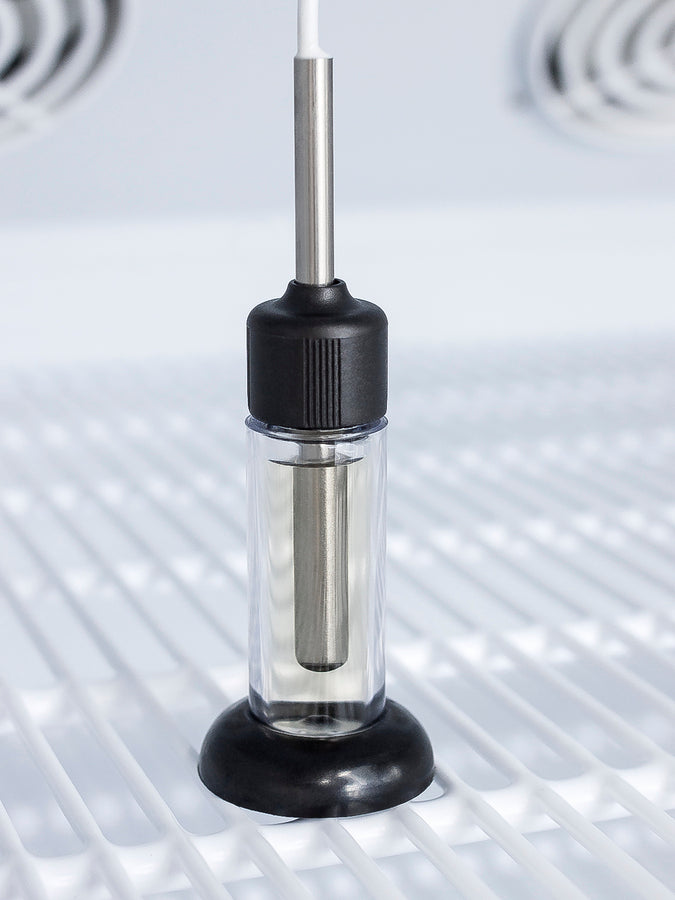

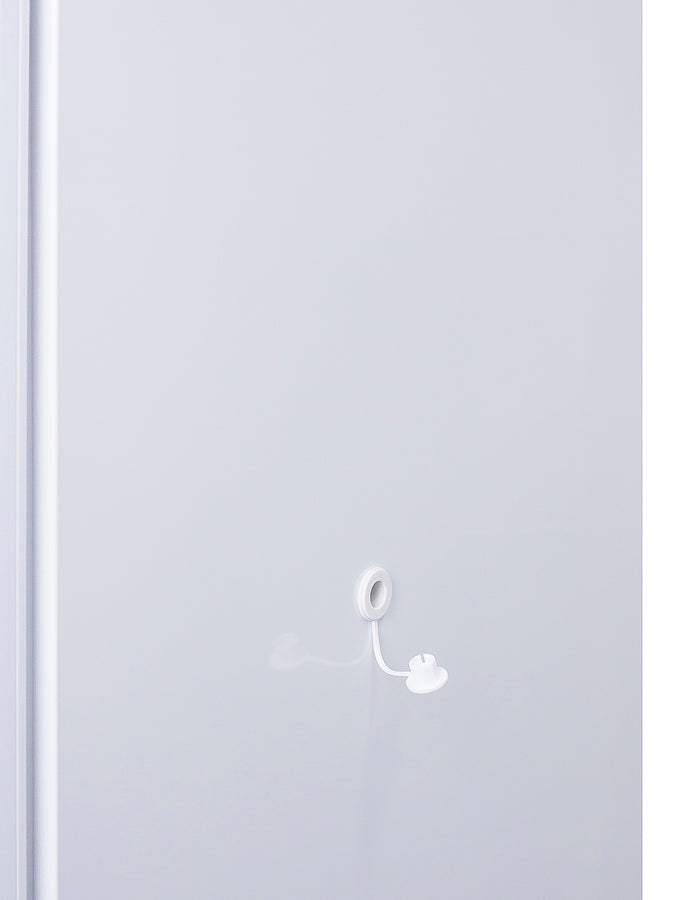

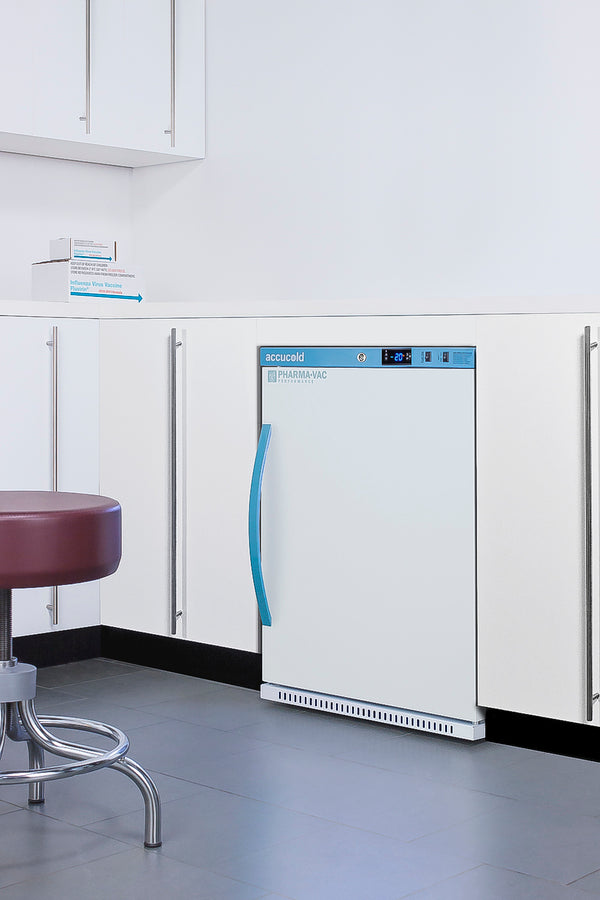

The AFZ5PVBIADA is a 3.88 cu.ft. all-freezer with a temperature range of -30°C to -10°C as recommended for a variety of vaccines and pharmaceuticals. It is designed for freestanding or recessed installation and sized just under 32" high to fit under lower counters complying with ADA guidelines for accessibility. The microprocessor temperature controller is externally located to minimize door openings, helping to protect stored contents from ambient temperature. The buffered temperature probe is encased in a glycol-filled bottle to better simulate temperature of the stored product, with an additional sensor that reads air temperature to ensure superior temperature control. The current and min/max temperature display is viewable in Celsius or Fahrenheit to the nearest tenth of a degree. The audible and visual temperature alarm sounds if the unit's interior goes out of range. Additional alarms include a power failure alert, door open alarm, and sensor failure alarm. This model is equipped with remote alarm contacts in the rear and a 1/2" probe port on the right side to accept additional monitoring devices. A hospital grade cord with 'green dot' plug is also included for added safety in high traffic areas.

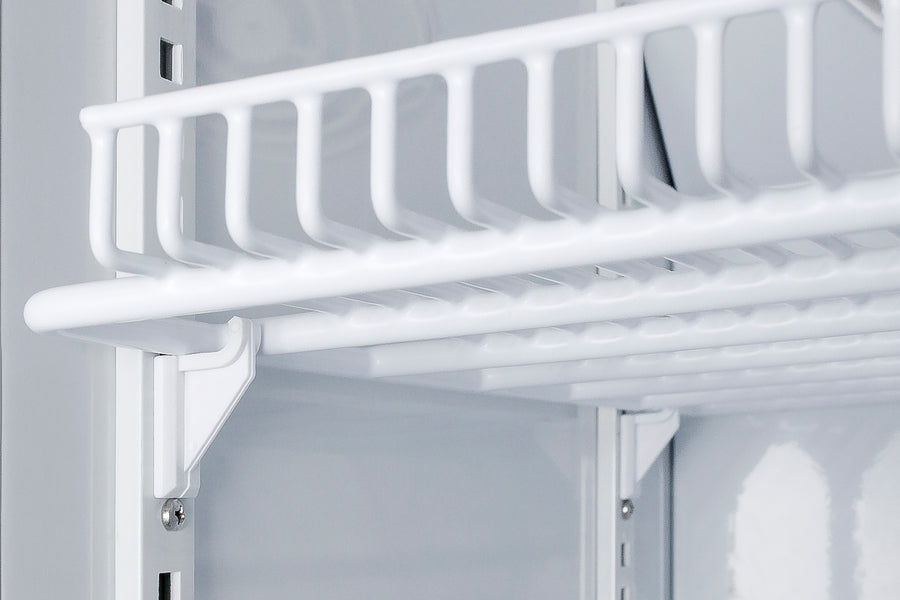

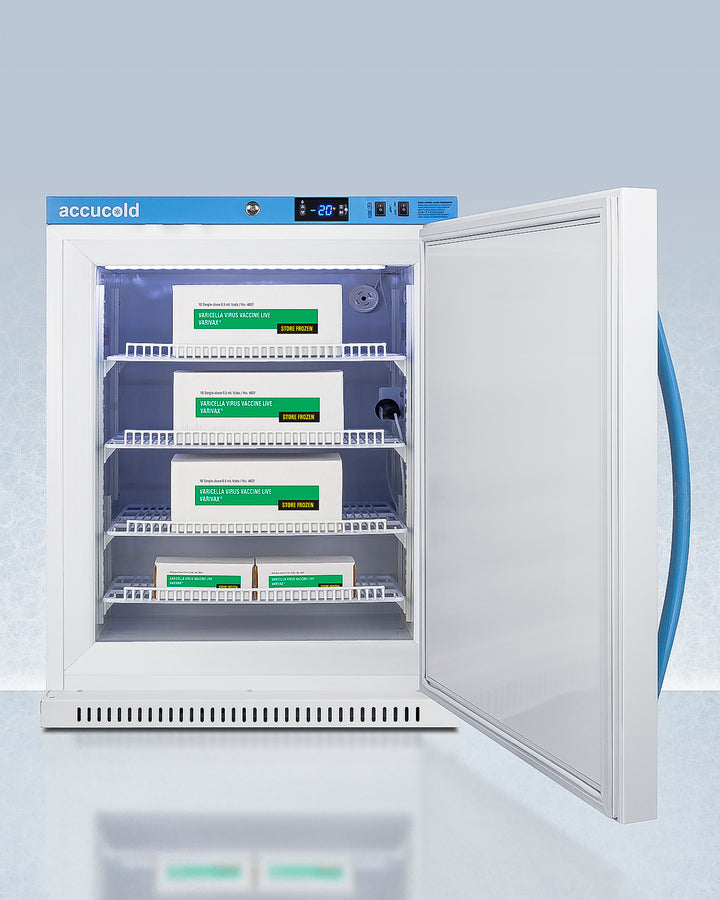

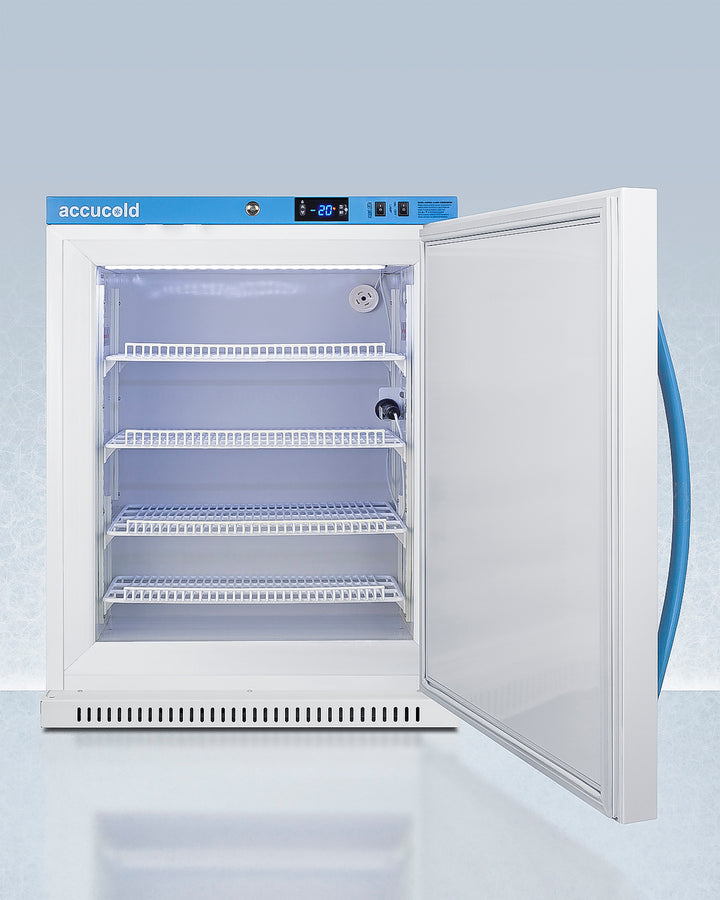

Inside, this freezer features adjustable plastic-coated wire shelves that can be positioned at 1/2" increments to accommodate virtually any sized item. This unit includes LED internal lighting with an on/off rocker switch. The interior is constructed from white powder coated metal to ensure added durability and better temperature retention. Static manual defrost cooling helps to ensure stable temperature conditions.

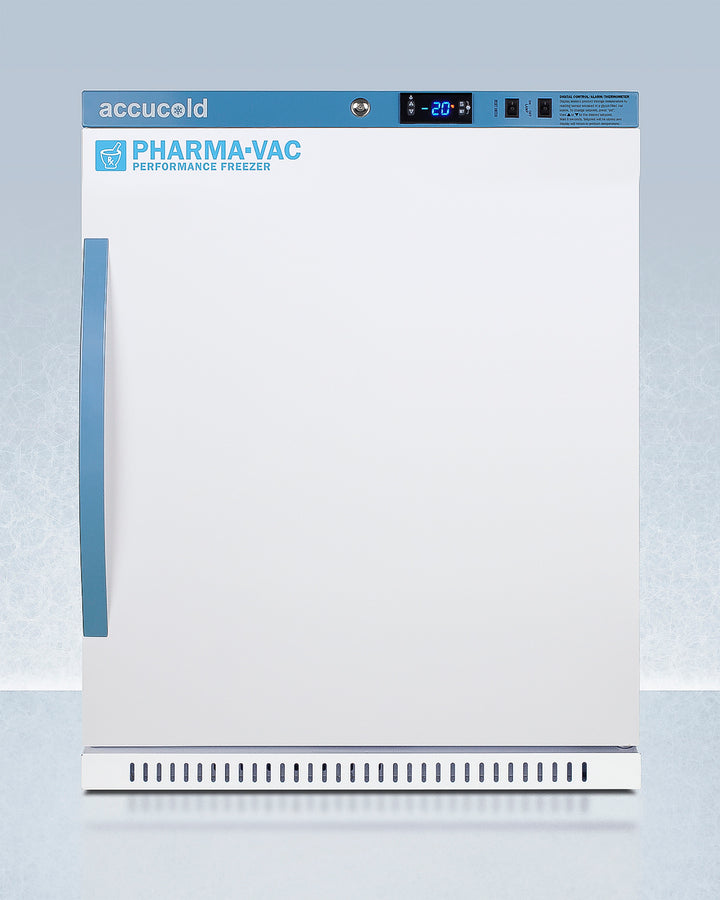

The AFZ5PVBIADA comes in a white cabinet finish with a blue accented control panel. The factory-installed antimicrobial handle is powder-coated with naturally occurring silver ions, which help to reduce the spread of germs, allowing for a safer, cleaner user experience. The user-reversible door ships with a right hand swing and self-closing function, while a factory-installed lock provides security as needed, with two keys for staff use. Powerful magnetic gaskets ensure a positive seal.
Features:
- Performance Series freezer
- Purpose-built design
- ADA Compliant
- Recessed or freestanding use
- +/-1ºC Variation
- Commercial design
- Adjustable temperature
- Temperature alarm
- Remote alarm contacts
- Manual defrost operation
- Access port
- Open door alarm
- Audible power failure alarm
- Sensor failure alarm
- Password protection
- Microprocessor control panel
- Resettable min/max display
- Factory-installed lock
- Antimicrobial silver ion-coated handle
- Adjustable plastic-coated wire shelves for improved circulation
- Hospital grade cord with 'green dot' plug
- Durable interior
- Interior light
- Self-closing door
- Reversible door
- Magnetic door gasket
- Fully finished white cabinet
- Extended warranty
- Eco-Friendly
- Usage stickers
- Matching refrigerator
- Versatile design
- 100% CFC free
- CARB Compliant
Specifications:
|
Overview
|
|
|---|---|
| Nominal Height | 32.0" (81 cm) |
| Height of Cabinet | 31.75" (81 cm) |
| Nominal Width | 24.0" (61 cm) |
| Width | 23.38" (59 cm) |
| Width with Door Open | 23.88" (61 cm) |
| Nominal Depth | 25.0" (64 cm) |
| Depth | 25.0" (64 cm) |
| Depth with Handle | 26.75" (68 cm) |
| Depth with door at 90° | 47.0" (119 cm) |
| Capacity | 3.88 cu.ft. (110 L) |
| Defrost Type | Manual |
| Door | White |
| Cabinet | White |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Amps | 1.3 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 125.0 lbs. (57 kg) |
| Parts & Labor Warranty | 2 Years |
| Compressor Warranty | 5 Years |
| UPC | 761101102887 |
|
Freezer
|
|
| Door Swing | RHD |
| Reversible | Yes |
| Interior Height | 22.5" (57 cm) |
| Interior Width | 18.0" (46 cm) |
| Interior Depth | 18.0" (46 cm) |
| Shelf Type | Wire |
| Shelf Qty | 4 |
| Adjustable Shelves | Yes |
| Thermostat Type | Digital |
| Interior Light | Yes |
| Refrigerant Type | R290 |
| Refrigerant Amount | 1.73 oz. |
| High Side PSI | 280.0 |
| Low Side PSI | 130.0 |
| Compressor Step Height | 6.5" (17 cm) |
| Compressor Step Width | 18.0" (46 cm) |
| Compressor Step Depth | 7.13" (18 cm) |
| Temperature Range | -30 to -10ºC |
