Accucold ARG3PV-ADA305AFSTACK 20" Wide Vaccine Refrigerator/Freezer Combination
Accucold ARG3PV-ADA305AFSTACK 20" Wide Vaccine Refrigerator/Freezer Combination, Eco-Friendly (refrigerator)
Accucold offers innovative solutions to vaccine storage with stackable purpose-built refrigerator-freezer combinations design to support meeting CDC/VFC/VFA guidelines.

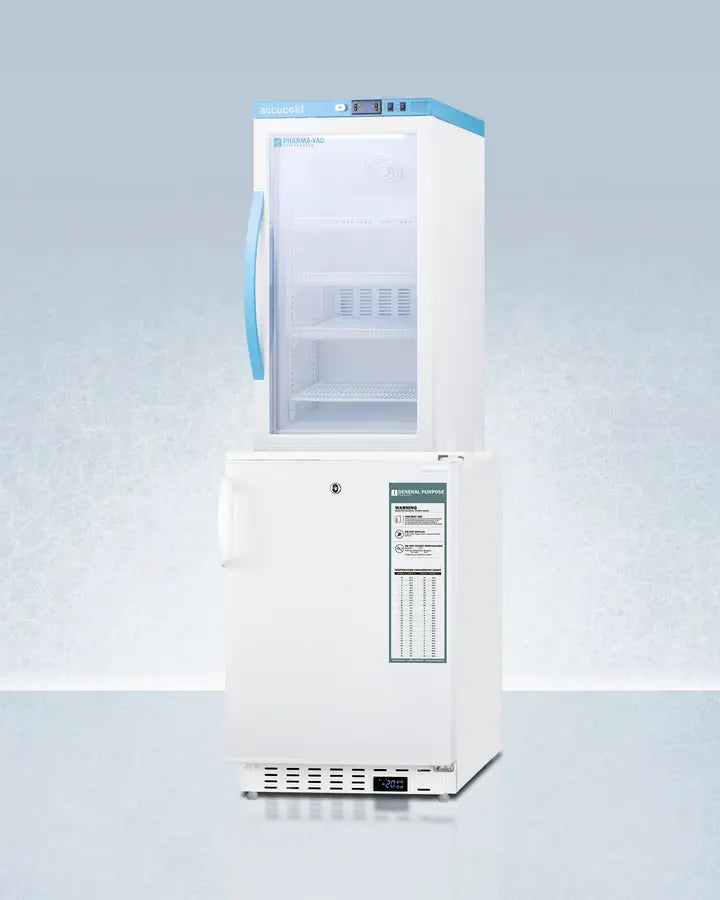

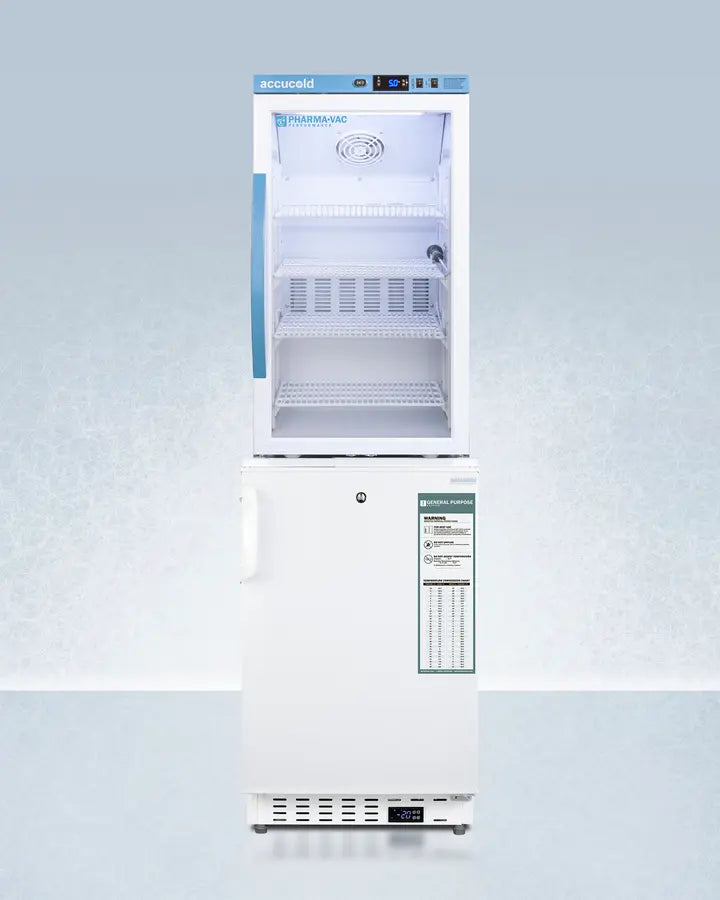

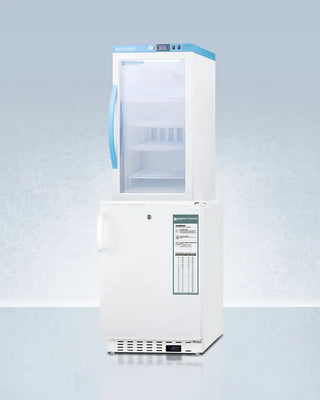

Sized at just 20" wide, the ARG3PV-ADA305AFSTACK combines the 3 cu. ft. ARG3PV auto defrost vaccine refrigerator with ADA305AF 2.47 cu. ft. manual defrost vaccine freezer into one slim footprint using Accucold's StackRack. This ships in three boxes and requires some minor assembly upon delivery.
Refrigerator ARG3PV is part of Accucold's Pharma-Vac Performance Series, designed to meet the demanding needs of vaccine storage. It utilizes a microprocessor temperature controller with an adjustable control range from +2 to +8ºC. The buffered temperature probe is encased in a glycol-filled bottle to better simulate temperature of the stored product, with an additional sensor that reads air temperature to ensure superior temperature control. The current and min/max temperature display is viewable in Celsius or Fahrenheit to the nearest tenth of a degree. The audible and visual temperature alarm sounds if the unit's interior goes out of range. Additional alarms include a power failure alert, door open alarm, and sensor failure alarm. This unit is equipped with remote alarm contacts in the rear and a 1/2" probe port on the right side to accept additional monitoring devices. The factory-installed antimicrobial handle is powder-coated with naturally occurring silver ions, which help to reduce the spread of germs, allowing for a safer, cleaner user experience.
Inside, the ARG3PV utilizes adjustable cycle defrost operation to avoid temperature spikes. Optimized forced air cooling with an internal fan ensures excellent temperature stability and uniformity with rapid recovery after door openings. The adjustable plastic-coated wire shelves can be positioned at 1/2" increments to accommodate virtually any sized item. This unit includes LED internal lighting with an on/off rocker switch. The interior is constructed from white powder coated metal to ensure added durability and better temperature retention.

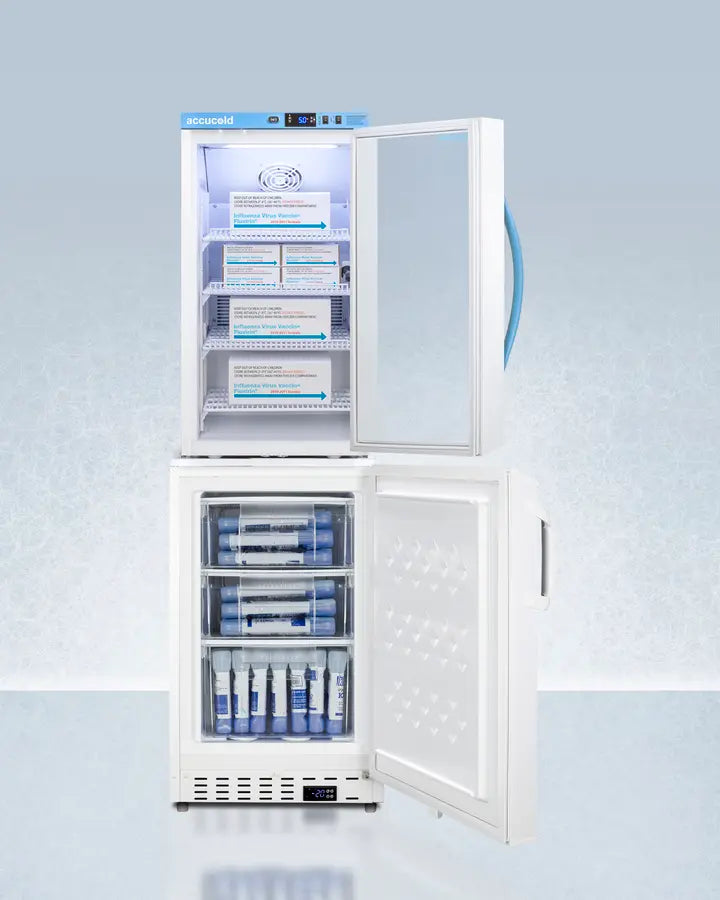

The refrigerator is designed to be stacked on top of the ADA305AF, a -25ºC vaccine freezer that utilizes manual defrost operation. The freezer has 3" thick door for efficient insulation, and a flat door liner, as recommended by the CDC, to ensure users don't store sensitive materials on the door. Three removable pull-out drawers on fixed wire shelving offer convenient storage, with plastic fronts that help to protect contents from warmer ambient temperatures when the door is opened. A digital thermostat, located in the kickplate, makes for easy temperature management with a readout in Fahrenheit or Celsius. This unit is also equipped with high/low temperature and open door alarms, as well as an access port to accept additional monitoring equipment.
Both units include front-mounted keyed locks, powerful magnetic gaskets to ensure a positive seal, and hospital grade cords with 'green dot' plugs for added safety in high traffic areas. The refrigerator has a self-closing door.
Features:
• Space-saving design
• Easy assembly
• +/-1ºC Variation (refrigerator)
• -25°C capable (freezer)
• Adjustable temperature
• Antimicrobial silver ion-coated handle (refrigerator)
• Temperature alarms
• Automatic defrost with adjustable cycle defrost (refrigerator)
• Remote alarm contacts (refrigerator)
• Manual defrost (freezer)
• Access ports
• Open door alarm
• 3" thick door (freezer)
• Flat door liners
• Double pane tempered glass door (refrigerator)
• Audible power failure alarm (refrigerator)
• Sensor failure alarm (refrigerator)
• Password protection (refrigerator)
• Microprocessor control panel (refrigerator)
• Adjustable digital thermostat (freezer)
• Resettable min/max display (refrigerator)
• Factory-installed locks
• Adjustable plastic-coated wire shelves for improved circulation (refrigerator)
• Basket shelves (freezer)
• Hospital grade cords with 'green dot' plugs
• Interior light (refrigerator)
• Self-closing door (refrigerator)
• No internal fans (freezer)
• Sealed back (freezer)
• Magnetic door gaskets
• Extended warranty (refrigerator)
• Eco-Friendly (refrigerator)
• Usage stickers
• Versatile design (refrigerator)
• 100% CFC free
• CARB Compliant
Specifications:
|
Overview
|
|
|---|---|
| Nominal Height | 66.0" (168 cm) |
| Height of Cabinet | 66.0" (168 cm) |
| Nominal Width | 20.0" (51 cm) |
| Width | 19.75" (50 cm) |
| Width with Door Open | 20.25" (51 cm) |
| Nominal Depth | 23.0" (58 cm) |
| Depth | 22.5" (57 cm) |
| Depth with Handle | 24.38" (62 cm) |
| Depth with door at 90° | 40.0" (102 cm) |
| Capacity | 5.47 cu.ft. (155 L) |
| Defrost Type | Automatic |
| Door | Glass |
| Cabinet | White |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Amps | 1.7 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 151.0 lbs. (68 kg) |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| UPC | 761101078625 |
|
Refrigerator-Freezer
|
|
| Door Swing | RHD |
| Reversible | Factory Reversible |
| Adjustable Shelves | Yes |
| Interior Drawers | Yes |
| Drawer Qty | 3 |
| Interior Light | Yes |
| Refrigerator - Interior Height | 28.38" (72 cm) |
| Refrigerator - Interior Width | 15.25" (39 cm) |
| Refrigerator - Interior Depth | 11.75" (30 cm) |
| Refrigerator - Capacity | 3.0 cu.ft |
| Refrigerator - Shelf Type | Wire |
| Refrigerator - Shelf Qty | 4 |
| Refrigerator - Temperature Range | 2 to 8°C |
| Refrigerator - Refrigerant Type | R600a |
| Refrigerator - Refrigerant Amount | 1.06 oz. |
| Freezer - Interior Height | 23.75" (60 cm) |
| Freezer - Interior Width | 14.5" (37 cm) |
| Freezer - Interior Depth | 17.0" (43 cm) |
| Freezer - Capacity | 2.47 cu.ft |
| Freezer - Shelf Type | Drawers |
| Freezer - Shelf Qty | 3 |
| Thermostat Type | Digital |
| Fan Type | Interior |
| Level Legs | 2 |
| Freezer - Temperature Range | -25° to -15°C |
| Freezer - Refrigerant Type | R600a |
| Freezer - Refrigerant Amount | 1.34 oz. |
