Air Relax Pro AR-4.0 Leg Recovery System, Pneumatic Compression Boots with 5.5-Inch Touchscreen Control Unit, Six Overlapping Chambers, Four Cycle Modes and 38L Carrying Case

The Air Relax Pro AR-4.0 Leg Recovery System is a complete leg compression setup. It pairs the AR-4.0 touchscreen control unit with a pair of leg sleeves in the size you choose, plus the hose bundle, AC power adapter, 38L carrying case and user manual. Each sleeve has six overlapping air chambers. Depending on the mode, they fill in sequence from the foot upward or all together, then release.

Per Air Relax, the AR-4.0 is an FDA cleared device.* Its cleared use is the temporary relief of minor muscle aches and pains and a temporary increase in circulation to the treated areas in people who are in good health.

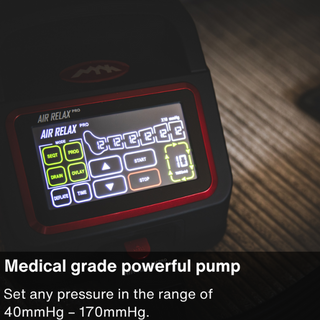

The control unit offers four programmed cycle modes: Sequential, Progressive, Drain and Overlay. Pressure is set between 40 and 170 mmHg and session time between 5 and 95 minutes. Individual chambers can be switched off to skip a sore or sensitive area, and a built-in pressure sensor calibrates to leg circumference in the first cycles of each session. A deflate function empties the sleeves at the end.

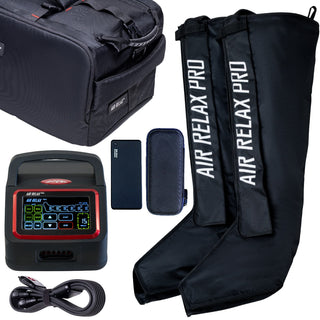

The control unit accepts 100 to 240 VAC, so it works on household power in most countries. Choose the power bank option if you want to run sessions away from an outlet; Air Relax rates it at up to 3 hours of continuous use.

Compatibility: the AR-4.0 control unit works only with AR-4.0 garments. AR-2.0 and AR-3.0 sleeves do not connect to it.

Sizing: measure your inseam from the top of the inside leg at the crotch down to the heel. Per Air Relax, if you are between sizes, choose the longer sleeve.

Before use: per the Air Relax user manual, do not use this system if you have deep vein thrombosis (DVT), episodes of pulmonary embolism, acute pulmonary edema, acute thrombophlebitis, acute congestive heart failure, acute infections, osteoporosis or a blood clotting condition. Do not use it over inflammation, infection, open wounds, bleeding, sensitive or swollen skin, poor circulation, or wounds, lesions, tumors, fractures or dislocations at or near the treatment area, or if you have unexplained calf or abdominal pain. Do not use it during pregnancy. It is not intended for children. If you are under a physician's care, check with your healthcare provider first. Per Air Relax, the system is not a medical treatment and does not replace a medical examination or diagnosis.

Per the Air Relax user manual, the system is not recommended for people with heart or vascular problems, and it is intended for consumer home use.

Features

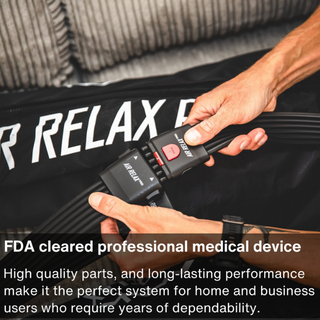

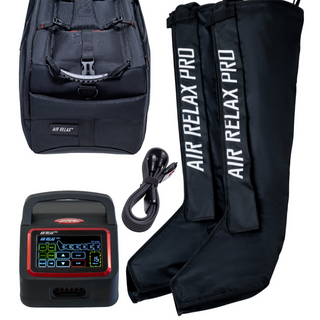

  • Complete system: AR-4.0 control unit, one pair of leg sleeves, hose bundle, AC power adapter and 38L carrying case
  • Six overlapping air chambers per leg sleeve
  • Four programmed cycle modes: Sequential, Progressive, Drain and Overlay
  • Adjustable pressure from 40 to 170 mmHg
  • Session timer from 5 to 95 minutes
  • Customized chamber selection to target or skip chambers
  • Built-in pressure sensor that calibrates to leg circumference
  • Deflate function to empty the sleeves after a session

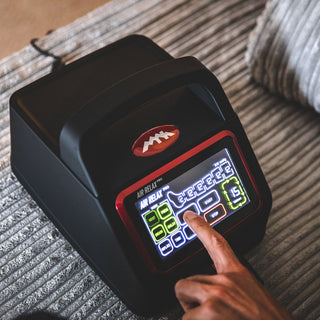

  • 5.5-inch LCD touchscreen
  • Dual voltage, 100 to 240 VAC
  • Optional power bank, up to 3 hours of use per Air Relax
  • Garment made of 200 denier nylon oxford
  • Three sleeve sizes chosen by inseam
  • FDA cleared, per Air Relax*

Technical Specifications:

Overview
System Type Pneumatic Compression Recovery System
Model AR-4.0
Coverage Legs, Foot to Thigh
Chambers per Sleeve 6, Overlapping
Garment Material 200 Denier Nylon Oxford
Intended Setting Per Air Relax: Consumer Home Use
Warranty Per Air Relax: 1-Year Limited
Compression Settings
Pressure Range 40 to 170 mmHg
Pressure Levels 14
Cycle Modes Sequential, Progressive, Drain, Overlay
Session Time 5 to 95 Minutes
Chamber Selection Yes, per Chamber
Pressure Sensor Built-in
Deflate Function Yes
Control Unit
Display 5.5" LCD Touchscreen
Input Voltage 100 to 240 VAC, 50/60 Hz
Power Consumption 80 VA
AC Adapter Output DC 18 V, 3.15 A
Electrical Protection Class II, Type BF
Water Ingress Rating IP21
Dimensions (L x W x H) 10.4" x 7.67" x 7.08" (265 x 195 x 180 mm)
Weight 4.85 lb (2.2 kg)
Operating Temperature 41°F to 104°F (5°C to 40°C)
Optional Power Bank
Model AR-BP2
Output DC 14.6 V
Capacity 5,700 mAh, 83.22 Wh
Runtime Per Air Relax: Up to 3 Hours
Included With "Yes Power Bank" Variants Only
In the Box
Control Unit Air Relax Pro AR-4.0
Garment Leg Sleeves, One Pair in the Selected Size
Connection Hose Bundle
Power AC Power Adapter
Carry 38L Carrying Case
Documentation User Manual

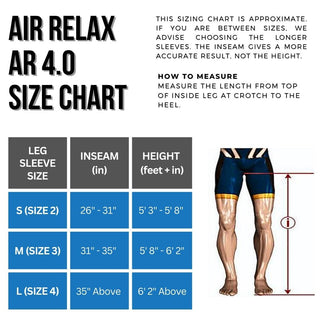

Sleeve Sizing
Size 2 26" to 31" Inseam, about 5'3" to 5'8"
Size 3 31" to 35" Inseam, about 5'8" to 6'2"
Size 4 35" Inseam and Above, about 6'2" and Above
Variants, SKUs and UPCs
Size 2, No Power Bank AR4-S2 · 08809040526479
Size 2, With Power Bank AR4-S2-2BP · 794811373476
Size 3, No Power Bank AR4-S3 · 08809040526486
Size 3, With Power Bank AR4-S3-2BP · 794811373483
Size 4, No Power Bank AR4-S4 · 08809040526493
Size 4, With Power Bank AR4-S4-2BP · 794811373490

* Per Air Relax, the AR-4.0 is FDA cleared. The FDA 510(k) record K212491 lists the Air Relax Pro Model AR-4.0 as a Class II powered inflatable tube massager intended to temporarily relieve minor muscle aches and pains and to temporarily increase circulation to the treated areas, for use by people who are in good health.
