| General Specifications | |
|---|---|
| Brand / Line | Body-Solid |
| Product Name | GS348BP4 Series 7 Smith Gym Package |
| Model | GS348BP4 (Alternate variant code: GS348QP4) |
| Product Category | Full Home Gym Systems / Smith Gym Packages |
| Application / Rating | Commercial & In-Home Residential |
| Mainframe Construction | All-4-Side Welded 11-Gauge & 12-Gauge 2" x 3" Steel Frame |
| Smith Bar System Capacity | 600.00 lbs (272.16 kg) |
| Smith Bar Starting Weight | 25.00 lbs (11.34 kg) |
| Gun Rack System Capacity | 1,000.00 lbs (453.59 kg) |
| Bench Capacity | 1,000.00+ lbs (453.59+ kg) |
| Weight Stack Resistance | 210.00 lbs (95.25 kg) selectorized stack (plate-loadable for extra capacity) |
| Plate & Bar Storage | 6 Olympic Weight Storage Posts + 1 Vertical Olympic Bar Sleeve |
| Included Package Components | |
| GS348B | Series 7 Angled Smith Machine & Free-Weight Gun Rack |
| GLA348BS | Cable Lat Attachment with 210 lb. Selectorized Stack (Includes Lat Bar, Low Row Bar & Foot Brace) |
| GPA3B | Pec Dec Station Attachment |
| GFID71B | Heavy-Duty Adjustable Flat / Incline / Decline Bench |
| GLDA3 | Leg Developer Attachment (Leg Extension / Leg Curl) |
| GPCA1 | Preacher Curl Station Attachment |
| Dimensions & Weights | |
| Assembled Unit Dimensions | |
| Assembled Length | 98.00" (2,489.20 mm) (Alternate spec listed as 78.00" / 1,981.20 mm) |
| Assembled Width | 70.00" at Bar / 64.00" Frame Width (1,778.00 mm / 1,625.60 mm) |
| Assembled Height | 83.00" (2,108.20 mm) (Alternate spec listed as 84.00" / 2,133.60 mm) |
| Total Assembled Weight | 724.00 lbs (328.41 kg) (Alternate spec listed as 743.00 lbs / 337.02 kg) |
| Manufacturer Warranty Structure | |
| In-Home / Residential Warranty | |
| Frame & Welds | Lifetime |
| Bushings & Hardware | 3 Years |
| Pads, Cables & Grips | 1 Year |
| Full Commercial Warranty | |
| Frame & Welds | Lifetime |
| Bushings & Hardware | Lifetime |
| Pads, Cables & Grips | Lifetime |
Typically 1-3 Business Days
Registered & Certified Medical Equipment
Need help?
Typically 1-3 Business Days
Registered & Certified Medical Equipment
Need help?

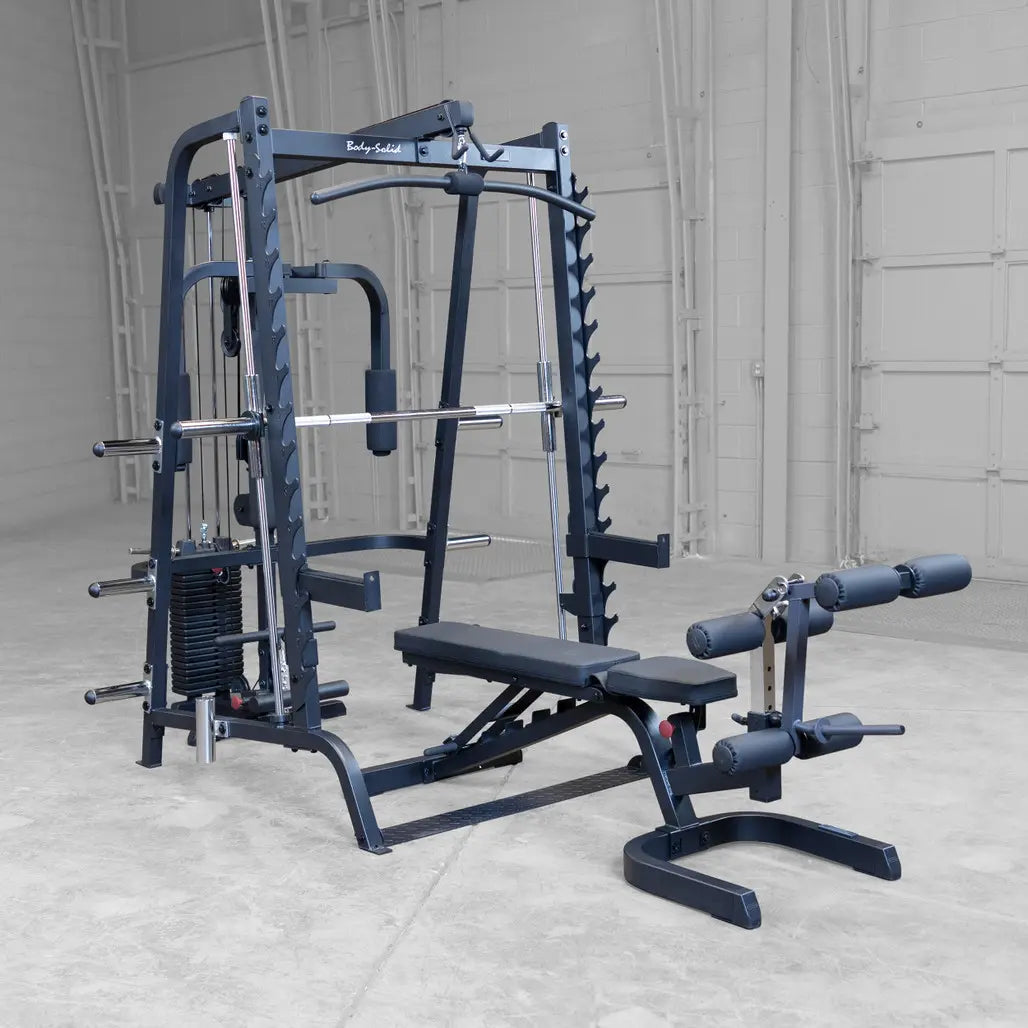

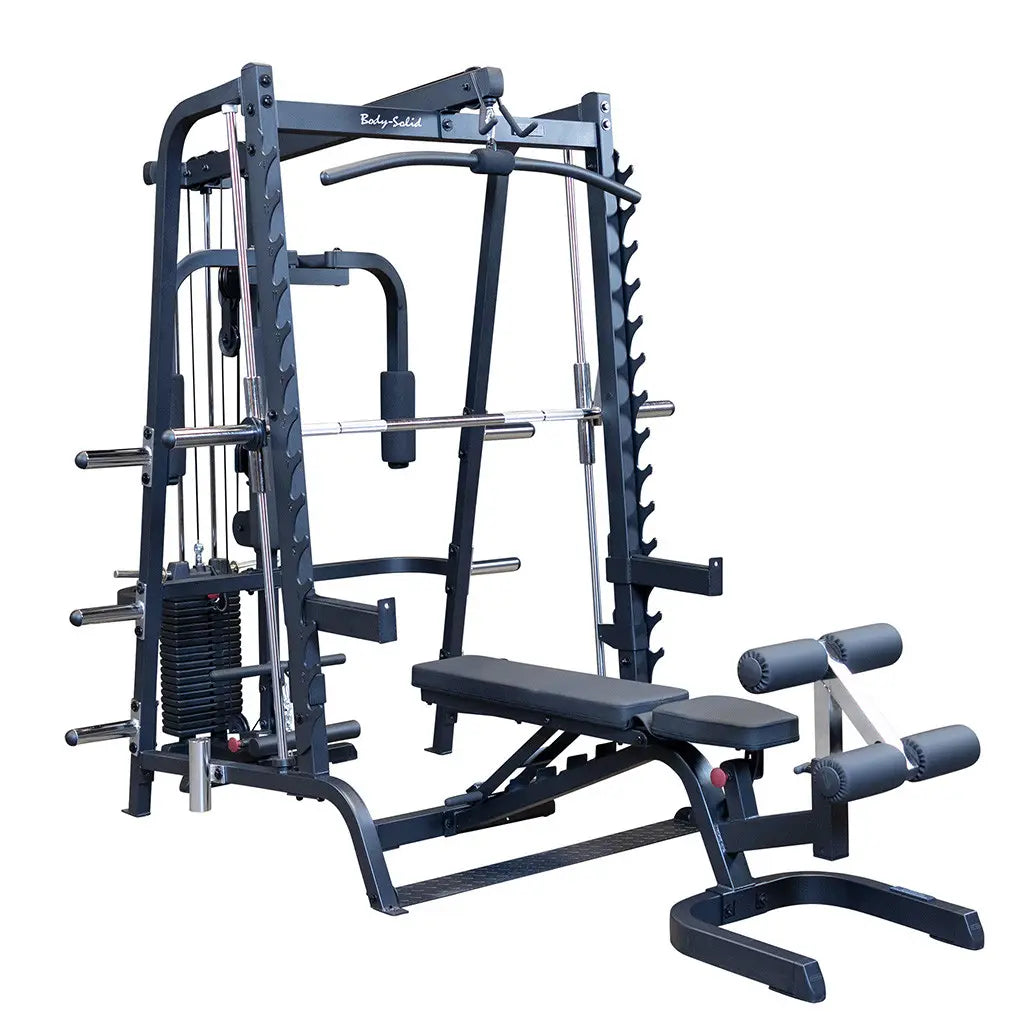

Body-Solid GS348BP4 Series 7 Smith Gym Package, Complete All-in-One Training Station, Biomechanical 7° Reversed Pitch, 14-Position Gun Rack and Safety Spotters, 210 lb. Selectorized Lat Attachment, Pec Dec Attachment (GPA3B)
The Body-Solid GS348BP4 Series 7 Smith Gym Package (GS348BP4) is a comprehensive, all-in-one strength training station designed to deliver a full-body commercial gym experience in a single, space-saving footprint. Built around the commercial-rated Series 7 Smith Machine, this package eliminates the need for a spotter across heavy compound lifts, isolating movements with complete biomechanical safety.
This total-body gym package integrates five core workout components: the GS348B 7-degree angled Smith & Gun Rack Machine, the GLA348BS High/Low Cable Lat Attachment powered by a 210 lb. weight stack, the GPA3B Pec Dec Station, and the GFID71B Heavy-Duty Adjustable Flat/Incline/Decline Bench equipped with both the GLDA3 Leg Developer and GPCA1 Preacher Curl attachments.
Features:
- Complete All-in-One Training Station: Combines a guided linear bearing Smith machine, a 1,000 lb. capacity free-weight gun rack, a selectorized high/low cable attachment, a dual-fly pec station, and a multi-angle heavy-duty bench system.
- Biomechanical 7° Reversed Pitch: Aligns both the Smith bar and free-weight gun rack to a natural 7-degree angle, matching natural upper and lower body joint mechanics during presses and squats.
- Linear Ball-Bearing Smith System: Features a 25 lb. starting bar with 20 cross-member lockout points, capable of handling up to 600 lbs.
- 14-Position Gun Rack & Safety Spotters: Supports up to 1,000 lbs. for traditional free-weight barbell training, equipped with 17" extra-heavy-duty safety spotter arms.
- 210 lb. Selectorized Lat Attachment: Includes high and low pulleys with a "no cable change" design, driven by a 210 lb. alloy steel weight stack (plus weight posts for supplementary free-weight plate loading).
- Pec Dec Attachment (GPA3B): Driven by the same 210 lb. weight stack, featuring extra-thick DuraFirm™ padding and dense arm rollers for isolated chest flyes and rear delt movements.
- GFID71B Adjustable Bench + Attachments: Handles over 1,000 lbs. with independently adjustable seat and back pads; includes the GLDA3 Leg Developer (leg extension/curl) and GPCA1 Preacher Curl station.
- Integrated Storage: Equipped with six (6) 2" Olympic weight plate storage horns and a frame-mounted vertical Olympic bar holder.
Specifications:
