| General Specifications | |
|---|---|
| Brand | Body-Solid |
| Product Name | High Capacity 2" Olympic Plate Rack |
| Model | GWT76 |
| Product Category | Weight Trees & Olympic Plate Storage |
| Application / Rating | Commercial & Residential |
| Weight Horn Usable Length | 8.25" (209.55 mm) per horn |
| Horn Options | |
| Bumper Plate Setup | 8 Weight Horns |
| Standard Olympic Setup | 10 Weight Horns |
| Physical Dimensions & Weight | |
| Product Dimensions | |
| Assembled Length | 41.10" (1,043.94 mm) |
| Assembled Width | 36.10" (916.94 mm) |
| Assembled Height | 65.40" (1,661.16 mm) |
| Assembled Product Weight | 108.00 lbs (48.99 kg) |
| Spec Sheet Weight Rating | 121.00 lbs (54.88 kg) |
| Packaging & Shipping Information | |
| Package Length | 67.70" (1,720.00 mm) |
| Package Width | 33.50" (850.00 mm) |
| Package Height | 6.50" (165.00 mm) |
| Package Volume | 8.52 ft³ (0.241 m³) |
| Gross Shipping Weight | 113.60 lbs (51.53 kg) |
| Manufacturer Warranty Structure | |
| In-Home / Residential Warranty | |
| Frame & Welds | Lifetime |
| Bushings & Hardware | 3 Years |
| Pads, Rollers & Grips | 1 Year |
| Full Commercial Warranty | |
| Frame & Welds | Lifetime |
| Bushings & Hardware | Lifetime |
| Pads, Rollers & Grips | Lifetime |
Typically 1-3 Business Days
Registered & Certified Medical Equipment
Need help?
Typically 1-3 Business Days
Registered & Certified Medical Equipment
Need help?

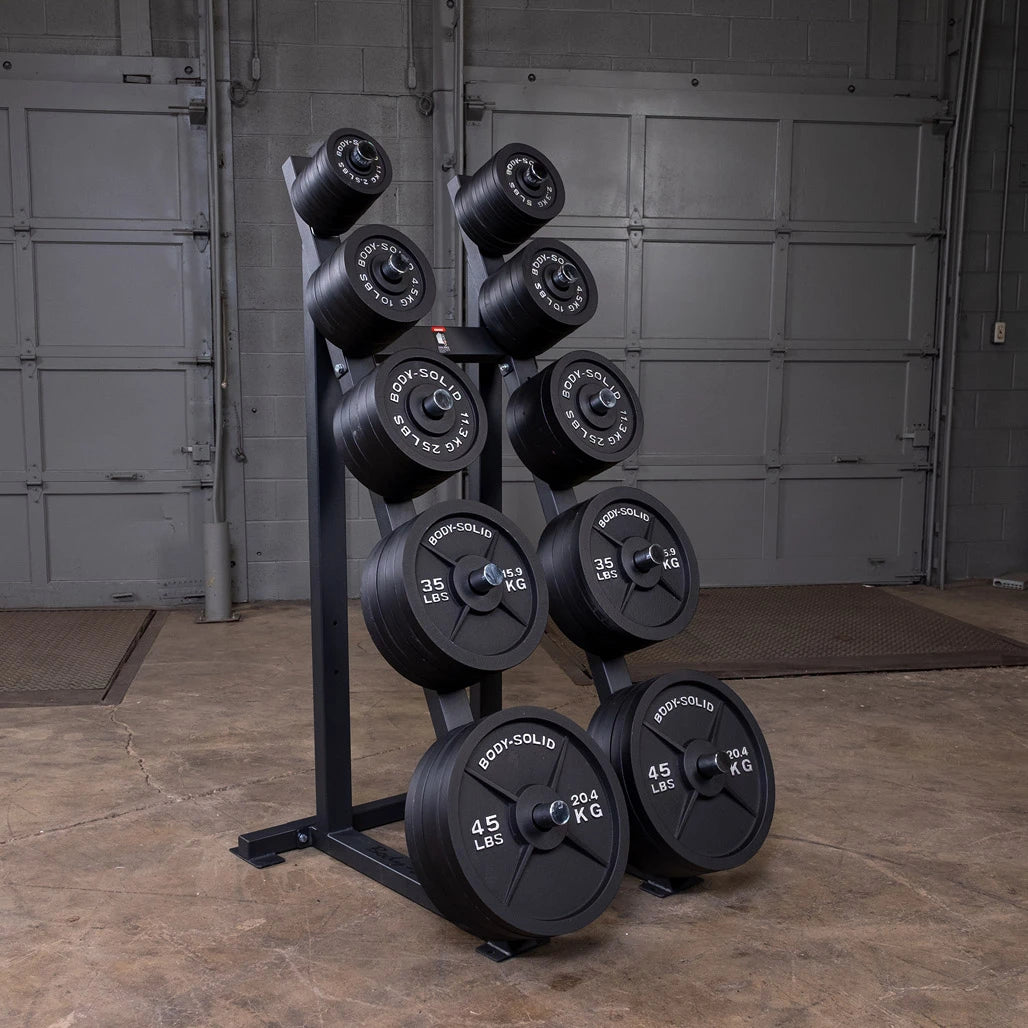

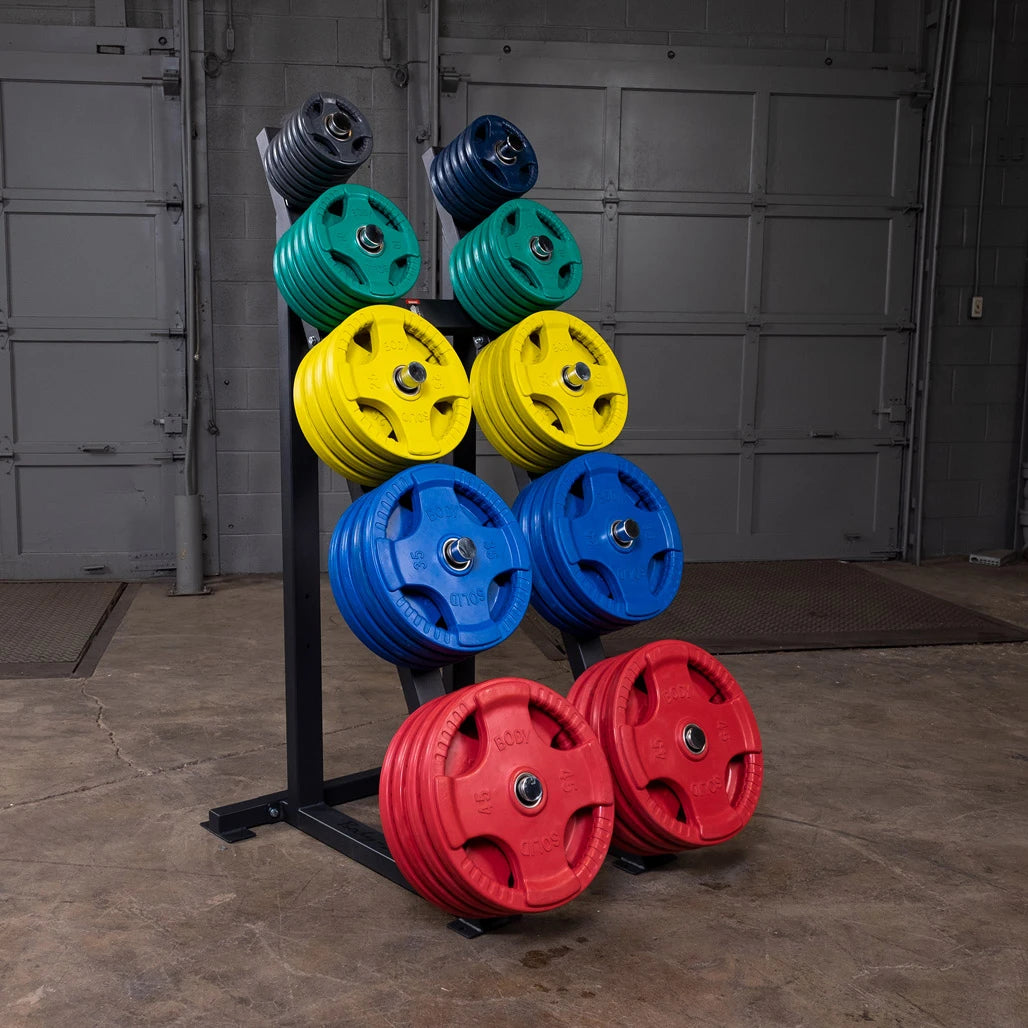

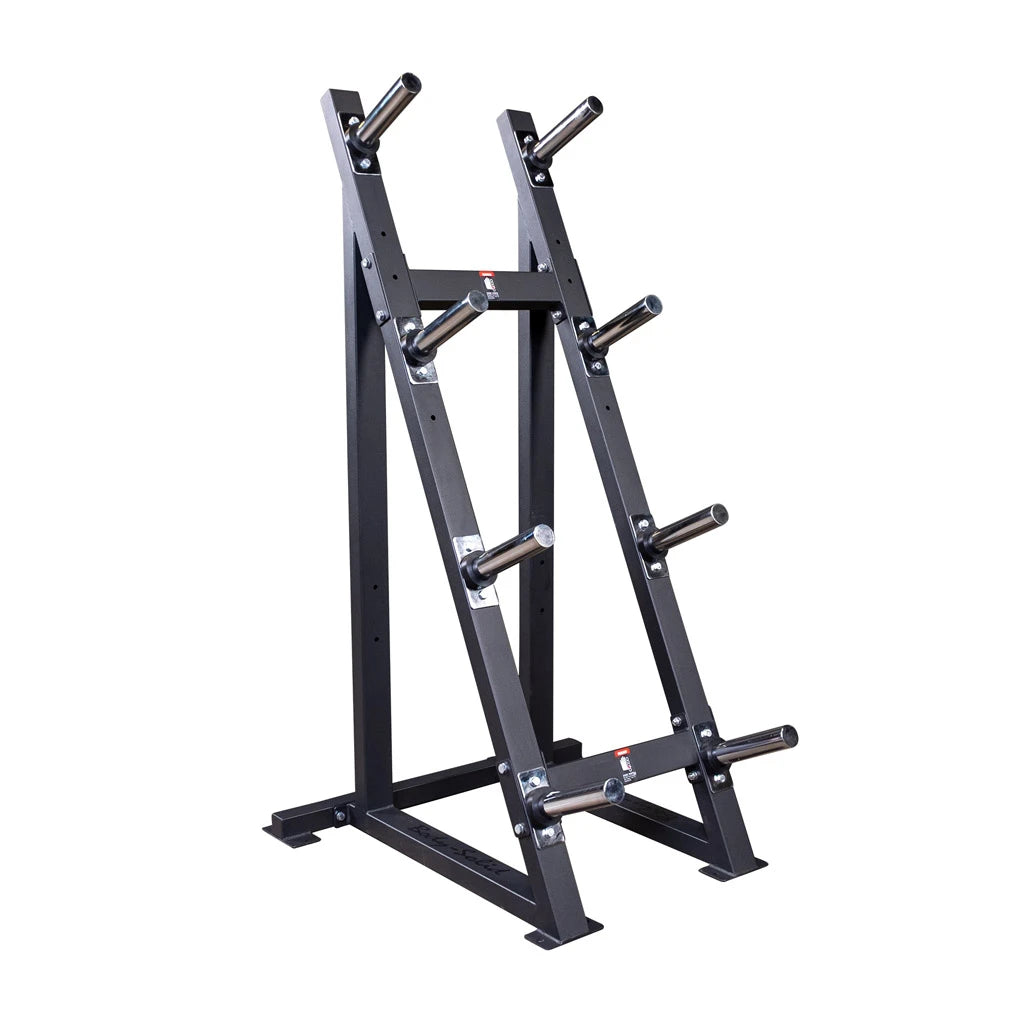

Body-Solid GWT76 High Capacity 2" Olympic Plate Rack, Modular Storage Configurations, Heavy-Duty Weight Horns, Space-Saving Wall-Flush Design
The Body-Solid GWT76 High Capacity 2" Olympic Plate Rack (GWT76) is a versatile, space-saving weight storage tree engineered for home gyms and commercial facilities. Featuring a modular frame design, the GWT76 can be custom-configured to accommodate larger-diameter Olympic rubber bumper plates or traditional cast iron Olympic plates.
Constructed from heavy-gauge steel, the frame is shaped to rest flush against walls for maximum floor space efficiency. All weight horns feature all-welded end caps to prevent breakage and maintain structural integrity under full commercial loads.
Features:
- Modular Storage Configurations: Easily adjusts between an 8-horn setup for bumper plates and a 10-horn setup for traditional Olympic plates.
- Heavy-Duty Weight Horns: Features 8.25" usable horn lengths with all-welded steel caps (no plastic end plugs to crack or fall off).
- Space-Saving Wall-Flush Design: Low-profile footprint allows the rack to sit directly against a wall for unobstructed room access.
- Commercial-Grade Frame: Heavy-gauge steel construction designed to support heavy plate inventories in high-traffic facilities.
- 2" Olympic Plate Compatibility: Formatted specifically for standard 2" central bore Olympic and bumper plates.
Specifications:
