| General Specifications | |
|---|---|
| Brand / Line | Powerline by Body-Solid |
| Product Name | PLT200 Lat Attachment |
| Model | PLT200 |
| Product Category | Smith Machine Attachments / Lat Pulldown & Cable Attachments |
| Compatibility | Compatible only with the Powerline PSM200 Smith Machine |
| Application / Rating | In-Home / Residential |
| Resistance Options | Plate-Loaded (Standard) or Upgradable with the Optional SP150 160 lb. Weight Stack |
| Maximum Weight Capacity | 310.00 lbs (140.61 kg) |
| Cable Specification | Nylon-Coated Aircraft-Grade Cable |
| Included Accessories | |
| (1) Lat Pulldown Bar | Included |
| (1) Low Row Bar | Included |
| Dimensions & Weights | |
| Assembled Unit Dimensions (Attached to PSM200 Smith Machine) | |
| Assembled Length | 76.00" (1,930.40 mm) |
| Assembled Width | 66.00" (1,676.40 mm) |
| Assembled Height | 82.00" (2,082.80 mm) |
| Assembled Product Weight | 82.00 lbs / 37.20 kg (Alternate spec listed as 83.00 lbs / 37.65 kg) |
| Shipping & Package Specifications | |
| Package Dimensions | 79.00" L x 8.00" W x 7.00" H (2,006.60 mm x 203.20 mm x 177.80 mm) |
| Package Volume | 2.56 cu. ft. (0.07 m³) |
| Manufacturer Warranty Structure | |
| In-Home / Residential Warranty | |
| Frame & Welds | 10 Years |
| Bushings & Hardware | 1 Year |
| Pads, Grips, Cables & Pulleys | 1 Year |
| Optional Accessories & Expansion | |
| Powerline SP150 Weight Stack Upgrade | Adds a 160 lb. selectorized weight stack for fast pin-selected resistance adjustments. |
Typically 1-3 Business Days
Registered & Certified Medical Equipment
Need help?
Typically 1-3 Business Days
Registered & Certified Medical Equipment
Need help?
Body-Solid Powerline PLT200 Smith Machine Lat Attachment, Expanded Workout Station, Exclusive Compatibility, No-Cable-Change Design, Aircraft-Grade Cables

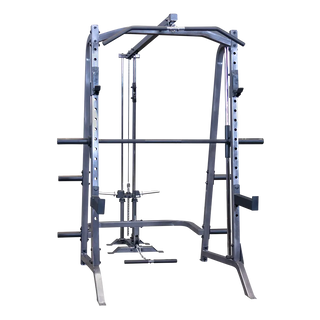

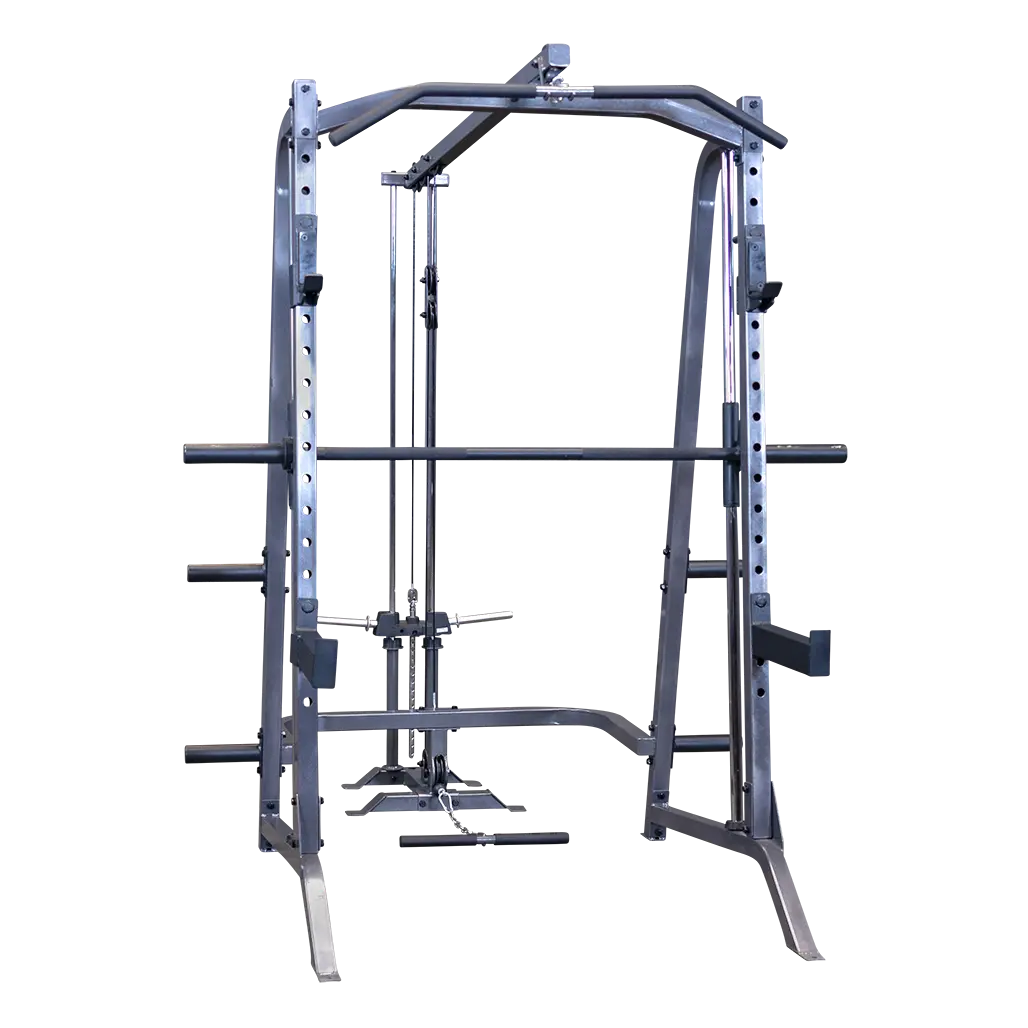

The Powerline by Body-Solid PLT200 Lat Attachment (PLT200) upgrades the Powerline PSM200 Smith Machine into a complete home gym workstation. Designed to integrate directly into the rear of the PSM200, this attachment adds high and low cable stations without requiring manual cable routing or swapping, providing smooth transitions between movements.

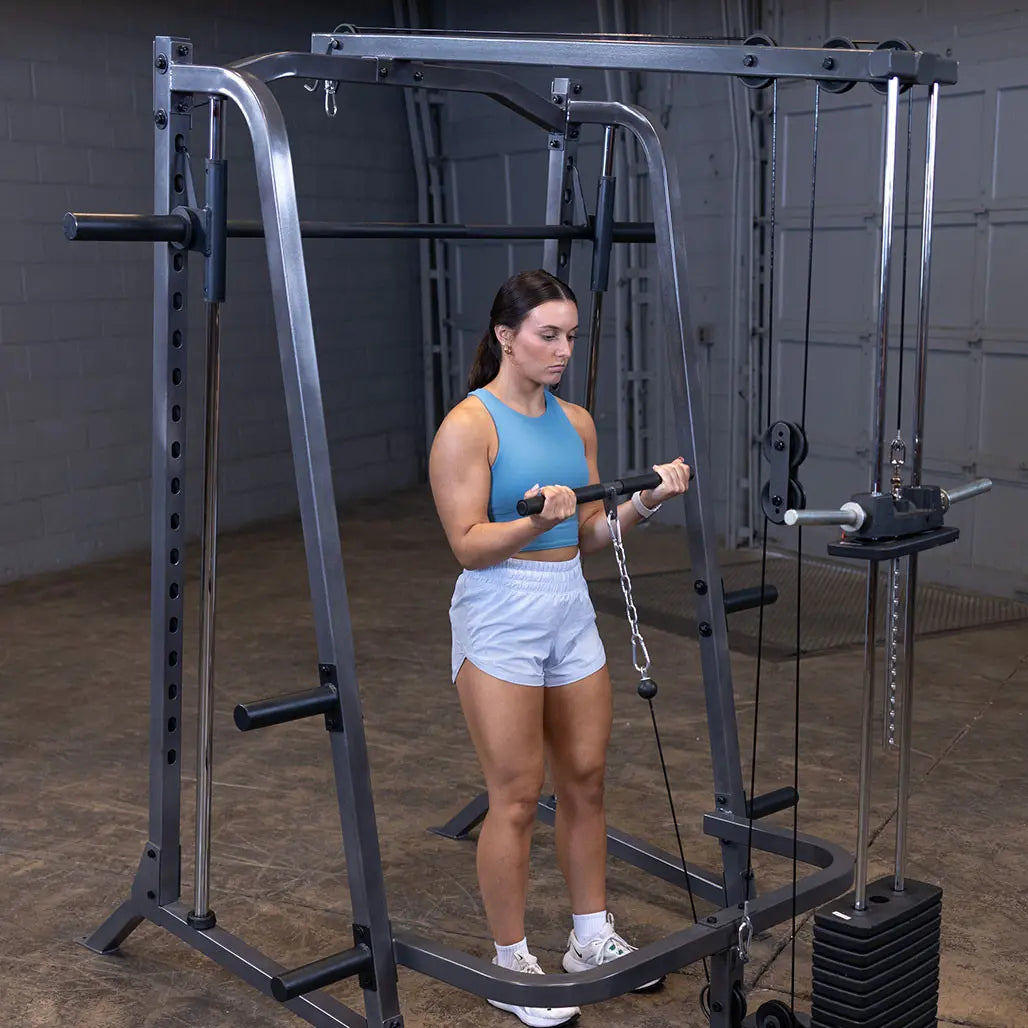

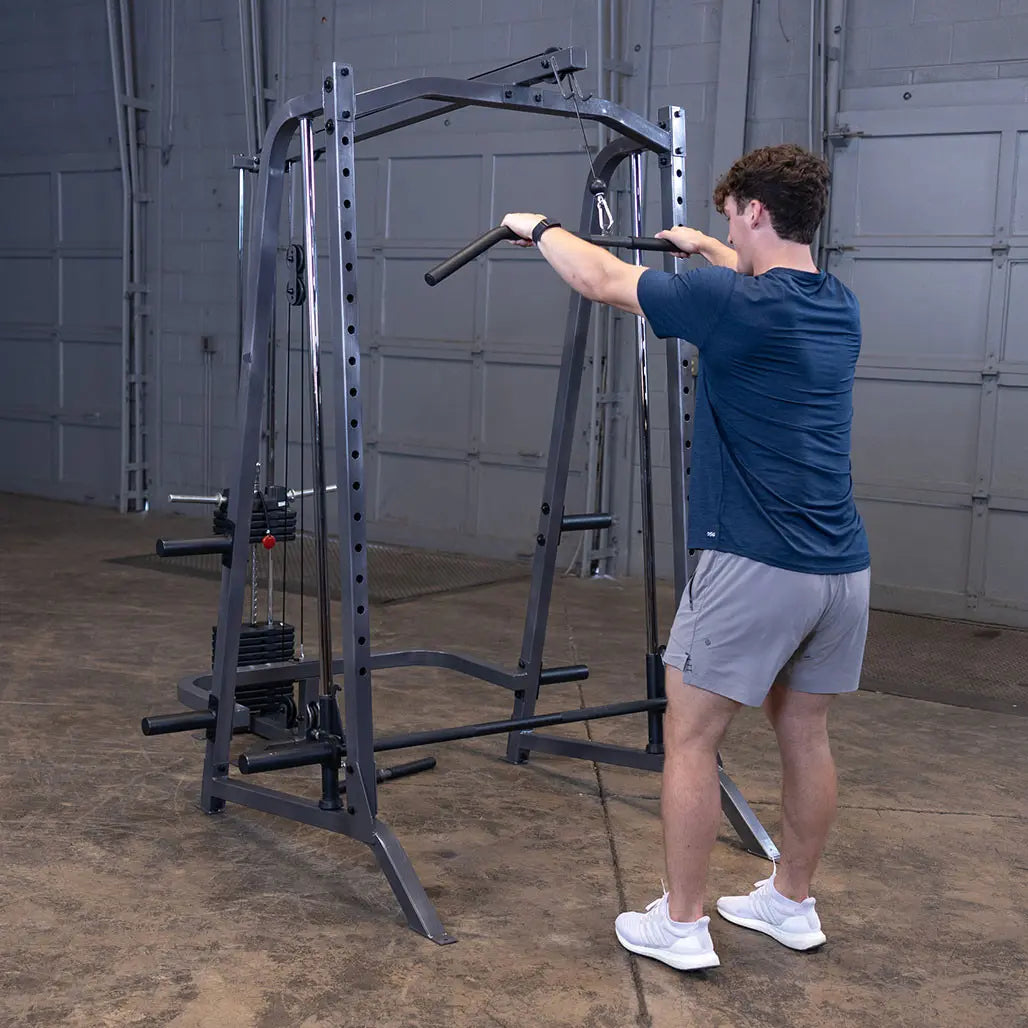

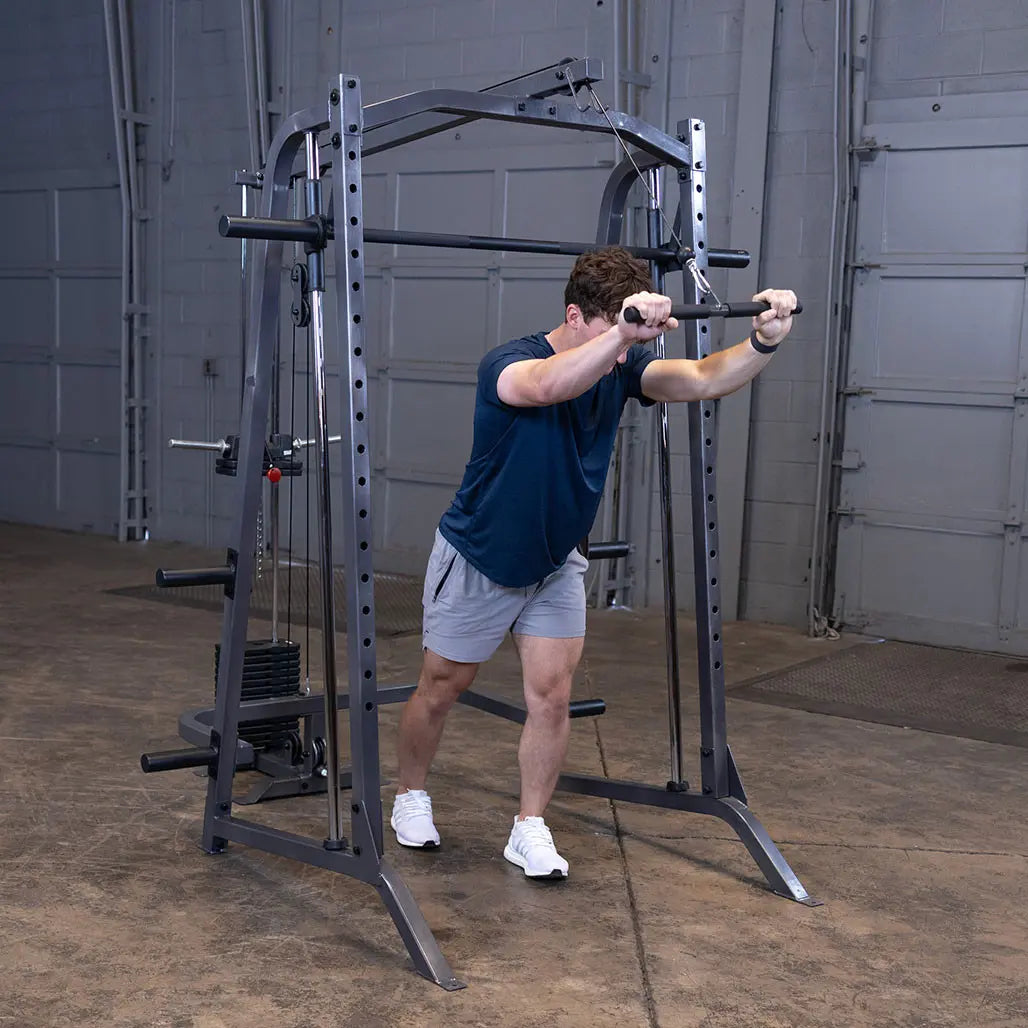

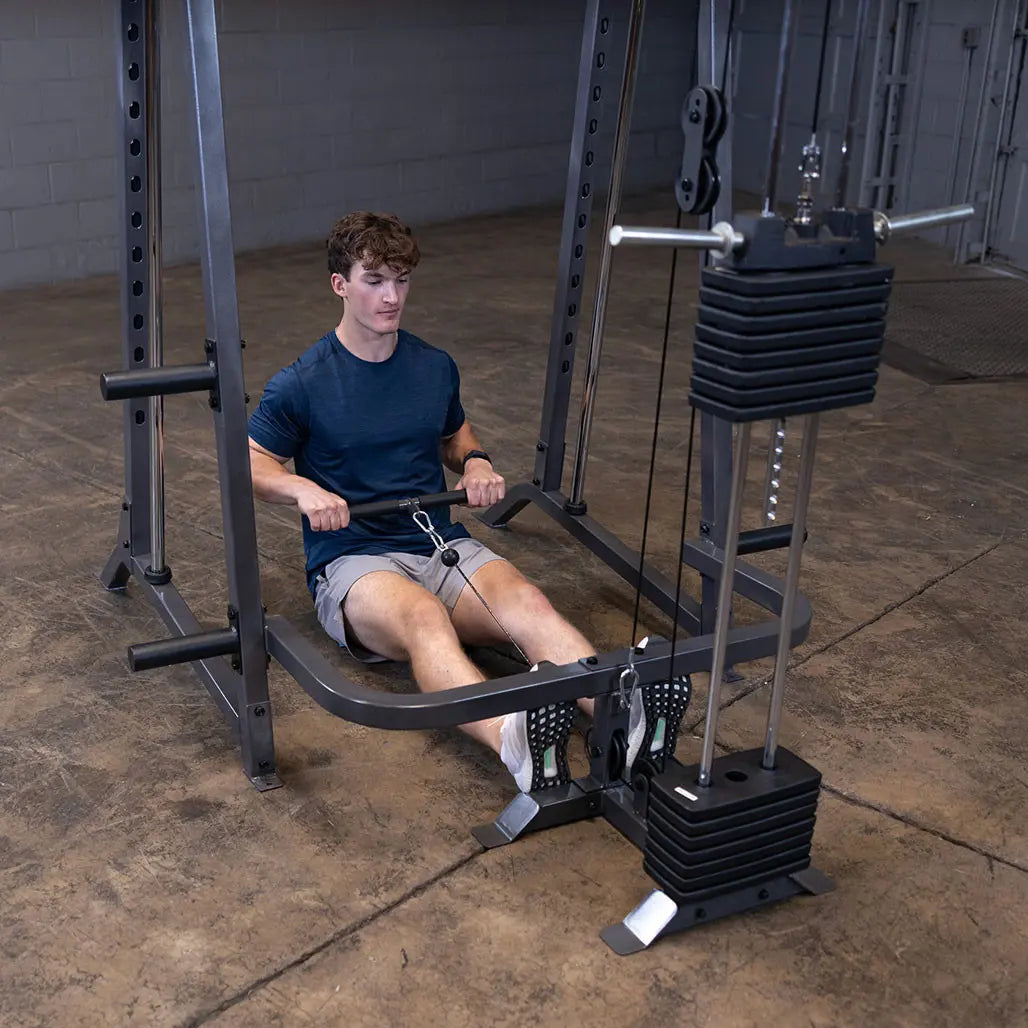

The PLT200 enables a wide variety of strength exercises, including lat pulldowns, seated rows, bicep curls, tricep pressdowns, upright rows, and cable shrugs. Built with durable, nylon-coated aircraft-grade cables, it delivers quiet, fluid operation during heavy training. The system comes standard as a plate-loaded unit, but is also compatible with the optional SP150 160 lb. selectorized weight stack. When combining the selectorized stack with additional weight plates, the unit supports a total weight capacity of up to 310 lbs.
Features:
- Expanded Workout Station: Converts the PSM200 Smith Machine into a multi-functional cable workstation.
- Exclusive Compatibility: Designed exclusively for integration with the Powerline PSM200 Smith Machine (cannot be used independently).
- No-Cable-Change Design: Continuous cable system allows instant transitions between high-pulley and low-pulley exercises.
- Aircraft-Grade Cables: Coated in heavy-duty nylon to ensure long-lasting durability and smooth, whisper-quiet performance.
- Flexible Resistance System: Standard plate-loaded post system, upgradable with the optional SP150 160 lb. selectorized weight stack (accepts weight plates in addition to the stack up to 310 lbs. max capacity).
- Included Accessories: Comes standard with one (1) lat pulldown bar and one (1) low row bar.
Specifications:
