| General Specifications | |
|---|---|
| Brand / Line | Powerline by Body-Solid |
| Product Name | PSM200 Smith Machine |
| Model | PSM200 |
| Product Category | Smith Machines & Power Racks |
| Application / Rating | In-Home / Residential |
| Mainframe Construction | 2" x 2" 12-Gauge Steel Frame |
| Weight Capacity | 400.00 lbs (181.44 kg) |
| Bar Carriage Weight | 25.00 lbs (11.34 kg) |
| Plate Compatibility | Accommodates 2" Olympic Weight Plates Only |
| Lockout Positions | 12 Lockout Positions Spaced Along Guide Rods |
| Adjustments | J-Cups and Safety Spotters Feature 12 Height Settings (3" Increments) |
| Storage | 4 Integrated Olympic Weight Plate Storage Horns |
| Dimensions & Weights | |
| Assembled Product Dimensions | |
| Assembled Length | 47.00" (1,193.80 mm) |
| Assembled Width | 66.00" (1,676.40 mm) |
| Assembled Height | 79.00" (2,006.60 mm) |
| Assembled Product Weight | 157.00 lbs (71.22 kg) |
| Shipping & Package Specifications | |
| Package 1 Dimensions | 68.00" L x 16.00" W x 5.00" H (1,727.20 mm x 406.40 mm x 127.00 mm) |
| Package 1 Volume | 3.15 cu. ft. (0.09 m³) |
| Package 2 Dimensions | 85.00" L x 14.00" W x 5.00" H (2,159.00 mm x 355.60 mm x 127.00 mm) |
| Package 2 Volume | 3.44 cu. ft. (0.10 m³) |
| Manufacturer Warranty Structure | |
| In-Home / Residential Warranty | |
| Frame & Welds | 10 Years |
| Bushings & Hardware | 1 Year |
| Pads, Rollers & Grips | 1 Year |
| Optional Accessories & Expansion | |
| Powerline PLT200 Lat Attachment | Adds high and low cable workout capability for pulldowns, rows, curls, and tricep extensions. |
Typically 1-3 Business Days
Registered & Certified Medical Equipment
Need help?
Typically 1-3 Business Days
Registered & Certified Medical Equipment
Need help?

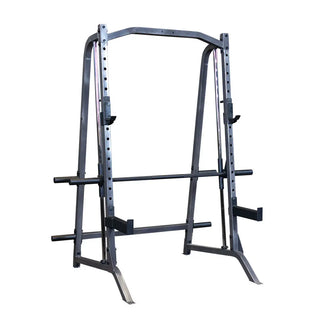

Body-Solid Powerline PSM200 Smith Machine, Dual-Function Design, Biomechanical 7-Degree Pitch, Smooth and Secure Smith Bar
The Powerline by Body-Solid PSM200 Smith Machine (SKU: PSM200) offers ultimate strength training versatility by combining a guided Smith machine and a free-weight half rack into a single compact system. Designed with a 7-degree reverse pitch, the PSM200 accommodates natural upper and lower body biomechanics for a smooth, correct lifting motion during squats, bench presses, shoulder presses, lunges, and rows.
Built for solo lifters and home gym enthusiasts, the Smith bar system features 12 lockout positions spaced along chrome-plated guide rods, supported by high-impact nylon bushings for frictionless travel. Heavy-duty adjustable safety catches provide peace of mind during heavy or max-effort sets without needing a spotter. For traditional free-weight barbell movements, the rack includes two composite-lined J-cups and 13-inch safety spotter arms with 12 height adjustment settings. Four integrated weight horns allow convenient storage for 2-inch Olympic plates.
Features:
- Dual-Function Design: Functions as both a guided Smith machine and a free-weight half rack.
- Biomechanical 7-Degree Pitch: Set at a natural 7-degree angle to align with the body's natural movement path during squatting and pressing exercises.
- Smooth & Secure Smith Bar: Features a 25 lb. bar carriage, 12 lockout points along the guide rods, and high-impact nylon bushings for quiet, fluid operation.
- Free-Weight Safety & Adjustability: Includes composite-lined J-cups and 13" safety spotter arms with 12 height adjustments spaced every 3 inches.
- Integrated Plate Storage: Equipped with four (4) post horns designed specifically for 2" Olympic weight plates.
- Heavy-Duty Construction: Engineered with a 2" x 2" 12-gauge steel mainframe to support up to 400 lbs. total capacity.
-
Expandable Station: Compatible with the optional Powerline PLT200 Lat Attachment for high lat pulldowns, low rows, and cable exercises.
Specifications:
