| General Specifications | |
|---|---|
| Brand / Line | Body-Solid Pro ClubLine |

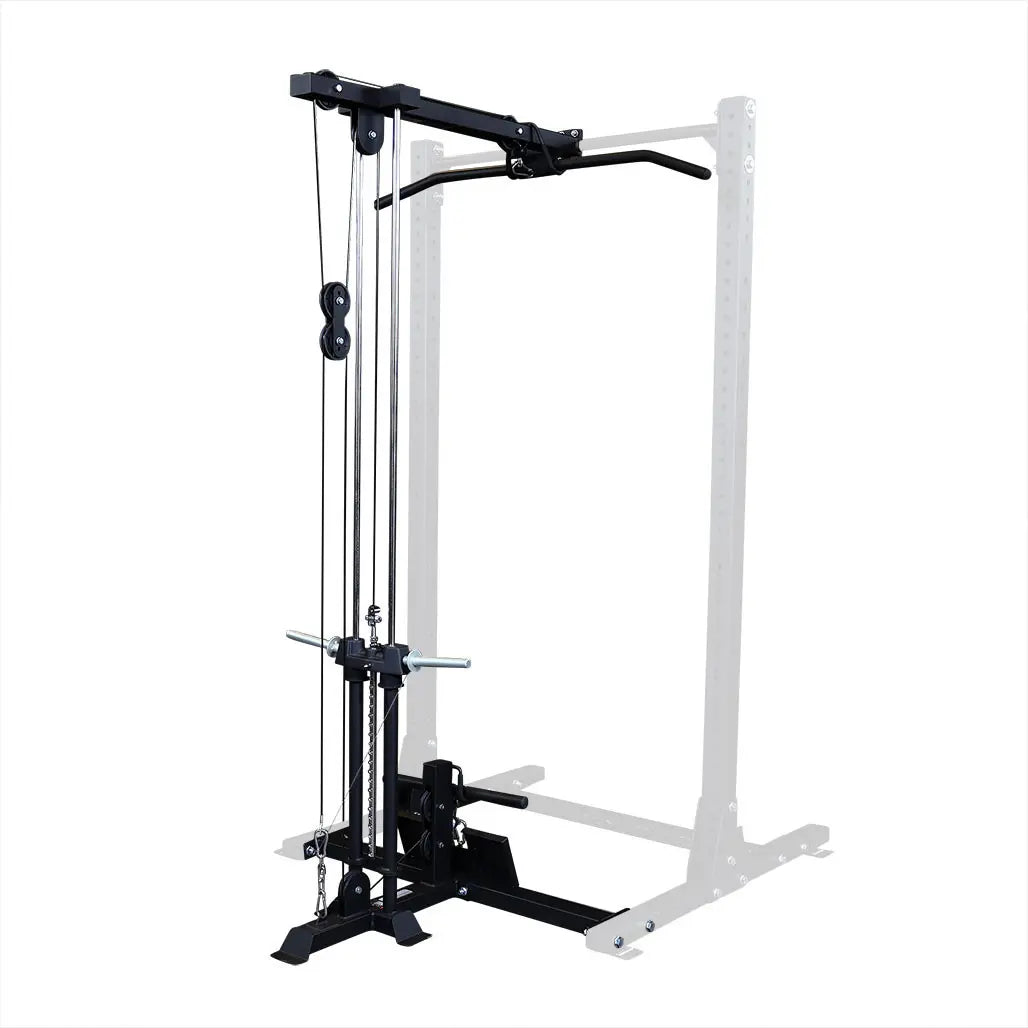

| Product Name | SPRHLA Half Rack Lat Attachment |
| Model | SPRHLA |
| Product Category | Half Rack Attachments / Lat Pulldown & Cable Attachments |
| Compatibility | Compatible only with Body-Solid SPR500 and SPR500BACK Half Racks |
| Application / Rating | Full Commercial & Residential Rated |
| Resistance Options | Plate-Loaded (Standard) or Upgradable to a 210.00 lb Selectorized Weight Stack |
| Cable Specification | 2,200 lb. Test Nylon-Coated Aircraft-Quality Cable |
| Pulley Specification | Large-Diameter Sealed-Bearing Pulleys |
| Included Accessories | |
| (1) Lat Pulldown Bar | Included |
| (1) Low Row Bar | Included |
| Dimensions & Weights | |
| Assembled Unit Dimensions (Attached to Half Rack) | |
| Assembled Length | 72.90" (1,851.00 mm) (Alternate spec listed as 73.00" / 1,854.20 mm) |
| Assembled Width | 52.60" (1,335.00 mm) (Alternate spec listed as 53.00" / 1,346.20 mm) |
| Assembled Height | 89.30" (2,267.00 mm) (Alternate spec listed as 89.00" / 2,260.60 mm) |
| Assembled Weight | 88.20 lbs (40.00 kg) (Alternate spec listed as 90.40 lbs / 41.00 kg) |
| Shipping & Package Specifications | |
| Package 1 Dimensions | 50.2" L x 17.1" W x 16.7" H (1,275 mm x 435 mm x 425 mm) |
| Package 1 Volume | 8.32 cu. ft. (0.236 m³) |
| Package 1 Gross Weight | 80.50 lbs (36.50 kg) |
| Package 2 Dimensions | 87.0" L x 4.5" W x 4.3" H (2,210 mm x 115 mm x 110 mm) |
| Package 2 Volume | 0.99 cu. ft. (0.028 m³) |
| Package 2 Gross Weight | 20.70 lbs (9.40 kg) |
| Total Shipping Gross Weight | 101.20 lbs (45.90 kg) |
| Manufacturer Warranty Structure | |
| In-Home / Residential Warranty | |
| Frame & Welds | Lifetime |
| Bushings & Hardware | 3 Years |
| Pads, Rollers & Grips | 1 Year |
| Full Commercial Warranty | |
| Frame & Welds | Lifetime |
| Bushings & Hardware | Lifetime |
| Pads, Rollers & Grips | Lifetime |
17% off
Fast & Reliable Shipping
Typically 1-3 Business Days
Regulatory Compliant
Registered & Certified Medical Equipment
Support
Need help?
Fast & Reliable Shipping
Typically 1-3 Business Days
Regulatory Compliant
Registered & Certified Medical Equipment
Support
Need help?
Body-Solid Pro ClubLine SPRHLA Half Rack Lat Attachment, Expanded Workout Capability, Integration with Body-Solid SPR500 and SPR500BACK Half Racks, Full Commercial Rating

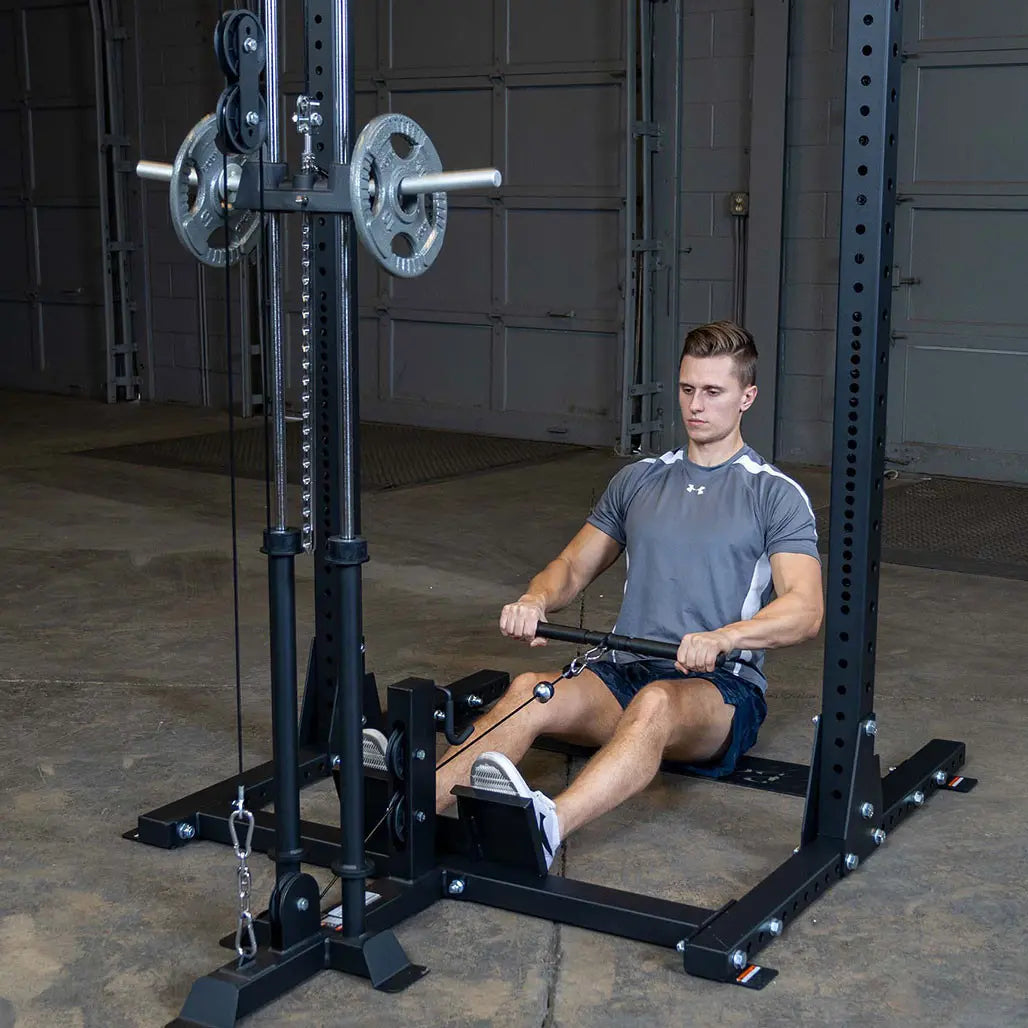

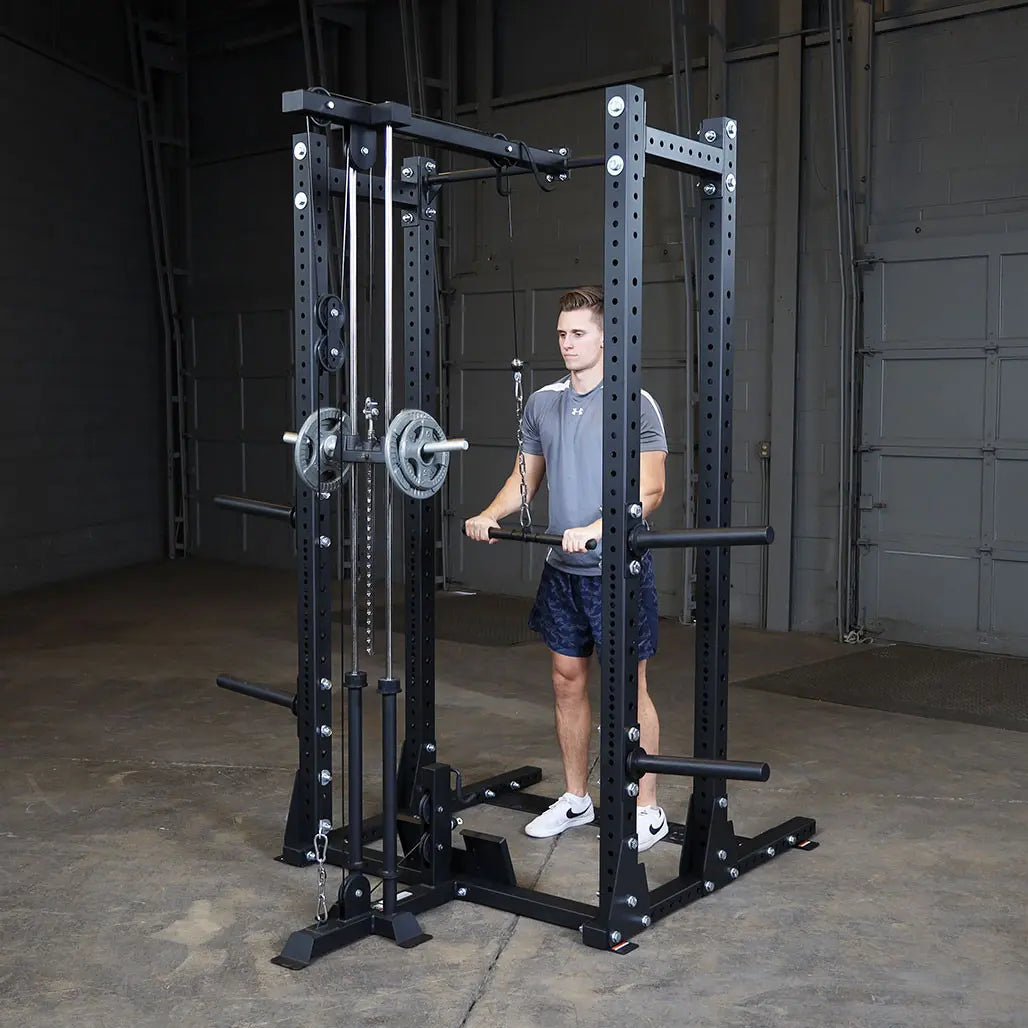

The Body-Solid Pro ClubLine SPRHLA Half Rack Lat Attachment (SKU: SPRHLA) expands the exercise versatility of Body-Solid’s SPR500 and SPR500BACK Pro ClubLine Half Racks. Designed for high-use commercial fitness centers, sports performance facilities, and dedicated home gyms, this attachment converts a half rack into a multi-functional high and low pulley workstation for performing lat pulldowns, seated rows, cable bicep curls, upright rows, shrugs, and core movements.
Built for heavy training, the SPRHLA features large-diameter, sealed-bearing pulleys paired with 2,200 lb. test nylon-coated aircraft-grade cables to ensure whisper-quiet, smooth operation. Its smart "no cable change" design allows lifters to transition seamlessly between high-pulley and low-pulley exercises without rerouting cables. Available standard as a plate-loaded unit, it can also be upgraded with an optional 210 lb. selectorized weight stack for quick weight adjustments.
Features:
- Expanded Workout Capability: Adds high-pulley and low-pulley exercise stations to the half rack frame.
- Exclusive Compatibility: Designed specifically for seamless integration with Body-Solid SPR500 and SPR500BACK Half Racks.
- No Cable Change Design: Allows instant transitions between high and low cable exercises without swapping or rerouting cables.
- Aircraft-Grade Cables & Sealed Pulleys: Built with 2,200 lb. test nylon-coated cables and large-diameter sealed-bearing pulleys for optimal smoothness and durability.
- Dual Resistance Configurations: Available as a standard plate-loaded system or upgradable with a 210 lb. selectorized weight stack.
- Included Attachments: Comes standard with one (1) lat pulldown bar and one (1) low row bar.
- Full Commercial Rating: Built to meet high-volume usage demands in commercial gym facilities.
Specifications:
