Capsa Healthcare NX-4TBDL 23.5” NexsysADC 4T Compact Automated Dispensing Cabinet, 150 SKUs Capacity pe Cabinet

Capsa Healthcare NX-4TBDL 23.5” NexsysADC 4T Compact Automated Dispensing Cabinet, 150 SKUs Capacity pe Cabinet, Touchscreen Computer with Integrated Barcode Scanner, CAMs Feature Individual Locked Cells, Each CAM Holds From 12 to 25 Cells, 100% Tracking & Tracing

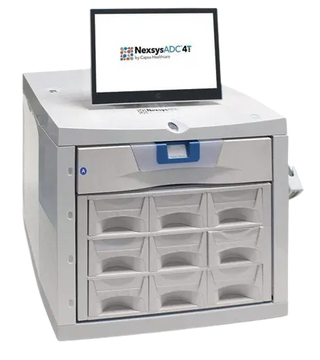

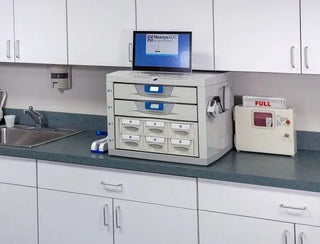

The NexsysADC™ 4T is a countertop automated dispensing cabinet designed for care settings with smaller formularies, tighter budgets, and limited space. It offers the same advanced technology and security as the full-size NexsysADC, at about 40% lower cost.

Ideal for LTC, hospice, behavioral health, veterinary, and surgical centers, the 4T automates up to 150 SKUs in a four-tier unit. It ensures secure, trackable access to controlled substances and high-value meds, helping reduce diversion, loss, and pharmacy delivery fees.

Features

• 100% Tracking & Tracing, from log-in to log-out
• Infinitely safer than manual ‘tackle box’ or locked safe methods for stat doses/starter doses/”E-Kits”
• Flexible configurations: Complete each cabinet’s four tiers with a combination of locking Controlled Access Modules (CAMs) to automate controlled or high-value medications; Open cell medication bins for routine meds; and supply drawers for bulk items. Store up to 150 total SKUs per cabinet
• Capsa’s unique CAMs (controlled access modules) are available in 3″ for unit doses or small items, and new deep 6″ and 9″ CAM Drawers for bulk stock bottles, IV bags, and any large item requiring individual locking

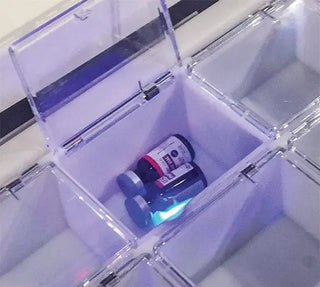

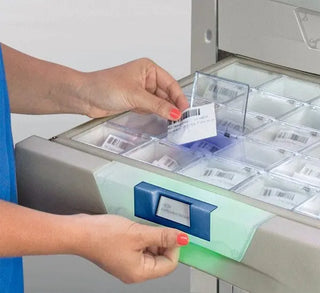

• CAMs feature individual locked cells; each CAM holds from 12 to 25 cells (highly configurable)
• At any time, storage capacity can be increased by adding a NexsysADC auxiliary cabinet, which networks to your primary 4T cabinet and holds up to 400 extra SKUs
• Cloud-based, HIPAA-compliant system provides 24/7 access to inventory information, user tracking, electronic ordering, and integration with your pharmacy software systems
• Full reporting package to give valuable data and feedback on system operation, grouped by Inventory, Activity, User, Billing, Patient

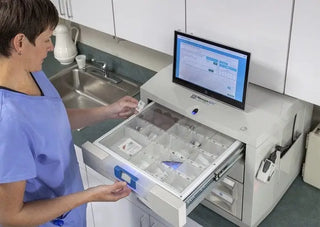

• Touch screen computer with integrated barcode scanner
• Capsa Healthcare is the only medication management company that is ISO 27001:2013 information security management certified for cyber security and HIPAA compliance

Benefits

• Full visibility into medication access and dispensing
• Tamper-evident hardware/software
• Remote inventory control and tracking
• Fast ROI with tight inventory and billing control

Custom-configured for each facility

• Choose the configuration: NexsysADC 4T comes with 1, 2 or 4 CAMs (Controlled Access Modules). CAMs are locking, individual cells that hold single medication doses. Each CAM can hold up to 25 SKUs.

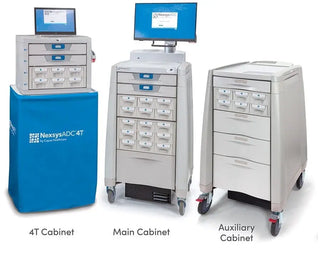

  • Need expanded storage? Add one or more auxiliary cabinets (10 tiers, up to 400 SKUs, networked to your primary 4T cabinet)
• Set security levels per user—track who accessed which meds, when, and for whom, with tamper-evident safeguards.
• Scalable and cloud-connected—easily deploy NexsysADC 4T across multiple facilities as your needs grow.

Well Suited For

• Healthcare facilities with tighter formulary requirements, budgets or spaces
• Senior care facilities, nursing homes and other LTC facilities
• Critical access hospitals
• Surgery centers (ASCs)
• Group homes
• Rehab and psych environments
• Hospice
• Veterinary clinics
• Dental surgery
• Nursing education simulation
• Emergency Medical Services (EMS)/Ambulance operators

Product Specifications

• Cabinet size 23.5”(w) 20.4”(d) 17.7”(h) / 60(w) 52(d) 45(h) cm

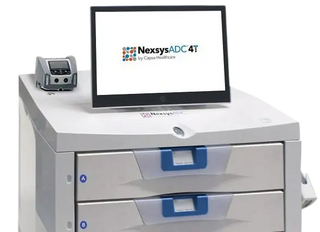

• 14″ touchscreen monitor (total unit height 26” / 66cm); Adjustable, attached
  • (Distance behind monitor to wall must be 13″ minimum)
• Weight 100 lbs (empty)
• If adding an auxiliary cabinet for up to 400 additional SKUs,
• Side-mounted barcode scanner (2D)
• Biometric finger scanner
• Windows 10 embedded (IOT) operating system
• Uninterrupted Power Supply (UPS) 900W, 1500VA APC Backup UPS Pro
• Power requirements: Supports 100-240VAC, 50/60 Hz, 10 Amps (Power supply auto-senses input voltage)-Additional power cords for non-U.S. countries are available
• USA Patents: 10,045,899; 10,045,900
• Metal mounting plate, hardware, template included
• Mounting requirements for atop a countertop or cart:
  • Weight capacity approx. 150 lbs (loaded)
  • Minimum footprint of 25″(w) x 27”(d) to allow for 2-3” around the side of the cabinet to provide airflow to the electronics
  • Ability to drill through countertop or cart top to attach mounting plate
  • Suggested standard countertop height (30”-35”) for ergonomic access

Cams, Medication Bins & Supply Drawers

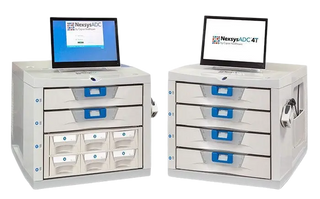

A NexsysADC 4T cabinet contains 4 tiers, to be configured with any combination of Controlled Access Modules (CAMs), medication bins, and supply drawers.

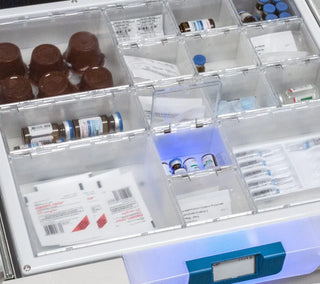

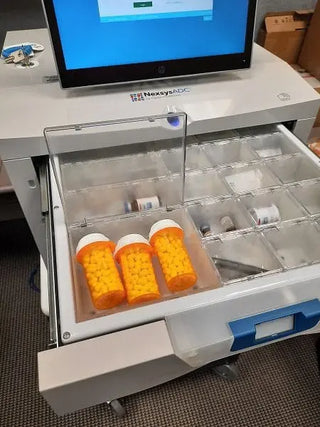

• CAMs (Controlled Access Module) are available in 3″ depths for unit doses or small items; 6″ and 9″ depths for IV, stock bottles, larger controlled med packages
  • 3″ CAM is preconfigured for up to 25 SKUs; 12 configurations available
  • 6″ and 9″ CAM Drawers are self-configurable for 4 to 12 SKUs per CAM
  • CAM size 16.25″w x 13.375″d
  • 1×1 cell 2.76″w x 2.37″d
  • 1×2 cell 5.78″w x 2.37″d
  • 2×2 cell 5.78″w x 4.86″d

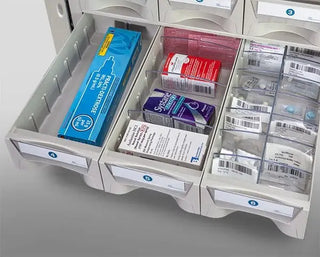

• Open cell medication bins for routine meds: 2-Tier and 3-Tier
  • Each bin can be adjusted for 1 to 14 locations. These medications are also tracked.
  • 2-tier (6 individual bins): 18″w x 16″d x 6.5″h, 15 lbs
  • 3-tier (9 individual bins): 18″w x 16″d x 9.75″h, 21.5 lbs
  • Single cassette bin: 5.25″w x 11.5″d x 2.5″h
  • Positions per bin: Can contain up to 14 positions per bin. Positions can be combined by removing dividers.

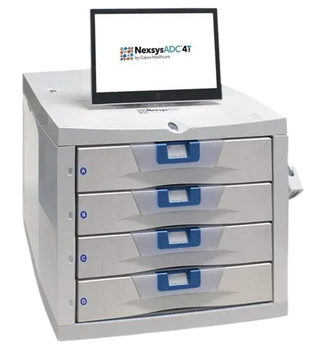

• Supply drawers: Available in 3″, 6″ or 10″ depth
  • Each drawer can be adjusted for 1 to 24 positions
  • 3″ drawer: 17″w x 14.75″d x 3″h
  • 6″ drawer: 17″w x 14.75″d x 6.5″h
  • 10″ drawer: 17″w x 14.75″d x 9.75″h

2 Popular Precunfigurations

One 3″ CAM (NX-4TBDL-1)

• 3″ CAM with 11 locking cells
• Three-tier open cell medication bins (configurable)
• Holds up to approx. 150 SKUs

Two 3″ CAM (NX-4TBDL-2)

• 3″ CAM with 11 locking cells
• 3″ CAM with 19 locking cells
• Two-tier open cell medication bins (configurable)
• Holds up to approx. 130 SKUs

Standard delivery typically takes 5-7 business days, while expedited shipping takes 2-3 business days
