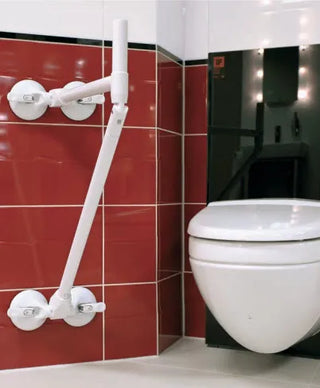

Clarke Healthcare R140026XSU Mobeli QuattroPower Support Angle Adjustable Grab Bar System with Extra Grip or Standart Grab Bar
This suction-cup support system features three pivot points and combines a long vertical bar with a short horizontal bar. It provides you with excellent support when getting in and out of the toilet or bathtub. Extending up to 22 inches horizontally from the wall, it includes a grab handle to provide additional assistance when standing up.
Note: For the suction cups to adhere to the wall, the surface must be airtight; there must be no grout lines, cracks, or surface texture beneath the suction cups. Our stainless steel plates (Model R1461414) can be applied to many otherwise unsuitable surfaces to ensure proper suction cup adhesion. These plates can bridge over grout lines or cracks and fill in lightly textured surfaces. Telescopic models allow you to adjust the bar to fit between grout lines, seams, or cracks.
If your walls are deemed "unsuitable," please consult with your retailer before placing an order. Some grab bar assemblies may not be eligible for return.
Examples of surfaces that will not work:
New construction with only a few coats of paint will still allow the suction pad to suck air through the plasterboard or drywall. The suction pad will not hold and may even pull the paint off the wall.
Natural stone, clay or cultured marble which has a not been coated with sealant will allow the suction pad to suck air and release.
Textured surface, whether stone, cement, tile or plaster will not hold the suction pad.
Cracked plaster or wall surface. Walls with seams in the grab bar area.
Tile smaller than 5” square. A suction pad over a grout line will release. Plastic tile will not support your body weight.
Dirty, oily, greasy wall surface. Clean surface with alcohol first.
Wallpaper, the suction pad will peel the paper from the wall behind it.
Tub surround walls that are not properly attached to the wall behind them. Although the suction pad may hold to the wall, the wall itself may pull away under your weight.
What surface will work:
Tile greater equal to or larger than 5”x5”, with a smooth surface.
Smooth fiberglass, porcelain, enamel-coated cast iron tubs.
Vinyl, plastic or fiberglass tub surrounds that are firmly attached to the wall or house framing behind them. Securely attached with construction adhesive or mechanical means (screws or nails). They must have a smooth, clean surface.
Warranty Information
Manufacturer provides a one Year warranty against manufacturing defects from date of original purchase. Excludes damage due to wear and tear or abuse. Warranty covers parts, grabs, paraplis, ramp, toilevator, arco, mrail, dst, ottobock.
Product Specifications Standart
| Length |
28.50 in. |
Packaging Length |
27 in. |
| Width |
22.00 in. |
Packaging Width |
5 in. |
| Height |
3.70 in. |
Packaging Height |
5.5 in. |
| Product Weight |
5.5 lbs. |
Package Volume |
0.42 cu. in. |
| Outside Packaging |
27x5x5.5 in. |
Shipping Weight |
6 lbs. |
| Latex |
y |
Product Assembly |
installation |
| Primary Material |
PVC |
Primary Color |
white |
| U of M |
each |
Unit Quantity |
|
| Capacity |
110 lbs. |
|
|
Product Specifications with Extra Grip
| Length |
30.50 in. |
Packaging Length |
27 in. |
| Width |
22.00 in. |
Packaging Width |
5 in. |
| Height |
3.70 in. |
Packaging Height |
5.5 in. |
| Product Weight |
5.5 lbs. |
Package Volume |
0.42 cu. in. |
| Outside Packaging |
27x5x5.5 in. |
Shipping Weight |
6 lbs. |
| Latex |
y |
Product Assembly |
installation |
| Primary Material |
PVC |
Primary Color |
white |
| U of M |
each |
Unit Quantity |
|
| Capacity |
110 lbs. |
|
|
