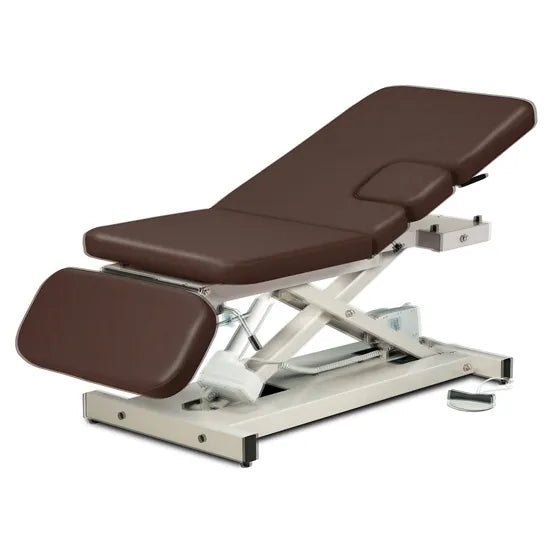

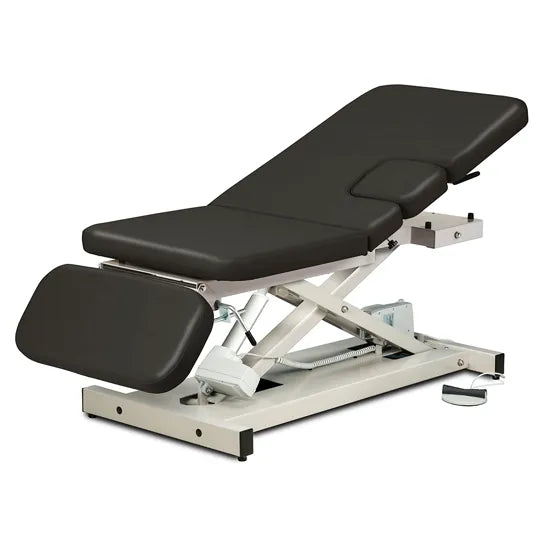

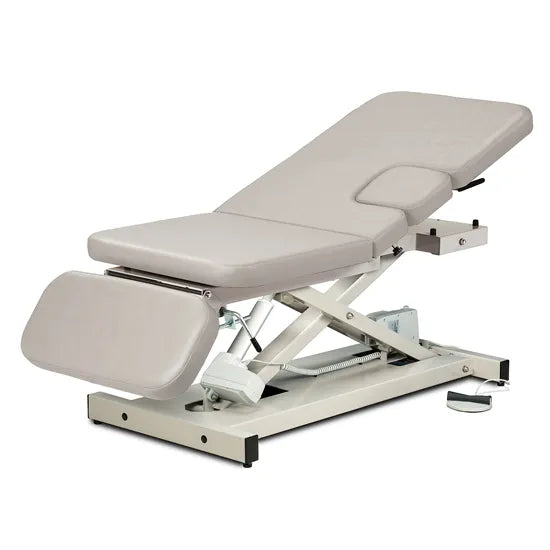

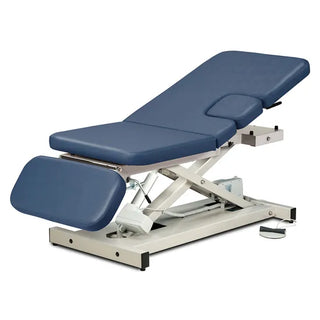

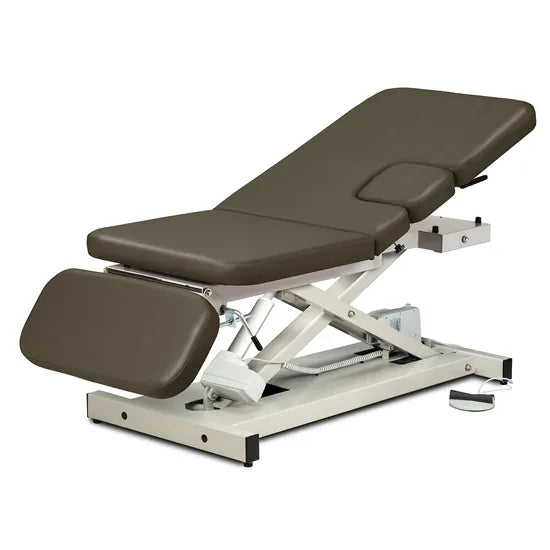

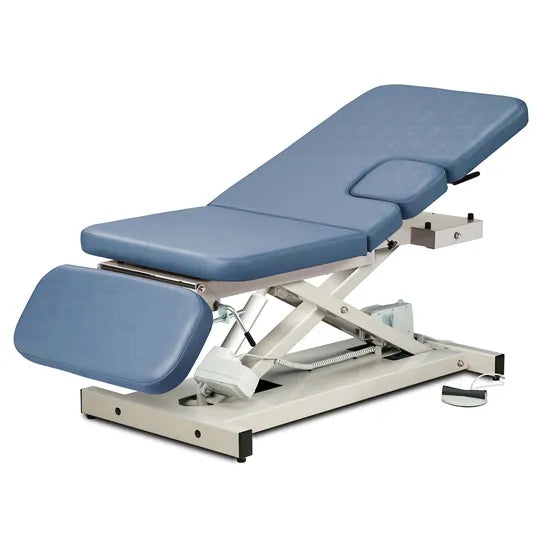

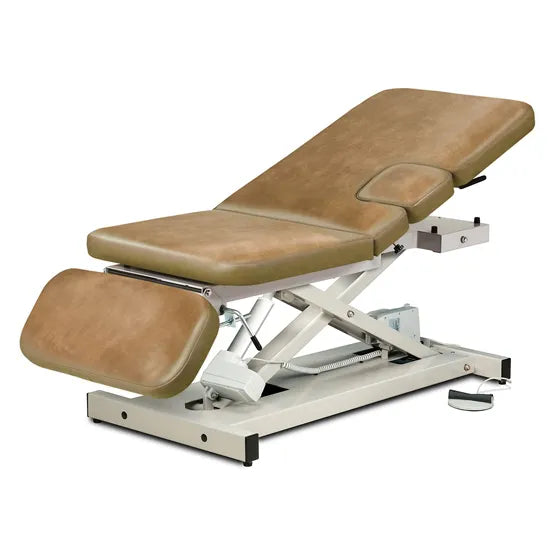

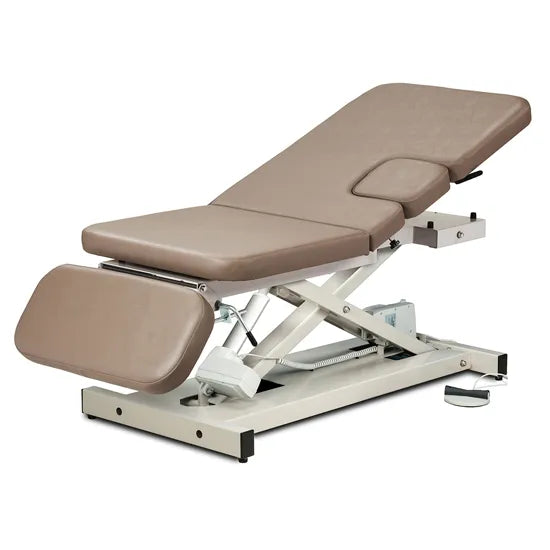

Clinton Industries 85300 Open Base Power Imaging Table – 76" x 27" Electric Height Adjustable with Pneumatic Backrest, Footrest & 10" x 10" Imaging Window, 500 lb Capacity for Radiology & Clinical Use
Clinton Industries Model 85300 Open Base Power Imaging Table is a versatile, heavy-duty electric height-adjustable imaging and examination table designed for radiology, fluoroscopy, imaging procedures, physical therapy, rehabilitation, orthopedic casting, and clinical applications requiring precise patient positioning and clear imaging access. The table features a 3-section top with:
- Pneumatic backrest adjustable from either side – raises up to 80° from flat for patient positioning
- Pneumatic footrest adjustable from either side – lowers up to 80° from flat for limb support
- 10" x 10" hinged imaging window section with metal slide latch for easy positioning over imaging equipment
Additional highlights include smooth electric height adjustment from 18" to 35" with hands-free low-voltage foot control, ultra-strong uni-frame base and top construction, heavy-duty all-welded lift mechanism, durable gray powder-coated steel frame, self-lubricating pivot points, rounded corner upholstered top with 2" ultra-firm padding, and a 500 lb (227 kg) load capacity under normal use.
The open base design allows easy access for imaging equipment, wheelchairs, or mobility devices, while the power supply and motor meet UL 60601-1 and CAN/CSA C22.2 601.1 safety standards. Made in the USA by Clinton Industries for reliable long-term performance in diagnostic and therapeutic settings.
Features:
- Pneumatic backrest adjustable from either side – raises up to 80° from flat
- Pneumatic footrest adjustable from either side – lowers up to 80° from flat
- 10" x 10" hinged imaging window section with metal slide latch
- Electric power height adjustment: 18" – 35" with hands-free low-voltage foot control
- Ultra-strong uni-frame base and top construction
- Heavy-duty all-welded lift mechanism with self-lubricating pivot points
- Durable gray powder-coated steel frame
- Smooth, quiet 110-volt electric operation (UL/CAN/CSA certified)
- Easy-service, self-contained electrical components
- Seamless, rounded corner upholstered top with 2" ultra-firm padding
- Maximum load capacity: 500 lbs (227 kg) under normal use
Specifications:
| Specification | Details |
|---|---|
| Model / SKU | 85300 |
| Overall Dimensions | 76" L × 27" W |
| Height Range | 18" – 35" (electric adjustment) |
| Backrest | Pneumatic, adjustable up to 80° from flat (38" L × 27" W) |
| Footrest | Pneumatic, adjustable up to 80° from flat (13" L × 27" W) |
| Imaging Window | 10" x 10" hinged section with metal slide latch |
| Top Surface | 3-section seamless upholstered top with rounded corners, 2" ultra-firm padding |
| Frame & Lift Mechanism | Heavy-duty steel frame (USA fabricated), all-welded lift, self-lubricating pivots |
| Power Supply & Motor | 110-volt, meets UL 60601-1 and CAN/CSA C22.2 601.1 |
| Control | Hands-free low-voltage foot control |
| Weight Capacity | 500 lbs (227 kg) under normal use |
| Intended Use | Imaging procedures, radiology, fluoroscopy, physical therapy, rehabilitation, examination (not for heavy athletic use) |
| Country of Origin | USA |
| Brand | Clinton Industries |
| Shipping Weight (Approx.) | 320-370 lbs (freight LTL shipping required – contact for precise quote) |
Variants:
| Variant Name | Description | SKU | Shipping Weight (Approx.) | ||
|---|---|---|---|---|---|
| Standard 76" x 27" | 76" × 27" with imaging window, adjustable backrest & footrest | 85300 | 320-370 lbs (freight) |
Contents:
| Description | Quantity |
|---|---|
| Clinton Industries Power 500 Open Base Power Imaging Table with 3 Section Top – Model 85300 | 1 |
| Hands-Free Low-Voltage Foot Control | Included |
| Pneumatic Backrest & Footrest Mechanisms | Included |
| 10" x 10" Hinged Imaging Window with Metal Slide Latch | Included |
| Heavy-Duty Lift Mechanism & Frame | Included |
| User Manual/Installation Guide | 1 |
General Information:
- Condition: New – Made to order with lead time (contact for current estimated ship date). Drop ships directly from manufacturer. Not cancellable, not returnable once processed.
- Shipping: Heavy item – freight shipping (LTL) required. Calculated at checkout.
- Installation Tips: Professional installation recommended for electrical setup, stability, and safety. Ensure compatibility with imaging equipment.
- Cleaning: Wipe top surface and frame with mild soap or disinfectant; upholstery and laminate resist wear.
- Permissible Ambient: Standard indoor clinical environment.
- Applications: Imaging procedures (fluoroscopy, X-ray), casting tables, examination tables, treatment tables, physical therapy, rehabilitation, and patient transfers in radiology departments, physical therapy clinics, hospitals, orthopedic offices, and long-term care facilities. Volume discounts available – call or email for orders of 10+ units.
