Detecto APEX Digital Clinical Scale – Sonar Height Rod Series

Detecto APEX Digital Clinical Scale – Sonar Height Rod Series, Modern Connectivity Options For Clinical Environments

DETECTO’s APEX-SH series eye-level digital physician scales feature touchless sonar height rods and an extra-wide, flat platform measuring 17 in W x 17 in D x 2.75 in H. The apex® scale automatically captures patient weight and height readings and displays both onscreen without pushing a single button. The apex® features 600 lb x 0.1 lb / 270 kg x 0.05 kg capacity, 0.75-inch-high LCD weight readouts, units locking into kilograms or pounds, BMI calculation, AC adapter (included) or 12 AA batteries (batteries not included), 1 RS232 serial port and 1 micro USB-B port, HL7 IEEE 11073 compliance, and Wi-Fi/Bluetooth and Welch Allyn connectivity available. The APEX-SH is NTEP certified for weighing accuracy in dosing patients.

Features:

• Weight Capacity: 600 lb x 0.2 lb / 300 kg x 0.1 kg

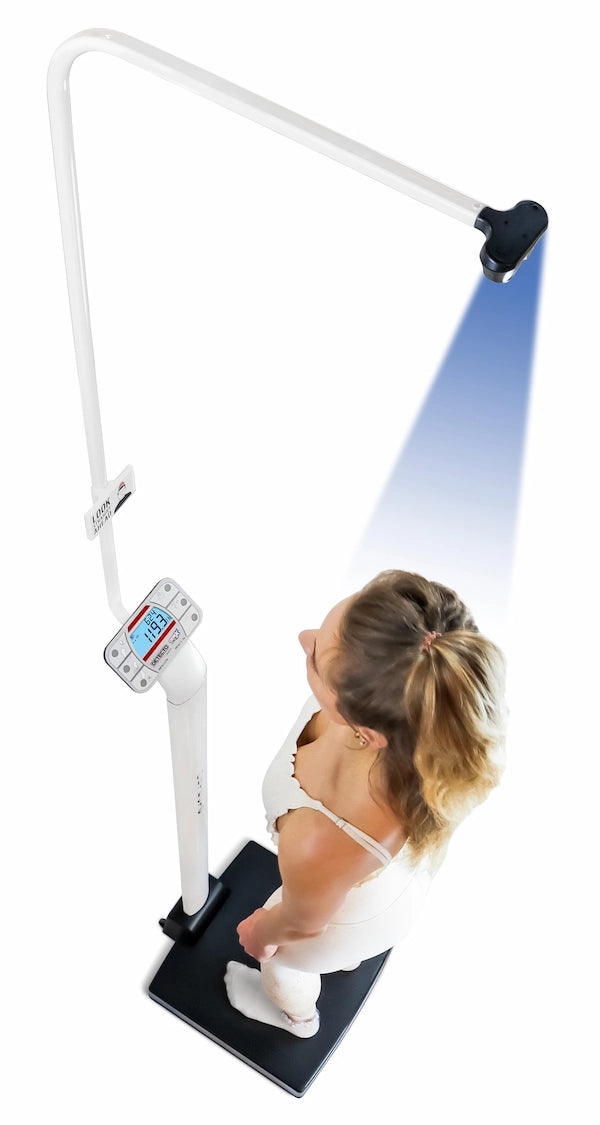

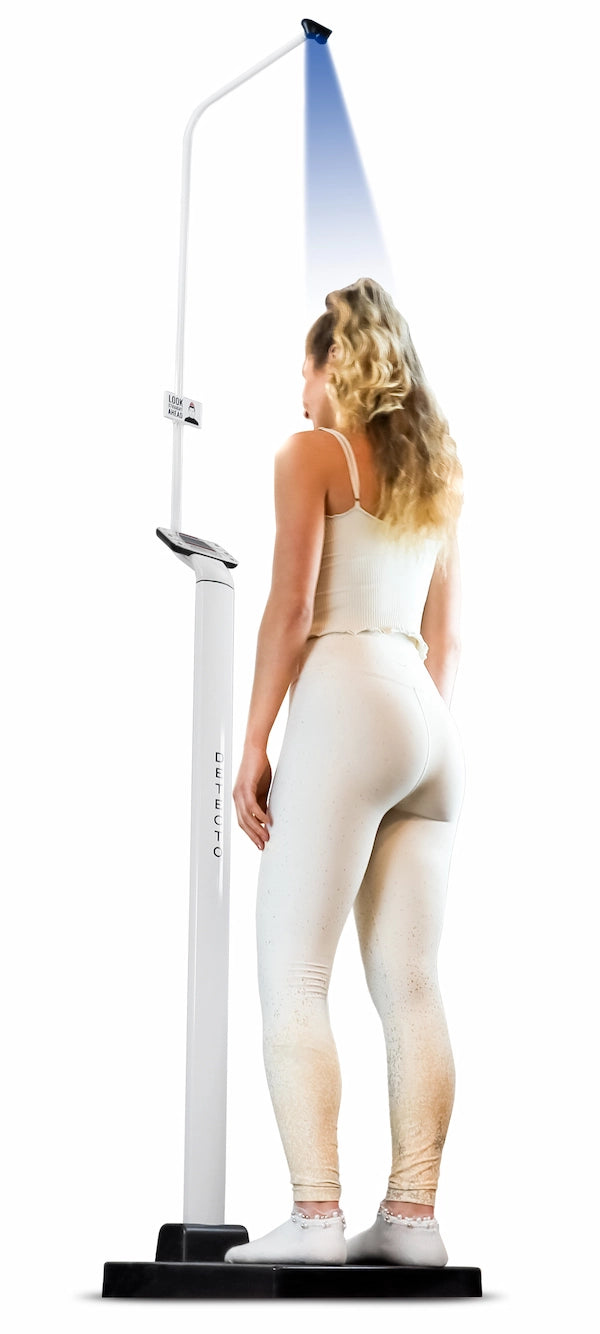

• Sonar Height Rod for hygienic, touchless height measurement

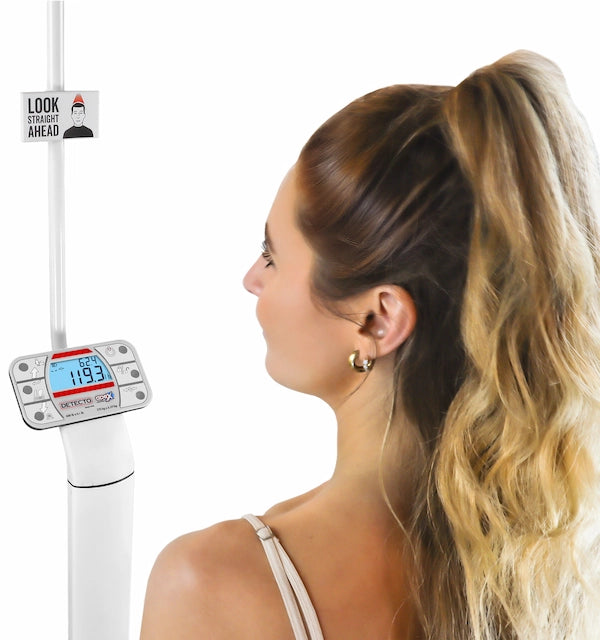

• Large Digital Display for easy reading

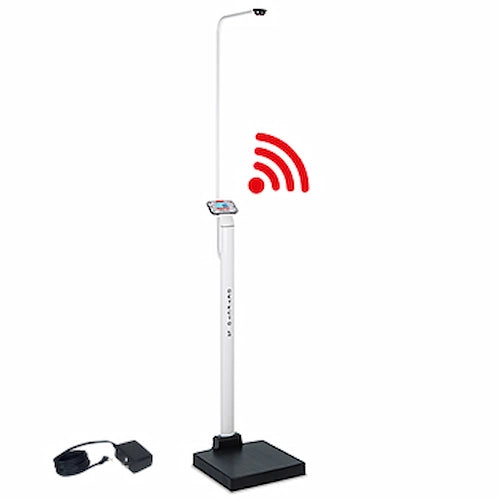

• Connectivity Options: Bluetooth/WiFi, Welch Allyn CVSM/CSM, Welch Allyn LXI, or standard

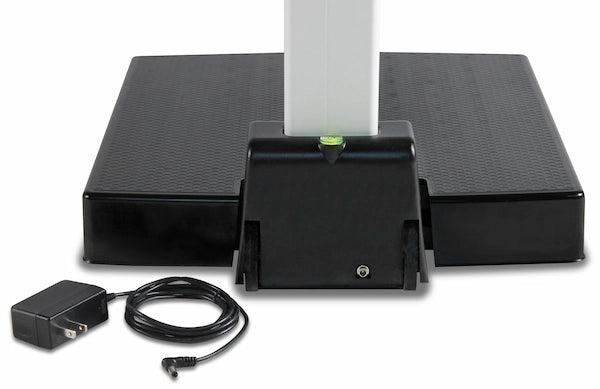

• Power Options: Battery or AC Adapter (depending on model)
• Durable Steel Construction for long-lasting clinical use
• Compact and Portable with a sleek design
• Simple One-Button Operation

Specifications:

• Model Options: SH, SH-AC, SH-C, SH-C-AC, SH-UWA-AC, SH-LXI-AC
• Dimensions: 58 x 20 x 6 in (shipping)
• Power: 6 AA batteries or optional AC adapter
• Connectivity: None, Bluetooth/WiFi, or Welch Allyn compatibility
• Weight: Varies by model (approx. 41 lb shipping weight)
• Warranty: Manufacturer’s limited warranty
