Detecto MV Series Digital Weight Indicators, Bluetooth/WiFi Options,

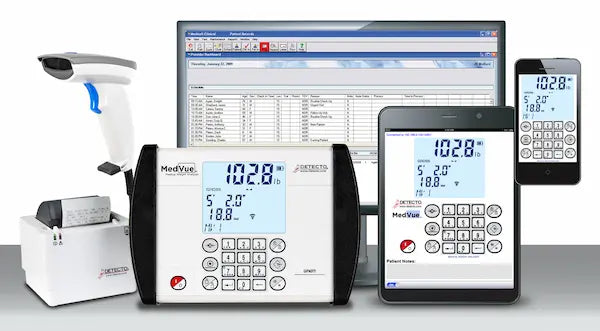

DETECTO’s MedVue® medical weight analyzer is utilized on select clinical scales, including DETECTO’s wheelchair, bariatric, and stretcher scales. The MedVue® features a vivid 3.5-in-wide by 3-in-high backlit LCD display screen with nearly 1-in-high weight digit readouts for easy visibility. The MedVue’s 350-degree swivel mounting bracket allows the display to be tilted and rotated into position wherever it is the most convenient for the medical professional and/or patient to view. A host of other benefits include units locking into kilograms or pounds, 14-digit patient ID which may be entered via the alphanumeric keypad, 99 stored tare weights, 200 stored transactions, 1LOOK display, four different languages available in set-up (English, Spanish, French, and German.), and Wi-Fi/Bluetooth models are available with up to 150 ft. wireless range. The MedVue® offers a host of both wired and optional wireless connectivity for sending measurement data to multiple devices all at once.
Features:
- Units Locking into Kilograms or Pounds
- Wi-Fi/Bluetooth Models Available
- Weight, Height, and BMI All Displayed Simultaneously
- 14-Digit Patient ID
- 350-Degree Swivel Mounting Bracket
- 6 C Batteries (Not Included)
- 99 Stored Tare Weights
- BMI Calculation
- EMR/EHR Ready
- Nearly 1-in-High Weight Readouts
- Backlit Blue Display
- NTEP Legal for Trade

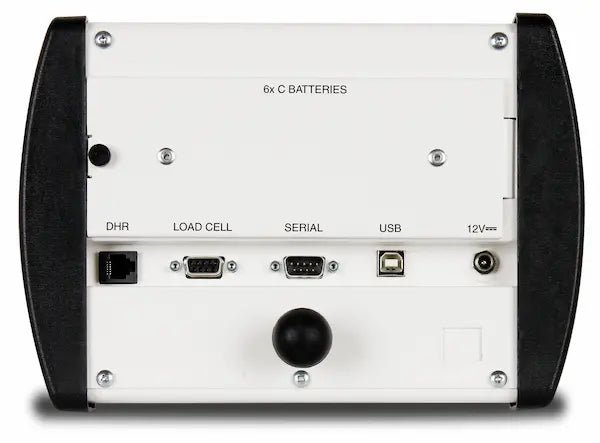

- RS232 Serial and USB Ports Standard
- Sturdy Steel Construction
Specifications:
Power Requirements: MV1/MV1C: 6 “C” cell Alkaline, Ni-Cad or NiMH batteries (not included) OR an optional 12 VDC 1.25A wall plug-in AC power adapter (Detecto part number MV1PWR). MV2/MV2C: 6 “C” cell Ni-Cad or NiMH batteries (not included) OR an optional 110-240 VAC 50/60 Hz 12 VDC 1.25A wall plug-in AC power adapter (DETECTO part number MV2PWR)
Wi-Fi/Bluetooth Connectivity: Available on models MV1C (North America) and MV2C (International). Up to 150 ft. wireless range (depending on environmental factors).
Units Locking: Established upon initiliazation and user selects either LB or KG
Overall LCD Display Size: 3.5 inch W x 3 inch H (89 mm W x 76 mm H) backlit blue LCD
Weight Display: 5 digit, seven segment, 0.875 inch (22.23 mm) high LCD
Height Display: 4 digit, seven segment, 0.5 inch (12.7 mm) high LCD
Body Mass Index Display: 3 digit, seven segment, 0.5 inch (12.7 mm) high LCD
ID Display: 14 digit, 14 segment, 0.35 inch (8.89 mm) high LCD
Sensitivity: 0.5 uV/division (0 to 3.0 mV/V), Class III
Operating Temperature: 14 to 104 ºF (-10 to +40 ºC)
Signal Input Range: 0 to 15mV max.
Transducer Excitation: 5.0 VDC
Number of Load Cells: up to 4 each 350 Ω
Load Cell Cable Length: 30 feet (9 meters) max.
Resolution: 10,000 divisions
Capacities: eight: 10,000 divisions commercial - Height: 0 - 9’ 11.9 - BMI: up to 999
NTEP: Certificate of Conformance Number 13-011
Division Value: 1, 2 or 5 x 1, 0.1, 0.01, 0.001
Sample Rate: 1 to 100 samples per second selectable
Auto Zero Range: 0.5 or 1 through 9 divisions
Weighing Units: Pounds (lb), Pounds/Kilograms (lb/kg), Kilograms (kg) and Kilograms/Pounds (kg/lb)
Keyboard: Membrane type with 19 keys
Enclosure Size: 9.8 inch W x 6.8 inch H x 1.8 inch D (248.9 mm W x 172.7 mm H x 45.7 mm D)
Construction: Painted Steel
Battery Life: 7,560 weighments (with backlight fully ON) / 10,620 weighments (with backlight fully OFF)
LCD Viewing Range: Up to 30 feet / 10 meters for weight digits
