- Capacity
- 3.6 cu.ft. (102 L)
- Temperature
- -86°C to -50°C
- Door
- Solid, left hinge
- Size (W × D × H)
- 36.9" × 24.8" × 32.8"
- Capacity
- 3.6 cu.ft. (102 L)
- Temperature
- -86°C to -50°C
- Door
- Solid, left hinge
- Size (W × D × H)
- 36.9" × 24.8" × 32.8"
Overview
From the manufacturer

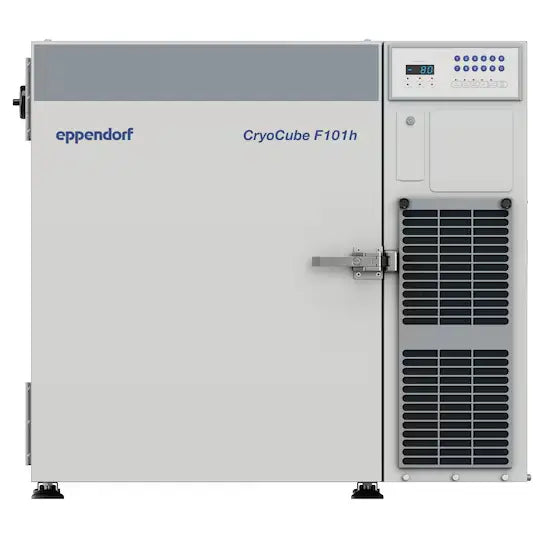

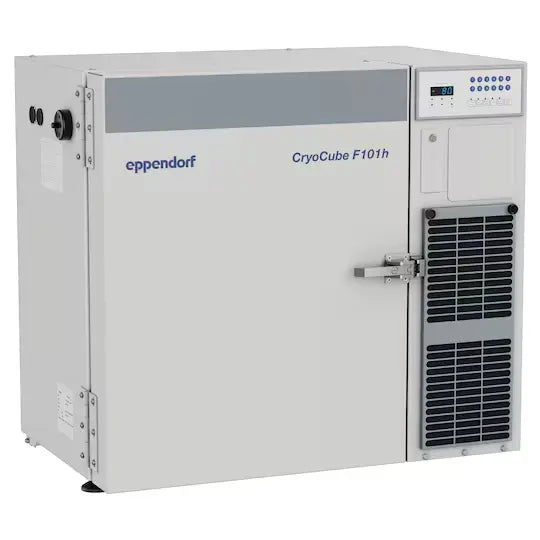

When it comes to maximizing sample storage capacity at the bench, the Eppendorf CryoCube F101h ULT freezer sets the standard: Up to 6,600 vessels below your bench in the lab with real -80 °C. By taking advantage of ultra-efficient, compact vacuum insulation panels which are used in combination with traditional PU foam insulation, we managed to slim down the freezer walls.

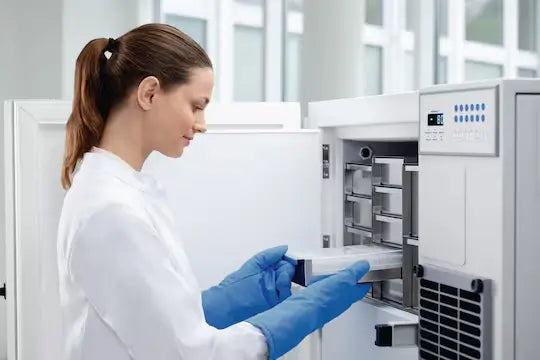

The Eppendorf CryoCube F101h offers a 2-compartment lay-out and two insulated inner doors for easy sample access and safe sample storage at -80 °C. The walls are 80 mm thick based on foam and vacuum insulation panels. The footprint is limited to half a square meter, especially designed for small labs. The temperature range for this -80 °C lab freezer is between -50 °C and -86 °C. The rails enable flexible positioning of the shelf, depending on your needs.
The ULT freezer has a volume of 101 L (3.6 cubic feet) and a temperature range from -50 °C to -86 °C.
The most important aspect of long-term sample storage is safety. The CryoCube F101h freezer is equipped with reliable heavy-duty compressors (2-stage cascade cooling system). Quick pull-down times enable fast re-use after cleaning/defrosting of the instrument. The freezers have short recovery times after opening to provide extra sample safety (Door-Open-Recovery/DOR) when getting back to -80 °C. The temperature range of this ULT freezer is from -50 °C to -86 °C. Most users put the set point to -80 °C.
The automatic vent port enables fast re-access if needed.

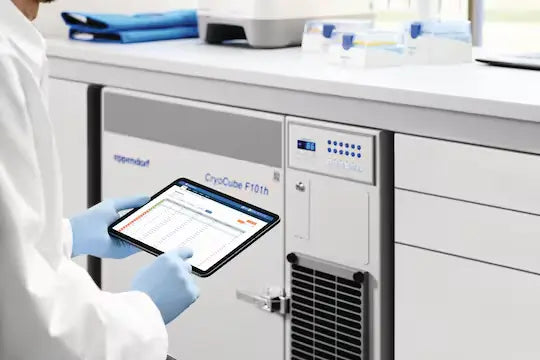

For even higher sample safety, the ULT freezers can be equipped with CO2/LN2 back-up systems and a chart recorder. Temperature monitor systems can be used to monitor the freezers remotely.
Features
Key features
- Vacuum insulation panels allow for increased internal capacity with the same footprint as traditionally foamed freezers

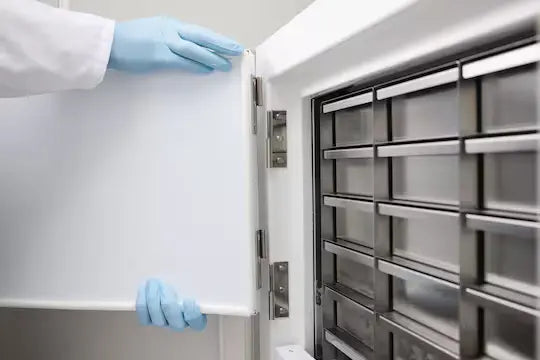

- Inner doors are gasketed as well as insulated creating 2 separate compartments minimizing cold air loss while you access your samples
- Easy-to-read LED control panel and alarm status
- Special vacuum vent with plunger ergonomically located to gain immediate access to your freezer
- Inner doors can be quickly removed without the need for tools for easier and faster defrosting
- Full stainless steel interior for easy cleaning during maintenance and defrost cycles; powder-coated steel exterior
- Special low-temperature outer door seals allow gaskets to remain flexible at –86 °C and prevent ice buildup for easy access to samples
- Password protection of alarm and temperature setpoints to prevent unauthorized setting changes
Specifications
Manufacturer data. Imperial with metric in brackets.
- Insulation
- Vacuum insulation paneling / polyurethane foam
- Wall Thickness
- Type B (80 mm)
- Capacity
- 101 L / 3.6 ft³
- No. of inner doors
- 2
- No. of compartments
- 2
- Max. racks per freezer
- 6
- Box capacity per rack / freezer
- 53 mm (2 in) tall boxes: 10 / 60 (12 / 66)
- 76 mm (3 in) tall boxes: 6 / 36
- 89 mm (3.5 in) tall boxes: 4 / 24
- Maximum sample capacity
- 53 mm (2 in) tall boxes: 6,600
- Dimensions (W x D x H)
- 93.6 x 62.9 x 83.4 cm / 36.9 x 24.8 x 32.8 in
- Dimensions internal (W x D x H)
- 48 x 33 x 64 cm / 18.9 x 13 x 25.2 in
- Weight w/o accessories
- 123 kg / 271 lbs
- Shipping weight
- 153 kg / 337 lbs
- Pull-down time to -80 °C (230 V / 115 V)
- 120 min / 115 min
- Recovery to -80 °C, 60 s opening (230 V / 115 V)
- 21 min / 18 min
- Noise level (230 V / 115 V)
- 39.7 dBA / 43.2 dBA
- Power supply
- 230 V, 50 Hz / 115 V, 60 Hz
- Power consumption, (-70 °C / -80 °C)
- 230 V: 3.2 kWh/day / 4.7 kWh/day
- 115 V: 3.5 kWh/day / 5.1 kWh/day
- Max heat output (230 V / 115 V)
- 213 W / 196 W
- Interior
- Stainless steel
- Exterior
- Powder-coated steel
- Extras
- Fits below bench
- Cooling liquid
- R290 / R170
- Device management

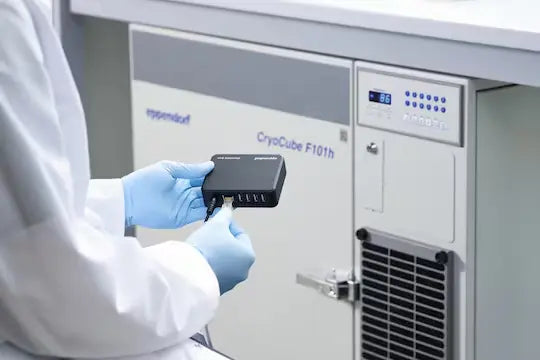

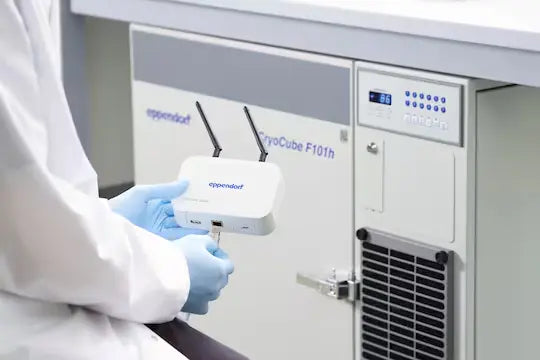

- VisioNize® box
Documents
Files from the manufacturer
Shipping & returns
Ships by freight or parcel depending on size. The shipping cost is calculated and confirmed at checkout.
View the return policy for this itemWarranty
5 year labor & parts warranty.
Optional CPS protection plans can be added before checkout.
