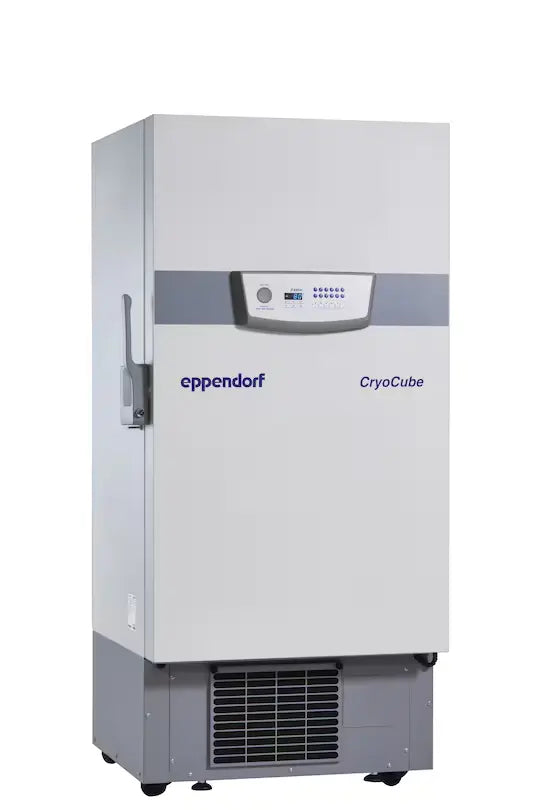

Eppendorf CryoCube F440h Series 37.6" Ultra-Low Temperature Freezer, 440 L / 15.5 cu.ft., -50°C to -86°C
SKU: F440240035
Free Shipping
Regular price $29,907.90
Unit price
per
Capacity
15.5 cu.ft. (439 L)
Temperature
-50°C to -86°C
Door
Solid, right hinge
Size (W × D × H)
37.6" × 35.4" × 76.8"
EppendorfSKU F440240035

Eppendorf CryoCube F440240035 37.6" Ultra-Low Temperature Freezer, 440 L / 15.5 cu.ft., -50°C to -86°C

Capacity
15.5 cu.ft. (439 L)
Temperature
-50°C to -86°C
Door
Solid, right hinge
Size (W × D × H)
37.6" × 35.4" × 76.8"
Regular price $29,907.90
Unit price
per
Free shipping
Availability

?
Inventory levels are dynamic and subject to change due to high demand.

Standard Warranty: 5 year labor & parts warranty

(0 in cart)
SSL SecureSecure Checkout Secure Checkout
  • Fast & reliable shippingShipping cost is calculated and confirmed at checkout.
  • Regulatory compliantRegistered & certified medical equipment
  • Best price guaranteeFind it cheaper? We'll match it.
  • Need help choosing?Call +1-973-858-5049 or contact us
Request a quote

Capacity
15.5 cu.ft. (439 L)
Temperature
-50°C to -86°C
Door
Solid, right hinge
Size (W × D × H)
37.6" × 35.4" × 76.8"

Overview

From the manufacturer

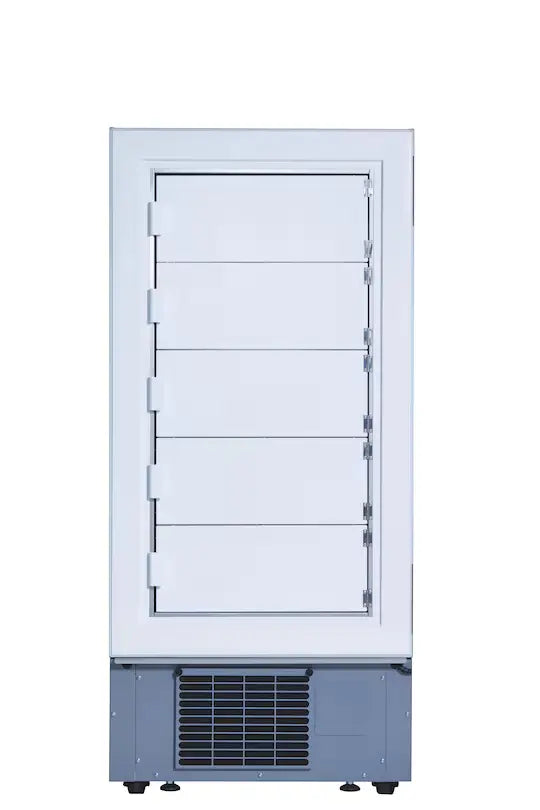

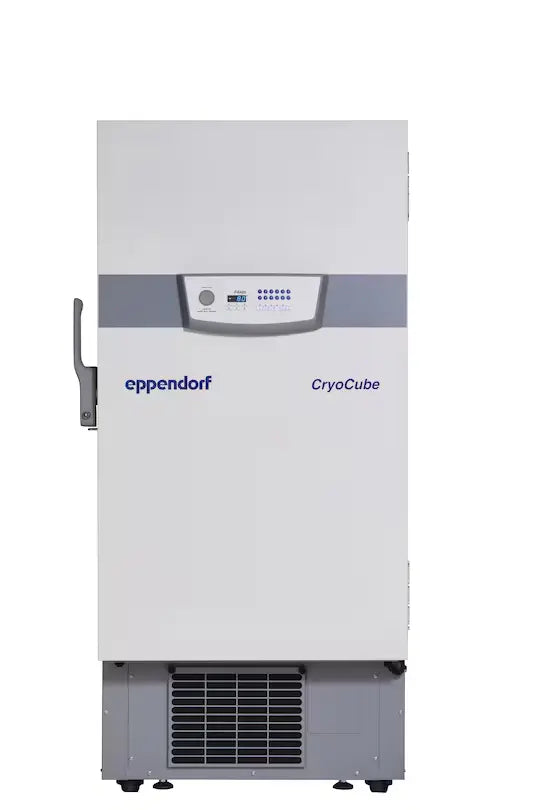

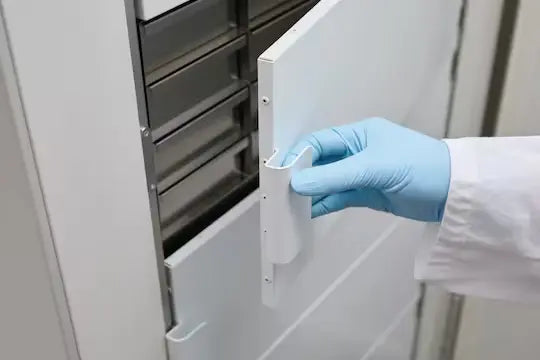

The Eppendorf CryoCube F440 series offers a 5-compartment lay-out and 5 insulated inner doors for easy sample access and safe sample storage at -80 °C. The walls are 130 mm thick based on foam and vacuum insulation panels. The ULT freezer has a volume of 440 L (15.5 cubic feet) and a temperature range from -50 °C to -86 °C.

The most important aspect of long-term sample storage is safety. The CryoCube F440 series of freezers is equipped with reliable heavy-duty compressors (2-stage cascade cooling system). Quick pull-down times enable fast re-use after cleaning/defrosting of the instrument. The freezers have short recovery times after opening to provide extra sample safety (Door-Open-Recovery/ DOR) when getting back to -80 °C.

The temperature range of this ULT freezer series is from -50 °C to -86 °C. Most users put the set point to -80 °C.

The automatic vent port enables fast re-access if needed. For even higher sample safety, the ULT freezers can be equipped with CO2/LN2 back-up systems and a chart recorder. Temperature monitor systems can be used to monitor the freezers remotely.

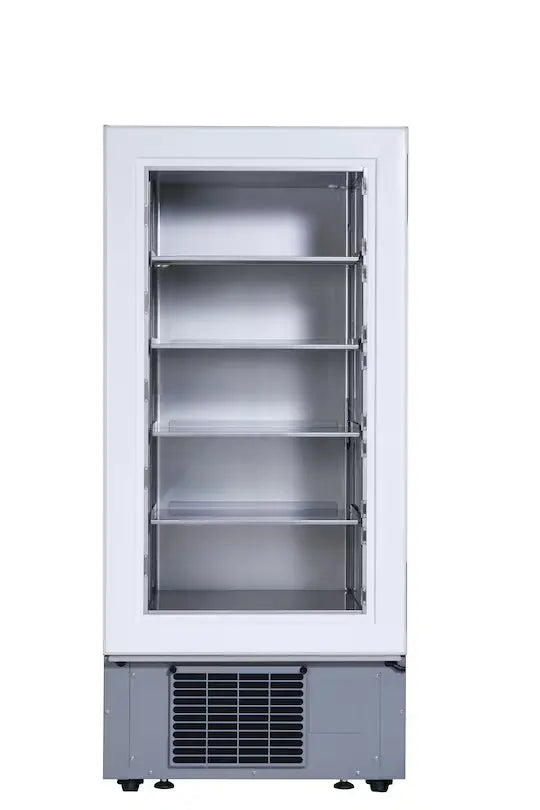

Store your freezer storage boxes within organized freezer racks. The CryoCube F440 series offers a 5-compartment model as a standard. The compartments can be height-adapted if necessary. A maximum of 20 freezer racks can be stored (4 racks per compartment). The racks can be filled with 4 boxes per drawer/layer, resulting in a maximum of 320 freezer boxes (53 mm/2 in) which can be stored in this ULT freezer. You can choose between metal racks made of aluminum or stainless steel. Decide if you prefer side access or drawer racks.

VisioNize Lab Suite is your software solution for effective monitoring and maintenance management to prevent sample storage emergencies. Gain access to a modular range of services and choose what is needed in your lab. These services integrate seamlessly to support you and your lab – with future updates for a sustainable investment. As you and your lab expand over time, VisioNize Lab Suite will evolve as well to meet your needs. Benefit from 24/7 notification & monitoring for your ULT freezers and high-value stored samples.

Features

Key features

  • Volume: 440 L (15.5 ft3), e.g. up to 32,000 samples
  • Efficient insulation, composed of traditional insulation and vacuum insulation panels ("h"-version), saves energy
  • Efficient compressor control system reduces cycle times to lower energy consumption and increases freezer longevity
  • Automatic vent port on front door of upright CryoCube models improves energy consumption and enables fast sample access
  • Lockable main switch to prevent switch-offs by accident
  • Location for chart recorder for data documentation

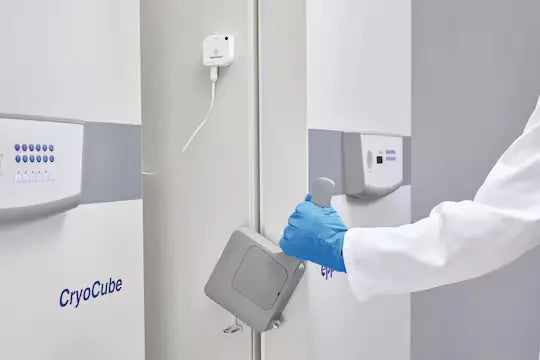

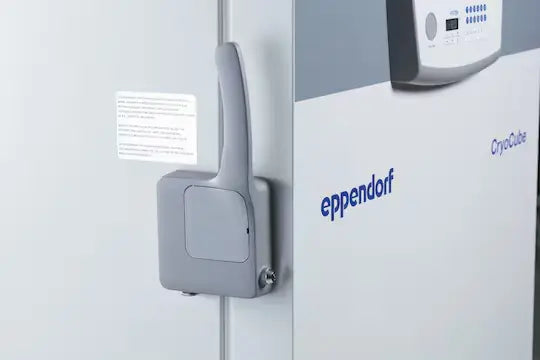

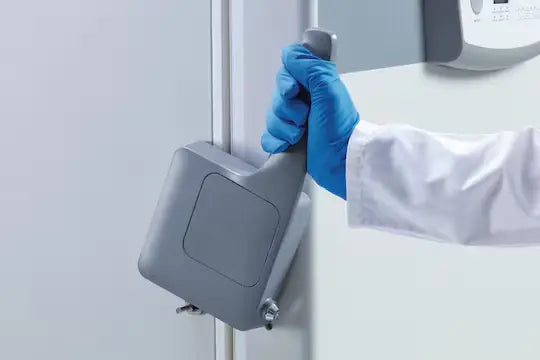

  • Ergonomic door handle of CryoCube models based on Eppendorf PhysioCare Concept® requires less force and provides easier access
  • Air-cooled

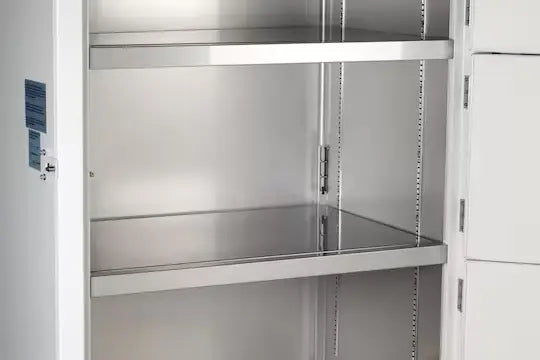

  • Stainless steel interior for easy cleaning during maintenance and defrost cycles; powder-coated steel exterior

Specifications

Manufacturer data. Imperial with metric in brackets.

Product
CryoCube F440h
Insulation
Vacuum insulation paneling / polyurethane foam
Wall Thickness
Type Curve (Type C)
Capacity
440 L / 15.5 ft³
No. of internal doors
5
No. of compartments
5
Max. racks per freezer
20
Box capacity per rack
53 mm (2 in) tall boxes: 16
Sample capacity
53 mm (2 in) tall boxes: 32,000
Box capacity per freezer
53 mm (2 in) tall boxes: 320
76 mm (3 in) tall boxes: 160
102 mm (4 in) tall boxes: 160
Dimensions (W x D x H)
95.5 x 89.8 x 195 cm / 37.6 x 35.4 x 76.8 in
Dimensions internal (W x D x H)
61.6 x 57.5 x 126.5 cm / 24.3 x 22.6 x 49.8 in
Weight w/o accessories
286 kg / 631 lbs
Shipping weight
327 kg / 721 lbs
Pull-down time to -80 °C (230 V / 115 V)
3 h 20 min / 3 h
Recovery time to -80 °C (230 V / 115 V)
27 min / 21 min
Noise level
51.5 dB
Heat output (230 V)
283 W (964 BTU/h)
Power consumption
115 V: 4.6 KWh/day / 6.5 KWh/day(0.30 KWh/ft³) / (0.42 KWh/ft³)
Interior
Stainless steel
Exterior
Powder-coated steel
Password protection of setpoints
yes
Extras
Automatic vent portIntegrated lock and padlock option
Cooling liquid
R290 / R170
Connectivity
VisioNize box

Documents

Files from the manufacturer

Spec sheetEppendorf__CryoCube_F440h_Series_Brochure.pdf
Download PDF

Shipping & returns

Ships by freight or parcel depending on size. The shipping cost is calculated and confirmed at checkout.

View the return policy for this item

Warranty

5 year labor & parts warranty.

Optional CPS protection plans can be added before checkout.
