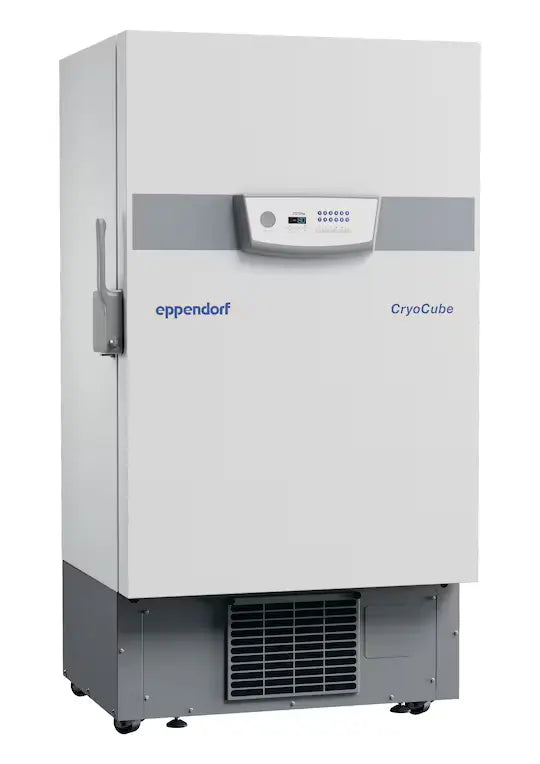

Eppendorf CryoCube F570h Series 43.4" Ultra-Low Temperature Freezer, 570 L / 20.1 cu.ft., -50°C to -86°C Temperature Range, 115V Voltage, Vacuum Insulation Paneling and Polyurethane Foam Insulation, CO₂ or LN₂ Backup System Options

The Eppendorf CryoCube F570 series offers a 5-compartment lay-out and 5 insulated inner doors for easy sample access and safe sample storage at -80 °C. The walls are 130 mm thick based on foam and vacuum insulation panels. The ULT freezer represents the volume class of 570 L (20.1 cubic feet) and a temperature range from -50 °C to -86 °C.

The most important aspect of long-term sample storage is safety. The CryoCube F570 series of freezers is equipped with reliable heavy-duty compressors (2-stage cascade cooling system). Quick pull-down times enable fast re-use after cleaning/defrosting of the instrument. The freezers have short recovery times after opening to provide extra sample safety (Door-Open-Recovery/DOR) when getting back to -80 °C.

The temperature range of this ULT freezer series is from -50 °C to -86 °C. Most users put the set point to -80 °C.

The automatic vent port enables fast re-access if needed. For even higher sample safety, the ULT freezers can be equipped with CO₂/LN₂ back-up systems. Temperature monitor systems can be used to monitor the freezers remotely.

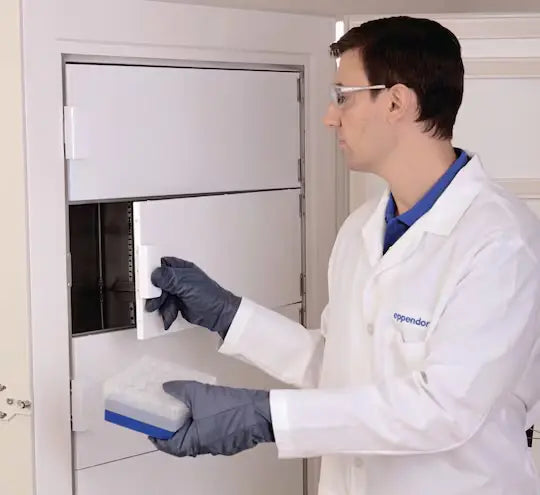

Make your scientific life easier: Store your freezer storage boxes within organized freezer racks. The CryoCube F570 series offers a 5-compartment model as a standard. The compartments can be height-adapted if necessary. A maximum of 25 freezer racks can be stored (5 racks per compartment). The racks can be filled with 4 boxes per drawer/layer, resulting in a maximum storage of 400 freezer boxes (53 mm/2 in) which can be stored in this ULT freezer. You can choose between metal racks made of aluminum or stainless steel. Decide if you prefer side access or drawer racks.

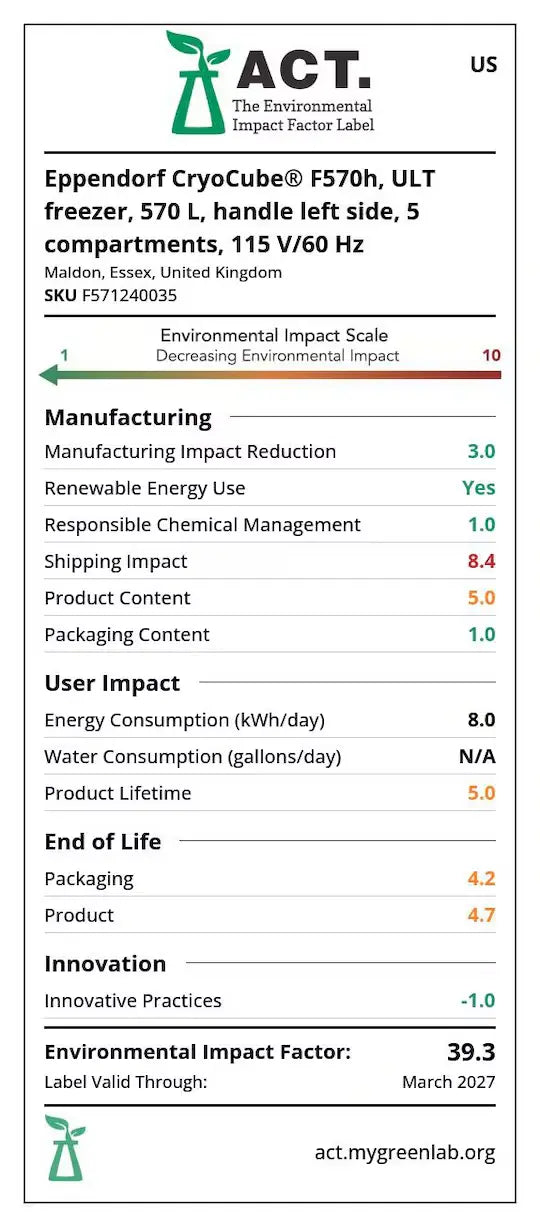

By following the epGreen concept, the Eppendorf freezer R&D team developed intelligent solutions where energy savings are combined with durable long-lasting product quality and ergonomic aspects. By using highly efficient technologies, the CryoCube F570h lab freezer has a very low power consumption value. This future-oriented instrument class provides consumption levels which are ahead of most competitors within this volume class. The performance data are based on an external validation agency where three units of the freezer model are tested. Besides this, the CryoCube F570h is certified by the ACT label of "My Green Lab^®".

Features

• Volume class: 570 L (20.1 ft³), e.g. up to 40,000 samples
• Efficient insulation, composed of traditional insulation and vacuum insulation panels, saves energy
• Efficient compressor control system reduces cycle times to lower energy consumption and increases freezer longevity
• Automatic vent port on front door of upright CryoCube models improves energy consumption and enables fast sample access
• Lockable main switch to prevent switch-offs by accident
• Location for chart recorder for data documentation

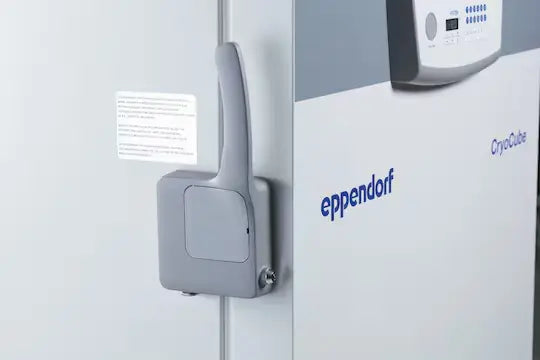

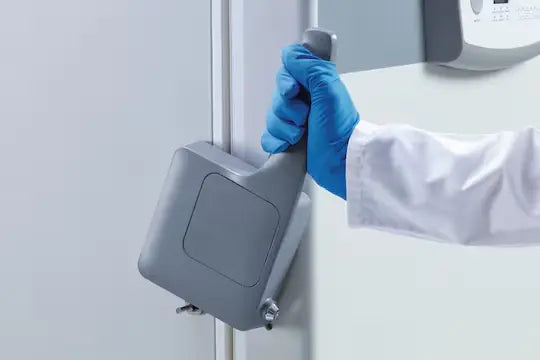

• Ergonomic door handle of CryoCube models based on Eppendorf PhysioCare Concept^® requires less force and provides easier access
• Air-cooled as well as water-cooled versions for further energy saving

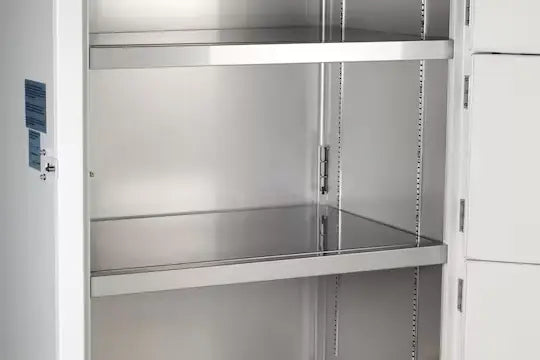

• Stainless steel interior for easy cleaning during maintenance and defrost cycles; powder-coated steel exterior

Product Specifications
