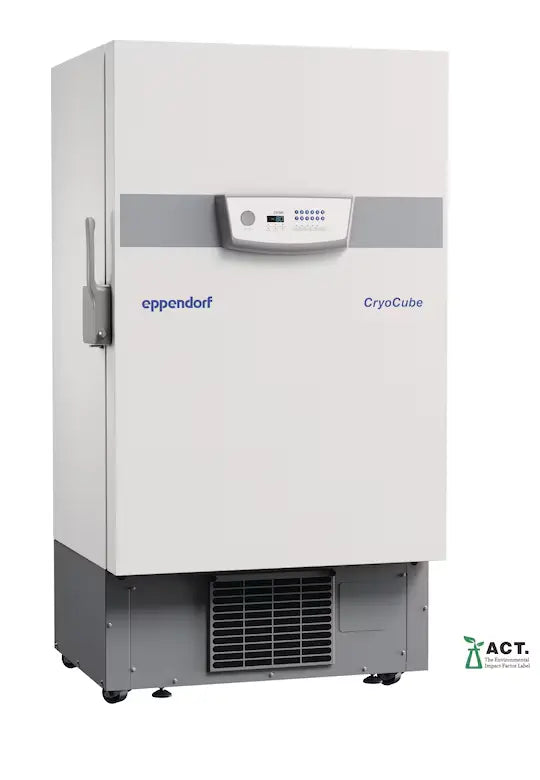

Eppendorf CryoCube F570n Series 43.4" Ultra-Low Temperature Freezer, 570 L / 20.1 cu.ft., -50°C to -86°C Temperature Range, 208V or 115V Voltage Options, Polyurethane Foam Insulation, CO₂ or LN₂ Backup System Options

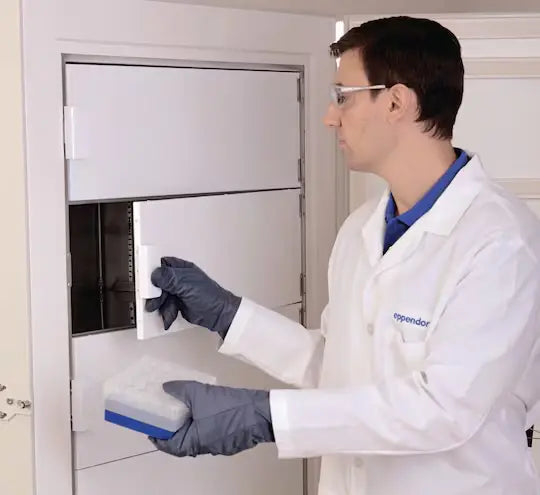

The Eppendorf CryoCube F570 series offers a 5-compartment lay-out and 5 insulated inner doors for easy sample access and safe sample storage at -80 °C. The walls are 130 mm thick based on foam. The ULT freezer represents the volume class of 570 L (20.1 cubic feet) and a temperature range from -50 °C to -86 °C.
The most important aspect of long-term sample storage is safety. The CryoCube F570 series of freezers is equipped with reliable heavy-duty compressors (2-stage cascade cooling system). Quick pull-down times enable fast re-use after cleaning/defrosting of the instrument. The freezers have short recovery times after opening to provide extra sample safety (Door-Open-Recovery/DOR) when getting back to -80 °C.
The temperature range of this ULT freezer series is from -50 °C to -86 °C. Most users put the set point to -80 °C.
The automatic vent port enables fast re-access if needed. For even higher sample safety, the ULT freezers can be equipped with CO2/LN2 back-up systems. Temperature monitor systems can be used to monitor the freezers remotely.
Make your scientific life easier: Store your freezer storage boxes within organized freezer racks. The CryoCube F570 series offers a 5-compartment model as a standard. The compartments can be height-adapted if necessary. A maximum of 25 freezer racks can be stored (5 racks per compartment). The racks can be filled with 4 boxes per drawer/layer, resulting in a maximum storage of 400 freezer boxes (53 mm/2 in) which can be stored in this ULT freezer. You can choose between metal racks made of aluminum or stainless steel. Decide if you prefer side access or drawer racks.
Features
- Volume class: 570 L (20.1 ft3), e.g. up to 40,000 samples
- Efficient insulation, composed of traditional insulation, saves energy
- Efficient compressor control system reduces cycle times to lower energy consumption and increases freezer longevity
- Automatic vent port on front door of upright CryoCube models improves energy consumption and enables fast sample access
- Lockable main switch to prevent switch-offs by accident
- Location for chart recorder for data documentation

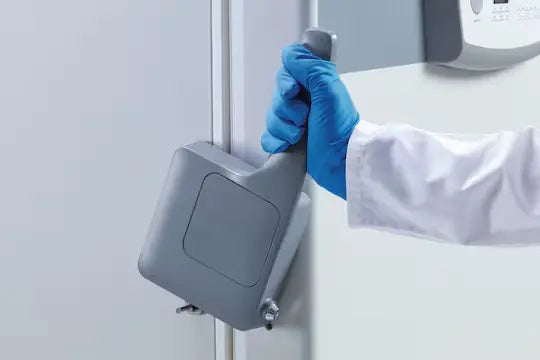

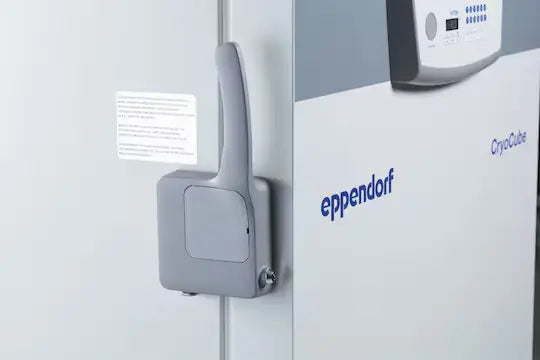

- Ergonomic door handle of CryoCube models based on Eppendorf PhysioCare Concept® requires less force and provides easier access
- Air-cooled as well as water-cooled versions for further energy saving

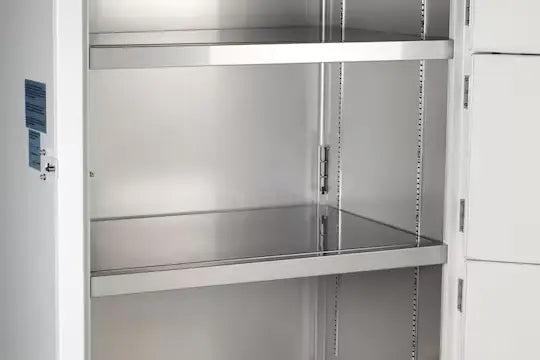

- Stainless steel interior for easy cleaning during maintenance and defrost cycles; powder-coated steel exterior
Product Specifications
| Specifications |
CryoCube F570n |
| Insulation |
Polyurethane foam |
| Wall Thickness |
Type A |
| Capacity |
570 L / 20.1 ft³ |
| No. of internal doors |
5 |
| No. of compartments |
5 |
| Max. racks per freezer |
25 |
| Box capacity per rack |
53 mm (2 in) tall boxes: 16 |
| Sample capacity |
53 mm (2 in): 40,000 |
| Box capacity per freezer |
53 mm (2 in) tall boxes: 400 |
| 76 mm (3 in) tall boxes: 200 |
| 102 mm (4 in) tall boxes: 200 |
| Dimensions (W x D x H) |
110.3 x 89.8 x 195 cm / 43.4 x 35.4 x 76.8 in |
| Dimensions internal (W x D x H) |
76.5 x 57.5 x 126.5 cm / 30.1 x 22.6 x 49.8 in |
| Weight w/o accessories |
281 kg / 619 lbs |
| Shipping weight |
328 kg / 723 lbs |
| Pull-down time to -80 °C (230 V / 115 V) |
3 h 53 min / 3 h 34 min |
| Recovery time to -80 °C (230 V / 115 V) |
29 min / 28 min |
| Noise level |
57.6 dB |
| Heat output (230 V) |
347 W (1,183 BTU/h) |
| Power consumption
|
208 V: 8.5 KWh/day (0.42 KWh/ft³) |
| 115 V: 8.8 KWh/day (0.44 KWh/ft³) |
| Interior |
Stainless steel |
| Password protection of setpoints |
yes |
| Extras |
Automatic vent port |
| Cooling liquid |
R290 / R170 |
