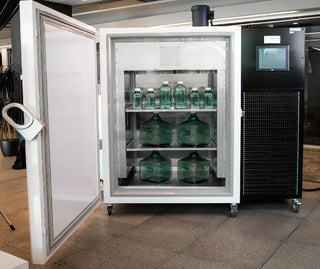

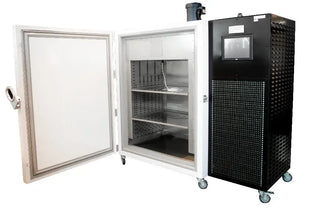

FARRAR 4000/LC Series 75” Controlled Rate Chamber, 23.3 cu.ft. (659.8 L), +40°C to -80°C Temperature Range

FARRAR 4000/LC Series 75” Controlled Rate Chamber, 23.3 cu.ft. (659.8 L), +40°C to -80°C Temperature Range, Purpose-Built for Bioprocessing Applications,  Air/Water Cooling System, IDEC PLC with 12" Display for 4000-LC Models

FARRAR® pioneered forced air convection cooling to answer the challenge of preserving biologic samples and materials. The Controlled Rate Chamber (model 4000 and 4000-LC series) provides repeatable, precise, and rapid freezing and thawing of bulk materials and sample prior to cold storage. Model 4000-LC series Controlled Rate Chamber features a 12-inch HMI screen with graphical display of chamber and product temperature.

The Model 4000 and 4000-LC series rate chamber, purpose-built for bioprocessing applications, greatly reduces freeze/thaw conditioning times, measured in hours, instead of days or weeks.

This precision controlled rapid freeze/thaw chamber helps protect product quality by enabling fast, uniform bulk freezing and thawing of protein or products in a variety of containers of various sizes, (bags, bottles, etc.) including single use system (SUS), polycarbonate vessels or polypropylene vessels.

The high-performing Controlled Rate Chamber model 4002/LC, (air-cooled) or 4102/LC, (water-cooled) conducts rapid freeze/thaw for +40°C to -80°C temperature needs. FARRAR's refrigeration experts help customers plan their process and provide performance data to ensure requirements are met.

Features

• Wide-range temperature capability for nearly any application (+40°C to -80°C)

• Air or water-cooled options available

• Uniform, repeatable results to help ensure quality control

• Cycle start/stop with +/-1°C product temperature tolerance

• Sizable and powerful cooling capacity achieves steady state in < 1 hour (empty chamber) and is capable of freezing 100L to -80°C in < 12h
• Large HMI touchscreen for visual temperature display and profile programming for 4000-LC models
• Optional product probe for temperature monitoring for 4000-LC models
• Six customizable profiles via touchscreen for operator selection for 4000-LC models

Benefits

• No set-up time required

• Simple place and go setup of chamber and control/use one of three freeze/thaw profiles

• No in-process containers or shells required

• Adjustable shelves available to streamline processing

• Provides rapid, efficient, controlled rate freeze/thaw process

• Enables fast, uniform freeze/thaw of bulk protein or products

• Increases yield rates from 40-90% and reduces freeze/thaw conditioning to hours
  instead of days or weeks

• Ensures repeatable results
• HMI touchscreen provides visual temperature profile progress with export capability for 4000-LC series

Product Specifications
