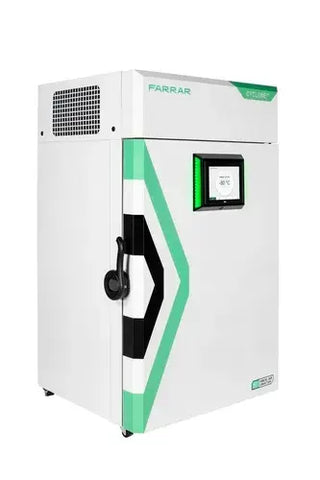

FARRAR CYCLONE 49.5" Air-Cooled Ultra-Low Freezer/Store Chamber, 33 cu.ft. (934 Lt), −20 to −80°C, Fast Temperature Recovery from Door Openings, Sustainable Performance, Flexible Storage Configurations, Designed for Freezing and Storing Bulk and Finished
Pharma Materials
FARRAR® CYLCONE™ uses forced air convection to help ensure powerful cooling performance with chest freezer-like temperature recovery in the convenience of an upright.
Blending ultra-low energy consumption with unmatched cooling performance, CYCLONE provides pull-down, door-opening recovery, and temperature uniformity unheard of in conventional cold wall freezers, traditional ultra-low temperature freezers, and standard cold storage solutions.
A packaged, quick-change top-mounted refrigeration system ensures easy, point-of-use maintenance. Heat rejection on top of the unit helps eliminate footprint clearance requirements, increasing density without impacting performance.
Features
- Flexible temperature set point (-20°C to -80°C) and tight uniformity (+/-2°C across all temperature set points)
- Powerful performance and chest freezer-like temperature recovery in the convenience of an upright
- Low GWP refrigerants and energy efficiency to meet sustainability needs
- Maximized volume-to-footprint ratio
- Modular refrigeration system enables quick swap with minimal operation impact
- Integrated communications with BMS/BAS systems and monitoring programs via Modbus TCP/IP and BACnet IP
Benefits
- Nearly unrestricted access to contents with fast door recovery
- Extremely tight uniformity allows full utilization of chamber at all setpoints
- Wide temperature set point range for process flexibility and reduced capital expenditures
- Minimal down time when servicing with quick change, packaged refrigeration system
- Purpose built for freezing and storage operations with 3x freezing capacity over standard ULTs
- Maximize storage volume for bags, bottles and boxes
- Integrated system status interfaces with most BAS/monitoring solutions
- Automatic evaporator defrost helps ensure system level cooling capacity remains at peak performance
- Powered by natural low GWP refrigerants that are electronically metered to reduce overall energy consumption and boost sustainability
Product Specifications
| APPLICATION AND ELECTRICAL REQUIREMENTS | Application | Freezing & Storage, Frequent Access Storage, Bulk Drug Storage, CGMP Cold Storage Operations, Biobanking |
| Chamber Volume | 934L (33 cu. ft.), 630 2" Boxes | |
| Temperature Range | -20°C to -80°C | |
| Electrical Global | 220-240 VAC, 50/60Hz | |
| Ambient Operating Temperature | 10°C to 32°C | |
| PERFORMANCE DATA | Uniformity Air Temperature | +/-2.0°C – Across Range |
| (+4.0°C/-1°C at -80°C during defrost cycle) | ||
| Temperature Control | Adjustable in 1°C increments | |
| Warranty | North America and Direct - 2 Years Parts and Labor | |
| Outside North America Distribution - 2 Years Parts Only | ||
| Energy Consumption | 0.35 kWh/day/cubic ft. | |
| CONTROLLER | Display | 12" (304mm) touchscreen |
| Communication Protocol | Modbus TCP/IP and BACnet IP | |
| Alarms | High/low temperature, door ajar, power failure, remote alarm contacts | |
| External Communications | Dry Contacts Standard (C, NO, NC) | |
| Data Stream-Modbus TCP/IP and BACnet IP | ||
| STORAGE CAPACITY DIMENSIONS | Total Interior volume | 934L (33 cu. ft.) |
| Unit Weight | 950 lbs. / 430.91 kg estimated | |
| Shipping Weight | 1250 lbs. / 566.99 kg estimated | |
| Interior Dimensions | 749.3mm x 965.2mm x 1295.4mm (29.5" x 38" x 51") | |
| Exterior Dimensions | 1187.5mm x 1168.4mm x 1968.5mm (46.75" x 46" x 77.5") | |
| REFRIGERATOR SYSTEM | Evaporator Type | Forced-Air |
| Condenser Cooling | Air | |
| Metering Device | Electronic | |
| High Stage/Low Stage Refrigerant | R-290 / R-170 | |
| ORDERING INFORMATION | Model | CYCLONE 900 |
| Description | Air-Cooled, 934L, 3 Inner Doors, Includes 3 Shelves | |
| Voltage | 220-240 VAC, 50/60Hz | |
| Amps/Breaker | 1 x 5A / 15A | |
| Additional Shelves | Up to 9 additional shelves in increments of 1 (Part #: 4090136-1) |
|
| Rack Options 2” Boxes | < 18 side access racks (3 rows of 6) Each rack holds 35 boxes (7H x 5D) (Part #: 6700768) |
