Hoshizaki AM-50BAK-ADDS Top Hat Cuber Ice Machine, Air-Cooled, ADA-Compliant Height - Custom Cabinet Ready

Hoshizaki AM-50BAK-ADDS Top Hat Cuber Ice Machine, Air-Cooled, ADA-Compliant Height - Custom Cabinet Ready, 50lb/24h, Integrated Ice Storage, Front In / Front Out Airflow, Top Hat Ice Cubes, Custom Cabinet Ready

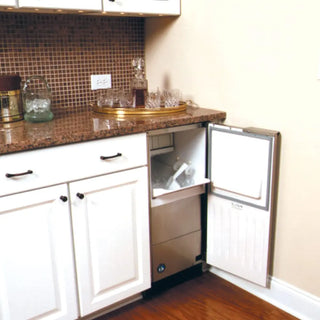

This compact undercounter Top Hat ice machine is the perfect addition to any hotel suite, office breakroom, or kitchen. The AM-50BAK-ADDS is capable of producing approximately 54 lbs. of Top Hat style ice cubes per day, and the built-in storage bin will hold up to 27 lbs.* of ice at a time. The undercounter design is less than 32″ tall, making it ADA compliant. The air-cooled design also features a front in, front out airflow system that eliminates the need for side and rear clearance. Perfect for fitting into tight spaces. UL approved for outdoor use. Drain pump not included.

PFAS Warning: This product contains: PTFE and Propane, 1,1,1,2,2,3,3-heptafluoro-3-[(1,2,2-trifluoroethenyl) oxy]-, polymer with 1,1,2,2-tetrafluoroethene.

Features

• ADA-Compliant & Compact Undercounter Design: Standing at under 32 inches tall (31.5″ H), this unit fits effortlessly beneath standard ADA-compliant countertops and cabinetry.

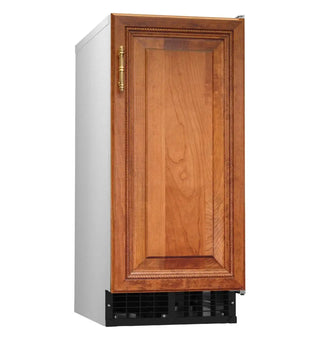

• Custom Cabinet Ready (-DS): Designed to accommodate a custom decorative door panel (not included) to seamlessly blend into your surrounding cabinetry (compatible with the optional HS-0229 door reversal kit).

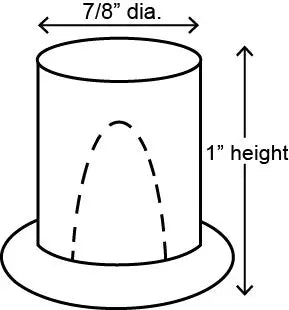

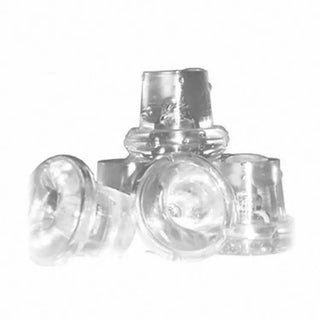

• Top Hat Ice Cubes: Produces crystal-clear, slow-melting gourmet "Top Hat" style ice cubes that elevate beverage presentation without diluting flavor.
• High Daily Production: Generates up to 54 lbs of ice per 24 hours to meet steady daily demand.
• Integrated Ice Storage: Features a built-in storage bin capable of holding up to 27 lbs of ice.
• UL Approved for Outdoor Use: Heavy-duty construction approved for reliable outdoor performance in patio or outdoor kitchen setups.
• Front In / Front Out Airflow: Front-breathing ventilation allows for zero-clearance side installation beneath counters.
• Easy Maintenance & Cleaning: Features an easily disassembled water circuit for hassle-free sanitation, helping prolong overall machine life.
• Eco-Friendly Performance: Operates with sustainable, energy-efficient R290 hydrocarbon refrigerant.
• Technical & Operating Specifications
• Dimensions (W x D x H): 14-7/8″ W x 22-5/8″ D x 31-1/2″ H
• Electrical Requirements: 115V / 60 Hz / 1-Phase (Includes 6 ft cord with NEMA 5-15P plug)
• Amperage / Fuse Size: 2 Amps (15 Amp Max Fuse)
• Energy Consumption: 9 kWh / 100 lbs @ 90°F Air / 70°F Water
• Heat Rejection: 1,400 BTU/hr
• Operating Ambient Temp Range: 45°F – 100°F
• Operating Water Temp Range: 45°F – 95°F
• Water Pressure Range: 10 – 113 psig
• Voltage Range: 104V – 127V
• Accessories & Warranty
• Optional Accessories: Compatible with the HS-5061 drain pump assembly.
• Manufacturer Warranty:
• 2-Year Parts & Labor warranty on the entire machine.
• 1-Year Parts & Labor warranty on the optional HS-5061 Drain Pump Assembly.

Specifications

Standard delivery typically takes 5-7 business days
