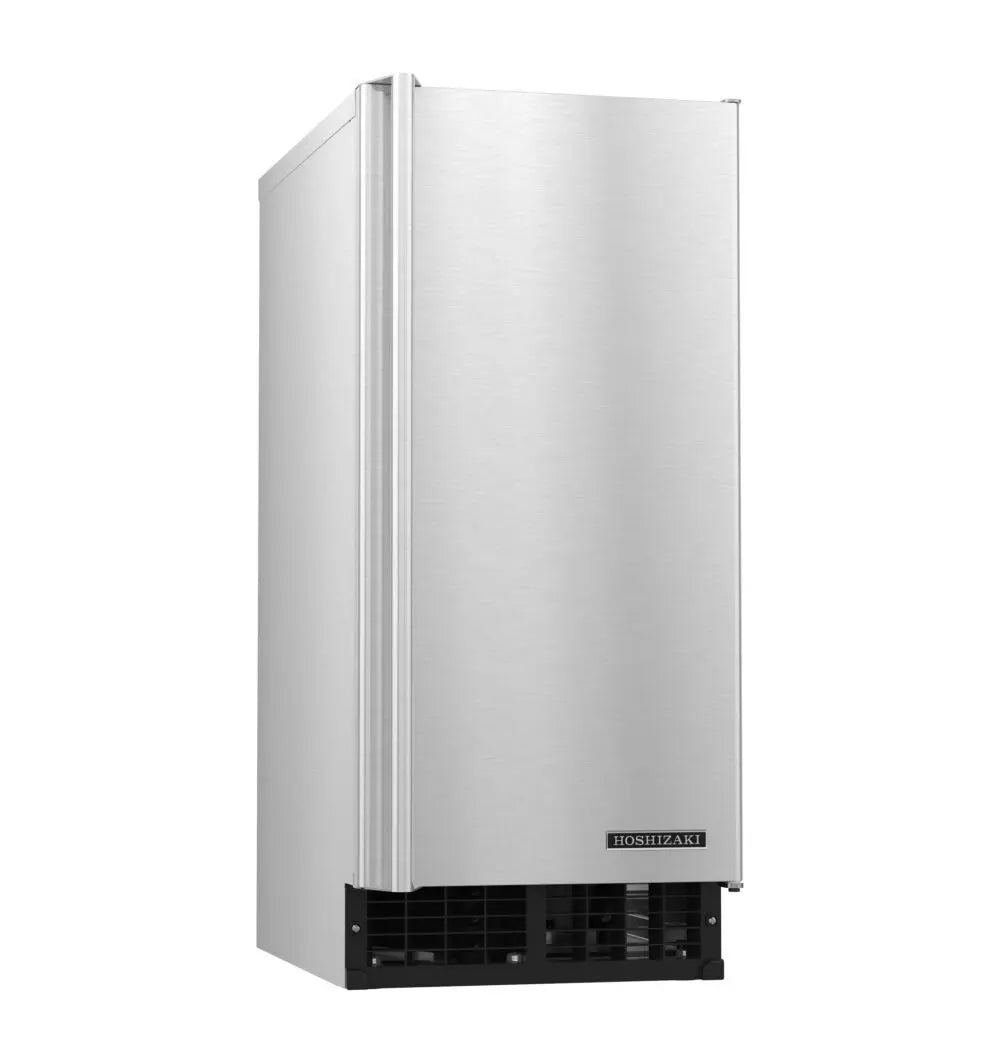

Hoshizaki C-80BAK-AD Cubelet Ice Machine, Air-Cooled, ADA-Compliant Height, 80lb/24h, Front-Breathing Airflow, Field Reversible Door, Integrated Ice Storage, Eco-Friendly R290 Refrigerant
This compact undercounter Cubelet ice machine is the perfect addition to any hotel suite, office breakroom, or kitchen. The C-80BAK-AD is capable of producing approximately 92 lbs. of Cubelet style ice cubes per day, and the built-in storage bin will hold up to 27 lbs. of ice at a time. The undercounter design is less than 32″ tall, making it ADA compliant. The air-cooled design also features a front in, front out airflow system that eliminates the need for side and rear clearance. Perfect for fitting into tight spaces. UL approved for outdoor use. Drain pump not included
Features
- High Daily Ice Yield: Produces up to 92 lbs of ice per 24-hour period.
- Integrated Ice Storage: Features a built-in storage bin holding up to 27 lbs of ice.
- Mini Cubelet Nugget Ice: Delivers soft, chewable, mini cubelet nugget-style ice.
- ADA Compliant Undercounter Design: Standing at under 32″ high (31-1/2″ H), it fits easily under standard ADA-compliant counters.
- Front-Breathing Airflow: Front in, front out airflow allows for flush installation against adjacent cabinetry without side clearance issues.
- Outdoor & Indoor Approved: UL approved for safe outdoor as well as indoor operation.
- Field Reversible Door: Swing-style door can be easily reversed on-site to open from left or right depending on room layout.
- Eco-Friendly R290 Refrigerant: Uses environmentally friendly hydrocarbon refrigerant with zero ozone depletion potential.
- Low Maintenance & Long Lifespan: Engineered for easy cleaning and straightforward maintenance to extend overall unit life.
Specifications
| Electrical Requirements | 115V / 60 Hz / 1-Phase |
| Amperage | 2.8 A |
| Max Fuse / HACR Breaker | 15 A |
| Power Cord / Plug | 6 ft cord with NEMA 5-15P Plug |
| Voltage Range | 104 – 127V |
| Refrigerant & Charge | R290 (1.9 oz. / 53.86 g) |
| Heat Rejection | 1,400 BTU/hr |
| Ambient Temperature Range | 45°F – 100°F |
| Water Temperature Range | 45°F – 90°F |
| Water Pressure Range | 10 – 113 psig |
| Potable Water Inlet Connection | 1/2″ FPT (Min 1/4″ Nominal ID Copper Tubing or Equivalent) |
| Drain Line Connection | 1/2″ FPT (Min 1/2″ Nominal ID Drain Hard Pipe or Equivalent) |
| Energy Consumption | 8.5 kWh / 100 lbs @ 90°F Air / 70°F Water |
| Water Consumption | 12 gal / 100 lbs @ 90°F Air / 70°F Water |
| Shipping Weight | 134 lbs |
| Freight Class & NMFC | Class 150 (NMFC Code: 123550-02) |
| Warranty | 2-Year Parts & Labor (Entire Machine) |
